Setting up fuel injectors on Type 4 engines is a complex process that requires careful consideration of various factors. The Type 4 engine, commonly found in vehicles such as the Volkswagen Bus, Porsche 914, and older cars, offers a unique challenge when it comes to fuel injection systems. The process involves understanding the engine's specifications, selecting the appropriate fuel injectors, and performing a range of maintenance tasks to ensure optimal performance and longevity. This includes regular servicing, cleaning, and potential upgrades to improve fuel efficiency, horsepower, and overall output. The setup process can vary depending on the specific vehicle and its modifications, requiring adaptability and a solid understanding of automotive mechanics.
| Characteristics | Values |
|---|---|
| Fuel Injector Type | Bosch EV14 Fuel Injectors |
| Vehicle Type | Volkswagen Type 4 engines, VW Bus, Porsche 914 |
| Injector Placement | Custom linkage may be required |
| Fuel Type | Compatible with E85 and Ethanol |
| Maintenance | Servicing every 25,000 miles, use fuel injector cleaner |
| Performance | Smoother running engine, improved mid-range power, increased overall power |
| Installation | Plug-and-play kit, slight modifications may be needed |
| Cost | Varies, can be under $1000 |
| Parts | Fuel rail, injectors, hoses, clamps, adapters |
| Safety | Wear chemical-resistant gloves, have a fire extinguisher, work in a well-ventilated area |
Explore related products
What You'll Learn
Fuel injector placement

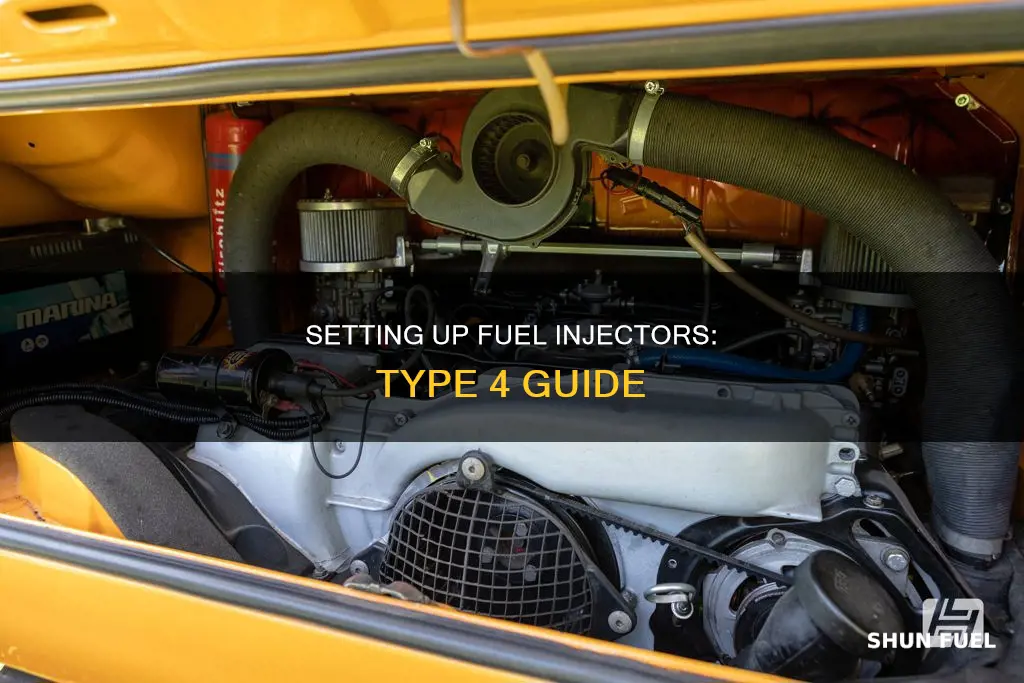

The Type 4 engine is commonly associated with Volkswagen (VW) vehicles, such as the VW Bus, and some Porsche models. When considering injector placement, it's important to understand the characteristics of the engine and the specific goals for performance.
Injector placement can influence the atomization of fuel. Atomization refers to the process of breaking down the fuel into micro-droplets, which can then mix with air for combustion. On short manifolds, twin carbs with shorter manifolds tend to perform better than a single-centre mount due to the time-temperature dynamic and the creation of turbulence.
The placement of injectors can also impact power output. While maximising horsepower might be a common goal, it's important to consider the engine's intended operating range. Formula One engines, for example, have injectors placed further away and higher up to keep the intake charge cool and maximise horsepower at extremely high RPMs. However, this placement can lead to low RPM issues and the need for rapid shifting to maintain velocity. For street use, achieving extremely high RPMs is unlikely, so the injector placement strategies from racing applications might not be directly applicable.
To optimise power output, consider the runner length and size. The spark plug location constrains the runner length, and the ability to adjust these factors can impact horsepower and torque. Swaged or tapered tubing can also influence performance. Additionally, ensuring that the injectors are pointed directly at the valve or into the straight-line portion of the port can enhance performance. If this isn't possible, a slight upstream adjustment of around 2 inches and a more vertical downward angle can be considered.
When placing injectors, it's important to avoid having them spray directly onto the manifold or port walls. This can make it challenging to control the fuel mixture during warm-up and throttle transitions. By spraying into the air rather than onto surfaces, the vaporising fuel can help cool the incoming air, improving performance.
Some specific considerations for the Type 4 engine include the use of stock parts, such as the throttle body, which can provide good fuel economy. Additionally, modifications to the body may be necessary to clear the injectors, such as lowering the side "shelves" in the engine compartment.
In summary, fuel injector placement for a Type 4 engine should consider the engine's specific characteristics and performance goals. Optimising atomization, power output, and engine temperature can be achieved through strategic injector placement and angle adjustments, as well as considering the runner length and size.
Fuel Injector Valve: Reassembling the Parts
You may want to see also
Explore related products
Fuel injector removal
To remove a fuel injector, you will need a fuel injector puller removal set. You can purchase these online, with options available for different car makes and models. For example, the V-SEK Fuel Injector Puller Remover Tool Kit is compatible with Ford Volvo 1.0L, 1.5L, 1.6L, 1.8L, 2.0L, 2.3L, 2.7L, and 3.5L engines. Meanwhile, the DPTOOL Fuel Injector Puller Removal Set is compatible with Audi VW 1.4, 1.6, 1.8, 2.0, 2.7, 3.0, 3.2, 3.6, and 4.2 engines.
Before purchasing a kit, be sure to check its compatibility with your vehicle. For example, the DPTOOL kit is noted to work for some Volkswagen vehicles but not for others, and it is not suitable for diesel engines.
Once you have the correct kit, follow the manufacturer's instructions for use. Some kits may include a slide hammer to help remove the injectors, and you may need to replace the fuel injector oil seal if it is old and causing fuel leakage.
If you are removing the fuel injectors from a Type 4 engine, you may be interested in upgrading to a complete fuel rail system. These systems are designed for Type 4 engines and offer improved flow rate, atomization, and power. They are typically easy to install, with some options being a "plug and play" kit, although slight modifications may be required depending on your specific vehicle.
Fuel Injector Fuses: Are They Necessary?
You may want to see also
Explore related products
Fuel injector servicing
Fuel injectors require regular maintenance and repair to ensure they are properly distributing gasoline for the combustion process. Without regular maintenance, fuel may remain unburned, causing rich conditions in the engine, which can lead to poor gas mileage, carbon buildup, and power losses.
If the fuel injector cleaning process does not produce the desired results, technicians can perform an "off-the-car" cleaning service, where the injectors are soaked in detergent to break up deep residue. After each cleaning session, a fuel injector test is performed to ensure the flow rate matches the stock configuration.
In addition to cleaning, fuel injector servicing can also include the replacement of worn lines and other components in the system. This may involve ordering fuel injector upgrades to complement any recent power component upgrades made to the engine.
There are several companies that offer fuel injector cleaning and flow testing services, with prices ranging from $15 to $25 per injector. These services can often be initiated by filling out a form online and mailing in the injectors to be serviced.
Testing Fuel Injectors: Using a Multimeter to Check for Issues
You may want to see also
Explore related products
Fuel injector conversion
Fuel injectors are a great upgrade for classic Volkswagens. Electronic fuel injection (EFI) is an improved system of delivering fuel to your engine. The carburettor(s) that are factory-fitted work on the principle of a vacuum to draw a metered amount of fuel into the engine. EFI replaces this with an electronic system that precisely measures the engine speed, angle, load, and temperatures. It then uses this data to calculate the required volume of fuel needed for each engine cycle and injects it electronically as a highly atomised mist for efficient combustion.
The Engine Control Unit (ECU) can be programmed to fire the spark at the optimal time under all conditions for maximum engine efficiency. This is programmed with in-house VW Dyno Tuning. There are numerous benefits to converting your air-cooled VW to EFI, including an increase in power and a reduction in fuel consumption.
One example of a fuel injector conversion is the IR Type 4 Fuel System upgrade. This includes 2x anodized top feed rails with easy adaptation to barbed fittings, 4x flow-matched Injector-Rehab EV14 Fuel Injectors specifically for Type 4, 4x straight AN adapters for the rail, 4x 7M Hose Barb (5/16) – 90*, and 4x hose clamps. This kit is designed for a quick and easy install, however, slight modifications may be required based on your specific vehicle.
Another option for fuel injector conversion is to use a Megasquirt system. This option is more affordable, with a budget of around $700, but will require more scrounging and patience to find the necessary parts. This system can be built on a mockup "empty" engine with junk parts, which makes it much easier to deal with when installing it in an engine compartment.
Fuel Injector Rod Repairs: Cost and Maintenance Tips
You may want to see also
Explore related products
Fuel injector parts
Fuel injectors are the main gas delivery system in automotive engines. They can become defective or clogged over time, leading to problems with engine performance and fuel efficiency. Symptoms of a faulty fuel injector include difficulty starting the engine, engine knock or detonation, smoke from the tailpipe, poor idle, and fuel odours.
There are several parts and components that make up a fuel injector system. The injector itself is a small nozzle that delivers fuel to the engine. It is usually located very close to the engine's intake manifold. The injector has a number of tiny holes, which spray a mist of fuel into the engine. This process is called atomization, and the more holes the injector has, the better the atomization. This results in a smoother-running engine, improved mid-range power, and an overall increase in power.
The fuel injector is connected to a fuel rail, which is a metal tube that carries fuel from the tank to the injector. The rail is connected to the injector with a fitting, and the fuel is delivered under high pressure. This pressure can be adjusted with a pressure regulator, which is another component of the fuel injector system. This ensures that the correct amount of fuel is delivered to the engine.
Other components of a fuel injector system include various sensors, such as a throttle position sensor, and a fuel pump. The pump delivers fuel from the tank to the rail, and the sensors monitor various aspects of the engine's performance, ensuring that the correct amount of fuel is delivered at the right time.
When to Clean Fuel Injectors: Signs Your Car Shows
