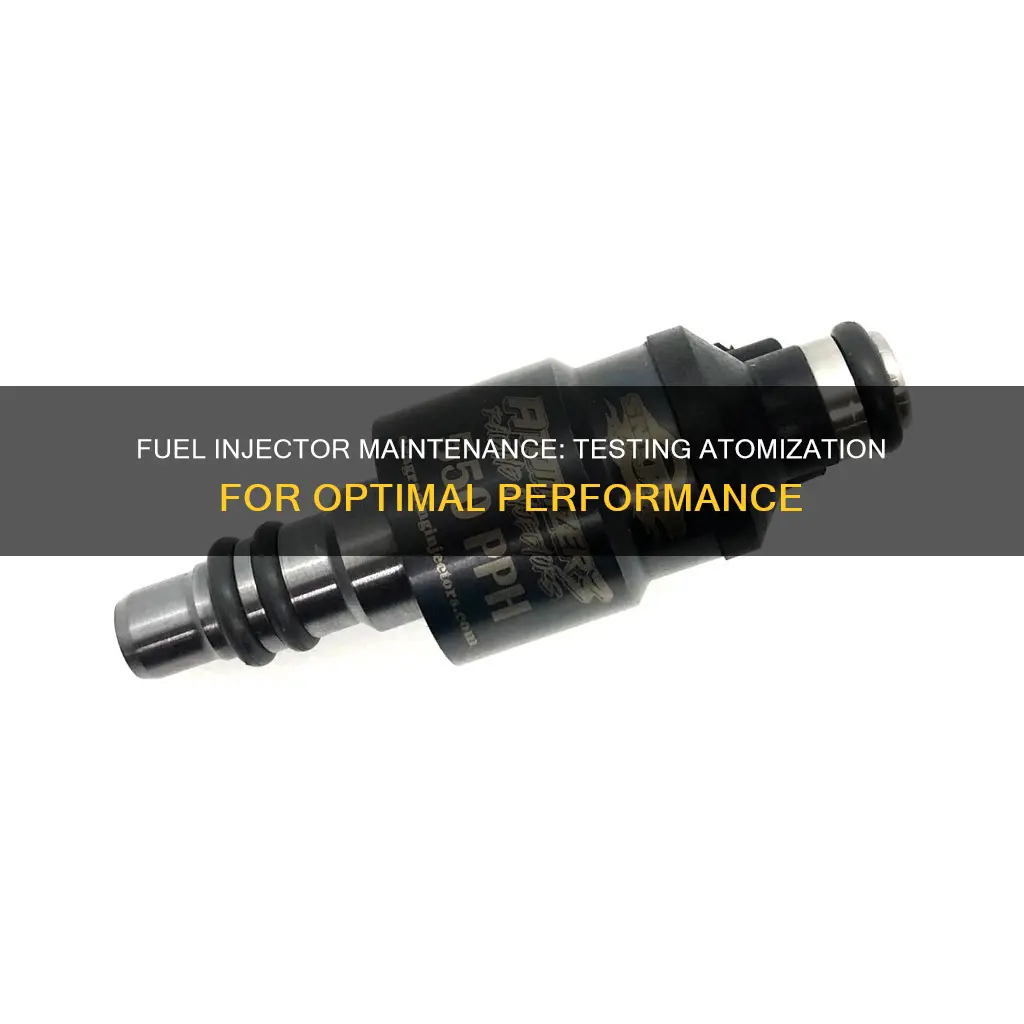

Fuel injectors are designed to spray fuel into the cylinders of an engine, where it is combined with air and ignited to produce power. A faulty fuel injector can cause an engine to run poorly or fail to run at all. While some fuel injector issues may require a professional mechanic's inspection, others can be diagnosed at home with simple tools. This introduction will cover the steps to test fuel injectors and identify potential issues, including checking for proper atomization, ensuring correct flow rates, and utilizing tools such as mechanic's stethoscopes, multimeters, and test lights. By the end of this topic, you should be able to identify common problems with fuel injectors and take appropriate action for repair or replacement.
Characteristics and Values of a Fuel Injector Atomizing:
| Characteristics | Values |
|---|---|
| Fuel Injector Performance | At higher RPMs, fuel injectors have trouble performing well due to the mass of the poppet inside. |
| Intake Runner Length | The length of the intake runners affects the power of the engine. A shorter tube results in higher pressure and lower volume, while a longer tube leads to lower pressure and higher volume. |
| Flow Rate | Critical item for injectors as the ECU operates within a specific range. Replacing a stock injector with one that has a higher flow rate can cause issues. |
| Fuel Pressure | The ECU can detect fuel pressure and adjust the amount of fuel injected accordingly. |
| Fuel Atomization | The more atomized the fuel, the better it mixes with air and ignites evenly. |
| Testing Fuel Injectors | Use a mechanic's stethoscope or a thin hose/screwdriver to listen for a clicking sound, indicating the injector is working. |
| Test Light | With the engine idling, the test light should flicker dimly, and brighten when the throttle is applied. A failing test light indicates a faulty injector or ECU. |
| Multimeter | Set the multimeter to the Ohms scale (at least 30 Ohms) and investigate the injector electrical terminals. A reading other than the specified resistance indicates a need for injector replacement. |
Explore related products
What You'll Learn
- Use a mechanic's stethoscope to listen for a clicking sound
- Check the injector's coil with a digital multimeter
- Observe the spray pattern—the more atomized the fuel, the better it mixes with air
- Check for a flashing/flickering light—a failing ECU may cause issues
- Inspect the wiring—a blown fuse or bad connection can cause problems
Use a mechanic's stethoscope to listen for a clicking sound
Mechanics' stethoscopes are used to diagnose car issues by pinpointing sounds and listening in closely to a certain area. They are used for the same purpose as medical stethoscopes. In place of a chest piece sits a steel rod, which is placed against the suspected source of the noise or issue. They are a staple of most professionals' toolboxes and can be purchased for a low price.
When using a mechanic's stethoscope to listen for a clicking sound in a fuel injector, it is important to be aware that the injector's sound can vary depending on the spot and force with which you place the stethoscope on it. It is also important to note that the range of sounds that come through the stethoscope is very large, and metal transmits sound very well, so diagnosing the issue may be challenging.
To listen for a clicking sound in a fuel injector, place the steel rod of the stethoscope against the injector. You should be able to hear a distinct, consistent clicking sound if the injector is operating correctly. If the injector is not clicking at all, it may be clogged or flow-restricted.
It is worth noting that you can also use a long screwdriver instead of a stethoscope to listen for the clicking sound. Simply stick the screwdriver against the injector and place your ear against the handle.
Fixing a Leaking Fuel Injector: A Step-by-Step Guide
You may want to see also
Explore related products
Check the injector's coil with a digital multimeter
Fuel injectors play a crucial role in your vehicle by spraying fuel into the cylinders of your engine, where it is combined with air and compressed before being ignited by the spark plug to generate power. If there is any issue with your fuel injectors, your engine may run poorly or even fail to run. Checking the injector's coil with a digital multimeter is one way to test a dead injector.
- Turn off the vehicle: It is important to ensure the vehicle is turned off before beginning any diagnostic or maintenance work.
- Locate the fuel injectors: Refer to the service manual for your specific vehicle to locate the fuel injectors. They are typically found on the intake manifold and are connected by a fuel rail.
- Disconnect the electrical connector: Remove the electrical connector from the injector you want to test.
- Set the multimeter: Select the right value on the Ohms scale according to the resistance specifications for your fuel injector. Typically, you will need to set the multimeter to read at least up to 30 Ohms. You can find the resistance value for your injector in your car's manual or an aftermarket repair manual.
- Test the injector: Touch the two metal contacts on the injector with the multimeter probes and take the resistance measurement.
- Interpret the results: If the measured resistance is significantly different from the specified value, it could indicate a problem with the injector. This could include issues such as leakage, blockage, or damage.
It is important to note that fuel injectors can vary, and the exact numbers will depend on your vehicle. An injector balance test can help determine if all the injectors are delivering equal amounts of fuel. If they are not, cleaning or replacement may be necessary.
Additionally, you can visually inspect the fuel spray pattern on TBI (Throttle Body Injection) injectors. It is normal to observe fuel coming out partially atomized in an inverted V pattern. However, if you see a solid, single spray or irregular pattern, it indicates a dirty injector or a broken/worn-out internal component.
By following these steps and interpreting the results, you can effectively check the injector's coil with a digital multimeter and identify any potential issues with your fuel injectors.
Adjusting Idle with Fuel Injectors: The Complete Guide
You may want to see also
Explore related products
Observe the spray pattern—the more atomized the fuel, the better it mixes with air
The spray pattern of a fuel injector is an important aspect of its function, as it determines how well the fuel mixes with the air. A more atomized spray pattern indicates better fuel vaporization and, consequently, improved combustion. This is because a highly atomized spray has a larger surface area, allowing for more effective mixing with air. The shape of the spray pattern can provide insights into the degree of atomization achieved.
The spray pattern is influenced by the design of the fuel injector and the fuel spray nozzles. For example, "shower head" injectors found in some motorcycles and race cars produce a very wide spray pattern, which can lead to fuel being sprayed outside the intake runner, causing issues. The rate of swirl and pressure of the fuel at the nozzle also play a role in determining the spray pattern.
To optimize the spray pattern and atomization, engineers have employed various methods. One early technique, known as "pressure jet atomization," involves passing the fuel through a swirl chamber, where it gains angular momentum by passing through tangentially disposed holes or slots. The fuel then moves through a discharge orifice that removes the swirl motion, resulting in a cone-shaped spray. More advanced methods, such as the airspray principle, utilize high-velocity air instead of high-velocity fuel to achieve atomization, allowing for effective combustion even at low fuel flow rates.
It is worth noting that the process of fuel atomization and combustion is complex and involves various factors. The velocity of the air stream and the short length of the combustion system pose challenges to achieving efficient burning. Additionally, the physical behavior of the fuel spray, including droplet size and evaporation rate, influences the sooting tendency and overall combustion process. While advancements have been made, further research is needed to fully understand and optimize fuel atomization and spray patterns.
Fuel Injector Cleaner: Can It Clean Spark Plugs?
You may want to see also
Explore related products
Check for a flashing/flickering light—a failing ECU may cause issues
When you start your car, the Check Engine Light (CEL) should briefly illuminate and then turn off. If it remains on or starts flashing, it could indicate an ECU problem or other issues. A flashing CEL requires immediate attention. If you see the check engine light flashing, safely pull over, turn off the engine, and contact a qualified mechanic or have the vehicle towed for repairs.
The ECU, or Engine Control Unit, may malfunction due to low voltage or get damaged by high voltage. A weak battery or poor connections can mimic ECU issues, so check your battery voltage using a multimeter. It should read 12.4-12.7 volts when the engine is off and 13.7-14.7 volts when running. Any readings outside these ranges could indicate charging system problems affecting the ECU.
Find your car's fuse box and inspect the fuses related to the ECU. Replace any blown fuses and check/test relays connected to the ECU. Faulty fuses or relays can disrupt the power supply, causing symptoms similar to ECU failure. Consult your owner's manual to locate the correct fuses and relays.
You can also plug an OBD-II scanner into your car's diagnostic port, usually located under the dashboard on the driver's side. Follow the scanner's instructions to read error codes. Look for codes starting with "P06," as these often relate to ECU issues. Write down any codes you find, as they may provide clues about what's affecting your ECU.
Additionally, issues with the mass airflow (MAF) sensor can cause the ECU to miscalculate the fuel injection amount, leading to a rich or lean fuel mixture and triggering the check engine light. Cleaning or replacing the MAF sensor may resolve this problem. Fuel system issues, such as fuel pump failure, injector malfunction, or a clogged fuel filter, can also cause an imbalance in the air-fuel mixture, resulting in a flashing check engine light.
Fuel Injector Upgrade: Installing Larger Ones in Your E38
You may want to see also
Explore related products
Inspect the wiring—a blown fuse or bad connection can cause problems
Inspecting the wiring of a fuel injector is an important step in diagnosing any issues with your vehicle's fuel injection system. Here are the steps you can take to inspect the wiring and identify any potential problems:
Locate the Wires: Begin by locating the wires connected to the fuel injector. Each fuel injector will have a metal clip plugged into it, with two wires emerging from it. These wires are typically grey and black, but they can vary in colour.
Test Voltage: One of the wires is a 12-volt constant that should always be receiving power. Use a test light or voltmeter to check the voltage. Press the sharp end of the test light into the rubber coating around each wire, penetrating the metal wiring inside. If one of the wires illuminates the test light or registers around 12 volts on the meter, it indicates that the injector is receiving the required voltage.
Check for Breaks: If neither wire reacts, there may be an issue with the power supply to the fuel injector. Follow the wires and inspect them for any breaks or damage that could prevent electricity from reaching the injector.
Inspect Connectors: Examine the electrical connectors for any signs of corrosion or damage. Corroded connectors can hinder the flow of electricity and cause issues with the fuel injector's performance.
Test Resistance: Utilise a multimeter to test the resistance or Ohms produced by the fuel injector. Place the multimeter leads into the fuel injector plug terminal and take a reading. Compare this value with the readings from other injectors. If the reading is significantly different, it may indicate a failed injector or a problem with the wiring.
By following these steps, you can thoroughly inspect the wiring of your fuel injector and identify any potential issues, such as blown fuses or faulty connections, that may be impacting its performance. Remember to take necessary safety precautions, such as wearing protective gloves and eyewear, when working with fuel injectors.
Repairing Kawasaki Mule Fuel Injector: Step-by-Step Guide
You may want to see also
Frequently asked questions
There are a few ways to test if your fuel injector is atomizing properly. Firstly, you can use a mechanic's stethoscope or a thin hose to listen for a clicking sound, which indicates the injector is working. Secondly, you can test the voltage by pressing a test light into the wiring—if the light turns on with one wire, the injector has the necessary voltage. Finally, with the engine idling, you can observe the test light; it should flicker dimly and brighten as the throttle is applied.
Atomization refers to how well the fuel is mixed with air, which is critical for even ignition. The more atomized the fuel, the better it mixes with air.
Fuel injectors can fail or cause engine performance issues due to various reasons. These include issues with the electronic control unit, faulty injectors along the fuel rail, or leaks. In some cases, a professional mechanic may be required to diagnose and fix the problem.
