Fuel injector connectors are susceptible to deterioration over time due to their proximity to intense heat, vibration, and chemical fumes in a vehicle's engine. This can cause the connector's nylon body to break, requiring replacement to ensure the vehicle is safe to drive. Rewiring a fuel injector connector involves removing the existing connector and replacing it with a new one, either by soldering new wires or using a terminal release tool to reuse the existing wires.

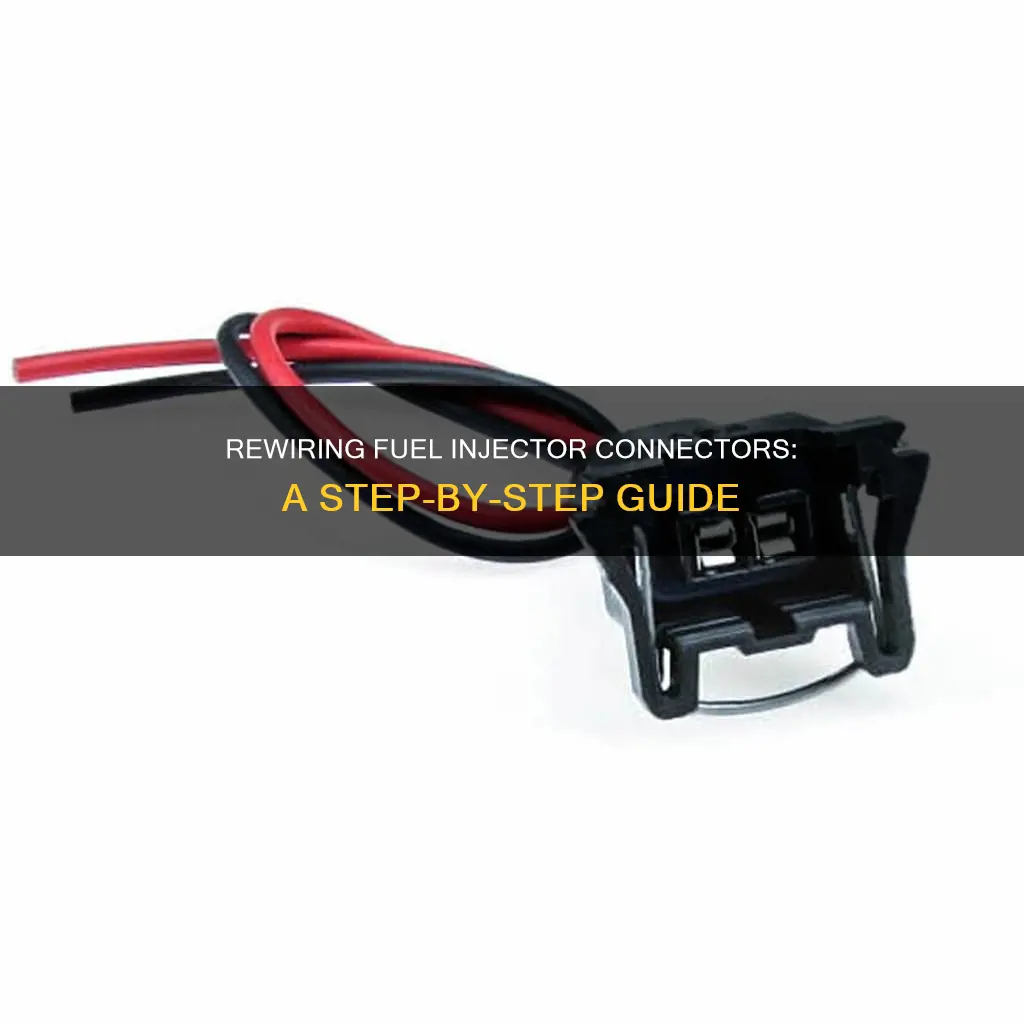

Rewiring a Fuel Injector Connector
| Characteristics | Values |
|---|---|
| Tools | Terminal release tool, small and thin screwdriver, dental probe, Dremel with a teensy-toothed cutoff, flat-blade screwdriver |
| Process | Remove existing wires, cut off old metal terminals, crimp on new terminals, snap new terminals into new connector body |
| Parts | Metal terminals, sealing gaskets, nylon body, pigtail |
| Tips | Reusing a broken connector is not recommended, select the proper type of connector, compare to detailed pictures online |
Explore related products
What You'll Learn
Removing a fuel injector connector
To remove a fuel injector connector, you will need to first locate the wire terminal and the connector. Once you have found these, you will need to pull the locking tab forward. This will allow you to insert a tool into the small hole above the pin, which will release the detent and enable you to remove the connector.
It is important to note that the specific steps may vary depending on the type of vehicle you have. For example, the process for removing the fuel injector connector on a fourth-generation Volkswagen Jetta (also known as the MK4 or Bora) may be different from other vehicles.
In some cases, it may be necessary to replace the wiring harness for the injectors. This can usually be done at a low cost, either by purchasing a new one from a local auto wrecker or by finding a used one.
Additionally, there may be online resources, such as videos or forums, that can provide more detailed instructions on how to remove and replace the fuel injector connector for your specific vehicle. These resources can be helpful if you are unfamiliar with the process or the specific connector type.
Measuring Fuel Injector Flow: A Step-by-Step Guide
You may want to see also
Explore related products
Reusing a broken fuel injector connector
Firstly, assess the damage. If the connector is simply loose or has a cracked clip, you may be able to reuse it with some adjustments. If the connector is completely defective or severely damaged, reusing it may not be safe, and replacement might be a better option.
If the wires are still intact and functional, you can try unclipping each wire from the broken connector using a curved pick or a similar tool. Be careful not to damage the wires during this process. Once the wires are free, you can splice them into a new connector. Ensure that the new connector matches your vehicle's specifications and that you follow the correct wiring diagram for your specific fuel injector.
In some cases, you might be able to repair the broken connector. For example, if the plastic housing is damaged but the wires are intact, you can replace the plastic by clipping the wires into a new housing. Ensure that the replacement plastic matches the original in terms of size and shape.
If you are unable to find an exact replacement connector, you might be able to source a used connector from a junkyard, online forums, or by contacting specialists who rebuild injectors. It is also worth checking with your local dealership, as they may have old injectors that they are willing to discard, and you can reuse the connectors from those.
As a temporary fix, you can use zip ties to hold the broken connector in place. This is not a long-term solution, but it can help you get by until you find a more permanent solution.
Remember to exercise caution when working with fuel injectors, and always refer to your vehicle's repair manual for specific instructions and safety precautions.
Quieting Noisy Fuel Injectors: A Comprehensive Guide to Silence
You may want to see also
Explore related products
Selecting the right type of connector
First, it is important to understand that fuel injector connectors are susceptible to deterioration over time due to their proximity to the engine, which exposes them to intense heat, vibration, and chemical fumes. This can cause the connector's nylon body to break, requiring replacement to ensure a proper seal and prevent moisture ingress, which can lead to corrosion.
When selecting a replacement connector, it is essential to visually identify the correct type for your vehicle. Compare the detailed pictures available online with your existing connector to ensure a precise match. The connector type may vary depending on the vehicle's year, make, and model.
There are several types of fuel injector connectors available, including the Bosch Style EV1 and USCAR (EV6) connectors. The Bosch Style EV1 connector comes in both male and female versions and is available in three variations: Type A with side release, Type B with top release and a short body, and Type C with top release and a long body. On the other hand, the USCAR (EV6) connector also has male and female versions, with the female version featuring a sealed connector and a red sliding latch to lock it in place.
Additionally, consider the ease of installation and removal when selecting a connector. Some connectors may require special tools for extraction, while others can be easily removed by hand. Also, look for connectors that come with all the necessary parts, such as metal terminals and sealing gaskets, to simplify the installation process.
By following these guidelines and carefully considering your vehicle's specific requirements, you can choose the right type of connector for rewiring your fuel injector, ensuring optimal performance and safety.
Cleaning Fuel Injectors in Nissan Sentra: DIY Guide
You may want to see also
Explore related products
Using a terminal release tool
The terminal release tool is specifically designed to release the terminals from the fuel injector connectors. It is important to have the right tool for the job, as some connectors may be challenging to work with and require a specific type of release tool. For example, BMW fuel injectors use Junior Power Time (JPT) receptacles with two lance tabs, making it impossible to remove the receptacles from the housing without breaking them. In such cases, a JPT extraction tool is necessary.
When using a terminal release tool, it is important to follow the correct procedure. First, identify the type of connector and its release mechanism. Some connectors may have a locking tab that needs to be pulled forward before inserting the tool. Others may have a sliding latch or lock to secure the connector in place. Understanding the specific design of your connector will help you effectively use the terminal release tool.
Additionally, some connectors may have wire retaining clips or terminal tabs that need to be carefully worked around. In some cases, it may be necessary to use a tool to grind or cut away certain parts of the connector to access the wires. It is crucial to be cautious during this process to avoid damaging the wires themselves.
By using the terminal release tool correctly and following the specific instructions for your connector type, you can safely and effectively remove the injector wiring harness and proceed with rewiring your fuel injector connector.
Heet Cleaner: Does It Clean Fuel Injectors?
You may want to see also
Explore related products
Soldering and clipping wires
Clipping the Wires:
Before you begin, ensure you have the necessary tools, such as a Dremel with a small toothed cutoff wheel or a terminal release tool. When clipping the wires, your goal is to get as close as possible to the terminal. This step ensures that you have enough wire length to work with when crimping on the new terminal. It is recommended to clip both wires to the same length, as this helps with the overall fit of the new connector, even though it doesn't matter electrically.
Removing the Old Terminals:
To remove the terminals from the old housing, carefully use the Dremel to score down close to the terminals. Be cautious not to damage the terminals during this process. Once you've scored the area, use a flat-blade screwdriver to gently pry the cut pieces apart. This will allow you to release the terminals from the housing.
Soldering New Connectors:
After acquiring the appropriate connectors, such as the Bosch 2-wire injector connectors, you can proceed to solder them in place. Ensure that the wire lengths are appropriate, and if necessary, acquire wires of the same gauge from a junkyard or auto parts store. Solder the new connectors onto the wires, following the manufacturer's instructions for a secure connection.
Crimping the New Terminals:
Finally, crimp on the new terminals. This process involves using a crimping tool to securely attach the new terminals to the wires. Ensure that the new terminals are of the correct type and size for your specific fuel injector. With the new terminals crimped in place, your fuel injector connector is now rewired, and you can proceed with the rest of your repair or maintenance work.
Remember to work carefully and patiently throughout this process to avoid any damage to the wires or terminals, ensuring a reliable and safe connection for your fuel injector.
Fuel Injector Failure: Can They All Go Bad Simultaneously?
You may want to see also
Frequently asked questions
You can rewire a fuel injector connector by cutting the wires as close to the terminal as possible and crimping on a new one. You can also use a Dremel with a teensy-toothed cutoff to score down close to the terminals and then pry the pieces apart with a flat-blade screwdriver.
You will need a terminal release tool or a very small and thin screwdriver or dental probe. You will also need a Dremel with a teensy-toothed cutoff and a flat-blade screwdriver.
A fuel injector connector is a component of a vehicle's fuel injection system that connects the fuel injectors to the engine's fuel supply lines.
You can buy a fuel injector connector online from websites like Injector Repair LLC, AutoZone, and CarParts.com.
