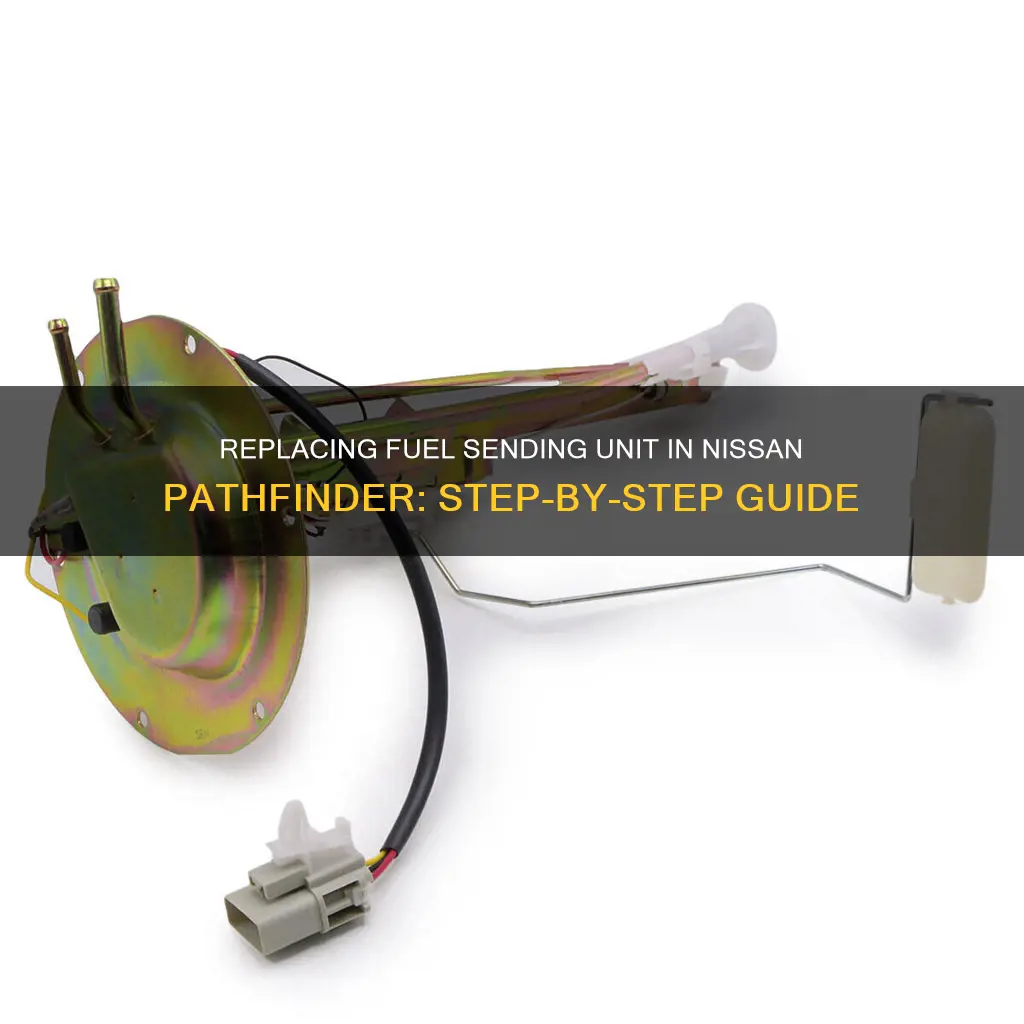

If you're experiencing issues with your Nissan Pathfinder's fuel gauge, it might be time to consider replacing the fuel sending unit. This component is located inside the fuel tank and is responsible for sending a signal to indicate the amount of fuel remaining. While it's not a common issue, a faulty fuel sending unit can lead to an inaccurate fuel gauge, potentially leaving you stranded on the road. The good news is that replacing the fuel sending unit on your 2005 Nissan Pathfinder is a manageable task that you may be able to tackle yourself. However, it's important to note that you'll likely need to drop the fuel tank to access the unit, which can be a complex process. Before beginning any repairs, make sure to consult a trusted repair manual or seek advice from a certified mechanic to ensure you have the necessary tools and knowledge to complete the job safely and effectively.
| Characteristics | Values |
|---|---|
| Year of Nissan Pathfinder | 2005 |
| Average cost of replacement | $1,339 - $1,464 |
| Labor cost | $128 - $161 |
| Parts cost | $1,211 - $1,302 |
| Location of fuel level sending unit | Inside the fuel tank |
| Ease of detachment from fuel pump assembly | Simple, it just clips on |
| Need to drop the fuel tank? | Yes |
Explore related products
What You'll Learn
- The fuel level sensor is located inside the fuel tank
- The fuel tank must be removed to replace the fuel sending unit
- The fuel sending unit can be detached from the fuel pump assembly
- Disconnect lines, filler hose, and wiring to the fuel pump
- The fuel sending unit can be repaired if the issue is with electrical shorts or corroded connections
The fuel level sensor is located inside the fuel tank
To replace the fuel sending unit, you will need to remove the fuel tank. This is not a simple task and requires careful handling of electricity and fuel, so it is important to take the necessary safety precautions.
First, ensure that you have run out of gas or drained the tank to reduce the risk of fire hazards. Next, jack up the rear side of the vehicle and remove the fuel tank. Disconnect the lines, filler hose, and wiring to the pump. Drop the straps and lower the tank. Then, you can undo the bolt to the tank top, unlock the locking ring, and remove the sending unit.
Replacement sending units are available for purchase online or at auto parts stores, and the part typically costs between \$80 and \$90. When installing the new sending unit, make sure to compare the movement of the old unit with the new one to ensure proper calibration. Adjust the arm if necessary to ensure the correct fuel level is displayed on the gauge.
This repair can be challenging, so if you feel unqualified or uncomfortable with any part of the process, it is best to leave it to a professional technician.
Replacing Fuel Pump in Triumph 955i: Step-by-Step Guide
You may want to see also
Explore related products
The fuel tank must be removed to replace the fuel sending unit
To replace the fuel sending unit on a 2005 Nissan Pathfinder, the fuel tank must be removed. This is because the fuel sending unit is located inside the fuel tank.
Firstly, ensure that the fuel tank is almost empty, with very little fuel left. Jack up the car and make sure it is securely supported. Disconnect the fuel lines, filler hose, and wiring to the fuel pump. Drop the tank straps and lower the tank. Undo the bolt to the tank top and unlock the locking ring. Take out the sending unit and fuel pump. Replace with new parts, and reverse the steps to reassemble.
It is important to note that this is a complex task that requires mechanical knowledge and skills. If you are not confident in your abilities, it is recommended to seek professional assistance.
Additionally, there is a recall for the fuel sending unit on some Nissan Pathfinder models. Check with your local dealership to see if your vehicle is eligible for a free replacement.
Replacing Fuel Sender on John Deere X500: Step-by-Step Guide
You may want to see also
Explore related products
The fuel sending unit can be detached from the fuel pump assembly
To detach the fuel sending unit from the fuel pump assembly of a 2005 Nissan Pathfinder, you will need to first access the fuel tank. This may involve jacking up the vehicle, disconnecting lines and hoses, and lowering the fuel tank.
Once you have access to the fuel tank, you will need to locate the fuel sending unit and the fuel pump assembly. The fuel sending unit is located inside the fuel tank, and it sends a constant signal indicating the amount of fuel that remains. It is attached to or is part of a larger unit, which may be the fuel pump assembly.
To detach the fuel sending unit from the fuel pump assembly, you will need to remove any bolts or locking rings securing them together. You may also need to disconnect any electrical connectors or wiring. It is recommended to compare the movement of the old fuel sending unit with the new one to ensure proper calibration.
Before beginning any work, it is important to release the fuel pressure from the system and disconnect the battery to ensure safety. Additionally, it is advised to clean the area around the fuel tank and the locking ring to prevent dirt or debris from entering the tank.
Please note that some sources suggest that it is necessary to drop or remove the fuel tank to access the fuel sending unit and fuel pump assembly. This process may vary depending on the specific make and model of your vehicle, so it is recommended to refer to a repair manual or seek advice from a certified technician if you are unsure.
Replacing Fuel Pump Sensors: A Step-by-Step Guide for Beginners
You may want to see also
Explore related products
Disconnect lines, filler hose, and wiring to the fuel pump
Disconnecting the lines, filler hose, and wiring to the fuel pump is a crucial step in replacing the fuel sending unit on a 2005 Nissan Pathfinder. Here is a detailed guide on how to perform this task:
Step 1: Safety First
Before starting, ensure the vehicle is parked on a level surface and the engine is turned off. Place wheel chocks around the wheels to prevent accidental movement. Wear protective gear, including gloves and safety goggles, to avoid any injuries or fuel spills.
Step 2: Lower the Fuel Level
It is essential to reduce the risk of fuel spillage during the replacement process. Run the vehicle until the fuel level is low, or if possible, allow the vehicle to run out of fuel. This step ensures minimal fuel remains in the tank when you begin the replacement procedure.
Step 3: Access the Fuel Tank
Locate the fuel tank and identify the lines, filler hose, and wiring connected to the fuel pump. You may need to raise the vehicle and safely support it on jack stands to access the fuel tank properly. Refer to your vehicle's repair manual for specific instructions on accessing the fuel tank.
Step 4: Disconnect the Lines and Filler Hose
Using appropriate tools, carefully disconnect the lines and filler hose from the fuel pump. This process may vary depending on your vehicle's specific configuration, but it typically involves loosening clamps or disconnecting quick-release couplings. Place a container under the connections to catch any residual fuel that may spill.
Step 5: Disconnect the Wiring
Locate the electrical connector(s) supplying power to the fuel pump. Carefully detach the wiring harness or connector from the fuel pump. Be gentle to avoid damaging the wiring or connector. Again, have a container ready to catch any residual fuel that may drip from the fuel pump during this process.
Step 6: Secure the Components
Once all connections are disconnected, carefully secure the lines, filler hose, and wiring to the vehicle's body or frame to prevent them from interfering with the fuel tank removal process. Ensure they are safely fastened and will not pose any hazards during the next steps.
By following these steps, you will have successfully disconnected the lines, filler hose, and wiring to the fuel pump, allowing you to proceed with the next steps in replacing the fuel sending unit on your 2005 Nissan Pathfinder. Remember to work cautiously and refer to vehicle-specific repair manuals or seek professional assistance if needed.
Replacing Fuel Pump in Trailblazer: Step-by-Step Guide
You may want to see also
Explore related products
The fuel sending unit can be repaired if the issue is with electrical shorts or corroded connections
The fuel sending unit in your 2005 Nissan Pathfinder can often be repaired if the issue is related to electrical shorts or corroded connections. Here are some steps you can take to diagnose and potentially fix the problem:
Diagnostics and Troubleshooting:
- Check for any OBD-II trouble codes by using an OBD-II scanner if your check engine light is on. Common codes related to the fuel sending unit include P0460, P0461, P0462, P0463, and P0464, all of which can be related to electrical issues.
- Inspect all connections and grounds in the circuit, ensuring that they are secure and free of corrosion.
- Check the fuel gauge fuses. If other gauges are also malfunctioning, it may be a fuse-related issue. Refer to your owner's manual to locate and check the fuses.
- Test the fuel gauge using a multimeter. Set the multimeter to 20V DC and check the voltage of the fuel gauge wire. It should be receiving 12 volts. If not, inspect all wires for damage, corrosion, or loose connections.
- Inspect the top of the fuel sending unit for any damage, corrosion, or improper seating in the tank. Clean the connectors if necessary to improve conductivity and ensure a good ground connection.
- Verify the fuel sending unit's voltage using a multimeter set to 20 volts. Back-probe the input connector on the sending unit with the battery turned on and refer to the Service Manual for the proper voltage. If the input voltage is lower than expected, inspect the wiring from the sending unit to the battery for potential faults.
- Check the output voltage to measure the voltage sent from the fuel sending unit to the fuel gauge. The voltage should be the same on both ends of the wire. If there is a voltage difference, it indicates corrosion or poor wiring between the sending unit and the fuel gauge.
Repair Options:
If the issue is related to electrical shorts or corroded connections, you may be able to repair the fuel sending unit without replacing it. Here are some possible repair approaches:
- Clean the contact areas with electrical contact cleaner. Work the float arm to see if that restores proper functionality.
- Inspect the fuel sending unit for any broken wires. If found, they can be repaired or soldered.
- Open up the fuel sending unit and gently clean the resistor wire and the contact arm with fine-grit sandpaper. Ensure that the contact arm touches the resistor wire without applying too much pressure to avoid premature wear.
- If the circuit is broken inside the top of the sender, it may not be repairable, and replacement might be the only option.
If the fuel sending unit is faulty due to reasons other than electrical shorts or corroded connections, replacement might be necessary. The average cost for replacing the fuel sending unit in a 2005 Nissan Pathfinder is between $1,339 and $1,464, including parts and labor. However, this may vary depending on your location and the specific repair facility.
Replacing Fuel Sending Unit in a 2007 Dodge Charger
You may want to see also
Frequently asked questions
If your fuel gauge is malfunctioning, it could be due to a faulty fuel sending unit. You may also get an OBD2 code indicating a "Fuel Level Sensor A Circuit Low Input" error.
In some cases, you may be able to repair the fuel sending unit by cleaning electrical contacts or fixing broken wires. However, if the sensor itself is faulty, you will likely need to replace the entire unit.
You can replace just the fuel sending unit without replacing the entire fuel pump assembly. They are two separate components, and the fuel sending unit can be easily detached from the fuel pump.
The cost to replace the fuel sending unit on a 2005 Nissan Pathfinder can vary depending on labor and parts, but it typically ranges from $1,339 to $1,464.
Replacing the fuel sending unit can be a complex task, as it involves working with electricity and fuel. It may require removing the fuel tank, which can be heavy and cumbersome. Unless you have experience and knowledge in automotive repair, it is recommended to leave it to a professional technician.
