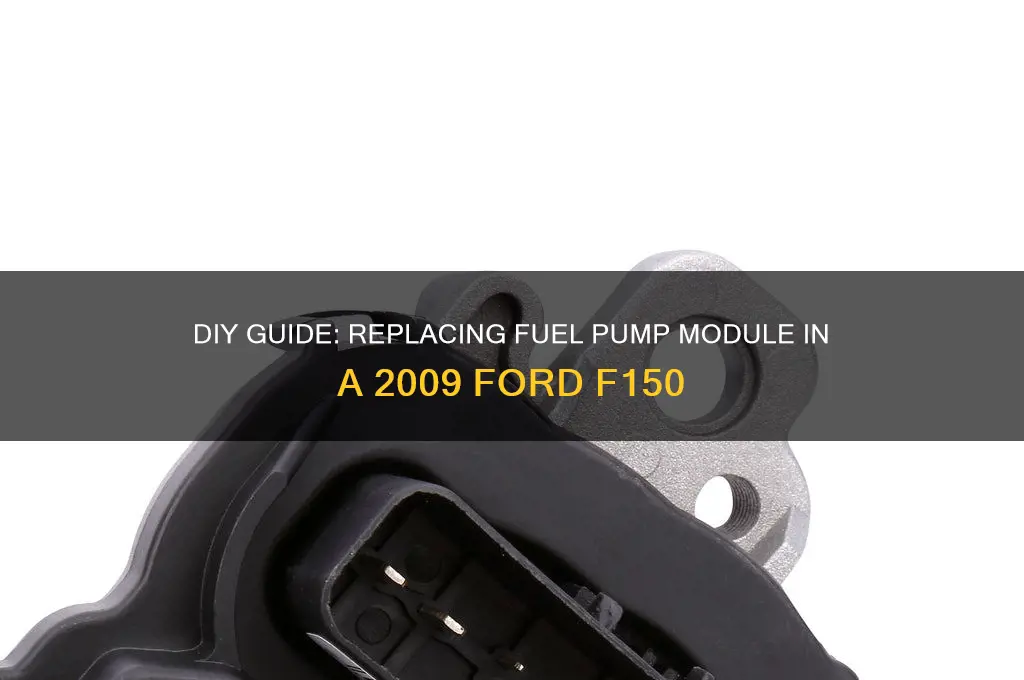

Replacing the fuel pump module on a 2009 Ford F-150 is a critical task that requires careful preparation and execution to ensure safety and proper functionality. The fuel pump module, located inside the fuel tank, is responsible for delivering fuel to the engine, and failure can lead to stalling or poor performance. To begin the replacement process, you’ll need to relieve the fuel system pressure, disconnect the battery, and safely raise the vehicle to access the fuel tank. After removing the tank, carefully disconnect the electrical connectors and fuel lines before removing the old module. Installation of the new module involves reversing these steps, ensuring all connections are secure and the tank is properly resealed. Always follow safety guidelines, such as working in a well-ventilated area and avoiding ignition sources, to prevent accidents during the repair.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2009 Ford F150 |
| Tool Requirements | Jack, Jack Stands, Wrenches, Screwdrivers, Pliers, Fuel Line Disconnect Tool |
| Location of Fuel Pump Module | Inside the fuel tank |
| Fuel Tank Drainage Requirement | Yes, drain fuel tank before removal |
| Fuel Pump Module Access | Through the bed of the truck (remove access panel or bed liner) |
| Disconnect Battery | Yes, for safety |
| Fuel Lines Disconnection | Use fuel line disconnect tool to avoid spills |
| Electrical Connector Disconnection | Unplug the electrical connector from the fuel pump module |
| Fuel Pump Module Removal | Remove retaining ring or bolts securing the module to the tank |
| Installation of New Module | Align and secure the new module, reconnect fuel lines and electrical connector |
| Fuel Tank Reassembly | Reinstall access panel or bed liner |
| Refill Fuel Tank | After installation, refill the fuel tank |
| Safety Precautions | Work in a well-ventilated area, avoid open flames or sparks |
| Estimated Time | 2-4 hours depending on experience |
| Difficulty Level | Intermediate to Advanced |
| Recommended Replacement Parts | OEM fuel pump module, fuel filter (if applicable) |
| Diagnostic Check | Test the new fuel pump module for proper operation after installation |
Explore related products
What You'll Learn
Safety Precautions and Tools Needed
Before diving into the replacement of a fuel pump module on a 2009 Ford F150, it's crucial to prioritize safety and ensure you have the right tools. Gasoline is highly flammable, and working on a fuel system carries inherent risks. Always wear safety goggles and nitrile gloves to protect your eyes and skin from fuel exposure. Work in a well-ventilated area, away from open flames or sparks, and keep a fire extinguisher nearby as a precaution.
Is Your Fuel Pump Failing? Signs and Solutions to Diagnose the Issue
You may want to see also
Explore related products
Locating and Accessing the Fuel Pump Module
The fuel pump module in a 2009 Ford F150 is nestled within the fuel tank, a design choice that enhances safety and efficiency but complicates access. Locating it requires understanding the vehicle’s undercarriage layout. Begin by identifying the fuel tank, typically positioned beneath the rear seats or cargo area, depending on the model. The module itself is integrated into the tank’s top surface, accessible only after removing the tank or through a dedicated access panel. This placement underscores the importance of precision in both location and subsequent steps.
Accessing the fuel pump module demands a methodical approach to avoid damage or safety hazards. Start by relieving fuel system pressure—disconnect the negative battery terminal and locate the Schrader valve on the fuel rail, depressurizing the system by pressing the valve with a tool. Next, drain the fuel tank to minimize spillage; siphoning or using a pump are effective methods. Once the tank is secure and empty, raise the vehicle with a jack and support it on stands to access the underside. Remove the protective shield covering the tank, if present, and disconnect the electrical and fuel lines attached to the module. These steps ensure a safe and controlled environment for the next phase of the replacement process.
A critical aspect of accessing the fuel pump module is understanding the tank’s removal process, as not all F150 models have an access panel. If removal is necessary, unbolt the tank straps and carefully lower the tank onto a secure surface. This step requires caution to avoid damaging fuel lines or electrical connections. Once the tank is accessible, the module is typically secured by a locking ring or bolts. Use the appropriate tool to release these fasteners, ensuring the module is free from the tank. This stage highlights the balance between force and finesse required for successful disassembly.
For those encountering an access panel, the process is streamlined but still requires attention to detail. Locate the panel, often found beneath the rear seats, and remove any covering components to expose it. After depressurizing the system and disconnecting power, unscrew the panel to reveal the module. This method minimizes the need for tank removal, saving time and reducing the risk of spills. However, ensure the panel is properly sealed during reassembly to prevent leaks. Both approaches underscore the importance of familiarity with the F150’s specific design to streamline the replacement process.
