If you're experiencing problems with your Dodge Caravan, such as rough idling, loss of power, or misfiring, you may need to replace the fuel injectors. Fuel injectors regulate the amount of pressurised fuel used for each engine cycle, and when they fail or clog, it can lead to reduced engine power and misfires. While it is recommended to leave fuel injector replacement to a professional due to the complexity of the task and the risk of fire, here's a step-by-step guide on how to replace fuel injectors in a Dodge Caravan. First, relieve the pressure within the fuel rail by running the engine with the fuel pump fuse out. Next, remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that restricts access. Disconnect the supply and return lines from the fuel rail, and unlock and remove the electrical connectors to each fuel injector. Unbolt and remove the fuel rail from the intake manifold. Carefully remove the injector from the fuel rail, taking care not to let any debris enter the exposed openings. Install a new injector with a new O-ring, ensuring a tight fit to prevent fuel leaks. Reinstall the fuel rail, reconnect the supply and return lines, and remount the plenum along with all cables, hoses, or wiring. Finally, run the engine and check for leaks.

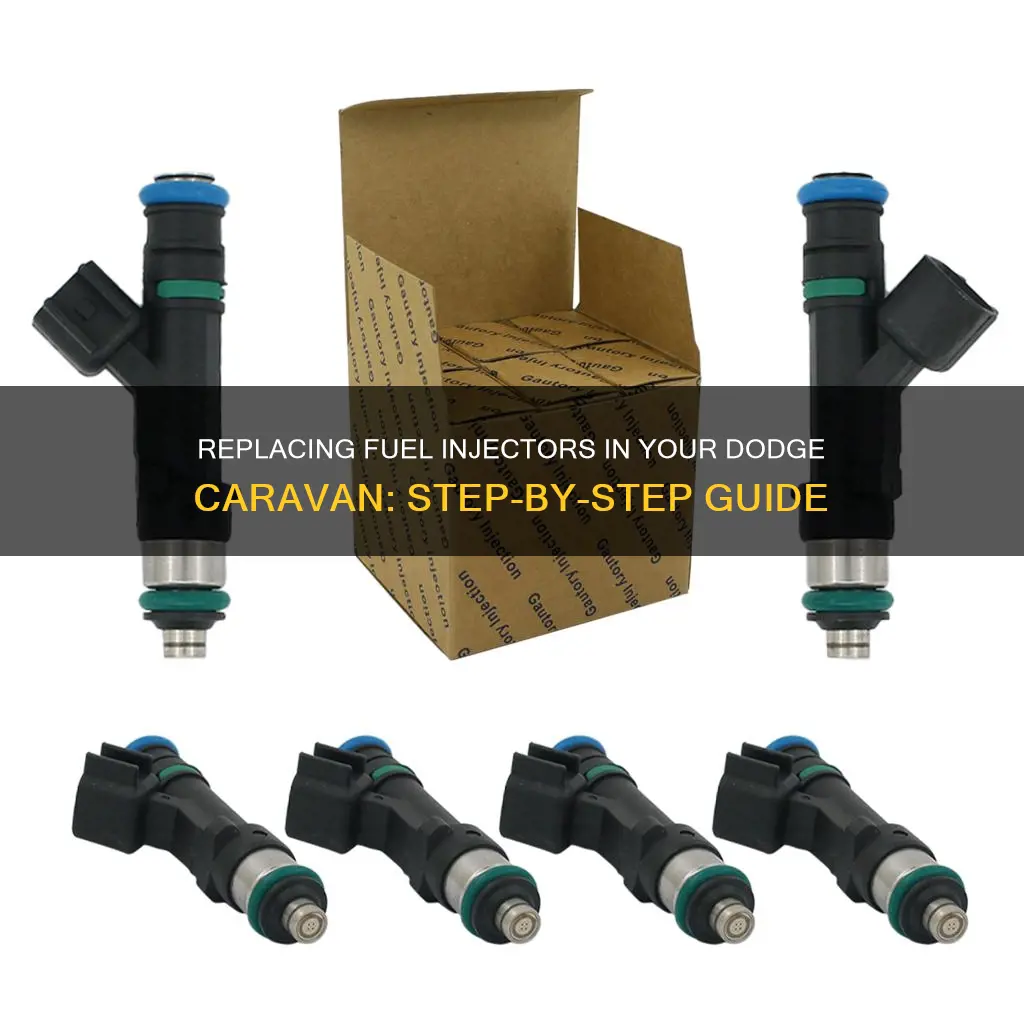

How to Replace Fuel Injectors in a Dodge Caravan
| Characteristics | Values |
|---|---|
| Average Cost | $298-442 |
| Labor Costs | $140-187 |
| Parts | $149-302 |
| Fuel Injector Problems | Reduced engine power, engine misfires, check engine light, engine stalling, failure to start, hesitation under throttle, rough idle, loss of power, visible leaks, excessive emissions |
| Fuel Injector Replacement Process | Remove fuel pump relay, disconnect battery positive cable, remove EGR tube, airbox, throttle cables, bolts holding power steering fluid reservoir, upper intake plenum bolts, bolts holding fuel rail, disconnect fuel supply line, remove fuel rail and injectors, install new injectors, reverse teardown process |
| Fuel Injector Maintenance | Use high-quality (Tier One) gasoline, remove and service all injectors at once, do not use fuel system cleaning compounds unless specified by manufacturer |
Explore related products
What You'll Learn
Disconnecting the battery and fuel supply line
First and foremost, safety should be the top priority when working with any fuel system. Before beginning any work, ensure you have the necessary tools and safety equipment, including eye protection, gloves, and a fire extinguisher nearby.
To disconnect the battery, locate the battery in the engine bay. Identify the negative (-) and positive (+) terminals. Loosen the nut and clamp holding the positive cable in place with a wrench, then carefully lift and move the cable away from the battery terminal. Cover the terminal with a piece of tape or insulator to prevent accidental contact. This step ensures that there is no power flowing through the vehicle's electrical system, reducing the risk of sparks or electrical shorts.
Next, we'll move on to the fuel supply line. The fuel supply line is connected to the fuel rail, which sits on top of the engine. To disconnect it, follow these steps:
- Relieve the pressure in the fuel rail by briefly running the engine with the fuel pump fuse removed. This will prevent fuel from spraying out when you disconnect the line.
- Locate the fuel supply line. It is usually connected to the fuel rail near the injectors.
- Using the appropriate tools, carefully loosen and remove the fittings or clamps that secure the fuel supply line to the fuel rail. Place a container or rag underneath the connection to catch any residual fuel that may spill out.
- Once the fuel supply line is disconnected, carefully move it away from the fuel rail and injectors.
At this point, you have successfully disconnected the battery and fuel supply line, and you can proceed with the next steps of replacing the fuel injectors. Remember to exercise caution and refer to a repair manual or seek professional assistance if you are unsure about any part of the process.
How to Know When Your Fuel Pump Needs Replacing
You may want to see also
Explore related products
Removing the intake manifold
To remove the intake manifold of your Dodge Caravan to access and replace the fuel injectors, follow these steps:
First, relieve the pressure within the fuel rail by briefly running the engine with the fuel pump fuse removed. This will depressurize the fuel system, making it safe to work on. Ensure the engine is off and cold before proceeding.
Next, remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that may restrict access to the fuel injectors and fuel rail. This may include the power steering fluid reservoir, the EGR tube, the airbox, and throttle cables.
Once you have clear access, remove the supply and return lines from the fuel rail. Then, disconnect the electrical connectors from each fuel injector. At this point, the fuel rail should be ready to be unbolted and removed from the intake manifold, exposing the fuel injectors themselves.
The process of removing the intake manifold is now complete, and you can proceed to replace the fuel injectors. Remember to exercise caution when working with fuel, and always disconnect the battery to minimize the risk of fire.
Replacing Fuel Pump in Mercedes 126: Step-by-Step Guide
You may want to see also
Explore related products
Disconnecting the fuel injector from the fuel rail
First, relieve the pressure within the fuel rail. To do this, run the engine briefly with the fuel pump fuse removed. This will relieve any pressure in the fuel rail and reduce the risk of fuel leakage during the disconnection process.
Next, remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that may restrict access to the fuel injector and fuel rail. Make sure to label and set aside all parts removed during this process to ensure proper reassembly.
Once you have clear access, disconnect the supply and return lines from the fuel rail. These lines supply fuel to the injectors and return excess fuel to the tank. Be careful not to spill any fuel during this step.
Now, you can unlock and remove the electrical connectors from each fuel injector. These connectors provide power and control to the injectors, so it is important to disconnect them carefully to avoid damage.
With the electrical connectors removed, you can now unbolt and remove the fuel rail from the intake manifold. The fuel injector will be attached to the fuel rail, so this step will give you access to the injector itself.
Finally, remove the fuel injector from the fuel rail. The injector is typically held in place with an O-ring seal, which you may need to replace if it is damaged or worn out. Be careful not to let any debris enter the exposed openings in the fuel rail and injector during this step.
By following these steps, you can successfully disconnect the fuel injector from the fuel rail in a Dodge Caravan. Again, it is important to emphasize that this is a complex process and should only be attempted by experienced individuals. Always take the necessary precautions to ensure your safety and the safety of those around you when working with fuel systems.
Truck Running with a Faulty Fuel Filter: Is It Possible?
You may want to see also
Explore related products
Installing a new fuel injector
First, ensure the engine is cold. This is important for safety and to relieve pressure within the fuel rail. Briefly run the engine with the fuel pump fuse out to release the pressure.
Next, remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that may restrict access to the fuel injectors. This step may involve draining the coolant and oil and removing multiple engine components.
Once you have clear access, disconnect the fuel injector from the fuel rail and electrical connector. Unlock and remove the electrical connectors, then unbolt and remove the fuel rail from the intake manifold.
Take out the faulty injector from the fuel rail, being careful not to let any debris enter the exposed openings. The injector is usually held in place by an O-ring seal within a finely polished bore in the fuel rail.
Now, insert the new injector into the fuel rail, using a new O-ring and applying engine oil to prevent any damage to the O-ring. Ensure that the O-ring is tight to prevent fuel leaks.
Reinstall the fuel rail, reconnect the supply and return lines, and secure all cables, hoses, and wiring.
Finally, start the engine and carefully check for any leaks. Test-drive the vehicle to ensure the new fuel injector is functioning properly.
It is important to note that high-quality, OEM (original equipment manufacturer) parts should be used when replacing fuel injectors. This helps ensure even power across the engine and a proper air-fuel mixture for all cylinders, resulting in smooth engine operation.
Replacing the Fuel Pump in a 2006 Ford Focus ZX3
You may want to see also
Explore related products
Reassembling the engine and testing the vehicle
Once you have successfully removed and replaced the fuel injectors of your Dodge Caravan, you can begin reassembling the engine. This process will involve:
- Re-inserting the new or serviced injector into the fuel rail, using engine oil on a new O-ring to prevent damage. Ensure a tight fit to prevent fuel leaks.
- Re-installing the fuel rail and reconnecting the supply and return lines.
- Re-installing the upper plenum and any cables, hoses, or wiring that were removed to access the fuel injectors.
- Running the engine and performing a careful check for leaks.
After reassembling the engine, it is important to road test the vehicle to ensure the fuel injectors are functioning properly. During the road test, pay attention to the following:
- Engine performance: Notice if the engine is running smoothly and responding well to acceleration.
- Fuel efficiency: Monitor the fuel consumption to ensure it is within the expected range.
- Warning lights: Keep an eye on the dashboard to make sure the check engine light does not come on, indicating a potential problem with the fuel injection system.
- Unusual smells: Be aware of any fuel odours, which could indicate a leaking fuel injector.
If any issues are noticed during the road test, it is important to consult a professional mechanic to diagnose and address the problem.
Replacing the Fuel Pump in Your Classic 1986 Continental
You may want to see also
Frequently asked questions
The cost to replace the fuel injectors in a Dodge Grand Caravan ranges from $298 to $339, with labor costs between $148 and $187, and parts priced between $149 and $152. However, other sources quote higher prices, with one source stating that the average cost is $442, with $302 for parts and $140 for labor.
It is not recommended to replace fuel injectors yourself. This job is best left to a professional due to the risk of fire and the complexity of the task. A good amount of knowledge is required to remove the injectors, intake manifold, fuel rail, and other components, and incorrect removal can further damage the vehicle.
There are several signs that may indicate a problem with your fuel injectors, including:
- Rough idle, loss of power, or misfiring
- Odor of raw gas or visible leaks
- Check engine light illuminates
- Major engine repairs, engine replacement, or lengthy storage.
