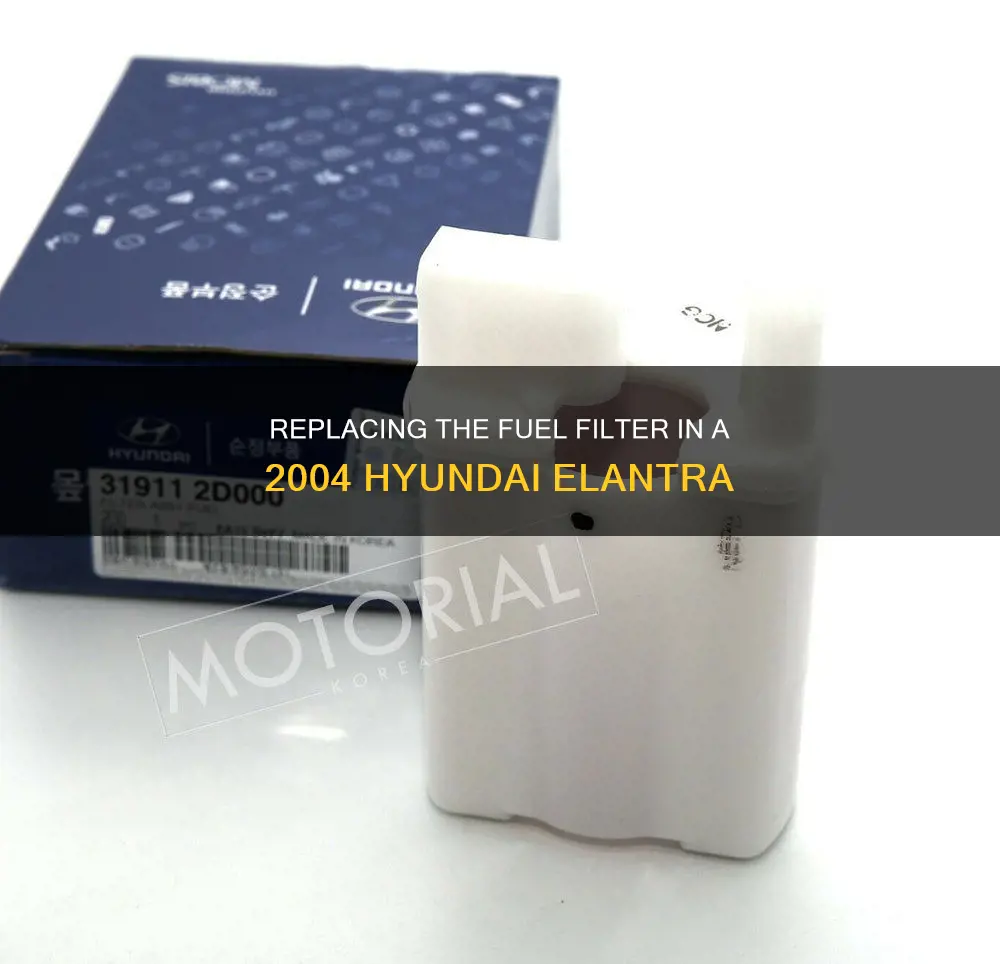

Replacing the fuel filter on a 2004 Hyundai Elantra is a relatively simple task that can be done at home with the right tools. The process involves removing the rear seats and panel clips, disconnecting the harness, and pulling out the fuel filter unit. It is important to note that the new fuel filter does not come with the necessary washers and rubber rings, so these must be transferred from the old filter. The white plastic washer goes in first, followed by the black rubber ring, another white plastic washer, and a final black rubber ring.
| Characteristics | Values |
|---|---|
| Difficulty | 2/5 |
| Safety Precautions | Do not smoke or have any open wires or electrical sources nearby. Disconnect the battery negative. Work in a well-ventilated area. |
| Tools Required | 3/8" drive Ratchet, 1/4" drive Ratchet, 12mm socket, 8 mm socket, 10mm combination wrench, Phillips and flathead screwdriver, pliers |
| Steps | 1. Remove both rear seats using the 3/8" ratchet attached to the 12mm socket. 2. Remove 1 panel clip. 3. Pull back the carpeting. 4. Open the fuel tank access lid and disconnect the harness. 5. Start the car and let it idle until the engine shuts down. 6. Remove the in-and-out connectors to the filter and the filter from the fuel line. 7. Install the new filter using a small amount of oil on the O-rings. 8. Check the fuel system for leaks while the engine is running. 9. There are 2 clips holding in the fuel filter. Pull back on the clips while pulling out the fuel filter unit. 10. Place the new fuel filter back into the fuel assembly. 11. Reverse the steps to put everything back in. |
Explore related products
What You'll Learn
Disconnecting the harness
Firstly, ensure you have the necessary tools and safety precautions in place. You will need a 3/8" drive ratchet, a 1/4" drive ratchet, a 12mm socket, an 8mm socket, a 10mm combination wrench, a Phillips and flathead screwdriver, and a pair of pliers. It is important to work in a well-ventilated area due to strong fumes, and to disconnect the battery negative.
Now, let's focus on disconnecting the harness. Begin by removing the rear seats using the 3/8" ratchet attached to the 12mm socket. There should be four 12mm bolts in total, two for each seat. Once the seats are removed, you can access the panel clip. Remove this panel clip, and then pull back the carpeting.
At this point, you should be able to access the fuel tank access lid. Open this lid, and you will see the harness. Carefully disconnect the harness, ensuring that you do not damage any surrounding components.
After disconnecting the harness, start your car and let it idle. The engine should eventually shut down on its own. This step is important as it depressurises the fuel system, allowing you to safely remove the fuel filter without gas spraying out.
Remember to follow all safety precautions and work carefully. If you encounter any difficulties or are unsure about any steps, it is always best to consult a professional mechanic.
Replacing Yamaha F70 Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
Removing the panel clip
To remove the panel clip from your 2004 Hyundai Elantra, you will need a 3/8" drive ratchet attached to a 12mm socket. There is a total of one panel clip, which you will need to remove before you can pull back the carpeting. You may be able to remove the panel clip with your fingers, but if not, use a flathead screwdriver to pop it out.
Once you have removed the panel clip, you will need to pull back the carpeting and open the fuel tank access lid. Disconnect the harness and start your car, letting it idle until the engine shuts down on its own.
After this, you can begin to remove the fuel filter. There are two clips holding the fuel filter in place. Pull back on the clips while pulling out the fuel filter unit. You will then need to transfer some items from the old fuel filter to the new one before placing it back into the fuel assembly.
Replacing Fuel Pump in 2005 Tundra: Step-by-Step Guide
You may want to see also
Explore related products
Removing the rear seats
To remove the rear seats of a 2004 Hyundai Elantra, you will need a 3/8" drive ratchet attached to a 12mm socket. There are four 12mm bolts in total, two for each seat.
First, disconnect your battery negative. Work on the car in a well-ventilated area because the fumes will be strong.
Then, use the ratchet to remove the bolts and lift the seats out. You will then be able to access the fuel filter.
Replacing Your Car's Fuel Line: A Step-by-Step Guide
You may want to see also
Explore related products
Removing the fuel filter
To remove the fuel filter from a 2004 Hyundai Elantra, first make sure the battery negative is disconnected and that you are working in a well-ventilated area. Remove both rear seats using a 3/8" ratchet attached to a 12mm socket. There are four 12mm bolts in total, two for each seat. Next, remove the panel clip. You might need a flathead screwdriver to pop it out. Pull back the carpeting, open the fuel tank access lid and disconnect the harness. Once you've done this, start your car and let it idle until the engine shuts down on its own. The fuel system is depressurised so the filter can be removed from the high-pressure fuel line without gas spraying out. The in-and-out connectors to the filter are removed and the filter is removed from the fuel line. There are two clips holding in the fuel filter. Pull back on the clips while pulling out the fuel filter unit itself. Eventually, you'll be able to pull it off completely.
How Fuel Tank Cleaning Affects Fuel Pump Replacement
You may want to see also
Explore related products
Reassembling the car
To reassemble your 2004 Hyundai Elantra, you will need to reverse the steps you took to disassemble it.
First, place the new fuel filter back into the fuel assembly. Make sure you have transferred the two plastic washers, two rubber rings, and the cap from the old fuel filter onto the new one. The white plastic washer goes in first, followed by the black rubber ring, the other white plastic washer, and the last black rubber ring.
Next, reconnect the harness and start your car. Let the engine idle until it shuts down on its own.
Then, push the fuel filter unit back into place and secure it with the two clips.
Finally, replace the panel clip, push the carpeting back into place, and put the rear seats back in. Make sure to reconnect the battery negative and check for any leaks before driving your car.
Replacing a Ford 3000 Tractor: Fuel Lift Pump Guide
You may want to see also
Frequently asked questions
First, make sure you are working in a well-ventilated area and disconnect the battery negative. Then, remove the rear seats and the panel clip. Open the fuel tank access lid and disconnect the harness. Start the car and let it idle until the engine shuts down. Remove the in-and-out connectors to the filter and the filter from the fuel line. Install the new filter using a small amount of oil on the O-rings. Place the new filter back into the fuel assembly and reverse the steps to put everything back in.
You will need a 3/8" drive ratchet, a 1/4" drive ratchet, a 12mm socket, an 8mm socket, a 10mm combination wrench, a Phillips and flathead screwdriver, and a plier.
Hyundai does not supply the new fuel filter with 2 plastic washers, 2 rubber rings, and a cap that you will need. If you forget to put these on the new fuel filter, you will not be able to start your car. The white plastic washer goes in first, then the black rubber ring, followed by the other white plastic washer, and finally the last black rubber ring.
