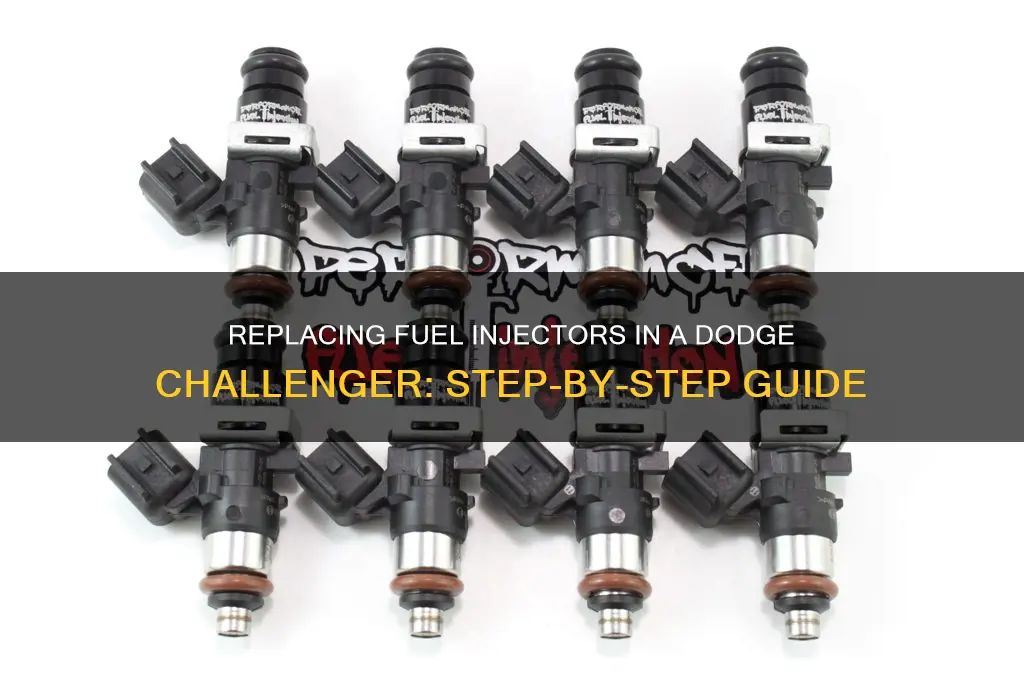

Fuel injectors are an important part of a car's engine, regulating the amount of pressurised fuel used for each cycle. When a fuel injector fails or clogs, engine power is reduced and misfires occur. To replace a fuel injector in a Dodge Challenger, the electrical connectors to each fuel injector are unlocked and removed, and the fuel rail is unbolted and removed from the intake manifold. The injector requiring replacement is then removed from the fuel rail, taking care not to allow any debris to enter the exposed openings. A new O-ring is used to re-insert the new injector into the fuel rail, and the fuel rail is re-installed and the supply and return lines are re-connected.
| Characteristics | Values |
|---|---|
| Step 1 | Unlock and remove the electrical connectors to each fuel injector |
| Step 2 | Unbolt and remove the fuel rail from the intake manifold |
| Step 3 | Remove the injector(s) requiring replacement from the fuel rail, taking care not to allow any debris to enter the exposed openings |
| Step 4 | Re-insert the serviced or replaced injector into the fuel rail using a new O-ring and engine oil to prevent damage |
| Step 5 | Re-install the fuel rail and re-connect the supply and return lines |
| Step 6 | Re-install the upper plenum, cables, hoses, and wiring |
| Step 7 | Run the engine and check carefully for leaks |
| Step 8 | Road test the vehicle |
| Reason for replacement | Fuel injector failure or clogging, resulting in reduced engine power and frequent misfires |
Explore related products
What You'll Learn
Removing the electrical connectors and fuel rail
To remove the electrical connectors and fuel rail, first unlock and remove the electrical connectors to each fuel injector. Then, unbolt and remove the fuel rail from the intake manifold. Next, relieve the pressure within the fuel rail by briefly running the engine with the fuel pump fuse out. Remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that restricts access. Finally, remove the supply and return lines from the fuel rail.
The fuel injectors regulate the amount of pressurised fuel used for each engine cycle. There is one injector per cylinder in an engine. Each time an intake stroke occurs, the vehicle's computer sends a signal to the fuel injectors, requesting they spray fuel. For heavy acceleration, the duration of the fuel spraying will be longer than if the engine were idling. When a fuel injector fails or clogs, engine power is reduced and misfires will occur.
If the injectors are serviced, specialised cleaning and test equipment are required. The choice to repair versus replace will depend on exactly what is wrong with the injector, as well as customer preference. Either option requires removing the injector from the car.
Replacing Fuel Filler Neck in 2004 Ford Escape: Step-by-Step Guide
You may want to see also
Explore related products
Re-inserting the injector into the fuel rail
To re-insert the injector into the fuel rail, you will need a new O-ring. Using engine oil on the O-ring will prevent damage to it. O-rings in this application fit very tightly to prevent fuel leaks. The fuel rail is then re-installed and the supply and return lines are re-connected. The plenum is re-installed along with all cables, hoses, or wiring. Finally, the engine is run, and there is a careful check for leaks. If there is no external leak of fuel from a broken or malfunctioning injector, it is safe to drive the car.
Before re-inserting the injector, you will need to relieve the pressure within the fuel rail by briefly running the engine with the fuel pump fuse out. The upper plenum on the intake manifold is removed along with any cables, hoses, or wiring that restricts access. The supply and return lines are removed from the fuel rail. The fuel rail is then unbolted and removed from the intake manifold. The injector(s) requiring replacement are removed from the fuel rail, taking care to not allow any debris to enter the exposed openings.
Fuel Filter Replacement Guide for Silverado Owners
You may want to see also
Explore related products
Relieving the pressure within the fuel rail
To relieve the pressure within the fuel rail, you must first ensure the engine is cold. Then, briefly run the engine with the fuel pump fuse out. This will relieve the pressure within the fuel rail.
Once the pressure has been relieved, the next step is to remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that may restrict access. It is important to take note of where each cable, hose, and wire is connected to ensure proper reassembly.
After removing the plenum and any necessary cables, hoses, or wiring, the supply and return lines can be removed from the fuel rail. At this point, the fuel rail can be unbolted and removed from the intake manifold.
With the fuel rail removed, the injector(s) requiring replacement can be carefully taken out, ensuring that no debris enters the exposed openings.
Replacing the Fuel Pump in a 2005 Grand Caravan
You may want to see also
Explore related products
Conducting a visual inspection
If you're experiencing issues with your Dodge Challenger's fuel injectors, it's important to conduct a thorough visual inspection before attempting any repairs or replacements. Here's a step-by-step guide to help you through the process:
Firstly, locate the fuel injectors. They are typically found near the engine, with one injector per cylinder. Visually inspect the injectors for any signs of damage, leaks, or clogs. Pay close attention to the O-ring seal that holds the injector in place within the fuel rail. Look for any signs of wear, tearing, or damage to the O-ring, as this could indicate the need for replacement.
Next, check the electrical connectors to each fuel injector. Ensure they are securely connected and show no signs of corrosion or damage. If the connectors appear damaged or corroded, they may need to be cleaned or replaced.
Additionally, inspect the fuel rail itself. The fuel rail is the metal tube that runs along the injectors and supplies fuel to them. Look for any signs of damage, leaks, or obstructions along the rail. If the fuel rail appears damaged or clogged, it may need to be repaired or replaced.
During your visual inspection, also pay attention to the supply and return lines connected to the fuel rail. Ensure these lines are intact and free from any signs of damage or leaks. If there are issues with these lines, they may need to be replaced or repaired.
Finally, if you suspect a problem with a specific injector, you may need to remove it for further testing. To do this, relieve the pressure within the fuel rail by briefly running the engine with the fuel pump fuse out. Then, disconnect the electrical connectors and carefully remove the injector from the fuel rail, being cautious not to allow any debris to enter the openings.
Remember, a thorough visual inspection is crucial to accurately diagnose the issue with your fuel injectors. If you're unsure or uncomfortable with any part of the process, it's always best to consult a qualified technician for assistance.
Replacing Fuel Relay in 05 Altima: Step-by-Step Guide
You may want to see also
Explore related products
Testing the fuel injectors
The fuel injector or injectors in question must then be tested, and they may need to be removed for bench testing. If any failed components are found, they will be replaced, and the vehicle will be checked to ensure the problem has been fixed.
If the injectors are serviced, specialised cleaning and test equipment are required. The choice to repair or replace the injectors will depend on what is wrong with them, as well as customer preference. Either option requires removing the injector from the car.
To do this, the engine must be cold, and the pressure within the fuel rail is relieved by briefly running the engine with the fuel pump fuse out. The upper plenum on the intake manifold is removed, along with any cables, hoses, or wiring that restricts access. The supply and return lines are then removed from the fuel rail. The electrical connectors to each fuel injector are unlocked and removed, and the injector(s) requiring replacement are removed from the fuel rail, taking care to not allow any debris to enter the exposed openings.
Replacing Fuel Injector O-Rings in a 97 Maxima
You may want to see also
Frequently asked questions
First, relieve the pressure within the fuel rail by briefly running the engine with the fuel pump fuse out. Then, remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that restricts access. Remove the supply and return lines from the fuel rail, then unlock and remove the electrical connectors to each fuel injector. Unbolt the fuel rail and remove it from the intake manifold. Remove the injector(s) requiring replacement from the fuel rail, taking care not to allow any debris to enter the exposed openings. Re-insert the serviced or replaced injector into the fuel rail using a new O-ring and engine oil to prevent damage. Re-install the fuel rail and re-connect the supply and return lines. Re-install the plenum and all cables, hoses, or wiring. Finally, run the engine and check for leaks.
When a fuel injector fails or clogs, engine power is reduced and misfires will occur. If the issue isn't clear after a physical inspection, a technician will connect a computerized scanner to the vehicle to read its sensors. If there's a fuel injector problem, the technician would most likely find that misfires are happening frequently on one cylinder.
The cost of replacing fuel injectors in a Dodge Challenger will depend on your location and whether you choose to repair or replace the injectors.
The choice to repair versus replace will depend on exactly what is wrong with the injector as well as customer preference. If the injectors are serviced, specialised cleaning and test equipment are required.
