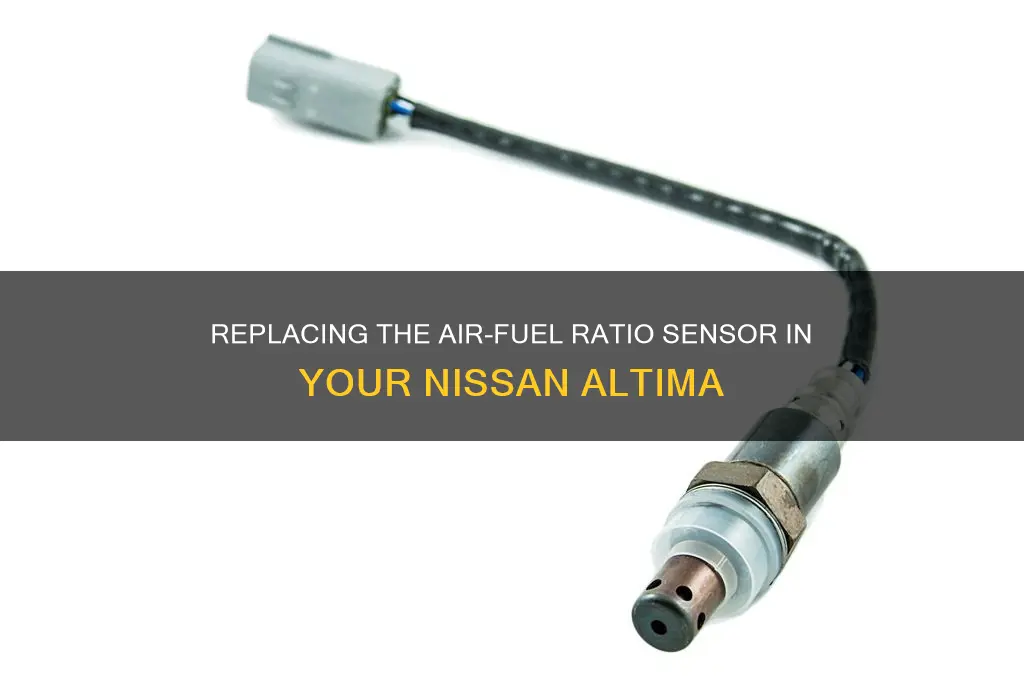

Replacing The Air-Fuel Ratio Sensor In Your Nissan Altima

The air-fuel ratio sensor is an important component of your Nissan Altima, as it helps to ensure the engine performs efficiently and meets emissions standards. Replacing the sensor can be a straightforward task, but there are some things to keep in mind to make sure it goes smoothly. First, it's important to get the right sensor for your specific model of Nissan Altima, as there are different options depending on the year and specifications of your car. You can find these at auto parts stores or online. Once you have the new sensor, it's recommended that you spray the old sensor with penetrating lubricant to help loosen it, as they can sometimes get stuck. You'll also want to make sure you have the right tools for the job, including an oxygen sensor socket. When installing the new sensor, be sure to use the provided anti-seize lubricant on the threads to make future removal easier.

Diagnosing an air/fuel ratio sensor failure

The most common cause of air/fuel sensor failure is a problem with the heater. The A/F sensor heater operates at an extremely high temperature, almost 1,500 degrees Fahrenheit, which is hot enough to melt aluminium. Combine this with corrosive gases and constant vibration, and it's no wonder that they occasionally malfunction.

To diagnose a heater problem, you should check the heater element resistance with an ohmmeter. If the heater is not working, the A/F sensor cannot function properly, so this should be your first step. Many vehicles will not run A/F performance tests if the heater is not working, so it is important to check this first.

If you find a heater code and a performance code, always diagnose the heater code first. You will need to check the whole heater circuit, as fuse, wiring and ECM-driver problems can sometimes be the cause of the fault.

Before checking the heater circuit, verify that the problem that caused the trouble code is current by running a DTC confirmation. Check the manual for the correct procedure, but this usually involves cycling the key on and off, starting the car and letting it idle.

If a heater code resets, you will need to check the circuit. You will need a wiring diagram to decode the wire colours, but the wires on the AF sensor side are often universal. The two heater wires are usually the same colour, most often black.

To check the circuit, disconnect the sensor connector and check the resistance across the heater wires on the sensor side connector. Compare the resistance to the specification, which is typically between 2-5 ohms at 77 degrees Fahrenheit. Be sure to allow the sensor to cool before testing.

Next, reconnect the sensor connector and check for power at the sensor connector while the circuit is loaded. To do this, hook up a voltmeter to the 12V+ wire at the sensor and start the car. If you find battery voltage at the connector while the heater is on, the circuit is working correctly.

You can also check for the ECM ground pulse at the sensor connector using an oscilloscope or a DMM with duty cycle, Hz, or pulse width.

If you are still unable to diagnose the problem, it may be an intermittent fault. Try wiggle and tap testing to flush out the fault.

Diagnosing A/F sensor output is a more complex task, and requires an understanding of the observable characteristics that separate a "good" A/F sensor from a "bad" one.

Upstream vs. downstream sensors

The Nissan Altima's air-fuel ratio sensor is an important component that helps to ensure the vehicle's engine is performing optimally and efficiently while also reducing emissions. This sensor is different from the O2 sensor, which only provides a rich/lean output. The air-fuel ratio sensor measures the actual air-fuel ratio, allowing for more precise adjustments by the ECM.

Now, when it comes to upstream and downstream sensors, here's what you need to know:

Upstream Sensors:

• Upstream sensors are typically located before the converter in the exhaust system.
• They provide crucial data to the ECM (Engine Control Module) to adjust the air-fuel mixture.
• In the case of the Nissan Altima, the upstream sensor is often referred to as the A/F (Air/Fuel) sensor.
• The A/F sensor in the Nissan Altima has a heating element that operates at extremely high temperatures, around 1,500 degrees Fahrenheit.
• This high operating temperature, along with corrosive gases and vibration, can lead to heater failure, which is the most common issue with A/F sensors.
• When diagnosing issues with the upstream sensor, it is important to check the heater circuit, including fuse, wiring, and ECM-driver problems.
• Replacing upstream sensors typically involves unbolting the old sensor and installing a new one, but they can sometimes get stuck and require penetrating lubricant.

Downstream Sensors:

• Downstream sensors are usually located after the converter in the exhaust system.
• They are used for catalyst efficiency monitoring.
• In the case of the Nissan Altima, the downstream sensor is often referred to as the O2 (Oxygen) sensor.
• The O2 sensor operates at a lower temperature of around 600 degrees Fahrenheit compared to the upstream A/F sensor.
• Diagnosing issues with the downstream sensor may involve checking live data and observing voltage fluctuations, which can indicate a bad sensor or issues with the catalytic converter.
• Replacing downstream sensors may be necessary if they are faulty, and this process typically involves unbolting the old sensor and installing a new one.

In summary, upstream sensors (A/F sensors in the Nissan Altima) provide data for the ECM to adjust the air-fuel mixture, while downstream sensors (O2 sensors) monitor catalyst efficiency. Both types of sensors are crucial for ensuring optimal engine performance, fuel efficiency, and emissions control in the Nissan Altima.

Sensor removal and installation

Before starting, ensure you have the correct part for your Nissan Altima by cross-referencing the part number and your vehicle information (e.g. year, model, engine).

Removing the Old Sensor:

• Diagnostic trouble codes will help identify the faulty sensor. Test zero status with a multimeter and select several points to measure the signal output. Normal output means no problem.
• Disconnect the oxygen sensor and remove the cover. Slowly unscrew the oxygen sensor plug before opening the triangle iron to see the sensor.
• Compare the removed sensor with the new sensor to identify any problems with the old one.

Installing the New Sensor:

• Install the new sensor according to the position of the old sensor. Screw the plug to the joint.
• Clear the codes and start the vehicle. Check if it is running normally.

Maintenance Tips:

• Use penetrating lubricant on the sensor and let it soak. Use a solid sensor socket and break the sensor free with a sharp rapping motion.
• If the sensor does not spin by hand, spray it with additional penetrating oil before continuing to remove.
• If the threads are galled, do not install the new sensor until they have been repaired.
• Use the provided anti-seize lubricant on the threads of the new sensor.

Choosing the right sensor for your Nissan Altima

When it comes to choosing the right air-fuel ratio sensor for your Nissan Altima, there are a few things to consider. Firstly, it is important to choose a sensor from a trusted brand to ensure reliability and compatibility. Advance Auto Parts offers sensors from brands such as DENSO and NTK, which are known for their high-quality products.

Another factor to consider is the specifications of the sensor. Different sensors may have varying wire lengths, heating capabilities, and sizes. It is important to match the specifications of the sensor to the specific requirements of your Nissan Altima. For example, the DENSO Wideband Oxygen Sensor is available in various lengths, including 14.65", 14.57", and 14.76". It is important to select the sensor that best fits your vehicle's needs.

Additionally, it is beneficial to read reviews from other customers who have purchased and used the sensor. This can provide valuable insights into the performance, ease of installation, and overall satisfaction with the product. Advance Auto Parts offers a range of reviews for their air-fuel ratio sensors, allowing you to make an informed decision.

By considering factors such as brand reputation, product specifications, and customer reviews, you can choose the right air-fuel ratio sensor for your Nissan Altima, ensuring optimal performance and compatibility.

Sensor maintenance

Adjust Alignment:

If a sensor is misaligned, it is crucial to recalibrate and adjust it. Proper measuring tools are necessary for accurate calibration, which involves comparing the sensor to a correctly calibrated instrument and using that as a benchmark.

Keep It Clean:

Cleanliness is essential for optimal sensor performance. Ensure that all debris and oil are removed from the sensor at the end of each day. It is also important to train workers in proper cleaning methods to maintain consistency.

Practice Proper Storage:

When the sensor is not in use, store it appropriately. This could involve disassembling it, placing it on a sturdy surface, or covering it with a tarp, depending on its size and location.

Watch For Corrosion:

Excessive rust can accelerate the wear and tear of machine parts. If corrosion is present, consider hiring a professional to remove it or replace the part. Additionally, keep moisture away from the sensor to prevent rust in the first place.

Know When To Replace:

Early Fault Detection:

Modern sensors play a crucial role in early fault detection. They can detect small faults within milliseconds and alert administrators, sometimes even before the failure occurs. This helps prevent downtime and potential employee injuries.

CMMS Integration:

Sensors work in tandem with CMMS (Computerized Maintenance Management System) solutions, feeding data directly into the central database. This data can then be used to generate reports that can be distributed to relevant personnel.

Vibration Sensors:

These sensors measure vibrations in rotating machinery and are commonly used in various industries.

Gas Sensors:

Gas sensors monitor levels of specific gases and trigger programmed responses when levels become too high or are sustained for too long.

Temperature Sensors:

Temperature sensors have a wide range of applications, especially in HVAC systems and the food service industry.

Security Sensors:

Security sensors encompass a diverse range of devices, including alarms, motion sensors, and GPS trackers, and are used to enhance safety and security.

Pressure Sensors:

These sensors detect pressure on a machinery system and can adjust the machine's operation accordingly. They are often more specific in their applications than other types of sensors.
