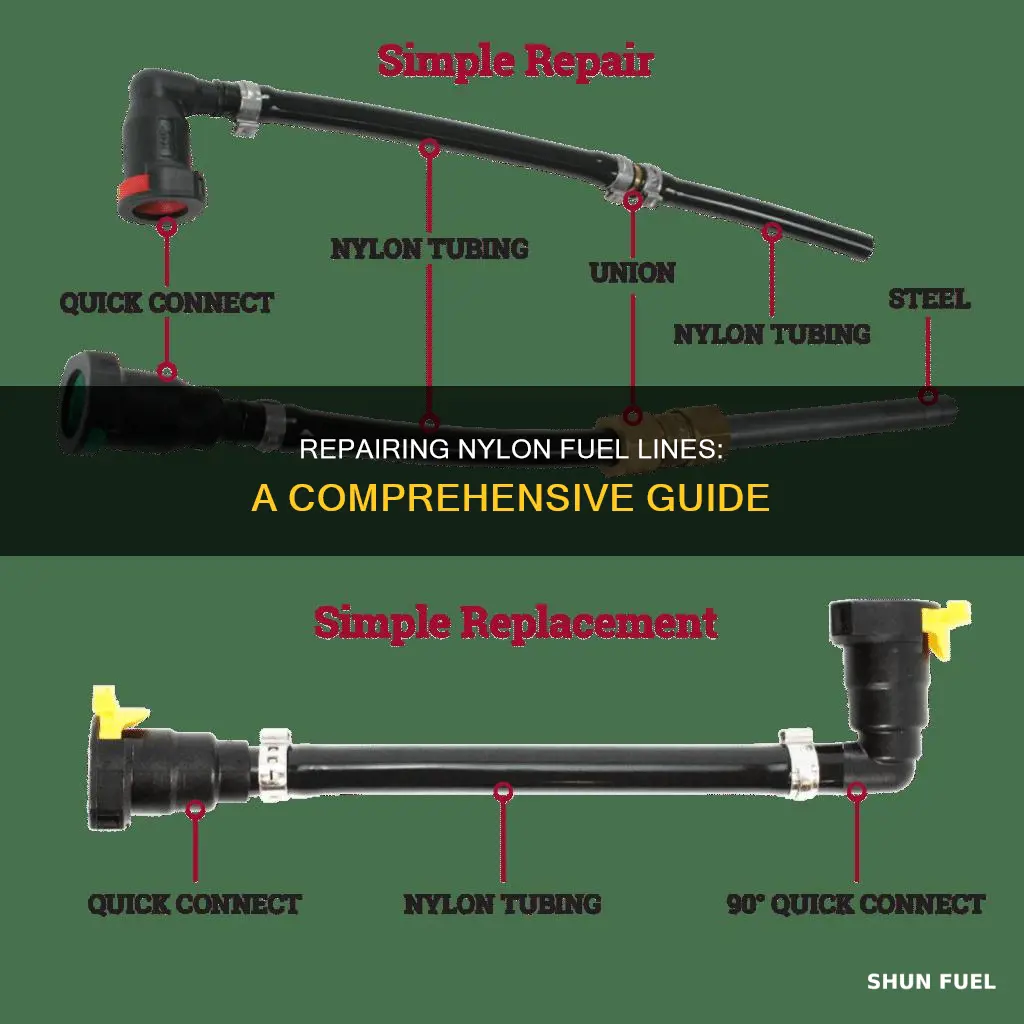

Nylon fuel lines are a common feature in new cars, and repairing them can be done without an expensive tool. Repair kits are available from auto parts stores, and the repair process involves cutting the line, heating it, and inserting brass. Before starting any fuel work, it is important to relieve fuel pressure by pulling the pump relay and cranking the engine. This guide will outline the steps and tools required to repair a nylon fuel line, ensuring a safe and efficient process.
Characteristics and Values Table for Repairing a Nylon Fuel Line
| Characteristics | Values |
|---|---|
| Tools | Caulking gun, single-edge razor blade, tubing cutter, heat gun, knife |
| Supplies | Nylon fuel line repair kit, roll of tubing, fittings, light lubricant, line clamp, brass collar, rubber line |
| Preparation | Pull pump relay, crank the engine, relieve fuel pressure, clean the lines |
| Process | Cut the line, heat the line, insert brass, push on the other side, test for leaks, cover connectors with a rubber line |
| Tips | Soak the tubing end in hot water, use a fire extinguisher, test for pressure, be mindful of tubing past the clamp |
Explore related products
What You'll Learn
Using a nylon fuel line repair kit
Step 1: Gather Your Tools and Materials
Before you begin, make sure you have your nylon fuel line repair kit, which should include items such as a cutter, adapters, fittings, and a fuel line. Additionally, you will need a few basic tools like a caulking gun and a single-edge razor blade or tubing cutter.
Step 2: Cut the Nylon Fuel Line
Using the special cutter from your kit, make a clean cut on the nylon fuel line. This cutter is designed to easily slice through the nylon tubing without causing any pinching or burrs. A clean cut is important to ensure a proper connection with the fittings.
Step 3: Measure and Cut the New Fuel Line
Remove the damaged section of the fuel line and measure the length needed for the new fuel line provided in your kit. Use the cutter to carefully cut the new fuel line to the appropriate length. Ensure the cut is straight and clean.
Step 4: Install the End Fittings
This step can be the most challenging part of the process. Start by warming the end of the nylon tube in hot water to make it more pliable. Then, carefully push the fitting onto the tube by hand. You may need to use a hose press or a handheld tool that functions similarly to a caulking gun to securely attach the fitting. Make sure the fitting is firmly in place.
Step 5: Connect the New Fuel Line
Connect the new fuel line to the fittings on both ends, ensuring a secure and tight connection. Depending on your kit, you may need to use adapters to ensure a proper fit.
Step 6: Test the Repair
Once you've made the necessary connections and installed the new fuel line, test the repair by starting the car and checking for any leaks or issues. If you notice any problems, re-inspect your work and make any necessary adjustments.
Remember to always exercise caution when working on fuel lines, and if you're unsure about any steps, seek guidance from a professional mechanic or a trusted resource.
Removing Push Lock Fuel Lines: A Step-by-Step Guide
You may want to see also
Explore related products
Removing the fuel lines from the vehicle
Firstly, before starting any fuel work, it is imperative to pull the pump relay and crank the engine to relieve fuel pressure. This is an important safety measure. Cover the Schrader valve on the rail with a rag and press the pin to ensure that the pressure is released.
Next, identify the location of the nylon fuel lines in your vehicle. They may be located near the sending unit or the fuel pump. Once located, use a knife or a razor blade to make a clean cut in the tubing. Be careful not to crush the tubing while cutting.
After cutting, you can proceed to remove the fuel lines. If your vehicle uses the Dorman Nylon compression tool, you can follow the specific instructions provided by the manufacturer. However, if you don't have access to this tool, there are alternative methods. One method involves using a caulking gun and a line clamp from a brake line flaring kit. Insert the end of the tubing through the caulking gun, and then clamp the tubing using the corresponding hole size in the flaring tool clamp. Ensure that only enough tubing is sticking out to fit onto the fitting.
At this point, you can add a light lubricant to the fitting. Assemble the parts by moving the plunger forward in the gun, aligning the fitting with the tubing, and then squeezing the handle of the caulking gun. With 2-3 clicks, the fitting should be fully seated. Finally, remove the clamp from the tubing, and you can move on to the next step of repairing the nylon fuel line.
Remember to work with caution and refer to vehicle-specific repair manuals or forums for additional guidance if needed.
Fuel Line Check Valves: Where to Install for Best Performance
You may want to see also
Explore related products
Cutting the line with a razor knife
Cutting a nylon fuel line with a razor knife requires precision to ensure proper fuel flow and prevent leaks. Before you begin, it is important to wear safety glasses to protect your eyes from any debris.
First, use a measuring tape or ruler to measure and mark the desired length of the fuel line. If the line is particularly thick, you may need to make multiple passes with the knife to avoid damaging it. Hold the knife or razor blade at a 45-degree angle to the marked line. Grip the handle firmly with your dominant hand and apply gentle pressure. Slowly draw the knife along the marked line, keeping the blade perpendicular to the fuel line for a clean cut.
After cutting, inspect the cut closely. It should be smooth and free of any burrs or jagged edges. If necessary, use fine-grit sandpaper to smooth out any rough spots. This process is crucial for achieving a precise and leak-free fuel line.
It is worth noting that a hacksaw is not recommended for cutting nylon fuel lines as it can crush or deform the line. Instead, a sharp utility knife or razor blade is preferred for achieving a clean and precise cut.
Fuel Line Position: Which Way Is On?
You may want to see also
Explore related products
Heating the line
Heating the nylon fuel line is a crucial step in the repair process. It is a well-known method to soften the line and make it easier to work with. There are a few different ways to heat the line, and it is important to take precautions to avoid any damage or injury.
One common technique is to use hot water. This involves boiling water and soaking the nylon fuel line in it to soften the plastic. This method can be tricky, as it requires you to work quickly before the line cools down and hardens again. It is also important to be cautious when handling boiling water to avoid burns. Once the line is softened, you can attempt to push on the fittings by hand, which can be challenging.
Another approach is to use a heat gun or a similar tool to directly apply heat to the nylon fuel line. This method provides more control over the amount of heat applied and can make it easier to work with the line as you can heat specific sections at a time. However, it is crucial to be extremely careful when using a heat gun to avoid overheating and potentially damaging the line or causing safety hazards.
When heating the line, always ensure that you are in a well-ventilated area to prevent the buildup of fumes. Additionally, keep a close eye on the temperature to avoid melting or damaging the nylon fuel line. It is recommended to wear protective gear, such as heat-resistant gloves, to safeguard your hands during the process.
After heating and softening the nylon fuel line, it is crucial to work quickly and efficiently. The line will start to cool down and harden again, so you must act fast to install the fittings or make the necessary repairs. This process may require some physical force, but it is important to be careful to avoid damaging the softened line.
Overall, heating the nylon fuel line is an important step in the repair process, but it requires caution and attention to detail. By using hot water or a heat gun, you can soften the line and create the necessary flexibility to work with it. However, always prioritize safety and work efficiently to complete the repairs before the line cools down and hardens again.
Fuel Line Maintenance for Silverado Owners
You may want to see also
Explore related products
Using a lubricant
To repair a nylon fuel line, you can use a lubricant alongside a few other tools. Here is a step-by-step guide on how to do it:
Firstly, purchase the necessary length of fuel line and the required number of compression fittings. If you are replacing the line to the fuel filter, you will need one compression fitting. If you are repairing a fuel line section, you will need two compression fittings. It is recommended to add 6 inches to the line to be on the safe side.
Next, make any necessary bends in the line for a proper fitment. Cut an additional inch off the original line to account for the compression fitting. Separate the parts of the compression fitting. Place a perforated cap on the original line, ensuring the threads are facing out. Install the ferrule (ring) over the line, positioning it in front of the cap.
Now, for the lubrication. Add a small amount of light lubricant to the fitting. You just need enough to make it shiny; it should not be dripping wet. At this point, you can begin to assemble the parts.
Place the original fuel line with the ferrule and cap into the centre section of the connector. Hold the connector and push the line until it is completely seated in the centre section. Thread the cap onto the centre section of the connector. Maintain sufficient pressure on the fuel line to ensure it remains seated while tightening the cap.
As an alternative method, you can use a caulking gun. Clamp the tubing in the flaring tool clamp, using the hole that corresponds to your tubing size. Leave enough tubing sticking out to fit onto the fitting. Hand-tighten the clamp. Seat the clamp in the far end of the caulking gun. Now, add your lubricant as described above. Move the plunger forward in the gun until there is just enough room for the fitting between the plunger and the tubing.
As a final note, some people suggest soaking the tubing end in hot water for 20 seconds to ease the installation process. However, this is not a substitute for lubrication.
The Best Plastics for GM Fuel Lines
You may want to see also
Frequently asked questions
You will need a roll of tubing, fittings, a light lubricant, a caulking gun, a line clamp, and a single-edge razor blade or tubing cutter.
First, make a clean cut of the tubing with a razor blade. Insert the end of the tubing through the end of the caulking gun, then clamp the tubing in the flaring tool clamp. Leave enough tubing to fit onto the fitting, then clamp it tightly. Add lubricant to the fitting, then move the plunger forward until there is enough room for the fitting between the plunger and the tubing. Align the fitting with the tubing, then squeeze the handle of the caulking gun.
Nylon fuel line repair kits are available from O'Reilly Auto Parts, Amazon, and Rock Auto.
Before starting any fuel work, pull the pump relay and crank the engine to relieve fuel pressure.
