Regan Brown
Repairing a crack in a plastic fuel tank can be challenging, and the best approach may depend on the specific type of plastic used in the tank. Common methods include welding, soldering, and using epoxy or other adhesives. Before attempting any repair, it is crucial to ensure the tank is empty and properly cleaned to prevent any safety hazards. Some sources recommend identifying the type of plastic used in the tank and using a compatible welding technique or product, such as HDPE welding rods, to fill and seal the crack. Others suggest using a soldering iron to melt the plastic and seal the crack or applying epoxy adhesives, such as JB Weld, specifically designed for plastic fuel tanks. It is important to note that some adhesives may not be compatible with gasoline or may not provide a permanent solution.

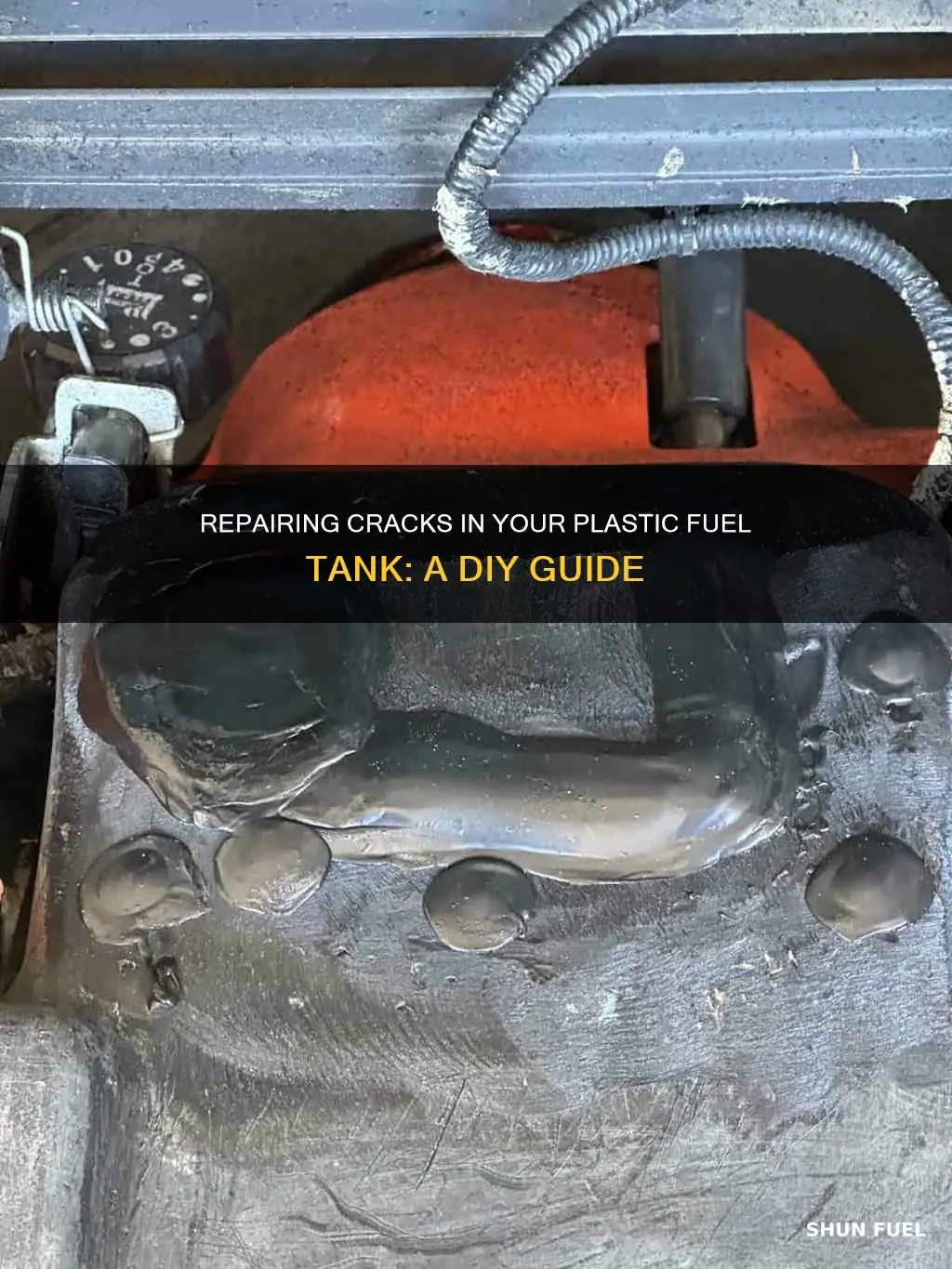

How to repair a crack in a plastic fuel tank
| Characteristics | Values |
|---|---|
| Step 1 | Empty the tank from fuel and leave it open to prevent pressure build-up inside the tank. |
| Step 2 | Use sandpaper to clean and sand the area around the crack. |
| Step 3 | Use a soldering iron to melt the plastic and seal the crack. |
| Step 4 | Apply a plastic repair epoxy or adhesive to the crack. |
| Tools/Materials | Soldering iron, sandpaper, epoxy glue (e.g. JB Weld, Permatex), super glue, baking soda, duct tape, soap |
Explore related products
What You'll Learn
Identify the type of plastic
It is important to identify the type of plastic used in your fuel tank before attempting any repairs. There are a few ways to identify the type of plastic. One common method is to look for plastic identification markings or symbols. These symbols indicate the type of plastic and its properties. For example, Symbol 1 denotes polyester and PET plastics, which are commonly found in clothing, plastic bottles, and insulation. On the other hand, Symbol 2 represents High-Density Polyethylene (HDPE), which is strong and resistant to acidic chemicals. This type of plastic is often used in fuel tanks, bleach bottles, and motor oil storage containers.
If your fuel tank does not have any identification markings, as is the case with some older models, there are other methods you can use for identification. One approach is to perform a float test or burn test. These tests can help rule out certain types of plastics, but they may not always provide a definitive answer. Additionally, you can examine the physical characteristics of the plastic, such as its appearance and feel. Different types of plastics have distinct properties, such as flexibility, stiffness, or fragility.
In the case of your KTM EXC 200, 2001 model, it is suggested that the fuel tank is likely made of HDPE. This is a common type of plastic used in fuel tanks due to its strength and resistance to acidic chemicals. However, without clear identification markings, it is challenging to determine the exact type of plastic with complete certainty.
If you are still unsure about the type of plastic in your fuel tank after attempting these identification methods, it is advisable to seek professional advice or consult a mechanic. They may have access to more specialized tools or knowledge to accurately identify the plastic and provide appropriate repair recommendations. Remember, accurate identification of the plastic type is crucial to ensure effective and safe repairs.
Super Tankers: Burning Millions of Gallons of Fuel
You may want to see also
Explore related products
Clean the tank
To repair a crack in a plastic fuel tank, the tank must first be cleaned. This is an important step as it ensures that the repair is effective and long-lasting. Here is a step-by-step guide to cleaning the tank:
Start by emptying the fuel tank completely. It is important to leave the tank open so that fuel does not build pressure inside. You can then use a degreaser to clean the tank, ensuring that all grease, gasoline, and oils are removed from the surfaces to be glued. Simple Green is a recommended degreaser that works well in this case. This step is crucial as any remaining grease or oil can interfere with the bonding process.
Once the tank is degreased, the next step is to sand the area around the crack. Use medium-rough sandpaper or a Scotchbrite pad to scuff the surface. Sanding serves two purposes: it helps to clean the area further, and it creates a rough surface that will allow for a better bond with the repair material. Ensure that you sand not just the area immediately around the crack but also a wider area to prepare the surface for repair.
After sanding, it is important to remove any sanding debris. You can use a brush or compressed air to get rid of any remaining dust or particles. This step is important to ensure that the repair area is clean and free of any contaminants.
Finally, inspect the tank to ensure that it is thoroughly cleaned and prepared for the repair process. Check that the area around the crack is free of any grease, oil, or sanding debris. Once you are satisfied that the tank is clean, you can move on to the next steps of the repair process, such as melting the plastic or applying an epoxy.
Remember, cleaning the tank is a crucial step in repairing a crack in a plastic fuel tank. It ensures that the repair will be effective and long-lasting, so take your time and ensure that the tank is properly prepared before moving on to the next steps.
Becoming a Fuel Tanker Driver: A Step-by-Step Guide
You may want to see also
Explore related products
Use a soldering iron
To repair a crack in a plastic fuel tank using a soldering iron, you will need to take certain precautions and follow a few steps to ensure a safe and effective repair.
Firstly, it is important to empty the fuel tank completely and leave it open to prevent any build-up of pressure inside. Once the tank is empty, use medium-rough sandpaper to sand the area around the crack. Sanding serves two purposes: it cleans the area, allowing for better bonding, and it helps fill the crack by creating sanding debris that will melt and fill the crack when heat is applied.
Next, take your soldering iron and set it to a temperature between 250-300 degrees Celsius. A wider soldering tip, around 1 cm wide, is recommended as it helps dissipate heat more evenly around the crack. Heat the surrounding area of the crack with the soldering iron to ensure better bonding. Take a plastic stick, preferably made of the same type of plastic as your fuel tank (HDPE plastic from detergent bottles is a good option), and apply heat to the tank with the soldering iron in one hand and the plastic stick in the other. Remove the soldering iron and place the plastic stick onto the heated tank, then apply heat to the stick. The plastic will melt and bond with the tank, filling the crack.
It is important to note that simply running the soldering iron over the crack may not create a strong enough bond, so taking the extra step to fill the crack with melted plastic is crucial. Additionally, some users recommend embedding a piece of metal flyscreen into the plastic over the crack for added strength and leak protection.
While soldering can be an effective method for repairing cracks in plastic fuel tanks, it may not always provide a permanent solution. The type of plastic and the quality of the weld will impact the durability of the repair. For a more permanent solution, consider professional plastic welding services or the use of automotive-grade plastic weld glue.
Fuel Tankers: A Dangerous Necessity
You may want to see also
Explore related products
Use plastic welding
Plastic welding is an effective method for repairing a crack in a plastic fuel tank. This technique involves melting the plastic around the crack and using a filler material to seal the crack.
First, ensure you are wearing protective gear, including eye protection, a welding helmet, and welding gloves. Next, drain the fuel tank and allow it to dry. It is important to work in a well-ventilated area to avoid inhaling any fumes. Once the tank is empty and dry, use medium-grit sandpaper to roughen the area around the crack. Sanding cleans the surface and helps the filler material adhere better. After sanding, clean the area with a cloth soaked in rubbing alcohol to remove any remaining residue.
Now, you are ready to begin the welding process. If you are using a soldering iron, set the temperature between 250-300 Celsius. Choose a solder tip that is wide enough to evenly distribute heat around the crack, approximately 1cm in width. Take a plastic welding rod or filler material that matches the plastic of your fuel tank. You can use the plastic from an empty detergent bottle or cut a piece from another tank.
With the iron heated to the desired temperature, apply heat to the tank, focusing on the crack. Once the plastic becomes elastic and malleable, slowly push the filler material into the crack, allowing it to melt and blend with the surrounding plastic. Let the repaired area cool down and solidify.
Finally, you can sand the repaired area to smooth out any imperfections and spray paint it with plastic paint if desired.
Plastic welding is a reliable method for repairing cracks in plastic fuel tanks, and with the right tools and safety precautions, you can effectively seal the crack and restore the functionality of your fuel tank.
What's the Depreciation Life of Underground Fuel Tanks?
You may want to see also
Explore related products
Seal the tank
Sealing a plastic fuel tank requires careful preparation and execution to ensure a durable repair. Here is a step-by-step guide to sealing the tank:
Firstly, it is crucial to empty the fuel tank and leave it open to prevent any build-up of pressure inside. This safety measure ensures that you are not exposed to flammable fumes during the repair process. Once empty, use medium-rough sandpaper to sand the area around the crack. Sanding serves two purposes: it cleans the area, creating a better surface for the repair, and it helps fill the crack itself, preparing it for the next steps.
Next, identify the type of plastic your fuel tank is made of. Most fuel tanks are made of HDPE, but it is important to confirm this by looking for symbols or abbreviations on the tank. This information will guide your choice of repair materials and methods.
If your tank is indeed made of HDPE, one effective repair method is plastic welding. This process involves melting the crack and mixing the semi-molten sides together, essentially making the tank whole again. You can use a soldering iron or a heat gun for this process, but be cautious with the temperature. Start low and gradually increase the heat to prevent scorching the plastic. The goal is to melt the plastic just enough for it to fuse back together.
If welding is not an option, there are epoxy adhesives designed specifically for repairing plastic fuel tanks. Look for a product that is fuel-proof and compatible with the type of plastic in your tank. For example, if your tank is made of HDPE, choose an epoxy that is known to bond well with this type of plastic. Before applying the epoxy, ensure the area is thoroughly cleaned and degreased, as any residual oil or grease can interfere with the bond.
Finally, some creative solutions suggested online include using super glue and baking soda or filling the crack with soap and covering it with duct tape. While these methods may work in some cases, they are less reliable and should be approached with caution.
Remember, repairing a plastic fuel tank can be challenging, and the success of the repair depends on various factors, including the location and size of the crack and the compatibility of the repair materials with the tank's plastic.
Fuel Filter Tank Costs: Understanding the Price of 1/3rd
You may want to see also
Frequently asked questions
The first step is to empty the tank from fuel and leave it open so that there is no pressure inside the tank.
Use sandpaper to sand around the problematic area. Sanding is necessary to clean the area and allow the plastic to stick better.
The best way to repair a crack in a plastic fuel tank is by melting the plastic and sealing it back up. This can be done using a soldering iron or a welding rig made out of a nozzle for a heat gun.
Plastic fuel tanks are most commonly made of HDPE, which is known for its strength and durability.
Special two-component epoxy glues, such as JB Weld, can be used to repair cracks in plastic fuel tanks. However, it is important to ensure that the surface is properly cleaned and prepared before gluing.
