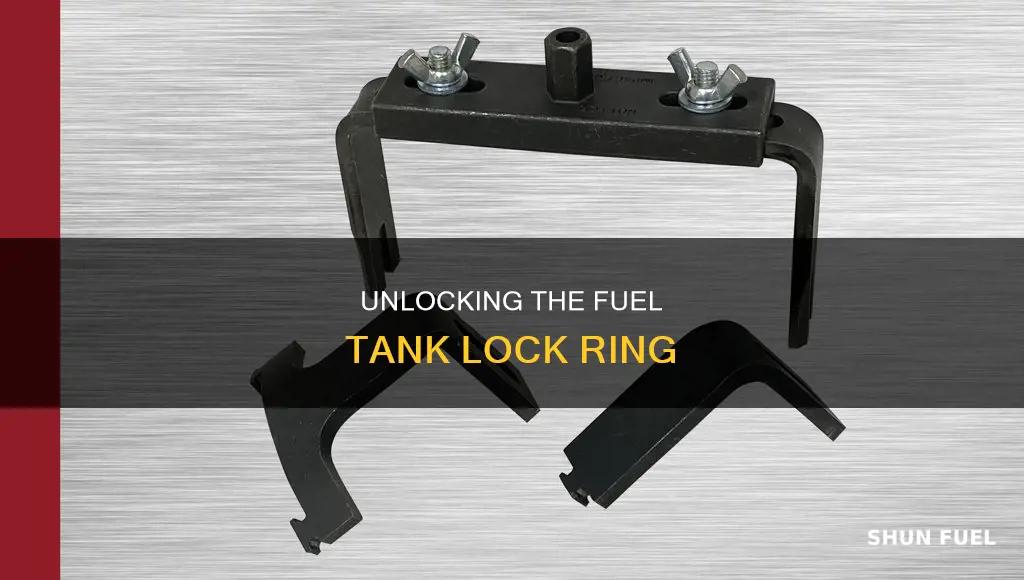

Removing a fuel tank lock ring can be a challenging task, often requiring significant force and the right set of tools. The process may vary depending on the vehicle's specific design and the condition of the lock ring. In some cases, individuals have reported success by applying lubricants or soaking the lock ring in PB Blaster or Kroil to loosen it up before using tools such as a punch, hammer, or screwdriver to remove it. However, it is important to exercise caution to avoid damaging the fuel tank or creating sparks that could potentially lead to dangerous situations. Some people opt for specialized tools like the OTC 6599 ring removal tool or an air hammer to make the job easier and reduce the risk of damage or injury.
Explore related products
What You'll Learn
Using a hammer and screwdriver
Firstly, it is important to clean the area and ensure there are no clips on the outside of the ring that could be stopping it from moving. You should then douse the top of the tank with water to prevent sparks.
There are several ways to use a hammer and screwdriver to remove the lock ring. One way is to use a long screwdriver and tap the lock ring with the hammer to break the corrosion or rust. You can also use the screwdriver to press on the tabs inside the ring while turning the lock ring. It is important to tap all around the lock ring, rather than focusing on one side. You can tap at twelve, nine, six, and three o'clock (like a clock) and go carefully round and round. It may also help to apply downward pressure while hammering.
Another method is to use a flathead screwdriver and hammer to give a couple of whacks to the raised sections of the ring, helping them get into their grooves. You can also try using a punch with the hammer, although this may be a little risky.
It is worth noting that some people have found it useful to have a second person around to help. One person can use the hammer and screwdriver while the other can put their weight on the tool to help break the retainer loose.
The Science Behind Self-Sealing Fuel Tanks
You may want to see also
Explore related products
Applying grease or lube
When it comes to applying grease or lube during the removal of a fuel tank lock ring, there are several important considerations and techniques to keep in mind. Firstly, it is recommended to apply a light coat of lube to the locking friction surfaces or lobes. This will significantly aid in the removal or installation process, allowing the lock ring to cooperate much better.
In terms of specific lubricants, some people suggest using PB Blaster, a penetrant that can help loosen rusty or frozen parts. Soaking the lock ring in PB Blaster or a similar product for several days can help break down rust and make removal easier. However, if you are soaking the lock ring, be sure to cover the top of the tank with water to avoid any potential sparks during the removal process.
Another important consideration is the use of tools that can help break up rust or loosen the lock ring. An air needler, for example, can be useful for breaking up rust chunks and relieving stress on the fuel tank tabs, making it easier to rotate the ring. Additionally, a brass punch or chisel can be used to create new access points to gain better leverage during removal.
When applying grease or lube, it is essential to focus on the areas where the lock tabs are located, as these tend to require more force during installation or removal. By applying grease to both sides of the lock ring, especially around the lock tabs, you can reduce the risk of damage and make the process smoother.
Lastly, it is important to remember that the removal of a fuel tank lock ring may require significant force, even with the application of grease or lube. In some cases, a hammer or impact tool may be necessary to provide the necessary force. Always exercise caution and consider seeking professional assistance if you are uncomfortable with any aspect of the process.
Removing Fuel Screen from Honda Generator Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Using a punch and hammer
Firstly, it is recommended to use a brass punch to avoid creating sparks around the fuel tank. A flathead screwdriver can also be used in place of a punch. When using a punch, try to hit the lock ring as level as possible.
In terms of the hammer, a metal hammer is preferable to a rubber hammer as it may require a strong swing to dislodge the lock ring. A 4-5 lb hammer is a good option, with some people opting for a ball peen hammer due to its decent weight. It is also recommended to avoid continuously hitting the same place. Instead, hit one tab and then move to the next tab all the way around.
In addition to the punch and hammer, some people also use a flathead screwdriver to help with the removal process. This involves notching a 'V' into the end of the flathead to prevent it from slipping off the lock ring.
While using a punch and hammer can be effective, it is worth noting that there are other tools and methods available for removing a fuel tank lock ring. These include using an air hammer, air chisel, or a fuel tank lock ring tool specifically designed for this purpose.
How Planes Land with Full Fuel Tanks
You may want to see also
Explore related products
Using a chisel
To remove the lock ring using a chisel, start by applying a penetrating lubricant, such as PB Blaster, to the lock ring and allowing it to sit. This will help to loosen the ring. Next, use a hammer to gently tap the chisel against the lock ring, being careful not to hit it too aggressively, as this could damage the tank. Work your way around the ring, tapping it loose a little at a time.
If the ring is particularly stubborn, you may need to use a stronger tool, such as an air hammer with a chisel bit. This method can be more effective at removing the ring, but it also carries a higher risk of damaging the tank. It is important to be cautious and work slowly to avoid causing any sparks.
In some cases, it may be necessary to break the lock ring in order to remove it. This can be done by applying more force with the hammer and chisel, but it is important to note that this will require a replacement ring to be installed afterward. It is also recommended to clean up any tabs or replace the tank if they become damaged during the removal process.
Overall, while using a chisel to remove a fuel tank lock ring can be effective, it is important to prioritize safety and be cautious of the potential risks involved. It may be beneficial to consider alternative tools or methods that are specifically designed for fuel pump removal, as these can often make the job easier and reduce the risk of damage or injury.
Exploring Ford Explorer: Removing the Fuel Tank
You may want to see also
Explore related products
Using an air hammer
When using an air hammer, it is important to get aggressive with the lock ring. Make sure you are hitting it hard enough, and don't be afraid to use some force. You can also try alternating between tabs to keep the ring centred. If you are worried about the tank being damaged, consider replacing it with a new one.
Another technique is to use a large flathead screwdriver and a decent-sized hammer. Soak the top of the tank with water before using this method. This technique has been used for 20 years without any sparks or fires.
Additionally, consider using an air needler to break up any chunks and help open up some of the stress keeping the ring pinched on the fuel tank tabs. This can make it easier to rotate the ring.
Troubleshooting Guide: Checking Generator Fuel Tank Gauges
You may want to see also
Frequently asked questions
Removing a fuel tank lock ring can be done in several ways. Some people suggest using a brass punch and a hammer, while others recommend using a flathead screwdriver and a hammer. It is important to be careful and patient during the process, as it can be challenging and time-consuming.
There are a variety of tools that can be used to remove a fuel tank lock ring. Some common options include a brass punch, a hammer, a flathead screwdriver, a chisel, an air hammer, and a universal fuel tank lock ring tool. It is important to use tools that will not create sparks to avoid any potential fire hazards.
The time it takes to remove a fuel tank lock ring can vary depending on the tools used and the condition of the ring. Some people report that it can take as little as 30 minutes, while others may need to soak the ring for several days before it can be removed. It is important to be patient and take the necessary time to remove the ring safely and effectively.
