Fuel injectors are designed to deliver fuel into an engine's cylinders at the precise moment and in the correct quantity, ensuring optimal combustion. They are usually built to last, but they can wear out or become clogged over time. Removing fuel injectors from a fuel rail can be a tricky process, and it is important to consult your vehicle's manual for specific instructions. However, some general steps include disconnecting the battery and electrical connectors, removing the fuel rail, and then carefully prying and pulling the injectors out of their mounting location.
Explore related products
What You'll Learn
Removing the injector rail
Firstly, ensure you are working in a clean area to prevent dirt and debris from contaminating the fuel system. This is crucial for maintaining the integrity of the fuel injector and engine. Before starting, refer to your vehicle's manual for specific instructions and identify any parts that need to be removed or moved beforehand. Some parts that may interfere with the injector removal include the air filter box, intake plenum, engine covers, and wiring harnesses.
Next, disconnect the battery and remove the plastic engine covers using the appropriate socket. It is important to ensure that the engine is cold enough to touch before proceeding. Then, use pliers to carefully disconnect the electrical connector on each injector. This step will help you access the injector rail more easily.
Now, we move on to removing the injector rail itself. The fuel rail is the metal rod located over the fuel injectors. To remove it, you will need to use a socket and ratchet to remove the bolts and brackets holding it in place. Depending on your vehicle's model, you may need to disconnect the fuel line from the fuel rail to gain better access. Be cautious, as this step may depressurize the fuel system, so refer to your repair manual for specific instructions for your vehicle.
Once the bolts and brackets are removed, carefully lift the fuel rail off the intake manifold. This may require a good amount of force, as the injectors are securely attached to the rail, and the sprayer tips fit snugly in the intake manifold. However, be careful not to use excessive force to avoid deforming or bending the fuel rail. The injectors may come out with the rail, but if they do not, gently wiggle and pull them out of their mounting location.
At this stage, it is important to check the injector ports for any debris or residue and clean them if necessary. Additionally, examine the injectors for any signs of carbon buildup around the injector tips, as this can make them difficult to remove. Special tools, such as a slide hammer with a special attachment, may be required to remove the injectors safely.
Finally, before installing new fuel injectors, it is recommended to dip the injector tips into a small amount of engine oil to wet the seals and prevent leaks. If your new injectors did not come with seals, be sure to purchase new injector seals to ensure a tight fit.
Ethanol's Effectiveness in Cleaning Fuel Injectors: Myth or Reality?
You may want to see also
Explore related products
Disconnecting the fuel rail
Before beginning, ensure you have a clean workspace to prevent dirt and debris from contaminating the fuel system. Additionally, refer to your vehicle's manual for specific instructions and safety precautions. Some engines may require disconnecting the fuel line from the fuel rail, so it's important to depressurize the fuel system before proceeding. Always check your repair manual for specific instructions.
To start, make sure the engine is cold enough to touch. Disconnect the battery to ensure no accidental ignition occurs during the process. Next, remove the plastic engine covers using the appropriate socket. Set these covers aside, so they don't interfere with your workspace.
Now, you'll need to access the fuel rail. Use a socket and ratchet to remove the bolts and brackets holding the fuel rail in place. Be cautious when working around the bolts, especially if they are close to the firewall. Once the bolts are removed, you may need to lift the fuel rail off the intake manifold with some force, as the injectors are firmly attached. Be careful not to deform or bend the fuel rail during this step.
With the fuel rail exposed, it's time to disconnect it from the injectors. The injectors have seals that fit snugly into the fuel rail, so you may need to wiggle the rail back and forth gently to free it. Be prepared for some dripping, as both the injector and rail may release some fuel. Have shop towels ready to catch any drips and avoid spills.
Once the fuel rail is disconnected, carefully lift it away from the injectors. You have now successfully disconnected the fuel rail! Before proceeding with the removal of the fuel injectors, it is recommended to check the injector ports for any debris or residue and clean them if necessary. This ensures that your fuel system remains in optimal condition.
Using Fuel Injector Cleaner Twice: Is It Safe?
You may want to see also
Explore related products

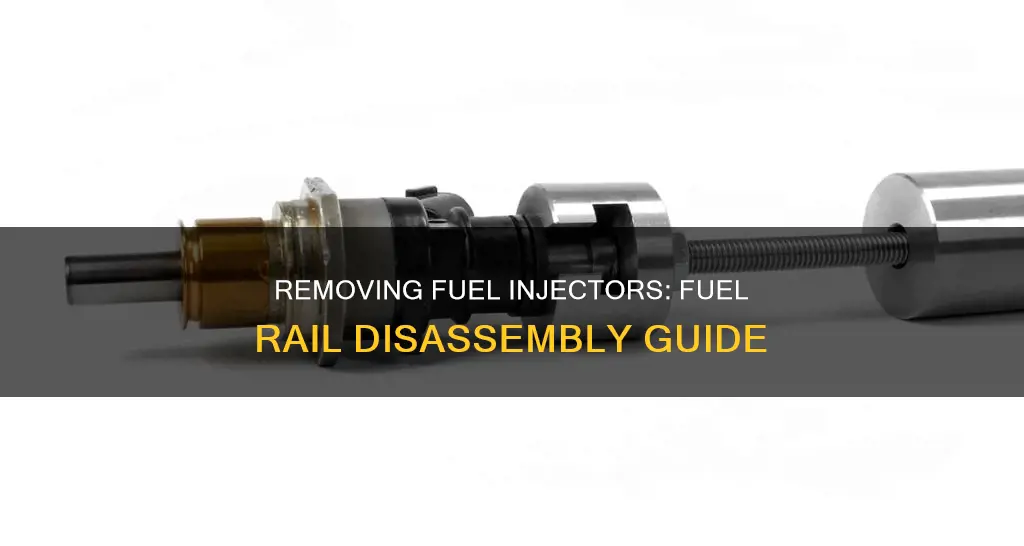

Using a slide hammer to remove injectors
Removing fuel injectors from a fuel rail can be a challenging task, and it may require some ingenuity and special tools. One common tool that can be used is a slide hammer, which can be especially useful when dealing with stubborn injectors. Here is a step-by-step guide on using a slide hammer to remove fuel injectors from the fuel rail:
Before beginning the removal process, it is important to gather the necessary tools and safety equipment. Ensure you have a slide hammer with the appropriate attachments, such as the J-37281-A injector remover, and wear appropriate protective gear, including gloves and eye protection. It is also recommended to have shop towels or rags nearby to wipe up any fuel or oil that may drip during the process.
Firstly, disconnect the fuel lines, clips, and connectors attached to the fuel injectors and fuel rail. This will involve removing bolts and brackets and fuel pipes. Refer to your vehicle's repair manual for specific instructions, as the process may vary slightly depending on the make and model of your car. Ensure the engine is cold enough to touch before proceeding.
Once the fuel lines and connectors are detached, focus on removing the retaining clips that hold the injectors in place. These clips may need to be replaced, so it is important to handle them carefully. Gently slide the clips off to the side, being cautious not to damage the injector or the clip itself.
Now, you can prepare to use the slide hammer. Attach the special injector remover attachment to the slide hammer, ensuring it is securely fastened. Position the slide hammer under the injector, aiming to grab onto a suitable area of the injector body. This step may require some creativity, especially if space is limited.
With the slide hammer in position, begin to apply force to pull out the injector. The injectors are fitted tightly, so a good amount of force may be required. However, be cautious not to use excessive force that could damage the injector or surrounding components. Work the slide hammer back and forth gently, prying the injector away from the fuel rail.
Finally, once the injector is removed, have shop towels ready to wipe up any fuel or oil that may have dripped during the process. Repeat the process for each injector, ensuring that you work carefully and follow the same steps for each one. Remember to refer to your vehicle's repair manual for any specific instructions or variations that may apply to your particular model.
How Tune-Ups Affect Fuel Injectors: What You Need to Know
You may want to see also
Explore related products
Removing the metal clip
Before you begin, it is important to work in a clean area to prevent dirt and debris from contaminating the fuel system. Additionally, refer to your vehicle's manual for specific instructions and safety precautions. Some vehicles may require disconnecting the battery before proceeding.
To remove the metal clip, start by examining the fuel injector carefully. Look for a small metal clip that resembles a staple. This clip is typically used to secure the injector in place. Using a small flathead screwdriver, gently pry or depress the clip. Be cautious during this step to avoid causing any damage to the surrounding components.
Once the clip is depressed or loosened, it's time to remove the injector. Grasp the injector firmly, wearing gloves to protect your hands and prevent any fuel residue from coming into contact with your skin. Work the injector back and forth while gently pulling it away from the fuel rail. This step may require some force, but be careful not to use excessive force that could damage the fuel rail or the injector itself.
During the removal process, it is common for the injector and rail to drip fuel. Therefore, have shop towels or absorbent materials ready to catch any drips and prevent fuel from spilling onto other engine components. It is also recommended to have a container or tray placed underneath to catch any falling fuel.
After successfully removing the injector, pay attention to the injector tip, also known as the sprayer end. Before installing a new injector, it is crucial to dip this tip into a small amount of clean engine oil. This step helps to wet the seals and prevent leaks when the new injector is installed. Remember to purchase new injector seals if your new injectors did not come with them, as reusing old seals is not advisable.
Backhoe Maintenance: Replacing Fuel Injectors for Optimal Performance
You may want to see also
Explore related products
Reattaching the fuel rail
Prepare the Fuel Rail:
Firstly, ensure that the fuel rail is clean and free of any debris or residual fuel. This step is crucial for safe and efficient reattachment.
Positioning the Fuel Rail:
Position the fuel rail back into place, ensuring that the fuel injectors align correctly with the holes in the intake manifold. This step may require some careful maneuvering to get the fuel injectors to fit snugly into their respective positions.
Securing the Fuel Rail:
Secure the fuel rail in place using the appropriate bolts. Typically, there are four fuel rail retaining bolts that need to be tightened with a 10 mm socket. Torque these bolts to 8 Nm (6 ft-lbs) to ensure a secure fit.
Reattach Fuel Supply and Return Lines:
Reconnect the fuel supply line to the fuel damper and the fuel return line to the fuel pressure regulator. The specific locations of these connections may vary depending on the vehicle's make and model. For example, in '85 model and older cars, the fuel damper and fuel pressure regulator are usually located near the back of the fuel rail.
Reconnect Spark Plug Wires:
Reattach the spark plug wire retaining clips to the fuel rail. Depending on the vehicle's configuration, you may need to disconnect and remove certain plug wires to properly secure the fuel rail. Ensure that the spark plug wires are correctly routed to the appropriate cylinders.
Test the System:
Once the fuel rail is reattached, it is important to test the system to ensure that everything is functioning correctly. Start the engine and check for any leaks or unusual noises. If everything appears to be in order, you can be confident that the fuel rail has been successfully reattached.
Remember to consult vehicle-specific repair manuals or seek guidance from a qualified mechanic if you encounter any issues or have questions during the reattachment process.
The Magic of Fuel Injectors: Atomization Process Explained
You may want to see also
Frequently asked questions
First, check your vehicle's manual for specific instructions. Next, disconnect the fuel rail if required, or unfasten it and move it if possible. The injectors may come out with the rail, or you may need to wiggle the rail free from the injectors. Then, gently wiggle and pull the injector out of its mounting location.
You will need a socket and ratchet to remove the bolts and brackets holding the fuel rail in place. You may also need pliers to disconnect the electrical connector on each injector. If there is a small metal clip, use a small flathead screwdriver to remove it. You may also need a slide hammer with a special attachment to attach to the injectors to remove them.
Make sure the engine is cold enough to touch before you start. Disconnect the battery and remove any plastic engine covers. Be careful not to break the top o-rings on the injectors. Work in a clean area to prevent dirt and debris from contaminating the fuel system.
Check the injector ports for any debris and clean if required. After installing the new fuel injectors, run the engine and inspect for leaks from the fuel system. If the car doesn't start right away, let it crank for a few seconds to pressurize the system.
Fuel injectors are designed to last a decade or more, but they may need replacement if they wear out or become clogged. Turn the key to the "on" position and wait 10 seconds before turning to engine start. After the engine drops to the normal idle RPM, turn it off. Take a flashlight and check all the injectors for fuel leaks.
