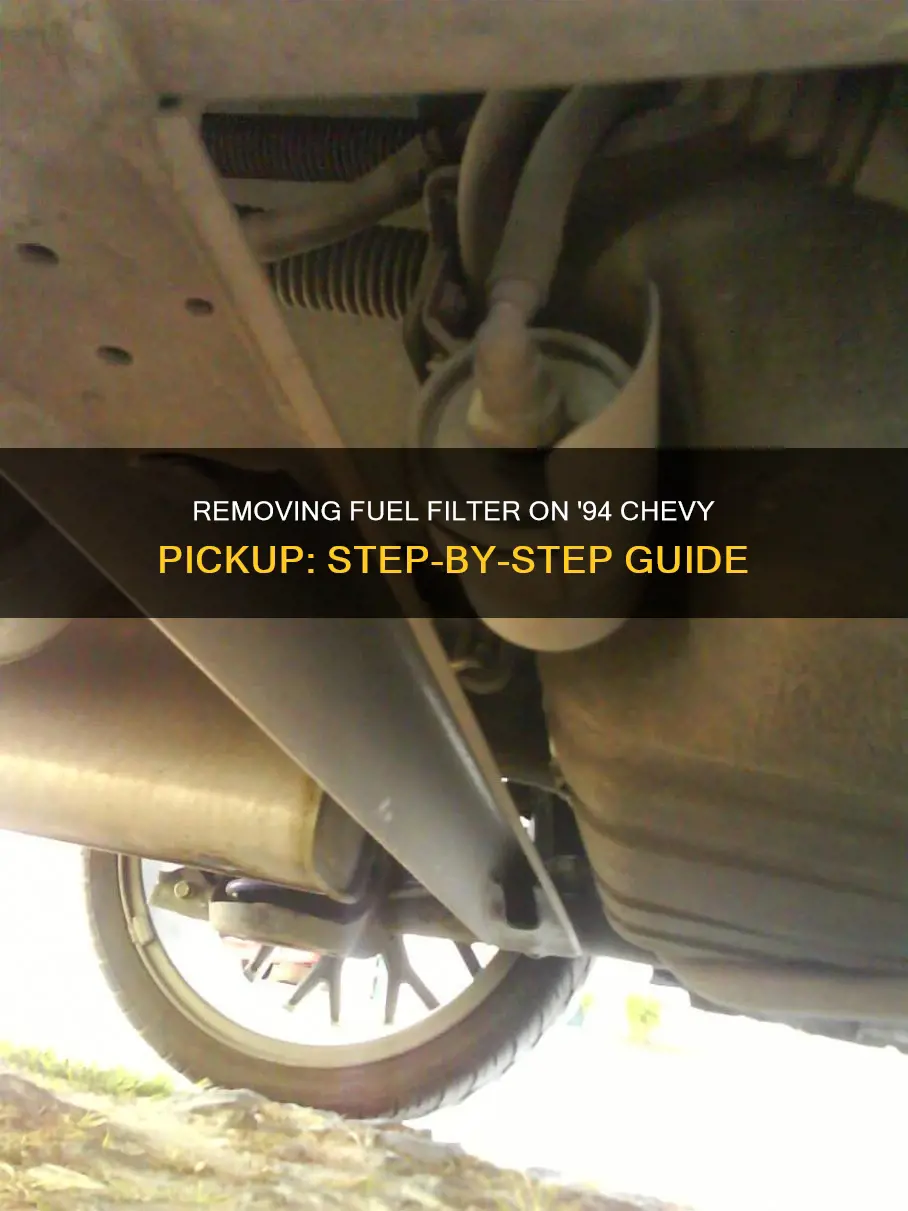

Changing the fuel filter on a 1994 Chevy pickup is a relatively straightforward process. The fuel filter will be located on the driver's side frame rail, held in place by a strap with a bolt at the top and bottom. To remove the fuel filter, you will need to loosen and remove these bolts, as well as the fuel lines, before sliding the filter out of the bracket. It is important to relieve the fuel pressure before beginning any work and to have the vehicle turned off with the key removed.
Characteristics and Values Table for Fuel Filter Removal on a 1994 Chevy Pickup
| Characteristics | Values |
|---|---|
| Vehicle | 1994 Chevy Pickup |
| Fuel Filter Location | Driver's side frame rail |
| Holding Mechanism | Strap with a bolt on top and bottom |
| Tools Required | Two wrenches |
| Process |
|
Explore related products
What You'll Learn
Ensure the vehicle is off and remove the key and gas cap
To begin the process of changing the fuel filter on your 1994 Chevy pickup, it is imperative to prioritize safety and ensure that the vehicle is turned off completely. Remove the key from the ignition to prevent any accidental startups during the procedure.
The next critical step is to remove the gas cap. This step might seem insignificant, but it plays a crucial role in relieving fuel pressure within the system. By loosening the gas cap, you reduce the risk of fuel leakage and potential hazards associated with pressurized fuel.
When dealing with fuel systems, it's always advisable to take extra precautions. In addition to removing the key and loosening the gas cap, it's a good practice to open windows or work in a well-ventilated area to ensure proper airflow and minimize the buildup of flammable fumes.
Before proceeding with any further steps, double-check that the vehicle is off, the key is out of the ignition, and the gas cap has been loosened or removed. These initial steps form the foundation for safely replacing the fuel filter and reducing potential risks during the process.
Remember, working on a fuel system can be hazardous if the proper precautions are not taken. By ensuring that the vehicle is turned off, removing the key, and loosening the gas cap, you are taking the necessary first steps to create a safer environment for yourself and anyone else assisting with the fuel filter replacement in your 1994 Chevy pickup.
Fuel Filter Lifespan: How Long Does It Last?
You may want to see also
Explore related products
Loosen bolts and straps holding the fuel filter
To loosen the bolts and straps holding the fuel filter on a 1994 Chevy pickup, you will need two wrenches. One wrench is for the fuel line connector, and the other is for where the connector screws into the filter.
First, ensure the vehicle is off and the key is out of the ignition. The fuel filter will be located on the driver's side frame rail. You will see that there is a strap holding the filter, with a bolt at the top and bottom. Take these out and set them aside.
Now, with your wrenches, loosen the fuel line connector. Turn the hex head on the fuel line with a 14-mm wrench counterclockwise to loosen and remove the fuel line. Do this for both fuel lines, and let them hang down toward a catch pan.
At this point, the bolts and straps holding the fuel filter will be loosened, and you can proceed to slide the fuel filter out of its bracket.
Fuel Filter Placement: Before or After the Pump?
You may want to see also
Explore related products
Use a wrench to loosen and remove fuel lines
To remove the fuel lines from your 1994 Chevy pickup, you will need to use a wrench. First, make sure the vehicle is switched off and the key has been removed from the ignition. Next, relieve the fuel pressure by loosening the gas cap. The fuel filter is located on the driver's side frame rail. There is a strap holding it in place, with a bolt at the top and bottom. Remove these bolts and set them aside.
Now, for the next part, you will need two wrenches. Hold the fuel filter with one hand, and use the first wrench to turn the hex head on the fuel line counterclockwise. This will loosen the fuel line, which you can then remove. Repeat this process for the second fuel line. Allow the fuel lines to hang down toward a catch pan.
It is important to note that you should use an open-end 14mm wrench for this task.
Fuel Filter Installation: Boat Motor Maintenance
You may want to see also
Explore related products
Slide out the old fuel filter and insert a new one
Now that you have loosened the fuel lines, it's time to slide out the old fuel filter. Make sure you are holding the fuel filter with one hand and use your other hand to turn the hex head on the fuel line with the 14mm wrench. Turn it counterclockwise to loosen and remove the fuel line. Do this for both fuel lines. Now, carefully let the fuel lines hang down toward the catch pan. You can then slide out the old fuel filter from the front to the back of the round bracket.
To insert the new fuel filter, simply follow these steps in reverse. Slide the new fuel filter into the bracket from the rear, ensuring that the arrow on the fuel filter is facing the front of your Chevy pickup truck. This arrow is important as it indicates the direction of fuel flow through the fuel filter. Once the new fuel filter is in place, screw both hex head fuel lines onto it and tighten them securely with the 14mm open-end wrench.
It is important to note that the fuel filter should be primed with fuel before starting the engine. To do this, simply turn the ignition on and off three times, and then crank the engine on the fourth turn. After this, carefully inspect the fuel lines and the new fuel filter for any signs of leaks. Finally, turn the engine off.
Congratulations, you have successfully replaced the fuel filter in your 1994 Chevy pickup! This maintenance will help ensure optimal fuel flow and engine performance. Remember to consult a qualified mechanic if you encounter any issues or have any concerns during the process.
Where's the Fuel Filter on a 2008 Dodge Nitro?
You may want to see also
Explore related products
Prime the new fuel filter and check for leaks
To prime the new fuel filter, first, make sure the vehicle is turned off and that the key has been removed from the ignition. Loosen the gas cap. You will find the fuel filter on the driver's side frame rail. There will be a strap holding the filter in place, with a bolt at the top and bottom. Take these bolts out and set them aside.
Now, take two wrenches. You will need one wrench for the fuel line connector and another for where the connector screws into the filter. With the wrenches in place, you can prime the new fuel filter by opening the fuel line connector.
After priming the new fuel filter, it is important to check for any leaks. Ensure that the bolts are tightened securely and that the fuel line connector is properly attached. Once you have confirmed that there are no leaks, you can proceed with starting the engine and testing the vehicle to ensure that the new fuel filter is functioning properly.
It is worth noting that fuel filters have a regular maintenance interval, so it is important to keep an eye on the filter and replace it as necessary to ensure optimal performance and fuel efficiency for your 1994 Chevy pickup.
How to Install a Duramax Fuel Pump Filter
You may want to see also
Frequently asked questions
The fuel filter will be located on the driver's side frame rail. There will be a strap holding it, with a bolt at the top and bottom.
You will need two wrenches: one for the fuel line connector and one for where the connector screws into. You will also need a 14mm open-end wrench.
Loosen and remove the fuel line by holding the fuel filter with one hand and turning the hex head on the fuel line with the 14mm wrench counterclockwise. Do this for both fuel lines.
Slide the new fuel filter into the bracket from the rear, with the arrow on the filter facing the front of the truck. Screw both hex head fuel lines onto the new fuel filter and tighten with the 14mm wrench. Put the gas cap back on the gas tank.
