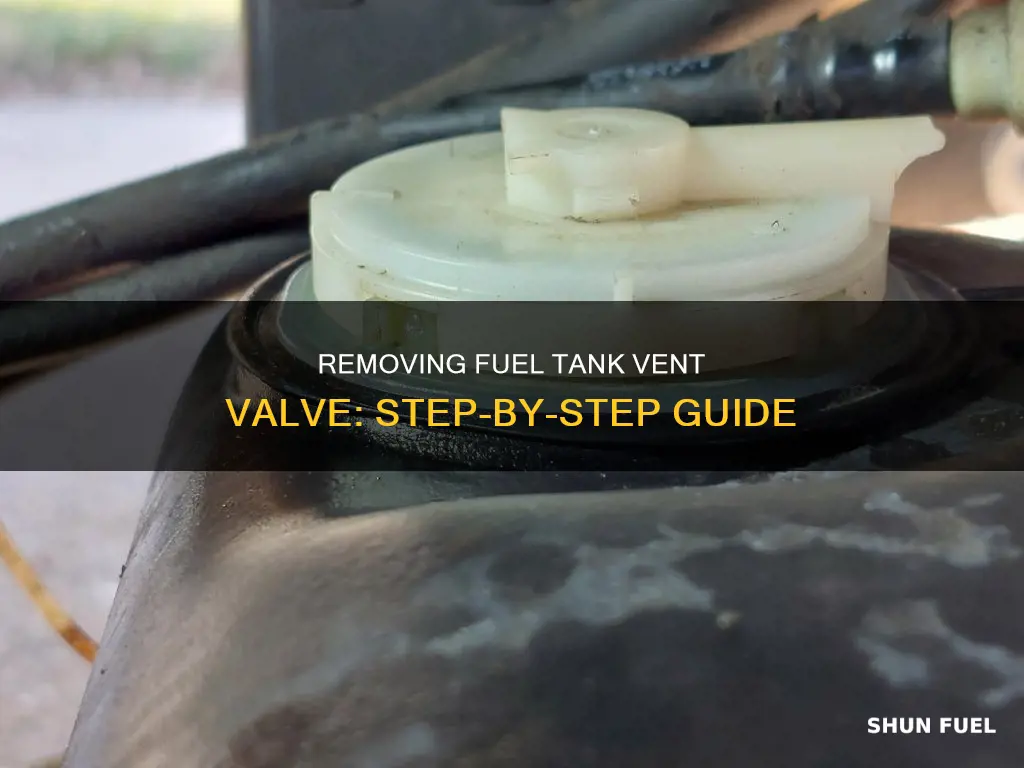

Removing a fuel tank vent valve is a delicate procedure that requires careful attention to detail. The process can vary depending on the vehicle and the specific vent valve design, but there are some general steps that can be followed. It is important to note that the fuel tank vent valve is part of the EVAP emission system, which includes hoses, a canister, and other components. Before beginning any work, it is essential to disconnect the fuel source and clean the area to prevent any accidental damage or injury. With the proper tools and precautions, individuals can successfully remove and replace a faulty fuel tank vent valve, ensuring the vehicle's fuel system functions correctly and safely.
Characteristics and Values Table for Removing a Fuel Tank Vent Valve
| Characteristics | Values |
|---|---|
| Tools required | Razor knife, epoxy, glue |
| Steps | 1. Clean the area and disconnect the hose. 2. Remove the tension ring and o-ring. 3. Seal with epoxy and ensure the nipple is pointed between the two dashes on the tank. 4. Cut the nipple off the old vent valve and insert the cut side into the hose. 5. Slide the clamp away from the valve and remove the tube. 6. Press down and rotate the valve counterclockwise to remove from the tank. |
Explore related products
What You'll Learn
Identify the vent valve's location
The fuel tank vent valve is a critical component of your vehicle's fuel system. Its function is to control the flow of vapours from the fuel tank to the engine, ensuring that fuel vapours are not released into the atmosphere. When this valve is not working correctly, you may experience issues such as reduced engine performance, rough running, or a strong fuel smell inside the vehicle.
Identifying the vent valve's location is crucial for maintenance and repairs. The location of the fuel tank vent valve can vary depending on the vehicle's model and make. For example, in some BMWs, the fuel tank vent valve is part of the evaporative emissions control system (EVAP), and issues with this valve may trigger warning lights and error codes. To diagnose a faulty vent valve in a BMW, you can connect an OBD-II scanner to check for specific error codes like P0441 or P0455.
In some Mini Coopers, the fuel tank vent valve, also known as the purge valve, is located under the intake manifold. However, in a 2010 Mini Coupe, it was found hanging off the rear of the intake manifold on a small steel bracket, with two hose clamps and one electrical connection. Therefore, it is essential to refer to vehicle-specific information, such as a shop manual, to accurately identify the vent valve's location for your particular car model.
Additionally, some vehicles may have the fuel tank vent valve mounted externally, such as on the rear passenger side of the trunk, or above the rear axle housing. The placement of the vent valve should always ensure that the vent line is higher than the highest point of the tank, including the fuel filler neck, to prevent fuel from escaping.
In certain cases, the vent valve may be located within the fuel tank itself. For instance, a user with a 1996 F-150 inline 6 vehicle discovered a vent line on top of their fuel tank that had been damaged by a rat, leading them to inspect the vent valve for potential issues.
Applying POR 15 to Your Motorcycle Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Disconnect the hose
Disconnecting the hose from the fuel tank vent valve is a crucial step in removing and replacing the valve. Here is a detailed guide on how to do it:
First, locate the hose connected to the fuel tank vent valve. This hose is part of the EVAP system, which includes the vent valve, a canister, a purge valve, and other hoses. The hose will be attached to the valve, which is typically located on the top or back of the fuel tank.
Next, before you disconnect the hose, it is important to clean the area around it. This is to ensure that any dirt or debris that may have accumulated does not enter the fuel tank or the hose itself. Use appropriate cleaning materials and safety gear when cleaning, as you will be working with fuel components.
Now, to disconnect the hose, you will need to release it from the valve. Some hoses may have a clamp or locking clip that needs to be slid away or removed first. You may need to press down on the hose and rotate it counterclockwise to release it. Be careful not to use excessive force, as the hose should come off with a firm but gentle pull. In some cases, you may need to squeeze the sides of the hose or tabs near the connection to release it.
Once the hose is disconnected, be sure to set it aside carefully. It is important to leave enough space for the locking clip or any other mechanism that will be used to reconnect the hose later. If there is fuel remaining in the tank, it is possible that some may leak out at this stage. Be prepared to catch any leaks with a suitable container and dispose of the fuel safely.
Finally, with the hose disconnected, you will have access to the fuel tank vent valve for removal or replacement. It is important to note that the specific steps for disconnecting the hose may vary slightly depending on your vehicle's make and model, so additional research specific to your vehicle may be required.
How to Insulate Your Fuel Oil Tank
You may want to see also
Explore related products
Remove the tension ring and o-ring
When removing the fuel tank vent valve, it is important to take the necessary precautions. Wear a respirator or mask to avoid inhaling any fuel vapours, and ensure the area is well-ventilated. Before beginning the removal process, gather the appropriate tools, such as a razor knife, epoxy, and a new vent valve.
Now, to specifically address the tension ring and o-ring removal:
Firstly, identify the tension ring and o-ring on the fuel tank vent valve assembly. The tension ring is typically a metal or plastic ring that applies pressure to the o-ring, which is a rubber or silicone gasket creating a seal. The tension ring may have a locking mechanism or clip that needs to be released or disengaged before removal. Loosen or detach any fasteners or clamps holding the tension ring in place. This will allow for easier removal in the next steps.
Next, carefully pry or lift the tension ring upwards or outwards, depending on its design. Use a flat-head screwdriver or appropriate tool to gently lift the ring, being careful not to damage the surrounding components. Some tension rings may have tabs or notches that can be used for grip or leverage during this step. Once the tension ring is lifted, it should be free to remove by sliding or pulling it away from the assembly.
With the tension ring removed, the o-ring will be accessible. O-rings are typically seated in a groove or channel. Use a plastic or nylon tool to gently pry or lift the o-ring out of its groove. It is important to use a non-metallic tool to avoid damaging the o-ring seat or the surrounding components. Alternatively, some o-rings can be rolled or stretched out of their groove with gentle, even pressure. Once the o-ring is free, set it aside, being mindful of any fuel residue or vapours that may be present.
After removing the tension ring and o-ring, it is important to inspect them for any signs of damage or wear. If they are damaged or degraded, they should be replaced with identical parts to ensure a proper seal when the fuel tank vent valve is reassembled. It is also important to clean the groove or seating area for the o-ring to ensure that it is free of debris, dirt, or residue before installing a new o-ring.
By following these steps, the tension ring and o-ring can be safely and effectively removed from the fuel tank vent valve, allowing for repair, replacement, or maintenance of the valve assembly.
Fuel Additives: Full Tank or Not?
You may want to see also
Explore related products
Seal with epoxy
When sealing with epoxy, you will need to use an epoxy glue such as Super Glue's 4000 PSI epoxy. Before sealing, ensure that the tension ring and o-ring are removed from the new part. Check that the nipple is pointed between the two dashes on the tank so that it aligns with the hose. After applying the epoxy, wait for it to set. Once it has set, cut the nipple off the old vent valve. Then, insert the cut side of the nipple into the hose, ensuring sufficient space for the locking clip on the fitting.
It is important to note that different epoxy products may have specific instructions that should be followed. For example, Caswell Epoxy Gas Tank Sealer recommends specific steps for preparing the tank before sealing. First, remove any old coating using a paint stripper containing methylene chloride. Next, place drywall screws inside the tank and shake vigorously to dislodge any loose particles of rust. Rinse the tank with acetone or lacquer thinner and allow it to dry. Apply duct tape or masking tape to any seams, holes, or porous areas to prevent the epoxy from oozing out. Mix the required amount of epoxy and apply it to the tank.
Phenol Novolac Epoxies, such as the Caswell Epoxy, are a new type of chemical-resistant material that can withstand permanent immersion in various solvents, fuels, and oils, including ethanol-based fuels. They have superior bond strength compared to single-component products, with strengths of up to 3000 PSI. This higher strength reduces the need for a clinically clean surface, as the epoxy adheres better to rough, rusty surfaces.
After applying the epoxy, it is important to allow it to cure properly. For Caswell Epoxy, this involves placing the tank in a warm 70-90-degree Fahrenheit environment and letting it cure overnight. For alcohol fuels, extend the curing time to 3-5 days at room temperature or 24 hours at 120 degrees Fahrenheit.
Draining a Lawn Mower Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Clean the area
To clean the area around your fuel tank's vent valve, you must first identify the source of the problem. A clogged fuel tank vent can cause issues with filling up the tank, and may even starve the engine of fuel.
The first area to check is the screen on your fuel vent. Many fuel vents have fine-wire screens that prevent minute debris, insects, and spiders from entering. Over time, corrosion, salt crystals, and grime can accumulate on the screen, impairing the vent’s ability to breathe. If the screen appears clogged, use a small wire brush to clean away the gunk. If the corrosion has eaten away at the mesh, you must replace the vent.
You can also try using compressed air to blow out the line. A can of compressed air can be used to blow through the vent pipe, which will verify whether there is a blockage and often clear it. Alternatively, you can push a length of small-gauge plastic tubing or large heavy wire through the vent pipe to check for and clear any physical blockages, such as a wasp nest.
If the blockage is due to water intrusion, you may need to replace the vent with a new style that can be easily taken apart and cleaned.
Refilling Your Unturned Fuel Tank: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The removal process will depend on the type of car you have. For a Ford, you must first slide the clamp away from the valve and remove the tube. Then, press down and rotate the valve counterclockwise. For a GMT, you will need to cut the ring with a razor knife and then remove the tension ring and o-ring.
You will need a razor knife, epoxy glue, and a new vent valve.
The fuel tank vent valve is part of the EVAP emission system. It allows air to escape while refueling.
If the valve is obstructed or failed, air will not escape while refueling. This can cause a gas smell, even if there is no gas on the ground.
It is important to exercise caution when removing the valve as failure to do so can cause damage to the valve or the fuel tank.
