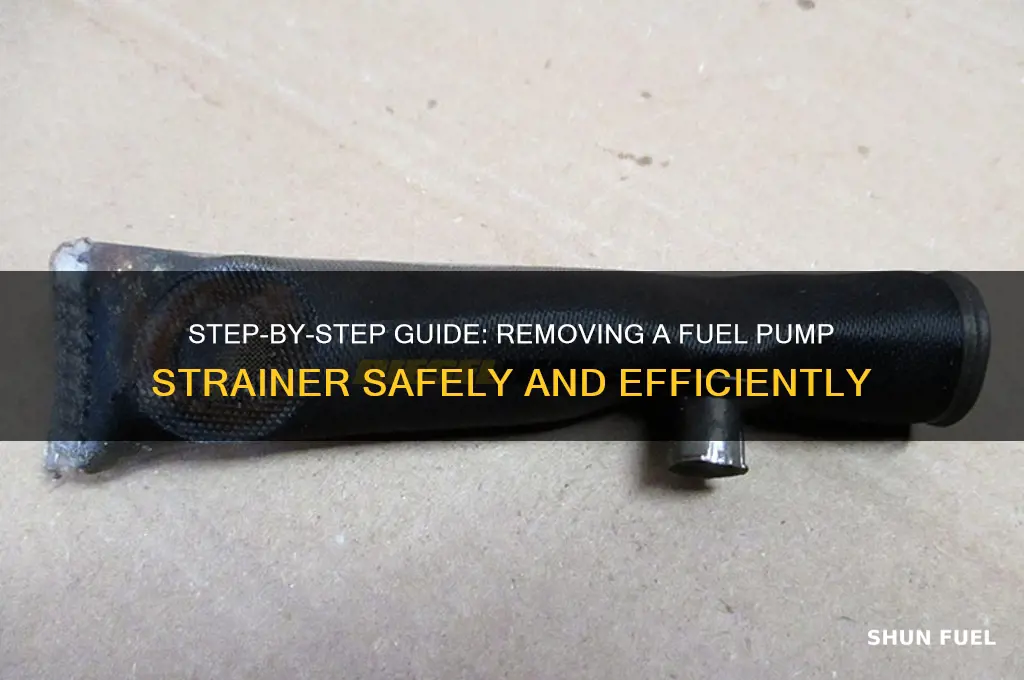

Removing a fuel pump strainer is a critical task that requires careful attention to safety and precision, as it involves working with the fuel system of a vehicle. The strainer, typically located inside the fuel tank, is designed to filter out debris and contaminants before they reach the fuel pump, ensuring optimal engine performance. To remove it, you’ll need to first relieve the fuel system pressure, disconnect the battery, and safely drain or siphon the fuel from the tank. Accessing the strainer often involves removing the fuel tank or using a specialized access panel, depending on the vehicle’s design. Once accessible, the strainer can be carefully detached from the fuel pump assembly, taking care not to damage any components or introduce contaminants. Proper tools, such as a strainer socket or wrench, may be required to avoid stripping fasteners. After removal, inspect the strainer for wear or clogging and replace it if necessary before reassembling the system. Always follow manufacturer guidelines and safety precautions to prevent fuel leaks, fires, or damage to the vehicle.
| Characteristics | Values |
|---|---|
| Tools Required | Socket set, wrench, screwdriver, pliers, safety gloves, safety goggles, drain pan, new strainer |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel system pressure |
| Vehicle Preparation | Park on a flat surface, engage parking brake, allow engine to cool |
| Fuel System Pressure Relief | Locate the fuel pressure relief valve or remove the fuel pump fuse/relay |
| Fuel Tank Access | Remove the rear seat or access panel to expose the fuel pump assembly |
| Fuel Pump Module Removal | Disconnect electrical connectors, loosen retaining bolts, and carefully lower the module |
| Strainer Removal | Detach the strainer from the fuel pump module, clean the area, and inspect for damage |
| Replacement Installation | Install the new strainer, reattach the fuel pump module, and secure all connections |
| System Reassembly | Reconnect electrical components, reinstall access panels, and reattach the battery |
| Post-Installation Check | Check for leaks, reset the fuel system, and test the vehicle for proper operation |
| Estimated Time | 1-3 hours depending on vehicle model and experience level |
| Difficulty Level | Intermediate to advanced |
| Common Issues | Fuel leaks, damaged O-rings, stuck bolts, or electrical malfunctions |
| Maintenance Tips | Regularly inspect the strainer for debris and replace as part of routine fuel system maintenance |
Explore related products
What You'll Learn
- Gather Tools and Materials: Socket set, wrench, screwdriver, new strainer, gloves, safety goggles, drain pan
- Locate the Strainer: Identify the fuel pump strainer position in the fuel tank or module
- Disconnect Fuel Lines: Relieve pressure, disconnect lines, and ensure no fuel spills during removal
- Remove the Strainer: Unscrew or unclip the strainer carefully to avoid damaging the pump
- Install New Strainer: Clean the area, attach the new strainer securely, and reconnect fuel lines
Gather Tools and Materials: Socket set, wrench, screwdriver, new strainer, gloves, safety goggles, drain pan
Before diving into the removal of a fuel pump strainer, it's essential to assemble the necessary tools and materials to ensure a smooth and safe process. A socket set, wrench, and screwdriver are the backbone of your toolkit, enabling you to loosen and remove the components securing the strainer in place. The socket set, in particular, should include various sizes to accommodate different bolt and nut dimensions, as fuel pump assemblies can vary across vehicle makes and models.
From a safety perspective, gloves and safety goggles are non-negotiable. Fuel is a hazardous substance that can cause skin irritation and eye damage upon contact. Nitrile gloves, known for their chemical resistance, are a superior choice over latex or leather gloves, which may degrade or absorb fuel. Safety goggles should be ANSI Z87.1 certified, ensuring they meet the American National Standards Institute's impact and splash protection requirements. A drain pan, preferably with a capacity of at least 5 gallons, is crucial for catching any fuel that may spill during the removal process, mitigating the risk of fire and environmental contamination.
The new strainer is a critical component, as it will replace the old, potentially clogged or damaged one. When selecting a replacement, ensure it meets the original equipment manufacturer (OEM) specifications for your vehicle. Aftermarket strainers may be more affordable, but they can compromise performance and fuel efficiency if not properly designed. Consider consulting your vehicle's manual or a trusted mechanic to confirm compatibility. As a general rule, strainers should be replaced every 60,000 to 100,000 miles, depending on driving conditions and fuel quality.
In practice, organizing your tools and materials in a systematic manner can significantly streamline the removal process. Lay out the socket set, wrench, and screwdriver in order of size or type, making it easy to grab the required tool without rummaging through a cluttered workspace. Place the new strainer and drain pan within arm's reach, ensuring they are readily accessible when needed. By adopting a methodical approach to tool and material gathering, you can minimize the risk of errors, reduce the time spent on the task, and create a safer working environment.
As you prepare to remove the fuel pump strainer, take a moment to inspect your tools and materials for any signs of wear or damage. A cracked safety goggle lens, a frayed glove, or a worn-out socket can compromise your safety and the success of the task. If any tool or material appears compromised, replace it immediately. Remember, investing in high-quality tools and materials may incur a higher upfront cost, but it can save you from potential accidents, vehicle damage, and long-term expenses associated with poor-quality equipment. By prioritizing safety, compatibility, and organization in your tool and material gathering, you set the foundation for a successful and efficient fuel pump strainer removal.
Identifying Fuel Pump Leaks: Signs, Symptoms, and Quick Diagnosis Tips
You may want to see also
Explore related products
Locate the Strainer: Identify the fuel pump strainer position in the fuel tank or module
The fuel pump strainer is a critical component nestled within the fuel tank or module, tasked with filtering debris before it reaches the pump. Locating it precisely is the first step in any removal process, but its position isn’t always obvious. In most vehicles, the strainer is attached directly to the fuel pump assembly, often submerged near the bottom of the tank to ensure it captures contaminants effectively. However, some designs place it in a separate module or along the fuel line, requiring a more targeted search. Understanding your vehicle’s specific layout—through the service manual or online resources—is essential to avoid unnecessary disassembly.
Analyzing the strainer’s typical placement reveals a strategic design choice. Positioned low in the tank, it maximizes contact with fuel while minimizing exposure to air pockets, which can compromise filtration. This placement also ensures that even small debris settling at the tank’s bottom is intercepted. For vehicles with saddle-style tanks (split into two sections under the rear seats), the strainer is usually located in the section with the fuel pump, often the driver’s side. Knowing this can save time and effort, especially when dealing with larger tanks that require partial fuel draining.
To locate the strainer effectively, start by consulting your vehicle’s service manual or online forums specific to your make and model. These resources often include diagrams or photos highlighting the strainer’s exact position relative to the fuel pump or module. If visual aids aren’t available, trace the fuel lines from the tank to the engine bay—the strainer is typically near the pump, where the lines connect. For in-tank strainers, use a bright flashlight or inspection camera inserted through the fuel filler neck to spot the mesh or sock-like component attached to the pump assembly.
A practical tip for tricky locations: if the strainer is part of a modular unit, it may be accessible via an access panel under the rear seat or trunk. In such cases, removing the panel and inspecting the module can reveal the strainer without dropping the entire tank. However, exercise caution—some modules require specialized tools or specific procedures to avoid damaging seals or electrical connections. Always disconnect the battery and relieve fuel system pressure before attempting any inspection or removal.
In conclusion, locating the fuel pump strainer demands a blend of research, observation, and caution. By understanding its typical placement, leveraging vehicle-specific resources, and employing practical inspection techniques, you can pinpoint its position efficiently. This foundational step not only streamlines the removal process but also minimizes the risk of errors that could lead to costly repairs or safety hazards.
Resetting Your Grand Marquis Fuel Pump Shut Off Switch: A Guide
You may want to see also
Explore related products
Disconnect Fuel Lines: Relieve pressure, disconnect lines, and ensure no fuel spills during removal
Before tackling the fuel pump strainer, you’ll need to disconnect the fuel lines safely. Fuel systems operate under pressure, and releasing that pressure is critical to avoid spills, fires, or injuries. Start by locating the fuel pressure relief valve or Schrader valve, typically found near the fuel rail or on the fuel pump itself. Attach a fuel pressure gauge to the valve and depress it to release residual pressure in the system. If your vehicle lacks a relief valve, consult the manual for model-specific procedures—some may require running the engine briefly to depressurize. Always work in a well-ventilated area and keep a fire extinguisher nearby as a precaution.
Once pressure is relieved, disconnect the fuel lines from the pump assembly. Most lines are secured with quick-disconnect fittings or clamps. For quick-disconnects, use a specialized release tool to avoid damaging the fittings. Insert the tool into the fitting’s release mechanism and gently pry the line loose. If clamps are present, loosen them with a flathead screwdriver or pliers, then slide them away from the connection point. Work slowly and methodically to prevent fuel from escaping. Have a drain pan or absorbent cloth ready to catch any drips, and consider using a catch bottle or tubing to redirect fuel into a container for disposal.
Ensuring no fuel spills during removal is both a safety and environmental concern. Even small amounts of gasoline can ignite easily or contaminate surfaces. After disconnecting the lines, inspect the area for leaks and wipe down any residual fuel with a clean rag. If working on an older vehicle with brittle or cracked lines, replace them before reassembly to prevent future leaks. For added protection, wear nitrile gloves and safety goggles to shield your skin and eyes from fuel exposure. Proper disposal of spilled fuel is equally important—absorbent materials soaked with gasoline should be placed in a sealed container and disposed of according to local hazardous waste regulations.
Comparing this step to other fuel system repairs highlights its importance as a foundational safety measure. Unlike tasks like replacing a fuel filter or cleaning injectors, disconnecting fuel lines directly interacts with pressurized fuel, making it a high-risk step if mishandled. By relieving pressure, using the right tools, and preparing for spills, you minimize hazards and streamline the process. This approach not only protects you but also ensures the integrity of the fuel system, preventing air leaks or contamination that could affect performance post-repair. Master this step, and the rest of the strainer removal becomes significantly safer and more efficient.
Do Manual Cars Have Fuel Pumps? Exploring Automotive Mechanics
You may want to see also
Explore related products
Remove the Strainer: Unscrew or unclip the strainer carefully to avoid damaging the pump
The strainer removal process is a delicate operation, akin to defusing a bomb—one wrong move, and you risk damaging the fuel pump. This component, often overlooked, plays a critical role in filtering debris from the fuel before it reaches the engine. When it’s time to remove the strainer, precision is key. Whether you’re dealing with a screw-on or clip-on type, the goal is the same: detach it without causing harm to the pump assembly. This step is where many DIYers falter, turning a routine maintenance task into a costly repair. Understanding the mechanics of your specific strainer type is the first line of defense against such mishaps.
For screw-on strainers, the process begins with identifying the correct tool—typically a socket or wrench that matches the strainer’s size. Apply gentle, steady pressure as you unscrew it, avoiding sudden force that could strip the threads or warp the housing. If the strainer is stubborn, a penetrating oil applied 15–20 minutes prior can work wonders. For clip-on strainers, the approach differs. Locate the retaining clip or tabs holding the strainer in place. Use a flathead screwdriver or a specialized tool to carefully pry or unclip it, ensuring you don’t bend or break the clip. Remember, the goal isn’t speed but precision—a damaged clip can render the strainer unusable.
A comparative analysis of both methods reveals a common thread: patience. While unscrewing requires rotational finesse, unclipping demands lateral delicacy. In both cases, the risk of damage escalates with haste. For instance, forcing a stuck screw-on strainer can crack the pump housing, while mishandling a clip can leave it deformed. A practical tip: if you’re unsure about the strainer type, consult your vehicle’s manual or a trusted online resource. Misidentification can lead to using the wrong technique, compounding the problem.
The persuasive argument here is clear: taking your time pays dividends. A damaged fuel pump can cost hundreds in repairs, far outweighing the few extra minutes spent carefully removing the strainer. Consider this: a $10 bottle of penetrating oil and a $5 specialized tool are negligible investments compared to the potential $500 pump replacement. Moreover, the satisfaction of completing the task without incident is immeasurable. It’s not just about saving money—it’s about building confidence in your ability to handle vehicle maintenance.
In conclusion, removing a fuel pump strainer is a task that demands respect for the component’s fragility. Whether unscrewing or unclipping, the approach must be methodical and informed. By understanding the mechanics, using the right tools, and exercising patience, you can avoid the pitfalls that ensnare many DIYers. This step, though seemingly minor, is a testament to the broader principle of automotive care: precision and preparation prevent poor outcomes. Treat the strainer with the care it deserves, and it will reward you with a smoothly functioning fuel system.
Bypassing Fuel Pump Shut-Off Switch: Risks, Methods, and Safety Concerns
You may want to see also
Explore related products
Install New Strainer: Clean the area, attach the new strainer securely, and reconnect fuel lines
Before installing a new fuel pump strainer, it's crucial to ensure the area is free of debris and residue. Contaminants can compromise the strainer's effectiveness, leading to fuel system issues. Use a clean, lint-free cloth and a mild solvent, such as isopropyl alcohol, to wipe down the mounting surface and surrounding area. Avoid harsh chemicals that could damage fuel system components or leave harmful residues. For stubborn grime, a soft-bristled brush can be used, but take care not to scratch the surface.
Attaching the new strainer securely is a critical step that demands precision. Most strainers are held in place by a combination of clips, screws, or a locking ring. Refer to the manufacturer’s instructions for torque specifications if applicable, as over-tightening can warp the strainer or damage the fuel pump housing. For strainers with O-rings or gaskets, ensure these are properly seated to prevent leaks. A common mistake is misaligning the strainer, which can cause uneven wear or improper filtration. Double-check alignment by comparing it to the old strainer’s position or using a reference mark on the fuel pump.
Reconnecting the fuel lines requires attention to detail to avoid leaks or disconnections. Start by inspecting the fuel lines for cracks, brittleness, or damage, replacing them if necessary. Use new sealing washers or O-rings if the old ones show signs of wear. When reattaching the lines, ensure they are fully seated and secured with clamps or fasteners. Hand-tighten plastic fittings to avoid stripping, and use a wrench for metal connections, being careful not to overtighten. After reconnection, perform a visual inspection to confirm all lines are properly aligned and secured.
A practical tip for this process is to label fuel lines before removal to simplify reinstallation. This is especially useful in complex fuel systems where multiple lines are present. Additionally, if the fuel pump is located in a hard-to-reach area, consider using a mirror or a smartphone camera to verify proper attachment and alignment. Once the new strainer is installed, it’s advisable to run the fuel pump briefly (with the ignition on but engine off) to check for leaks before starting the vehicle. This precautionary step can save time and prevent potential hazards.
In comparison to other fuel system repairs, installing a new strainer is relatively straightforward but requires meticulous attention to cleanliness and secure connections. While it may seem minor, a poorly installed strainer can lead to reduced fuel efficiency, engine misfires, or even pump failure. By following these steps—cleaning the area, securing the strainer, and reconnecting fuel lines with care—you ensure the longevity and reliability of your fuel system. This process underscores the importance of precision in automotive maintenance, where small details can have significant impacts.
Signs Your Jeep Wrangler JK Fuel Pump is Failing: What to Look For
You may want to see also
Frequently asked questions
Typically, you'll need a socket or wrench set, a flathead screwdriver, pliers, and possibly a fuel line disconnect tool, depending on your vehicle.
Yes, it’s crucial to relieve fuel system pressure to avoid fuel spray or injury. Consult your vehicle’s manual for the correct procedure.
The strainer is usually located inside the fuel tank, attached to the fuel pump assembly. Accessing it requires removing the fuel tank or pump module.
Yes, you can clean the strainer with carburetor cleaner or fuel system cleaner if it’s not damaged. Replace it if it’s clogged, torn, or deteriorated.
Symptoms include engine hesitation, hard starting, reduced fuel efficiency, or a sputtering engine, especially under load.
