Knowing how to read your fuel tank oil gauge is an important skill for homeowners, especially during winter. Running out of oil can be dangerous, and letting your tank run empty can cause debris to clog your oil filters, reducing the efficiency of your heating system. Many oil tanks use a float-style gauge to check levels, and most gauges have standard markings to indicate the levels. The float in the vial will be positioned around one of the markings to show the level of fuel in the tank. To determine how much oil you have left in your tank, it is important to know the size of your tank and its total capacity.
| Characteristics | Values |
|---|---|
| Gauge location | Top of the tank |
| Gauge type | Float-style |
| Gauge appearance | Clear, cylindrical vial with a float inside |
| Markings | F (Full), 3/4, 1/2, 1/4, E (Empty) |
| Reading method | Reading the top of the float or where the markings hit the middle of the float |
| Calculating remaining gallons | Divide total capacity by the fraction indicated by the float |
| Ordering fuel | Order when the tank is around 1/4 full to ensure timely delivery |
| Factors affecting consumption | Weather, home size, insulation, tank size |
Explore related products
What You'll Learn
Locate your oil tank
If you are looking to locate your oil tank, there are several methods you can try. Firstly, you should search through your township's municipal records about the property. Much of this information is available to the public with a little research. You can also check the Environmental Protection Agency's "UST Finder" database, which serves the entire United States and is quite comprehensive. Additionally, there are private agencies that track oil tanks and their locations.
If you are trying to locate a buried oil tank on your property, there are some signs you can look out for. One indication of a buried oil tank is an oil tank vent pipe, which is usually 1-2 inches in diameter and made of galvanized metal with a mushroom or bulb-shaped cap. These pipes can often be found sticking up on the lawn or close to the building's foundation. To fill an underground oil tank, access to the fill pipes is needed, so look around the foundation of the home and curbs for pipes disappearing into the ground. The previous owners may have tried to conceal these pipes with metal cans, shrubbery, or by cutting them off, so be sure to check around bushes and shrubbery as well.
If you are having trouble locating the pipes, you can look for copper pipes in your furnace area, as copper piping indicates that the home relied on an oil tank as a heating source. Oil stains in the basement could also be a sign of a leaking oil tank. If you spot any oil stains or cuts in the basement flooring, be sure to contact home inspectors right away.
If you are still unable to locate the oil tank, you may need to resort to more advanced methods such as electronic or X-ray detection. Metal detectors are a common low-cost option, but they can be highly inaccurate as they detect all metal objects above and below ground. Ground Penetrating Radar (GPR) is a more accurate method that provides real-time images of buried objects and has been used for commercial purposes for years. A professional inspection of the property may be necessary to locate the oil tank and ensure there are no leaks, as oil tanks and their pipes are susceptible to leaks, which can have major financial and environmental implications.
Gravity-Fed Auxiliary Fuel Tanks: How Do They Work?
You may want to see also
Explore related products
Understand the float gauge

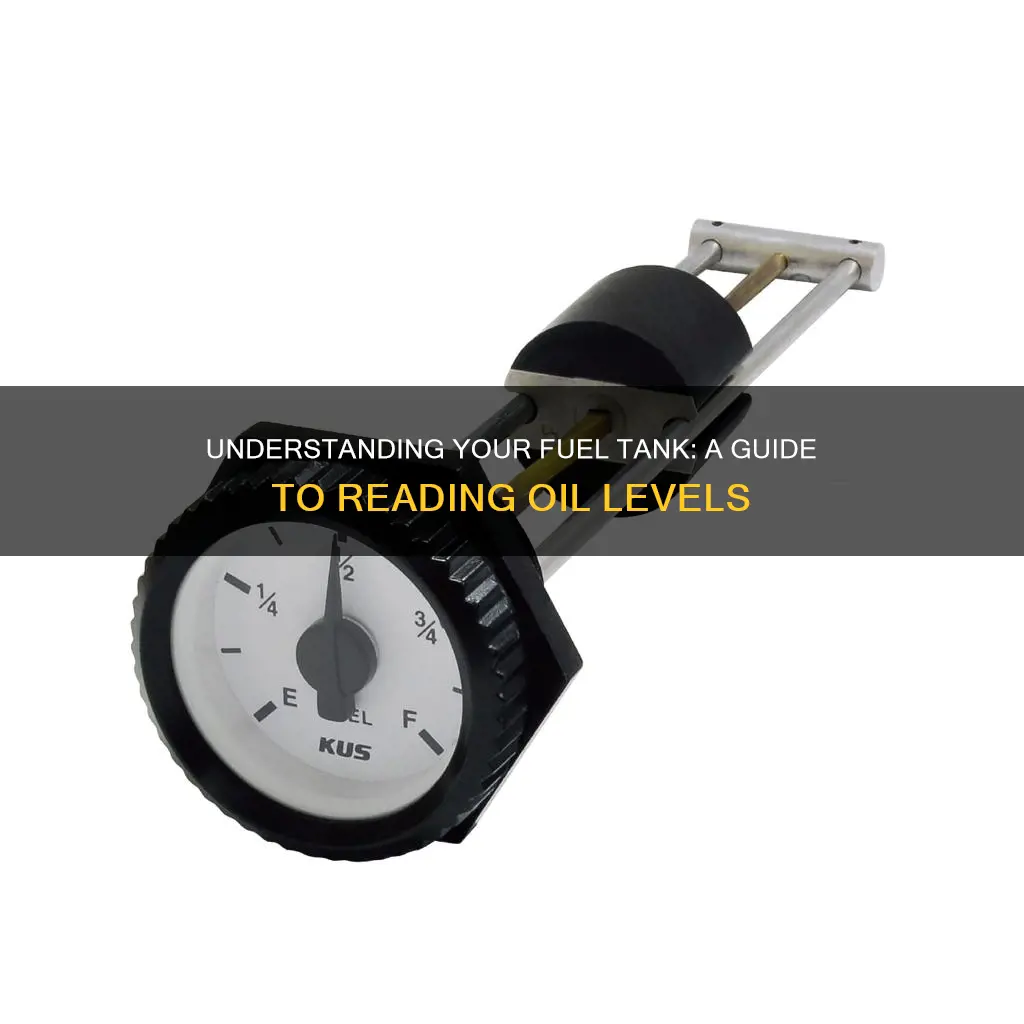

A float gauge is a simple and cost-effective way to measure the level of fuel in a tank. It is a standard feature in most oil tanks. The float gauge is typically found on top of the tank, which makes it easy to read. It consists of a transparent cylinder with a coloured indicator disc inside. The disc moves up and down based on the level of the liquid in the tank. The cylinder has markings to indicate the level of fuel, usually marked as Empty, 1/4, 1/2, 3/4, and Full.
To read the gauge, simply observe where the disc is positioned in relation to the markings. You can use the top or bottom of the disc as an indicator, but using the top may provide a more precise measurement. If you are unsure, you can also use where the markings hit the middle of the disc. While this method provides a relatively accurate measurement, it does not tell you how many gallons of fuel are left.
To estimate the number of gallons remaining, you need to know the size of your tank and its total capacity. For example, a typical 275-gallon tank has an average fuel capacity of 240 gallons. If the float gauge reads 1/4, you can divide 240 by 0.25 to calculate that you have about 60 gallons left. This will help you determine when it's time to refill.
Float gauges are known to be unreliable over time and may need to be replaced. They can malfunction due to wear and tear, or the float mechanism may become stuck. To test the float, remove the outer casing and manually push the float down. If it is functioning properly, it should rise back up to its original position when released.
Signs of a Leaking Fuel Tank: What to Watch For
You may want to see also
Explore related products
Estimate how many gallons are left
To estimate the number of gallons left in your fuel tank, you must first locate your oil tank. Home oil tanks are often found aboveground, in a basement, on an exterior side of the house, or underground, buried on the property. Once you find your oil tank, you can check the oil levels by reading the gauge. Most oil tanks come with a gauge installed, which is typically located on the top of the tank.
Gauges are meant to give you an idea of how much oil is in your tank. Most gauges have standard markings to indicate the levels, such as F for Full, 3/4, 1/2, 1/4, and E for Empty. The float in the vial will be positioned around one of the markings to show the level of fuel in the tank. Reading the top of the float may provide a more precise measurement. If you are unsure about checking the top of the float, using where the markings hit the middle of the float is another way to check the levels.
While reading the gauge indicates the fuel level present in your tank, it doesn't tell you how many gallons you have left. However, you can estimate how many gallons you have left in the tank with a simple calculation. Knowing the size of your tank and how many gallons it holds at total capacity helps you figure out the number of remaining gallons. For instance, if you have a typical 275-gallon tank, the average fuel capacity is 240 gallons. If the float gauge indicates you have 1/4 of a tank of fuel, divide 240 by 0.25 to calculate that you have around 60 gallons left. Estimating the gallons you have in your tank will help you determine when it's time to refill.
It's important to keep your tank filled to avoid running out of oil, especially during the winter months. Your daily usage depends on many factors, including the weather, home size, insulation, and oil tank size.
Linking Fuel Tanks in SimpleRockets 2: A Guide
You may want to see also
Explore related products
Check if the gauge is working
To check if your fuel gauge is working, you can perform a series of tests to properly diagnose the problem. Firstly, check if the gauge needle moves to the full position when the ignition is turned on. If it does, the gauge and wiring are likely in good condition. If the gauge needle moves erratically or reads full or empty all the time, there may be an issue with the sending unit or the gauge itself.
You can then test the voltage of the fuel gauge wire using a multimeter. Set the multimeter to 20V DC and check if the fuel gauge is receiving 12 volts. If it is not, inspect all wires for damage or corrosion, as this could be the issue. A loose connection or a corroded wire can cause problems with the fuel gauge.
Another test involves jumping a wire or screwdriver across the sending pin to the ground pin on the back of the gauge. If there is no ground pin, use a longer wire to jump the sending pin to the engine block. The gauge should go to its lowest reading if it is working properly. If it does not move, there may be an issue with the wire running to the sender or the sender itself.
If other gauges besides the fuel gauge are malfunctioning, it could indicate a fuse-related problem. Check the fuses' location in the owner's manual and pull the fuse to inspect its condition. Replace the fuse if it is blown and verify if this fixes the issue. Many modern vehicles have electronic fuel gauges with built-in self-test procedures, which can be found in the owner's manual or online.
It is also important to check the ground connections, as sending unit grounds commonly fail due to exposure to rain, salt, snow, and other environmental factors. Remove the ground connection, clean it, and re-attach it. Visually inspect the wiring for any breaks or damage, as this can cause issues with the gauge.
Easy Guide: Installing Fuel Tank Bushing
You may want to see also
Explore related products
Order more oil when the tank is 1/4 full
To ensure you never run out of heating oil, it is recommended that you order more when your tank is a quarter full. This is because heating oil usage can fluctuate depending on several factors, and you don't want to be caught out during the colder months when oil usage is typically higher.
Firstly, you need to locate your oil tank. Home oil tanks are often found aboveground, in a basement, on an exterior side of the house, or underground. Once you've found your tank, you can check the oil levels by reading the gauge. Most oil tanks have a gauge installed, usually on the top of the tank, which makes reading the levels easy. The gauge will typically have standard markings to indicate the levels, such as F for Full, 3/4, 1/2, 1/4, and E for Empty. The float inside the gauge will be positioned at one of these markings to indicate the level of fuel in the tank.
Reading the gauge will give you an estimate of your fuel levels, but it is not always accurate. It is a good idea to estimate how many gallons you have left in the tank by doing a simple calculation. First, you need to know the size of your tank and its total capacity. For example, a typical 275-gallon tank will hold around 240 gallons of oil. If the float gauge indicates you have a quarter of a tank of fuel, you can divide 240 by 0.25 to calculate that you have around 60 gallons left. This will help you determine when it's time to refill.
While a quarter of a tank can last a few weeks, it is recommended that you order more oil when your tank reaches this level to ensure you don't run out. Oil usage depends on various factors, including the weather, home size, insulation, and oil tank size. For instance, bigger homes may need to use more oil to keep the entire house warm. Colder temperatures during winter also contribute to an increase in heating oil usage. Therefore, it is wise to order more oil when your tank is a quarter full, giving you a few days for the oil to arrive before your current supply runs out.
How to Fix a Fuel Tank with Fiberglass Patch
You may want to see also
Frequently asked questions
Home oil tanks are often found aboveground, in a basement, on an exterior side of the house, or underground, buried on the property. For above-ground tanks, the gauge should be located on top of your oil tank.
Most oil gauges are clear, cylindrical vials with a float inside. The float will be positioned around one of the markings to show the level of fuel in the tank. The markings are usually F (for Full), 3/4, 1/2, 1/4, and E (for Empty). If the float is at the 1/4 mark, this indicates that you have approximately 60 gallons of oil remaining in a 275-gallon tank.
You can test the float by removing the outer casing and manually pushing the float downward. If released, it should bob back up to its original position. If it doesn't, your gauge is malfunctioning and you should call for service. If you need to check your oil levels before your gauge is fixed, you can use a slender stick that is long enough to reach the bottom of your tank. After a recent refill, immerse the stick into the tank, allowing it to touch the bottom. Withdraw the stick and note the wet oil mark, marking this as your "full" line. As you consume oil, you can reintroduce the stick to gauge how much oil remains by comparing the new wet mark to the "full" line.
