Reading a fuel tank gauge on a van is a simple task that can be done by anyone. Fuel tank gauges are usually located at or near the top of the tank and are made of clear glass or plastic. They are marked with numbers or percentages that indicate the amount of fuel in the tank. A red or yellow marker or float will indicate how much fuel is left. If the marker is at the bottom of the gauge or not visible, the tank is empty or close to empty. It is important to note that tanks are never filled to 100% capacity to allow for the expansion of propane gas as temperatures rise.
| Characteristics | Values |
|---|---|
| Location of the fuel gauge | Usually located at or near the top of the tank |
| Gauge type | Clear glass or plastic cylinder/tube |
| Gauge markings | Numbers (F, ¾, ½, ¼) or percentages (0-90% or 95%) |
| Indicator colour | Red or yellow marker or float |
| Empty tank indication | Marker is at the bottom of the gauge or not visible |
| Gauge functionality test | Remove the outer case and press the float down; if it bobs back up, the gauge is working |
| Tank capacity | Tanks are not filled to 100% capacity due to propane gas expansion with temperature rise |
| Fuel order indication | Order when the tank is no less than one-quarter full |
Explore related products
What You'll Learn
Understanding the gauge's location
Understanding the location of your fuel tank gauge is essential for keeping track of your van's fuel level and ensuring you don't run out of fuel on the road. Here's everything you need to know about locating the fuel gauge in your van:
Understanding the Gauges Location
The location of the fuel tank gauge in your van can vary depending on the make and model of your vehicle. However, there are some standard locations you can check:
Dashboard Gauge Cluster
One of the most common locations for a fuel gauge is within the dashboard gauge cluster. This cluster typically includes other essential gauges such as the speedometer, tachometer, and temperature gauge. The fuel gauge is usually clearly labelled and features a dial or bar that indicates the level of fuel in your tank. It may also have warning lights or audible alerts to notify you when the fuel level is low.
Instrument Panel Display
Modern vans, especially those with digital cockpits or advanced driver assistance systems, may have a fuel gauge integrated into the instrument panel display. This display often provides a digital readout of the fuel level, sometimes accompanied by a graphical representation of the fuel tank and the amount of fuel remaining. The instrument panel may also display additional fuel-related information, such as estimated driving range or fuel efficiency metrics.
Fuel Tank or Filler Cap
In some vans, particularly older models or those with simpler instrumentation, the fuel gauge may be located closer to the fuel tank itself. Look for a gauge or indicator near the fuel filler cap or along the side of the vehicle where the fuel tank is located. This type of gauge may be mechanical or use a floating indicator that rises or falls with the fuel level.
External Fuel Level Indicator
Some vans may have an external fuel level indicator located on the outside of the vehicle, often near the fuel filler cap. This type of indicator is designed to be visible from the outside, allowing for quick fuel level checks without needing to access the interior of the van. It may be a simple mechanical gauge or an electronic display.
Owner's Manual
If you're having trouble locating the fuel gauge in your van, don't hesitate to refer to the owner's manual. The manual will have detailed information specific to your van's make and model, including the location of the fuel gauge and instructions on how to interpret the gauge readings. It may also provide troubleshooting tips for situations where the gauge is not working properly.
Remember that the fuel gauge is an essential tool for any driver, helping you plan refuelling stops and avoid running out of fuel during your journeys. By familiarizing yourself with the location and functioning of your van's fuel gauge, you can ensure a smoother and more reliable driving experience.
Ryker Fuel Tank: Capacity and Range Explored
You may want to see also
Explore related products
Recognising the fuel level markers
The markers on the gauge will be similar to those on a car's fuel gauge, with numbers or a percentage indicating how full the tank is. The markers will usually be F, ¾, ½, and ¼. Some gauges will instead show a percentage, typically reading from 0 to 90-95%. It's important to note that propane tanks are never filled to 100% capacity, as the gas expands as temperatures rise, so space must be left for this expansion.
Your gauge will also have a red or yellow marker or float that indicates how much fuel is left in the tank. If the marker is at the bottom of the gauge or not visible, your tank is empty or close to empty.
To check if your gauge is working correctly, carefully remove the outer case and gently press the float down. If the float bobs back up to its original position, the gauge is functioning correctly. If it doesn't, you may need to contact a professional for a repair.
Draining the John Deere 310D: Fuel Tank Trap Guide
You may want to see also
Explore related products
Interpreting the percentage reading
The fuel gauge on a van typically looks like a car's fuel gauge, with numbers that indicate the percentage of the tank that is full. Most gauges read from 0 to about 90-95 percent; tanks are never filled to 100% capacity because gases like propane expand as temperatures rise, and space must be provided to allow for this expansion.
A red or yellow marker or float tells you how much fuel you have left. If the marker is at the bottom of the gauge or not visible, your tank is empty or close to empty. The gauge is usually marked with numbers like F, ¾, ½, ¼, which indicate the amount of fuel left in the tank. For example, if the marker is at the ¼ mark, your tank is one-quarter full.
It's important to keep a close eye on your fuel use, especially as temperatures drop, as you may use more fuel than you realise. As a rule of thumb, order propane when your tank is no less than one-quarter full.
To check if your gauge is working, carefully remove the outer case and gently press the float down. If it bobs back up to its original position, the gauge is working. If it doesn't, you may need to contact a professional for a heating system repair.
Radiator Shops: Fuel Tank Cleaning Services
You may want to see also
Explore related products
Knowing when to refill the tank
Knowing when to refill your van's fuel tank is essential to avoid running out of fuel on the road. Here are some tips to help you determine when it's time to refuel:
First, locate the fuel tank gauge, which is typically a clear glass or plastic cylinder located at or near the top of the tank. It is marked with numbers or levels that indicate the amount of fuel in the tank. The markings usually include F (full), 3/4, 1/2, and 1/4, similar to the fuel gauge in a car.
Keep a close eye on the gauge as you drive. If your van has a modern digital gauge, it may show the fuel level as a percentage or a visual representation of the tank. A full tank will be indicated as 100% or a completely filled bar/segment, while an empty tank will be 0% or an empty bar/segment.
It is recommended to refuel when your tank reaches the 1/4 full mark or below. This ensures you have enough fuel to reach a refuelling station without running out of fuel. Running out of fuel on the road can be dangerous and inconvenient, so it is better to refuel sooner rather than later.
Additionally, consider external factors that may affect your fuel consumption. For example, if you are driving in extreme cold or using heating in your van, you may use up fuel faster. Other factors include the efficiency of your van's engine, the terrain (city or highway driving), and the weight of any cargo or passengers.
By regularly checking your fuel tank gauge, being mindful of external factors, and refuelling when your tank reaches the 1/4 mark or below, you can ensure your van always has sufficient fuel for your journeys.
Unlocking the XC60 Fuel Tank Mystery
You may want to see also
Explore related products
Troubleshooting a non-working gauge
Troubleshooting a non-working fuel gauge can be a challenging task, but there are several things you can check before taking your van to a mechanic. Here are some detailed steps to help you identify and possibly fix the issue:
Check the Owner's Manual and Perform a Self-Test
Refer to your owner's manual to determine if your van's instrument cluster has a self-test procedure. Modern vehicles usually have a self-test feature, and the procedure can often be found in the manual or online. This typically involves a series of steps, such as turning the headlights on and off while pressing a specific button or turning the ignition. During the self-test, the fuel gauge should sweep through its entire range. If it doesn't, there could be an issue with the fuel gauge or the instrument cluster.
Inspect the Fuse
Check the fuses, especially if you notice issues with multiple gauges in your van. A blown fuse for the instrument panel may be the culprit, so replacing it is a good first step. After replacing the fuse, turn on the van and run the cluster test again.
Test the Voltage and Wiring
Checking the voltage and wiring can help identify potential issues. Pull the instrument cluster out of the dashboard carefully, as plastic parts can be delicate and brittle in older vans. Set a multimeter to 20V DC and test the wiring going to the gauge. It should receive 12 volts. If the voltage is good, the gauge is likely faulty and may need replacement. If the voltage is low, continue with further diagnosis to identify wiring issues.
Inspect Wiring and Connections
Inspect the wiring and connections for any signs of damage, corrosion, or loose connections. Start at the gas tank, where you'll typically find a wiring harness that handles power for the fuel pump and sending unit. Older vehicles may have a single wire for the sending unit and a ground wire attached to one of its screws. Check the ground connections first, as they are crucial. Ohm measure the wiring from the gauge and compare the results at the sender. If there is a difference in ohms, there may be an open or shorted circuit.

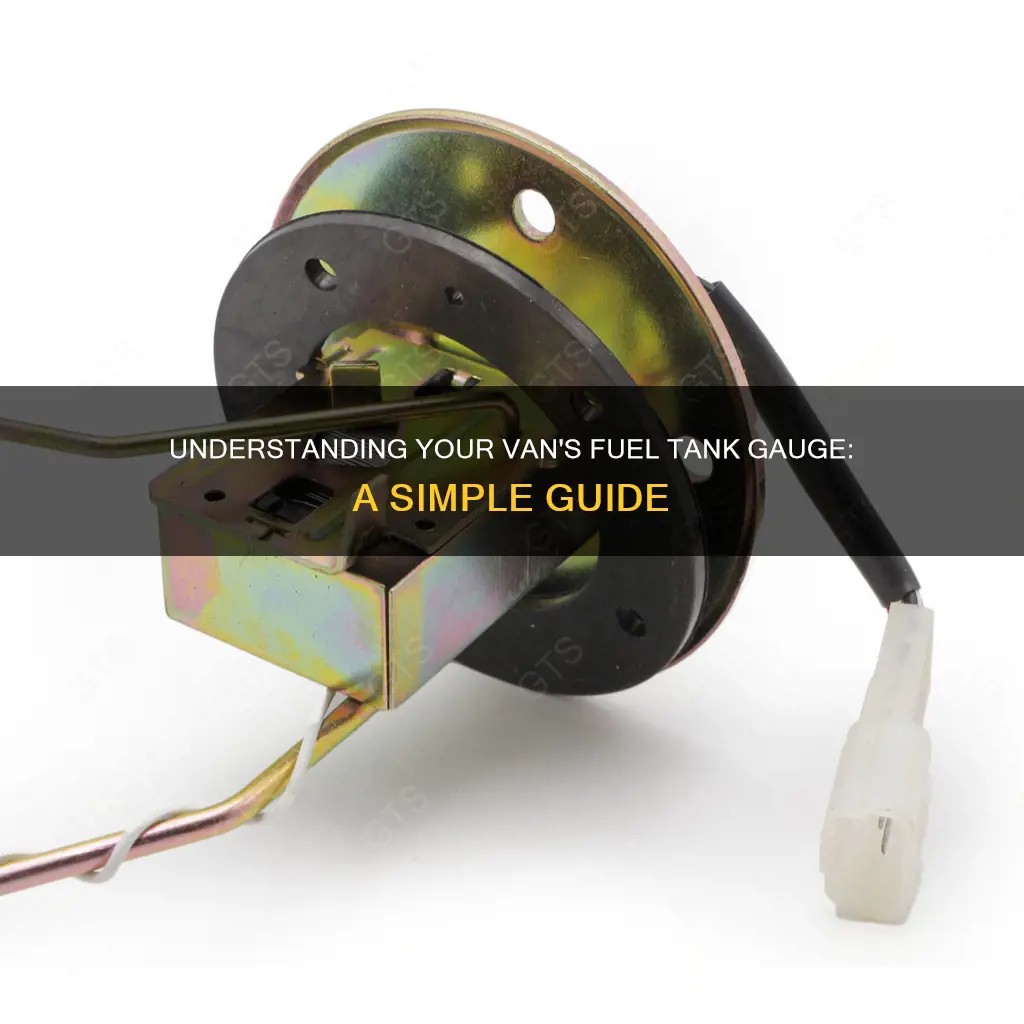

Test the Sending Unit
The sending unit is responsible for monitoring the fuel level in the tank, and it can wear out over time. To test it, fill the tank with fuel and use a multimeter to test resistance. Place one probe on the sending terminal and the other on the ground. As you move the float, the resistance on the multimeter should change. If there is no change, the sending unit may have failed.
Check for Blockages
A blocked breather in the fuel tank can create pressure and affect the accuracy of the sending unit. Locate the breather hose or vent and clear any obstructions. If necessary, replace the hose or vent if they are damaged.
If none of these troubleshooting steps resolve the issue, the problem may be more complex, and it is advisable to consult a professional mechanic for further diagnosis and repair.
Fuel Tank Calculation: A Simple Guide to Estimating Capacity
You may want to see also
Frequently asked questions
The fuel tank gauge is usually located at or near the top of the tank.
The gauge is typically a clear glass or plastic cylinder or tube with markings that look similar to a car's fuel gauge.
The cylinder or tube is marked with numbers or letters, usually F, 3/4, 1/2, 1/4. A red or yellow marker or float indicates the amount of fuel left. If the marker is at the bottom or not visible, the tank is empty or close to empty.
It is recommended to order fuel when your tank is no less than one-quarter full. This ensures you don't wait until the last minute, as propane usage can vary depending on various factors such as the weather, efficiency of heating equipment, and air tightness of your van.
