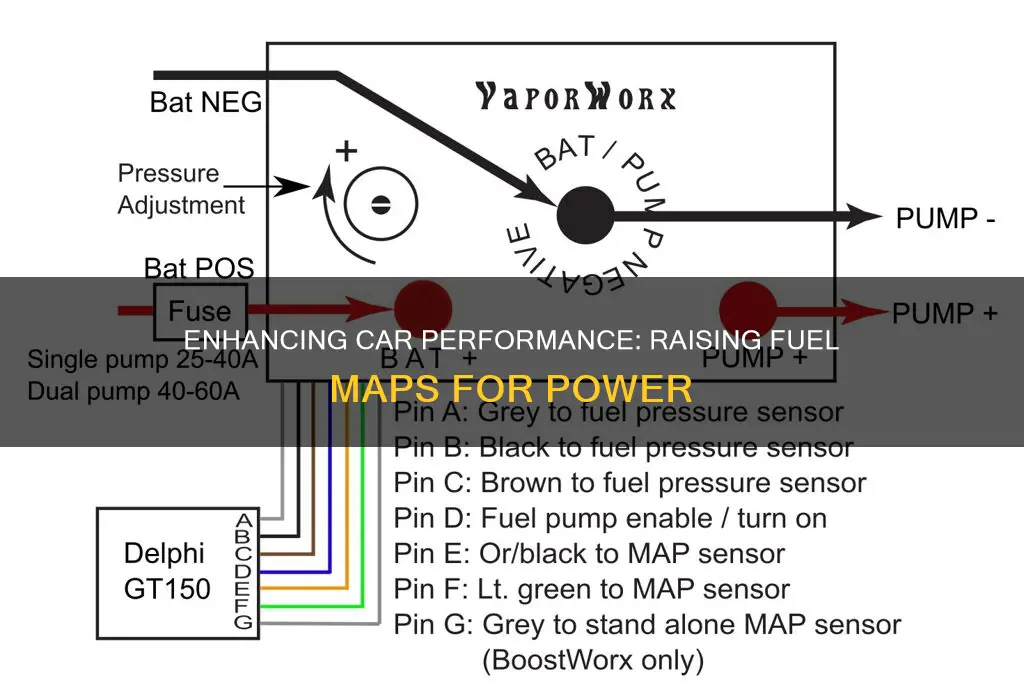

Enhancing Car Performance: Raising Fuel Maps For Power

how to raise car fuel map

A fuel map is a crucial aspect of optimizing a car's engine for its intended use, as it allows for the precise control of the air-fuel mixture, resulting in improved engine performance, fuel economy, and reduced emissions. The fuel map, located inside the Engine Control Unit (ECU), relies on sensors such as the Oxygen (O2) Sensor, Throttle Position Sensor (TPS), and Manifold Absolute Pressure (MAP) Sensor to gather data on engine speed, torque, and load. This data is used to adjust the air-fuel mix, achieving maximum efficiency and performance. The efficiency of the engine is influenced by factors such as throttle, RPM, and engine load, with lower RPM and higher throttle efficiency during cruising. Collegiate competitions like Formula SAE and Formula Student challenge students to design and build formula-style cars, providing an opportunity to learn about fuel maps and engine optimization. Understanding and adjusting the fuel map values can enhance power, efficiency, and drivability across the entire RPM range, ultimately improving the overall performance of the vehicle.

Characteristics Values
Purpose Tuning the engine to achieve maximum efficiency and performance in any condition
Fuel consumption Expressed as a function of engine speed and engine torque
Engine speed From idling up to the maximum RPMs
Engine torque From full engine braking, negative torque, up to full load
Sensors Oxygen (O2) Sensor, Throttle Position Sensor (TPS), Manifold Absolute Pressure (MAP) Sensor, Vehicle Speed Sensor (VSS)
Sensor functions Detects the amount of unburned oxygen, tells the computer how hard the driver pushes on the gas pedal, measures changes in the engine's manifold pressure, tells the ECU how fast the car is moving
ECU functions Adjusts the amount of fuel injected into the engine, lowers the engine vacuum and adds more fuel (in case of high pressure), raises the vacuum and reduces fuel injection (in case of low pressure)
Ideal air to fuel ratio 14.68 parts air to one part fuel (AFR is 14.68:1 by mass)
Fuel map controls Engine performance
Fuel map adjustments Can be made to improve power, efficiency, and drivability across the entire rpm range

shunfuel

The Oxygen (O2) Sensor in the exhaust system detects unburnt oxygen levels

The Oxygen (O2) Sensor, located in the exhaust system, is a crucial component that measures the amount of unburnt oxygen in the exhaust. This information is then communicated to the vehicle's Electronic Control Unit (ECU), which adjusts the fuel injection accordingly to maintain the optimal air-to-fuel ratio for efficient engine performance.

The O2 sensor plays a vital role in ensuring the engine runs cleanly and efficiently. By monitoring the oxygen levels in the exhaust, the sensor helps the ECU regulate the fuel injection system, ensuring the correct amount of fuel is injected into the engine. This process is known as closed-loop feedback control and allows the ECU to maintain the ideal air-to-fuel ratio, which is typically around 14.68:1 or 14.7:1.

The O2 sensor's function is essential for several reasons. Firstly, it helps to optimise fuel efficiency. By ensuring the correct air-to-fuel ratio, the sensor prevents the engine from using too much or too little fuel, resulting in improved fuel economy. Secondly, the O2 sensor contributes to reducing harmful emissions. By monitoring unburnt oxygen levels, the sensor helps minimise the release of pollutants such as hydrocarbons and nitrogen oxides, which are byproducts of incomplete combustion.

Additionally, the O2 sensor aids in maintaining engine performance. A properly functioning O2 sensor helps the ECU fine-tune the air-fuel mixture, ensuring the engine has the necessary power and torque for optimal performance. A faulty O2 sensor can lead to various issues, including decreased gas mileage, engine misfiring, reduced engine power, and even a rotten egg smell due to excessive emissions. Therefore, regular maintenance and replacement of the O2 sensor are crucial to ensure the vehicle's efficient and environmentally friendly operation.

The O2 sensor operates by measuring the difference in oxygen concentration between the exhaust gas and the external air. This measurement generates a voltage or changes the sensor's resistance, which is then interpreted by the ECU to adjust the fuel injection accordingly. Modern spark-ignited combustion engines typically utilise multiple O2 sensors located before and after the catalytic converter to regulate fuel supply and monitor the efficiency of the catalytic converter, respectively.

shunfuel

The Throttle Position Sensor (TPS) tells the computer how hard the driver pushes the gas pedal

The Throttle Position Sensor (TPS) is a critical component of a vehicle's fuel system, providing data that helps determine the optimal air-fuel mixture in the engine. The TPS communicates the position of the throttle to the engine control module (ECM), also known as the powertrain control module (PCM). This data is essential for calculating the required amount of air and fuel for the engine.

The TPS works by assessing the orientation of the butterfly valve when the gas pedal is depressed. This information is then transmitted to the ECU, which uses it to calculate the airflow and make necessary adjustments to the fuel ratios. The farther and faster the gas pedal is pushed, the wider the throttle opens, increasing the amount of fuel needed by the engine for acceleration.

The TPS relies on a potentiometer with a needle attached to the butterfly valve. As the pedal is depressed, the needle moves, causing a change in resistance and producing voltage signals. These voltage signals are sent to the ECU, which interprets them to understand the airflow and make precise adjustments to the fuel mixture.

A properly functioning TPS is crucial for optimal engine performance, fuel efficiency, and emissions control. However, the TPS can be susceptible to electrical system issues, physical damage, or wiring problems, leading to potential driveability issues. A failing TPS may cause unintended surges, acceleration jerks, or even a no-start condition due to a disabled fuel system. Therefore, it is essential to pay attention to any signs of TPS malfunction and have it diagnosed and replaced by a certified mechanic if necessary.

shunfuel

The Manifold Absolute Pressure (MAP) Sensor measures engine manifold pressure

The Manifold Absolute Pressure (MAP) Sensor is an integral part of a vehicle's electronic control system or engine control module. It measures the engine's manifold pressure, providing instantaneous pressure information to the engine's computer (ECU). This data is crucial for calculating air density and determining the engine's air mass flow rate, which, in turn, influences fuel metering and ignition timing.

The MAP sensor is typically found in fuel-injected engines, where it plays a vital role in optimising the air-fuel ratio. By continuously monitoring the intake manifold pressure, the sensor helps the engine control module (ECM) calculate the required fuel injection. This ensures a precise mix of fuel and air, resulting in improved engine performance, fuel efficiency, and reduced emissions.

The MAP sensor is usually located on the intake manifold, either next to or on the throttle body. It contains a sealed chamber with a flexible silicon wafer that separates the sensor vacuum from the intake manifold vacuum. When the engine is off, there is no engine vacuum applied to the MAP sensor, and it acts as a barometric pressure sensor. However, when the engine is started, the pressure in the intake manifold decreases, creating a vacuum that affects the MAP sensor.

As you press the gas accelerator pedal, the pressure in the intake manifold increases, resulting in less vacuum. This change in pressure flexes the silicon wafer upward, altering the resistance of the voltage. The ECU detects this change and injects more fuel into the engine. Conversely, when you release the accelerator pedal, the pressure decreases, and the silicon wafer returns to its idle state.

The MAP sensor's role in measuring manifold pressure is essential for the overall performance and efficiency of the engine. By providing real-time pressure data, the sensor enables the ECU to make precise adjustments to the fuel injection and ignition timing, ensuring optimal combustion and engine performance.

Filling Your Car: Jerry Can to Gas Tank

You may want to see also

shunfuel

The ECU controls the fuel injection control system

The ECU, or Engine Control Unit, is a device that controls various subsystems of an internal combustion engine. Systems commonly controlled by an ECU include the fuel injection and ignition systems. The ECU replaced the traditional Bowden cable between the pedal and throttle with a pedal position sensor and a map. The ECU controls the fuel injection control system, which sends signals to the fuel injectors, indicating when to open and how long to remain open to reach maximum efficiency. The ECU also controls the ignition system, determining the position of the engine's internals using a Crankshaft Position Sensor so that the injectors and ignition system are activated at the correct time.

The ECU's fuel injection control system is influenced by various sensors and parameters, such as the Oxygen (O2) Sensor, which detects the amount of unburned oxygen so the ECU can adjust the amount of fuel injected to burn all available oxygen and increase efficiency. The Throttle Position Sensor (TPS) tells the ECU how hard the driver pushes the gas pedal, which affects the amount of fuel added to the engine for speed. The Manifold Absolute Pressure (MAP) Sensor measures changes in the engine's manifold pressure, indicating to the ECU how much load the engine needs to bear and how fast it needs to happen. Accordingly, the ECU will adjust the engine vacuum and fuel injection levels. The Vehicle Speed Sensor (VSS) provides the ECU with information on the car's speed, which is necessary for the ECU to make the appropriate adjustments.

The ECU also takes input from other sensors, such as the Coolant Temperature sensor and the Accelerator Pedal Position sensor. The Antilock Brake System (ABS) module may also send requests to the ECU, such as for the application of traction control. The ECU collects this data to determine output specifications, such as fuel injector pulse width, as directed by the software stored within the unit. The processor reads the software to decide the appropriate output and records its own information, such as learned mixture adjustments and mileage.

The ECU then performs an action on the engine, allowing the correct amount of power to control actuators precisely. This includes controlling the fuel injector pulse width, the exact timing of the ignition system, the opening of an electronic throttle body, or the activation of a radiator cooling fan. To ensure the proper functioning of these sensors and actuators, the ECU supplies the correct voltage to components around the car. This can range from a steady 5 Volts for sensors to over 200 Volts for the fuel injector circuits. Thermal management is a critical aspect of ECU design, as some outputs must handle more than 30 Amps, generating significant heat.

Fuel Cell Cars: Why They Don't Work

You may want to see also

shunfuel

The ideal air-fuel ratio is 14.68:1, also known as the stoichiometric value

The ideal air-fuel ratio, also known as the stoichiometric value, is 14.68:1, or, more simply, 14.7:1. This means that for every 1 gram of fuel, 14.68 grams or 14.7 grams of air are required for the ideal ratio. This ratio is important because it ensures that all the oxygen and fuel are consumed during combustion, resulting in only harmless water and carbon dioxide being emitted from the vehicle's tailpipe. This is the ideal scenario, as it ensures optimum fuel economy and power output.

However, it is important to note that this ratio is a theoretical ideal, and in reality, the ratio will often fluctuate between a rich mixture (less air than the ideal ratio) and a lean mixture (more air than the ideal ratio) in response to engine operating conditions. For example, when the engine is first started, it runs rich until the onboard computer management system enters "closed-loop" mode, where the oxygen sensors are warmed up enough to provide proper feedback. Additionally, the specific ratio can vary depending on the type of fuel used. For instance, while the stoichiometric ratio for traditional gasoline is 14.7:1, the ideal mixture for E10 gasoline (gas that contains 10% ethanol) is around 14.04:1.

To monitor the air-fuel ratio, vehicles use an oxygen sensor or other feedback loops to control the fuel-to-air ratio, also known as lambda control. This system automatically compensates for changes in the fuel's stoichiometric rate by measuring the exhaust gas composition and adjusting the fuel volume accordingly. Modern vehicles also have a PCM (engine control unit) that continuously monitors and adjusts the air-fuel mixture to keep the engine running optimally. This adjustment is known as fuel trim, and it can be monitored by the vehicle's owner using a scan tool that displays live data.

The air-fuel ratio is an important aspect of engine performance and maintenance. Deviations from the ideal ratio can lead to performance issues, increased fuel consumption, and higher emissions of harmful substances. Therefore, it is important to ensure that the engine is receiving the ideal mixture to promote smooth drivability, engine durability, and longevity.

Frequently asked questions

A fuel map controls engine performance by adjusting the air/fuel mix for maximum efficiency and performance in any condition.

Sensors located in the engine and throughout the vehicle send information to the ECU, which then adjusts the amount of fuel injected into the engine. The ECU also controls the throttle position, which tells the computer how hard the driver is pushing on the gas pedal.

Controlling the fuel map is the key to optimising an engine for its intended use. By adjusting the map values, you can improve power, efficiency, and drivability across the entire rpm range.

The vertical axis tells you how much throttle is needed for a certain speed, and the horizontal axis shows how many RPM you're at. The closer the coloured "islands" are to the green area in the top/centre, the more efficient the engine is at that point.
