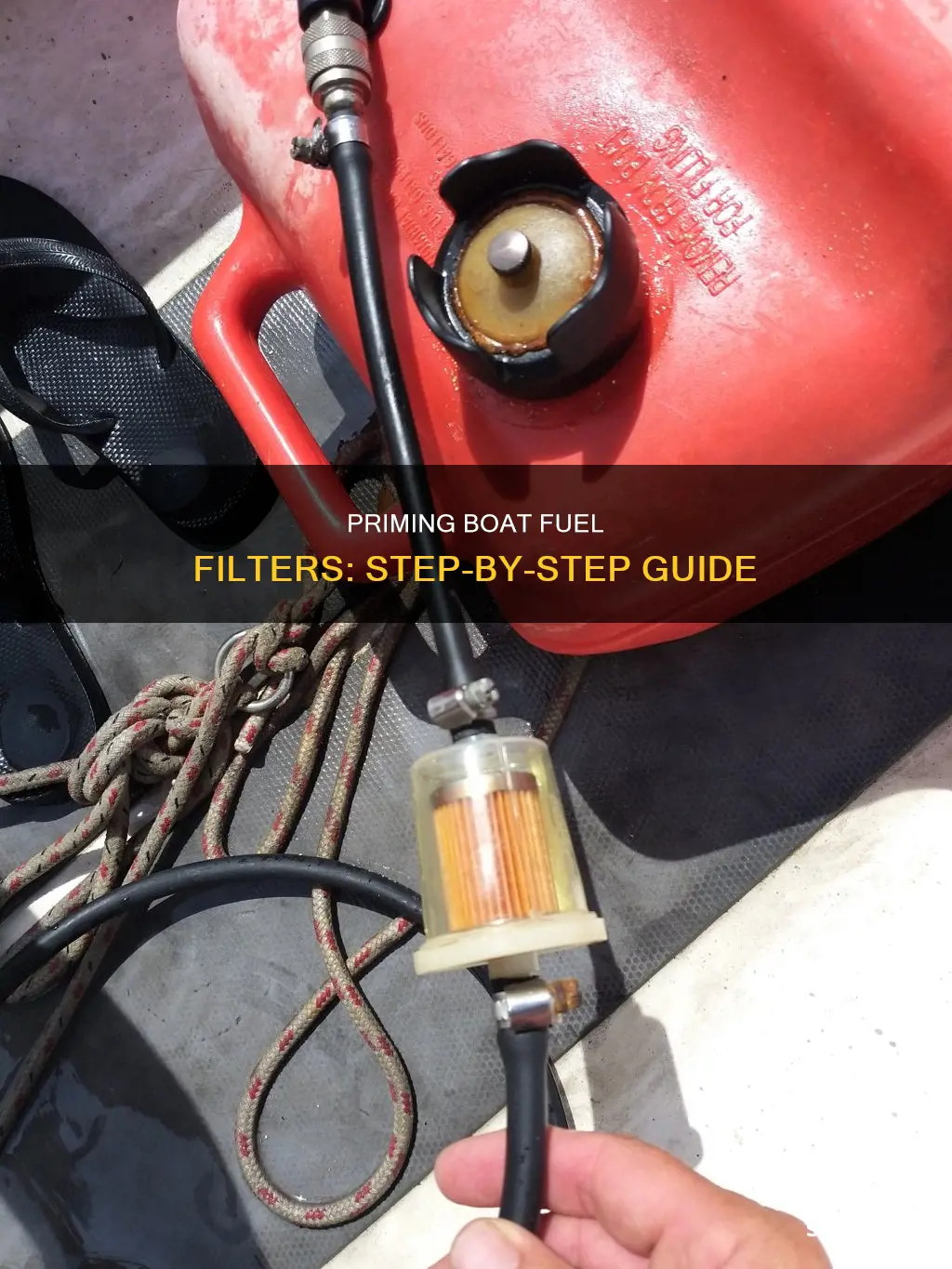

Priming a boat fuel filter can be a tricky task. It involves removing air from the fuel system, which can be a hassle depending on the location of the primer bulbs. One way to prime a boat fuel filter is to pre-fill the filter with clean fuel before screwing it on. Another method is to use a primer bulb, which can be placed before or after the filter, to pump fuel into the filter. A third option is to warm up the engine, supplying fuel to the carburetor, and then change the filter.
Explore related products
What You'll Learn
Warm up your engine before changing the fuel filter cartridge
Warming up your engine before changing the fuel filter cartridge is a good practice. This is because the engine warms up the fuel in the filter, making it less viscous and easier to drain out. Warming up the engine also helps to circulate the fuel and move the warmer fuel into the filter, which can help to dissolve any wax or gelled fuel that may have built up in the filter.
Additionally, warming up the engine can help to prevent the introduction of air into the fuel system during the filter change. Air locking the fuel pumps can cause serious problems and damage to the injectors. By warming up the engine, you can ensure that any air in the system is removed before changing the filter.
To warm up your engine before changing the fuel filter cartridge, you can start the engine and let it run for a while. You can also use a hair dryer and blow it towards the fuel filter for an hour or so, keeping the hood mostly down to retain the heat. Alternatively, you can place a small heater under the engine to warm it up.
It is important to note that if you are dealing with gelled fuel, warming up the engine may not be sufficient to prevent clogging in the fuel filter. In such cases, you may need to use a fuel additive or treatment, such as Diesel 911, to help dissolve the gelled fuel and prevent clogging.
By warming up your engine before changing the fuel filter cartridge, you can make the process easier and help prevent potential issues caused by air locking and gelled fuel.
Fitting Navara Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Use a primer bulb to fill the filter
To prime a boat fuel filter using a primer bulb, start by checking the fuel line to ensure it is properly connected from the tank to the primer bulb and from the primer bulb to the engine. Make sure there are no kinks, bends, or blockages that could impede fuel flow. The fuel pickup tube should be immersed in fuel at the bottom of the tank to ensure a steady supply.
Next, inspect the primer bulb itself. The bulb should be vertical with the arrow pointing straight up, as this allows the check balls to seat better when pumping out air. If the primer bulb is not filling with fuel, there could be an issue with the fuel line or the fuel tank. Check the fuel line for any damage, blockages, or leaks, and ensure the fuel tank is not clogged or blocked by debris or sediment.
If the primer bulb is filling with fuel but the fuel filter is not priming, there may be an issue with the filter's placement. Some filters are placed before the primer bulb, while others are placed after. If the filter is placed after the bulb, try placing it before the bulb to fill it.
Finally, if the fuel filter is still not priming, it may be necessary to fill the filter with clean fuel prior to screwing it on. This can be done by manually filling the filter or using a primer bulb to push the fuel through the filter.
Replacing the Fuel Filter on Your Dodge 3500 Diesel Engine
You may want to see also
Explore related products
Pre-fill the filter with clean fuel
Prefilling a boat's fuel filter with clean fuel is a great habit to have. It is a simple process that can save you a lot of time and hassle in the long run.
Firstly, you need to ensure that the fuel is clean. This is important because fuel contamination can cause problems with your boat engine. Once you have confirmed that the fuel is clean, you can start the pre-filling process.
Remove the fuel filter from its housing and set it aside. If your filter is mounted upside down, you will need to pre-fill it with gasoline before screwing it into place. Use a funnel to fill the filter with clean fuel. Be careful not to overfill it. Leave some space at the top to prevent fuel from spilling when you attach the filter back to its housing.
Now, carefully attach the filter back to its housing. Make sure that the connections are secure and tight to avoid any leaks. By pre-filling your boat's fuel filter with clean fuel, you can eliminate the introduction of air into the fuel system, making it easier for the engine's fuel lift pump to do its job.
Some people choose not to prefill their boat's fuel filters, but this can lead to issues with air locking the fuel pumps, which can cause damage to the injectors. Prefilling the filter is a simple way to avoid these potential problems and ensure a smooth boating experience.
Fuel Filter Installation Guide for 2004 E450 V10
You may want to see also
Explore related products
Mount the filter close to the engine
When mounting the filter, it is important to place it close to the engine. This is because the bulb is usually found in the fuel line very close to the engine, often hanging in mid-air. The filter, on the other hand, is typically attached to the inside of the transom, which is only marginally accessible in a euro-transom boat.
It is worth noting that there is no standard installation for priming a boat fuel filter. Some bulbs are before the Racor, while others are after. However, it is generally recommended to place the bulb before the Racor to fill it.
The mounting location of the Racor may also determine where the bulbs are located. For example, if the Racor is mounted upside down, you will need to prefill the filter with gasoline before screwing it into place.
Additionally, the distance from the tank to the pump should be considered. The amount of air in the fuel filter over a short distance is not as hard on the pump as a longer distance.
By mounting the filter close to the engine, you can also easily access it for maintenance and repairs. This will make it easier to change the filter or check for any leaks.
Draining Water from Your Diesel F250's Fuel Filter
You may want to see also
Explore related products
Use a small draw pump to fill the filter
Using a small draw pump to fill the filter is a common method for priming a boat fuel filter. This method is especially useful if your filter is mounted in an upside-down attitude. Here is a step-by-step guide on how to do it:
First, ensure that your small draw pump is compatible with your fuel filter system. Some filters have priming pumps built into them, so you won't need an additional pump. If your filter doesn't have a built-in pump, you can use a squeeze bulb, an electric pump, or a manual pump.
Next, locate the outlet of your fuel filter. This is usually on the outlet side of the filter, such as the Racor bowl drain. Place the small draw pump on the outlet and ensure it is secure.
Now, start pumping. You will need to pump until the filter is filled with fuel and reaches a level above the inlet/outlet. This may take a few minutes, so be patient and persistent.
Once the filter is filled, you can move on to the next step, which is to crack the bleeder on the engine filter. This will release any air trapped in the system. Use the tickler on the engine pump until the filter stops bubbling.
Finally, tighten up all the connections and bleed screws. Check for any leaks and top up the filter if necessary.
By using a small draw pump to fill the filter, you can effectively prime your boat's fuel filter and ensure a smooth fuel flow. This method helps to eliminate air from the system, protecting your engine and fuel pumps from potential damage. Always refer to your boat's manual and seek professional advice if you are unsure about any steps.
