Fuel oil tanks are used to store heating oil and typically feature a fill pipe and a vent pipe. The fill pipe is used to pump oil into the tank, while the vent pipe allows air to escape as the tank is filled. When filling a fuel oil tank, it is important to ensure that the oil does not overfill the tank, as this can lead to leaks or spills. To prevent overfilling, many tanks are equipped with a vent alarm or whistle, which creates a sound when air escapes from the vent pipe. Once the oil reaches the level of the whistle, the sound is muffled, indicating that the tank is full. In addition to proper filling procedures, it is also important to consider the sizing and placement of the pipes to ensure that the tank functions properly and safely.
Explore related products
What You'll Learn
Cutting a fill pipe to an oil tank
If you're cutting a fill pipe to an oil tank, there are a few things you need to keep in mind. Firstly, it's important to ensure that the tank has been drained and is empty, except for fumes. This will reduce the risk of any accidents during the cutting process.
When it comes to the cutting tools, you have a few options. A Sawzall, which is a type of reciprocating saw, can be used with cutting fluid to prevent sparking. Alternatively, a pipe cutter, hacksaw, or portable band saw can also get the job done. If you're concerned about noise and vibration, the portable band saw is a good option as it produces less noise and vibration than a Sawzall.
Once the pipe is cut, you'll need to seal the remaining stub of the pipe to prevent any future issues. The recommended method is to fill the stub with cement or concrete slurry to create a permanent seal. This is important to prevent accidental oil deliveries that could result in flooding, as mentioned in one user's story.
Additionally, it's a good idea to set up fans during the cutting process to reduce any odor complaints from the fumes. Overall, cutting a fill pipe to an oil tank is a manageable task if you take the necessary precautions and use the appropriate tools.
HR-V Tank: Gallons of Fuel Capacity Explored
You may want to see also
Explore related products
Removing an oil tank and fill
Removing an old fuel oil tank and preparing to install a new one can be a complex process, and it is highly recommended that you do not attempt to do it yourself. There are strict regulations governing how the oil and tank must be removed and disposed of. The risk of an accidental oil spill is high, and the cost of cleaning it up is substantial. Therefore, it is best to hire a local removal contractor or a firm qualified to remove oil tanks.
Firstly, you must extract the reusable oil from your tank using a special explosion-proof pump. This oil can be filtered and reused, so instead of letting it go to waste, you can save money by selling it. After the fuel oil has been removed, the tank's vent and fill pipes must be severed and removed from the foundation to prevent an accidental spill. The tank will then need to be sliced open with a reciprocating saw fitted with a metal-cutting blade to ensure that the inside walls are clean. The sludge, a mix of rust particles, water, oil contaminants, and bacteria that accumulates at the bottom of the tank, will need to be scooped out and placed into a specialised waste-management drum.

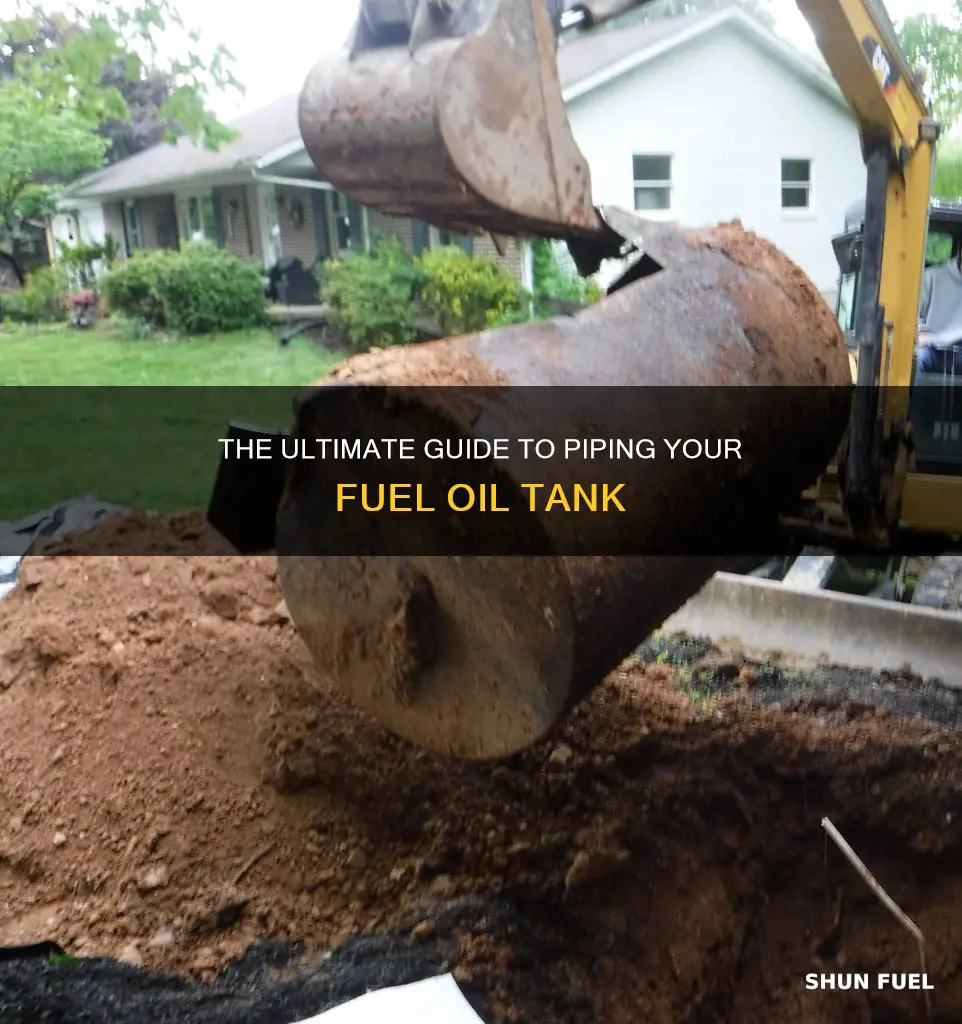

If your tank is an underground storage tank (UST), it represents a major environmental hazard and must be removed by a certified professional, and sometimes with direct supervision from the state. The cost of removing a UST varies depending on the degree of contamination and local clean-up standards. The EPA estimates that UST removal will cost anywhere from $10,000 to over $1 million, with an average cost of $130,000.
If your tank is aboveground, a few states and municipalities require registering and enforcing regular inspections from a qualified professional to ensure they are safely sealed. The average cost of removing an aboveground storage tank in New York State is around $2,600. Regardless of the regulation, it is recommended that you have your oil tanks inspected at least once a year.
A 20-lb Tank Fuels 50,000 BTU: How Long Does It Last?
You may want to see also
Explore related products
$6.49 $6.99
Installing a new oil tank
First, you must decide on the location of your new oil tank. There are typically four types of heating oil tank locations: indoor, above-ground outdoor, underground, and basement. Indoor tanks are often placed in a utility closet or basement, protecting them from the elements and temperature shifts, which can cause rust and other issues. Above-ground outdoor tanks are susceptible to weather damage but are easily accessible for repairs. Underground tanks are also protected from the weather but may be more difficult to access.
Once you have decided on a location, you must follow specific guidelines, such as the NFPA 31, to ensure your tank is installed safely. For example, outdoor, above-ground tanks should be placed on a bedding surface of natural materials like sod or bark, and centred on a concrete pad with room to spare. You should also ensure that your new tank has adequate clearance from the walls and that you have room to inspect all sides of the tank.
When purchasing a new tank, consider the material and warranty. Steel tanks with primer have a 10-year warranty, while coated tanks offer 15 to 20 years of coverage. The Granby 220 or 275-gallon steel tanks are a popular choice, with the latter offering thicker 10-gauge steel. The Roth ss double wall tank is another option, though it may require new pipes to be cut to accommodate its taller height.
Finally, the installation process will involve removing the old tank, cutting any necessary pipes, and installing the new tank. This process can be completed quickly by professionals, but it is important to ensure that all permits and inspections are completed and that the final installation is up to code.
By following these steps and guidelines, you can successfully install a new oil tank, ensuring it is safe and functional for your home's needs.
Cleaning Up Fuel Oil Spills: Tank Removal
You may want to see also
Explore related products
Filling an oil tank
Locate the Fill Pipe:
First, the delivery driver must locate the fill pipe. This pipe can be found in different locations depending on the house's setup. It is important to provide clear instructions to the driver so they can easily access the fill pipe.
Prepare the Hose:
Once the fill pipe is located, the driver will pull the hose from the reel on their truck. If the house has a small driveway, the driver may park on the road and extend the hose to the fill pipe. For larger driveways or houses farther from the road, the driver may need to pull closer to the fill pipe.
Attach the Hose:
After reaching the fill pipe, the driver will remove the cap and screw the end of the hose securely in place, connecting it to the fill pipe. This ensures a tight seal for the oil transfer.
Begin Pumping Oil:
The driver will then start pumping oil into the tank. They typically begin by partially opening the nozzle to allow slow pumping initially. This enables them to listen for the vent alarm and ensure the tank is not already full before increasing the flow rate.
Monitor the Vent Alarm/Whistle:
The vent alarm, also known as a whistle, is a critical component of the filling process. It is located at the bottom of the vent pipe, hanging approximately 6 inches down from the top of the oil tank. As air is forced out of the tank by the incoming oil, it creates a whistling sound. The driver listens to this sound to gauge the oil level in the tank.
Stop Pumping When Full:
When the oil level rises to the level of the whistle, the sound becomes muffled, indicating that the tank is full. At this point, the driver stops pumping oil. If a specific amount of oil was ordered, the pump will automatically shut off once that quantity has been delivered.
Cap the Fill Pipe:
After filling the tank, the driver removes the hose from the fill pipe and reinstalls the cap to secure the tank.
It is important to ensure that the oil tank's fill and vent pipes are properly sized according to current standards to prevent leaks or spills during the filling process. Additionally, consider installing a Smart Oil Gauge to monitor the oil level and determine how much oil to order for future deliveries.
Installing a Diesel Fuel Tank Sump Kit: A Step-by-Step Guide
You may want to see also
Explore related products
Troubleshooting and repairing oil tank vent piping
Troubleshooting Oil Tank Vent Piping:
- Inspect for Leaks and Seepage: Check for any signs of leaks or seepage around the vent piping, filler fitting, or on the ground near the oil tank. Even minor leaks can lead to significant problems over time.
- Verify Vent Pipe Size: Ensure that the vent pipe is the correct size. Older systems used 1 1/2" piping, while current standards recommend 2" diameter piping. An undersized vent can subject the tank to extra pressure during fill-up, potentially causing leaks or spills.
- Check Vent Cap and Screen: Confirm the presence of a proper vent cap and screen atop the oil tank vent pipe. This helps prevent water ingress and debris buildup.
- Examine Vent Alarm: Listen for the whistling sound of the vent alarm (also known as a "whistle") during filling. If the alarm is not functioning properly, it may need adjustment or replacement.
- Gauge Functionality: Inspect the oil tank gauge for proper installation and tightness. A loose or broken gauge can lead to spills during tank filling.
Repairing Oil Tank Vent Piping:
- Minor Leaks: For small leaks or seepage, use a temporary solution such as a rag or paper towel to absorb the oil and contain the leak. This is a stopgap measure until a permanent repair can be made.
- Permanent Repairs: For more significant leaks, disassemble, clean, and re-seal the pipe joints using an oil-resistant pipe joint thread compound or sealant. Epoxy sealant can also be used on threaded fittings of otherwise sound oil storage tanks.
- Rust and Corrosion: If the vent piping is rusted, cracked, or perforated, more extensive repairs may be necessary. Consult a professional to assess the extent of the damage and recommend appropriate repair or replacement options.
- Vent Pipe Location: Ensure that the vent pipe exits the building above ground level, as per local codes and recommendations. This helps prevent foundation leaks and ensures proper ventilation.
- Preventative Maintenance: Regularly inspect and maintain your oil tank vent piping to catch issues early on. Clean oil-wet areas on the oil tank to reduce odours and potential fire hazards.
Remember to follow safety precautions when working with fuel oil tanks and always seek professional assistance if you are unsure about any aspect of troubleshooting or repairing oil tank vent piping.
Unlocking the XC60 Fuel Tank Mystery
You may want to see also
Frequently asked questions
The vent pipe should be equal to or larger than the fill pipe. Current standards require a 2" diameter pipe, with 1 1/2" being the standard for older systems. The pipes should be no further than 100 ft from an accessible road or driveway and must be at an accessible height.
The whistle, or vent alarm, is a critical component of the filling process. As air is forced out of the tank by incoming oil, it creates a whistling sound. When the oil level rises to the level of the whistle, the sound is muffled, and the driver knows to stop pumping.
Some tools that can be used include a portable band saw, pipe cutter, hacksaw, or a sawzall with cutting fluid to avoid sparks. It is important to note that the oil and vapors are less flammable than gasoline, but precautions should still be taken.
It is recommended to have a 1" per foot pitch of the fuel line from the tank to the basement. This allows any water in the fuel line to find its way to the basement, reducing the possibility of freezing.
It is important to ensure that the tank vent extends to the outside if the oil tank is indoors. The fill and vent pipes should be properly sized and accessible to the oil delivery driver. Using galvanized pipes is recommended to prevent exterior rust.
