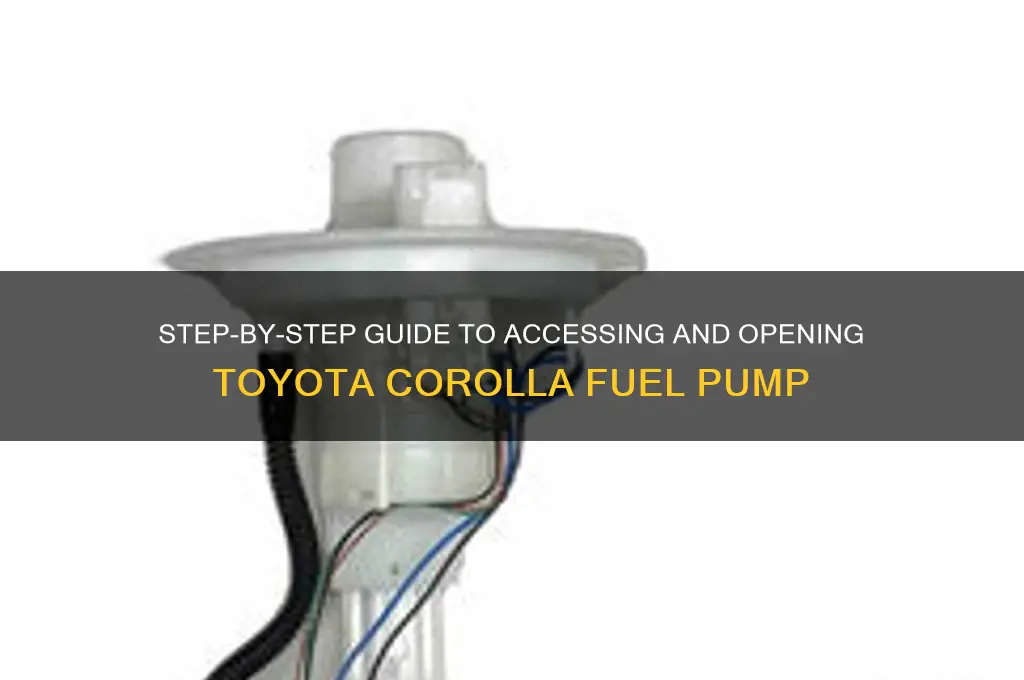

Opening the fuel pump on a Toyota Corolla requires careful attention to safety and procedure due to the involvement of flammable materials. Start by ensuring the vehicle is parked on a flat surface, the engine is turned off, and the ignition is in the Off position to prevent accidental sparks. Locate the fuel pump, which is typically housed within the fuel tank, accessible from underneath the vehicle. Before proceeding, relieve the fuel system pressure by disconnecting the fuel pump fuse or relay and attempting to start the engine momentarily. Once pressure is released, disconnect the negative battery terminal to avoid electrical hazards. Then, safely raise the vehicle using a jack and secure it with jack stands to access the fuel tank. Carefully remove the fuel tank shield, if present, and disconnect the fuel lines and electrical connectors from the pump. Finally, unscrew the retaining bolts to remove the fuel pump assembly, taking care not to damage any components. Always refer to the vehicle’s manual for model-specific instructions and wear appropriate safety gear.
| Characteristics | Values |
|---|---|
| Vehicle Model | Toyota Corolla |
| Fuel Pump Location | Under the rear seat (most models) or in the fuel tank (some newer models) |
| Tools Required | Screwdriver, socket wrench, trim removal tool, jack, jack stands |
| Safety Precautions | Disconnect battery, relieve fuel pressure, work in well-ventilated area |
| Steps to Access Fuel Pump | 1. Remove rear seat cushion 2. Disconnect fuel pump electrical connector 3. Remove fuel pump retaining bolts 4. Lift out fuel pump assembly |
| Fuel Pump Type | In-tank electric fuel pump (most models) |
| Replacement Considerations | Ensure new pump is compatible, check fuel filter replacement |
| Difficulty Level | Moderate to advanced (depending on model and location) |
| Estimated Time | 1-3 hours (varies by model and experience) |
| Common Issues | Fuel pump failure, clogged fuel filter, electrical connection problems |
| Maintenance Tips | Regularly check fuel system, replace fuel filter as recommended |
Explore related products
What You'll Learn
- Locate Fuel Pump Assembly: Identify the fuel pump location under the rear seat
- Disconnect Battery: Ensure safety by disconnecting the car battery terminal
- Remove Access Panel: Lift the rear seat to access the fuel pump cover
- Detach Electrical Connectors: Carefully unplug the fuel pump’s electrical connections
- Release Fuel Lines: Use tools to disconnect the fuel lines securely
Locate Fuel Pump Assembly: Identify the fuel pump location under the rear seat
The fuel pump assembly in a Toyota Corolla is typically located beneath the rear seat, a design choice that balances accessibility with safety. This placement ensures the fuel pump is shielded from external elements and potential damage while remaining reachable for maintenance. To locate it, start by identifying the rear seat’s release mechanisms, usually found at the front edge or sides of the seat cushion. These mechanisms vary by model year, so consult your vehicle’s manual for specifics. Once identified, disengage the latches and lift the seat cushion upward to expose the fuel pump access panel.
Analyzing the design, Toyota’s decision to place the fuel pump under the rear seat reflects a blend of engineering pragmatism and user convenience. Unlike older models where fuel pumps were buried in the gas tank, this layout allows for easier inspection and replacement without draining the tank. However, it also requires careful handling to avoid damaging electrical connectors or fuel lines during access. Understanding this design intent helps users approach the task with precision, minimizing risks associated with DIY repairs.
To access the fuel pump assembly, follow these steps: first, ensure the vehicle is on a level surface and the ignition is off. Remove any items from the rear seat to prevent obstruction. Next, locate and release the seat cushion latches—typically by pressing buttons or pulling levers. Lift the cushion straight up and set it aside, taking care not to strain the wiring harness connected to the seat. Beneath the cushion, you’ll find a metal or plastic access panel secured by screws or clips. Remove these fasteners to reveal the fuel pump assembly, which includes the pump, filter, and electrical connections.
A critical caution when locating the fuel pump assembly is to avoid forcing any components. If the seat cushion or access panel resists removal, double-check for hidden latches or obstructions. Forcing parts can cause damage, leading to costly repairs. Additionally, always work in a well-ventilated area and avoid open flames or sparks, as fuel vapors can be hazardous. If you’re unsure about any step, consult a professional to prevent accidents or further complications.
In conclusion, identifying the fuel pump location under the rear seat of a Toyota Corolla is a straightforward process when approached methodically. By understanding the design rationale, following precise steps, and exercising caution, even novice DIYers can successfully locate the fuel pump assembly. This accessibility underscores Toyota’s commitment to user-friendly maintenance, making it easier for owners to address fuel system issues without extensive professional intervention. Always prioritize safety and accuracy to ensure a smooth and effective repair process.
Does the Saturn Vue Have Two Fuel Pumps? Uncover the Truth
You may want to see also
Explore related products
Disconnect Battery: Ensure safety by disconnecting the car battery terminal
Before diving into the intricacies of accessing the fuel pump on a Toyota Corolla, a critical preliminary step demands attention: disconnecting the car battery. This action is not merely a precautionary measure but a fundamental safety protocol that safeguards both the vehicle’s electrical system and the individual performing the repair. The fuel pump, being an electrical component, is directly tied to the car’s power supply, and severing this connection eliminates the risk of accidental ignition or electrical shorts during the process.
From a procedural standpoint, disconnecting the battery is straightforward yet requires precision. Begin by locating the battery, typically housed in the engine bay or trunk, depending on the Corolla model year. Using a wrench or socket, loosen the nut on the negative terminal (marked with a "-" symbol) and carefully remove the cable. Ensure the cable does not come into contact with any metal surfaces, as this could create a ground and defeat the purpose of disconnection. For added safety, some technicians wrap the disconnected terminal in electrical tape or secure it away from the battery.
A comparative analysis highlights why this step is non-negotiable. Unlike older vehicles with mechanical fuel systems, modern Corollas rely heavily on electrical components, making them more susceptible to damage from live currents. For instance, working on a live fuel pump could trigger the fuel pump relay, causing the pump to activate unexpectedly. This not only poses a fire hazard due to fuel vapor ignition but also risks damaging the pump itself. Disconnecting the battery effectively neutralizes these risks, making it a cornerstone of automotive repair safety.
Practically, this step also serves as a diagnostic checkpoint. If the battery is difficult to disconnect due to corrosion or damage, it may indicate underlying electrical issues that need addressing before proceeding. Additionally, for those working in dimly lit environments, removing the battery connection prevents accidental activation of lights or other electrical systems, conserving power and avoiding unnecessary drain.
In conclusion, disconnecting the battery is not just a step—it’s a safeguard. By isolating the electrical system, technicians ensure a secure environment to work on the fuel pump, mitigating risks and streamlining the repair process. This simple yet vital action underscores the importance of methodical preparation in automotive maintenance, setting the stage for a successful and safe repair.
TYC Fuel Pumps Review: Reliability, Performance, and Value Explored
You may want to see also
Explore related products
Remove Access Panel: Lift the rear seat to access the fuel pump cover
The rear seat of a Toyota Corolla isn't just for passengers; it's your gateway to the fuel pump. This design choice, while space-efficient, requires a specific approach to access the fuel pump cover. Understanding this layout is crucial for anyone attempting DIY maintenance or repairs.
The process begins with a simple yet often overlooked step: lifting the rear seat. This action reveals the access panel, a hidden compartment designed to protect the fuel pump and its associated components. It's a clever integration of form and function, ensuring that the fuel system remains secure while still being accessible for maintenance.
Steps to Remove the Access Panel:
- Locate the Rear Seat Release Mechanism: Start by identifying the release levers or buttons on the rear seat. These are typically found at the front edge of the seat, near the seatback. In most Toyota Corolla models, you'll find two levers – one on each side.
- Lift the Rear Seat: Once the release mechanisms are engaged, firmly grip the rear seat and lift it upwards. The seat is designed to hinge forward, providing clear access to the area beneath. Be cautious as you lift, ensuring you have a secure grip to prevent any accidental damage or injury.
- Expose the Fuel Pump Cover: With the seat lifted, you'll notice a panel covering the fuel pump assembly. This cover is usually secured with a few screws or clips. Remove these fasteners carefully, keeping track of their positions for reassembly. Some models might have additional insulation or soundproofing material, which should be gently set aside.
Cautions and Tips:
- Safety First: Before starting, ensure the vehicle is on a level surface, and the ignition is turned off. It's advisable to disconnect the battery to prevent any accidental electrical issues.
- Tool Selection: Use appropriate tools to remove screws or clips. A magnetic screwdriver can be handy to avoid losing screws in the confined space.
- Reassembly: When putting the seat back, ensure it locks securely into place. Test the seat's stability by applying gentle pressure to confirm it's properly engaged.
Why This Matters:
Accessing the fuel pump through the rear seat is a unique feature in the Toyota Corolla's design. This approach not only saves space but also provides a more discreet and secure location for the fuel pump. By understanding this layout, car owners can perform basic maintenance or inspections without the need for extensive disassembly, making it a practical and time-saving feature. This design choice reflects Toyota's attention to detail, ensuring that even routine maintenance tasks are considered in the overall vehicle design.
Step-by-Step Guide to Installing a 1993 Eurovan Fuel Pump
You may want to see also
Explore related products
Detach Electrical Connectors: Carefully unplug the fuel pump’s electrical connections
Before attempting to detach the electrical connectors of a Toyota Corolla's fuel pump, it's essential to understand the potential risks involved. The fuel system operates under pressure, and mishandling electrical components can lead to short circuits or even fires. Always work in a well-ventilated area, away from open flames or sparks, and ensure the vehicle's engine is cool to the touch. This precautionary step is not just a recommendation—it’s a critical safety measure to prevent accidents.
To begin the process, locate the fuel pump module, typically found beneath the rear seat in most Toyota Corolla models. Once accessed, you’ll notice the electrical connectors attached to the fuel pump. These connectors are designed with a locking mechanism to prevent accidental disconnection. To release them, press the tab or lever on the side of the connector while gently pulling the plug away from the fuel pump. Avoid tugging forcefully, as this can damage the wires or the connector housing. A steady, deliberate motion is key to ensuring a clean detachment.
A common mistake when detaching these connectors is overlooking the locking mechanism’s design. Some connectors require a specific tool, such as a flathead screwdriver, to depress the tab fully. Others may have a sliding lock that needs to be moved before the connector can be removed. Refer to your Toyota Corolla’s service manual for precise instructions tailored to your model year, as designs can vary. This small step can save you from unnecessary frustration and potential damage.
After successfully detaching the electrical connectors, inspect them for signs of wear, corrosion, or damage. Clean contacts with electrical contact cleaner if necessary, ensuring no residue remains. This not only maintains the integrity of the connection but also prolongs the life of the fuel pump system. Reattaching the connectors later will be smoother if they are in optimal condition, reducing the risk of future issues.
In conclusion, detaching the electrical connectors of a Toyota Corolla’s fuel pump is a straightforward task when approached with care and knowledge. By understanding the locking mechanisms, working methodically, and inspecting components for damage, you can ensure a safe and effective process. This step is crucial in any fuel pump maintenance or replacement procedure, setting the stage for the next phase of your repair with confidence.
Step-by-Step Guide: Installing a Mechanical Fuel Pump on Chevy SB
You may want to see also
Explore related products
Release Fuel Lines: Use tools to disconnect the fuel lines securely
Disconnecting the fuel lines is a critical step in accessing the Toyota Corolla's fuel pump, but it demands precision and caution. Fuel lines are under pressure, even in a vehicle that has been turned off for a while, so improper handling can lead to spills, leaks, or injury. Always relieve the fuel system pressure before attempting this step, typically by removing the fuel pump fuse and running the engine until it stalls. This ensures the lines are depressurized, minimizing risks during disconnection.
The tools required for this task are straightforward but essential: a fuel line disconnect tool, which varies in size depending on the Corolla’s model year, and a pair of pliers or wrenches for added leverage. The disconnect tool is designed to release the spring-loaded clips securing the fuel lines to the pump. Insert the tool into the clip’s notch, then gently pry it back while pulling the line away from the pump. Avoid forcing the line, as this can damage the clip or the line itself. If the line resists, recheck the pressure relief step or inspect the clip for obstructions.
A comparative analysis of fuel line disconnection methods reveals that using the correct tool is far superior to improvising. For instance, attempting to remove the lines with a flathead screwdriver often results in bent clips or punctured lines, leading to costly repairs. The disconnect tool’s design ensures a clean release without compromising the integrity of the fuel system. Additionally, newer Corolla models may feature quick-connect fittings, which require a specific tool to disengage the locking mechanism. Always consult the vehicle’s manual or a repair guide to identify the correct tool for your specific model.
Finally, a descriptive walkthrough of the process highlights the importance of patience and attention to detail. Position yourself comfortably, with clear access to the fuel pump and lines. Work methodically, addressing one line at a time to avoid confusion. Once disconnected, cap or plug the lines immediately to prevent fuel spillage and contamination. This step not only protects the environment but also ensures the fuel system remains sealed, preserving its functionality for reassembly. By approaching this task with the right tools and a systematic mindset, you’ll safely and efficiently release the fuel lines, paving the way for fuel pump access.
Step-by-Step Guide: Removing a Fuel Pump from the Module Safely
You may want to see also
Frequently asked questions
The fuel pump in a Toyota Corolla is typically located inside the fuel tank, which is situated under the rear seat or trunk area, depending on the model year.
You will need a jack and jack stands, a socket set, a screwdriver, a fuel line disconnect tool, and possibly a trim removal tool to access the fuel pump.
First, relieve the fuel system pressure using the Schrader valve (if equipped). Then, disconnect the negative battery terminal and remove the fuel pump fuse or relay. Finally, disconnect the electrical connector and fuel lines from the pump.
In most cases, the fuel tank must be removed to access and replace the fuel pump, as it is located inside the tank. However, some models may have an access panel that allows for pump replacement without tank removal.
