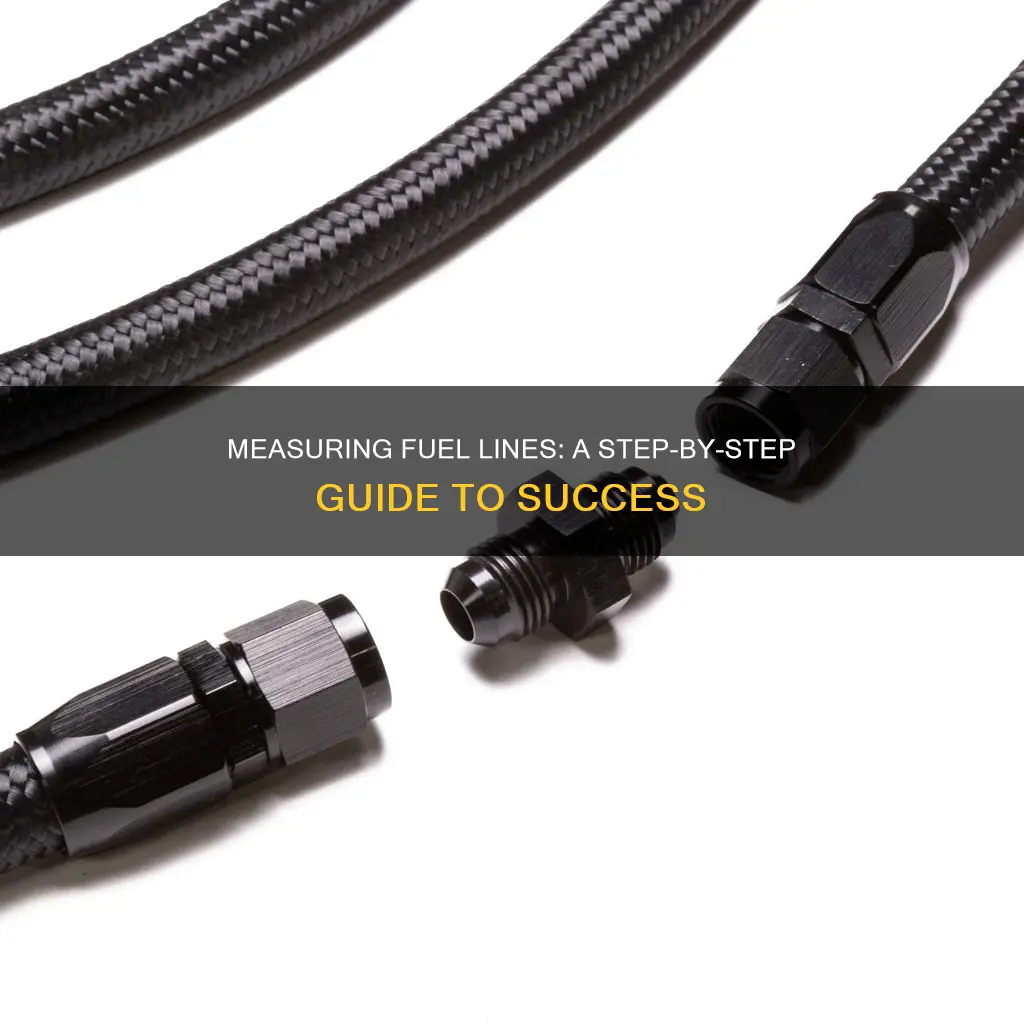

Mastering Fuel Line Measurement: A Comprehensive Guide

Measuring fuel lines is an essential step in ensuring the proper functioning of a vehicle's fuel system. It involves assessing the length and diameter of the fuel line, which is crucial for determining the correct fuel flow rate and pressure. This process is particularly important when replacing or upgrading fuel lines to optimize performance and prevent fuel leaks. By accurately measuring the fuel line, mechanics can ensure a precise fit and efficient operation, contributing to a reliable and safe driving experience. Understanding the measurement process empowers vehicle owners and mechanics to make informed decisions regarding fuel line maintenance and upgrades.

Fuel Line Length: Measure the total length of the fuel line from the tank to the engine

To accurately measure the fuel line length, you need to inspect the entire route from the fuel tank to the engine. This process involves several steps to ensure you get the correct measurement.

Start by locating the fuel tank and identifying the fuel line's entry point. Carefully trace the fuel line's path, following its twists and turns as it moves towards the engine. It's important to note any bends, kinks, or changes in direction, as these can affect the overall length. Measure each segment of the fuel line using a flexible measuring tape or ruler, ensuring you get the most accurate reading possible. Take note of any fittings, such as fuel filters or pumps, and measure the distance between these components.

When measuring, pay attention to the fuel line's orientation. It might be positioned at various angles, and you should measure it in the direction it runs. If the fuel line has any loops or bends, measure the straight-line distance between these points. For a more precise measurement, consider using a laser measuring tool, which can provide accurate readings without the need for physical contact.

Once you've measured each segment, add up all the individual lengths to determine the total fuel line length. This measurement is crucial for various reasons. It ensures the fuel line is long enough to supply fuel from the tank to the engine, and it also helps in identifying potential issues, such as wear and tear or blockages, which could affect performance.

Remember, this process requires patience and attention to detail. Take your time to carefully trace the fuel line and measure each segment accurately. If you're unsure about any measurements, consider consulting a professional mechanic who can provide guidance and ensure the correct length is achieved.

Fuel Line Diameter: Use a caliper to determine the diameter of the fuel line

To accurately measure the fuel line diameter, you'll need a caliper, a precision measuring tool. Here's a step-by-step guide on how to use it effectively:

• Prepare Your Tools: Ensure you have a caliper with a good range suitable for your fuel line size. Calipers come in various types, including vernier and digital calipers. Choose one that suits your needs and provides accurate measurements.
• Locate the Fuel Line: Access the fuel line you want to measure. This might involve removing some panels or components to gain access. Ensure you are working in a safe and controlled environment.
• Position the Caliper: Place the caliper's anvil (the larger, stationary part) around the fuel line. The anvil should be firmly against the fuel line's outer surface. Position the caliper so that the measuring tip (the smaller, movable part) is directly above the anvil.
• Take the Measurement: Carefully slide the measuring tip along the fuel line until it touches the anvil. Read the measurement on the caliper. This reading will give you the diameter of the fuel line. Make sure to record this measurement accurately.
• Repeat for Accuracy: For best results, take multiple measurements at different points along the fuel line. This will provide an average diameter, ensuring a more accurate representation of the fuel line's size.
• Consider Safety: When handling fuel lines, always prioritize safety. Wear appropriate protective gear, and ensure you are working in a well-ventilated area, especially if you are dealing with gasoline or other flammable substances.

By following these steps and using a caliper, you can precisely determine the diameter of your fuel line, which is crucial for ensuring proper fuel flow and compatibility with your vehicle's system. This measurement will also help you select the correct fuel line fittings and ensure a safe and efficient fuel delivery system.

Fuel Line Material: Identify the material of the fuel line (e.g., rubber, plastic)

When it comes to identifying the material of a fuel line, it's important to understand the different types of materials used in their construction. Fuel lines are crucial components in any vehicle's fuel system, responsible for transporting fuel from the tank to the engine. The choice of material is critical as it directly impacts the fuel line's durability, flexibility, and resistance to fuel degradation.

The most common materials used for fuel lines are rubber and plastic. Rubber fuel lines are known for their flexibility and ability to withstand high temperatures, making them ideal for hot environments. They are also resistant to fuel degradation, ensuring that the fuel remains fresh and clean. However, rubber can be more susceptible to cracking over time, especially in cold climates. Plastic fuel lines, on the other hand, offer excellent chemical resistance, which is beneficial for vehicles with ethanol-blended fuels. They are also lightweight and can provide better flexibility compared to rubber in certain applications.

To identify the material of your fuel line, start by inspecting the line for any visible signs of wear or damage. Look for cracks, brittleness, or any discolored areas. Rubber fuel lines may show signs of cracking, especially at the connections or bends. Plastic lines might become brittle or show signs of discoloration over time. It's also important to check the fuel line's flexibility. Rubber lines should flex easily without permanent deformation, while plastic lines should retain their shape even when bent.

Another way to determine the material is by examining the fuel line's color and texture. Rubber fuel lines often have a smooth, rubbery feel and may be black or a dark color. Plastic lines can vary in color but are usually more rigid and less flexible than rubber. Additionally, check the fuel line's connection to the fuel tank and the engine. Rubber lines often have metal or rubber fittings, while plastic lines might have plastic or metal connectors.

If you're unsure about the material, it's recommended to consult the vehicle's manual or seek professional advice. Identifying the correct material is crucial for proper maintenance and replacement, ensuring the fuel system's longevity and optimal performance. Understanding the characteristics of rubber and plastic fuel lines will help you make informed decisions regarding repairs or upgrades.

Fuel Line Condition: Inspect for cracks, leaks, or signs of wear

When inspecting the fuel line for any issues, it's crucial to look for visible signs of damage or deterioration. Start by examining the fuel line for any cracks or fractures. These can occur due to age, corrosion, or impact damage. Inspect the entire length of the fuel line, paying close attention to bends, joints, and areas where it connects to other components. Cracks may be small and subtle, so use a magnifying glass or flashlight if necessary to get a better view. Even a tiny crack can lead to fuel leakage, so any sign of damage should be addressed promptly.

Leakage is another critical aspect to check for. Fuel lines can develop leaks at connections, fittings, or where they attach to the fuel tank and engine. Look for any signs of fuel seepage or dripping. Sometimes, leaks may not be immediately visible, so it's essential to be thorough. Inspect the ground below the vehicle for any fuel stains or wet patches, which could indicate a hidden leak. If a leak is suspected, further investigation may be required, including using a fuel-specific dye or a professional diagnostic tool to pinpoint the exact location.

Wear and tear are common issues that can affect the fuel line's performance and longevity. Inspect the fuel line for any signs of deterioration, such as softening, brittleness, or a change in color. Over time, fuel lines can degrade due to heat, vibration, or chemical exposure. Check for any areas where the fuel line has become thin or damaged, as this can lead to fuel leaks or reduced fuel pressure. If you notice any wear, it's advisable to replace the fuel line to ensure optimal performance and prevent potential engine issues.

During the inspection, also look for any signs of contamination or debris. Fuel lines can accumulate dirt, rust, or other foreign particles, which can restrict fuel flow and cause engine problems. Check for any blockages or obstructions that might indicate a need for cleaning or replacement. Regular maintenance and inspection of the fuel line can help identify these issues early on, ensuring the fuel system remains in good condition.

Remember, proper maintenance and regular inspections are key to keeping your vehicle's fuel system in top shape. By carefully examining the fuel line for cracks, leaks, and wear, you can identify potential issues before they cause significant problems. If you're unsure or uncomfortable performing these inspections, it's always best to consult a professional mechanic who can provide expert guidance and ensure your vehicle's fuel system remains reliable.

Fuel Line Routing: Check the routing and positioning of the fuel line

When it comes to fuel line maintenance, proper routing and positioning are crucial to ensure optimal performance and prevent potential issues. Here's a step-by-step guide on how to check and verify the fuel line routing:

Start by referring to the vehicle's manual or manufacturer's guidelines. These resources provide specific information about the fuel line's intended path and any unique routing considerations for your particular make and model. Understanding the recommended route will help you identify any deviations or potential problem areas. Inspect the fuel line for any visible damage, such as cracks, leaks, or signs of wear. Look for any sharp bends or kinks that might restrict flow or cause stress on the line. Ensure that the fuel line is not rubbing against any moving parts, hot surfaces, or sharp edges that could lead to damage over time. The fuel line should be securely fastened and supported at regular intervals to prevent excessive movement or strain. Check for any loose connections or fittings that might cause the line to become loose or disconnected.

Pay close attention to the fuel line's proximity to other components. It should be positioned away from heat sources, such as exhaust manifolds or engine components, to avoid overheating. Additionally, ensure that the fuel line is not in contact with any electrical wiring or components that could potentially cause a short circuit. The fuel line should be routed in a way that allows for easy access during maintenance and repairs. Avoid routing it behind panels or in areas where it might be difficult to reach without removing multiple components. Proper routing also ensures that the fuel line is not under excessive tension, which could lead to damage or leaks over time.

Regularly inspect the fuel line's condition, especially in areas where it is more susceptible to damage, such as under the vehicle or near the fuel tank. Look for any signs of corrosion, rust, or debris buildup that might affect the line's performance. Keep the fuel line clean and free from any obstructions to maintain optimal fuel flow. If you notice any issues or have doubts about the fuel line's condition, it is advisable to consult a professional mechanic who can provide expert advice and ensure the line is properly secured and functioning correctly.
