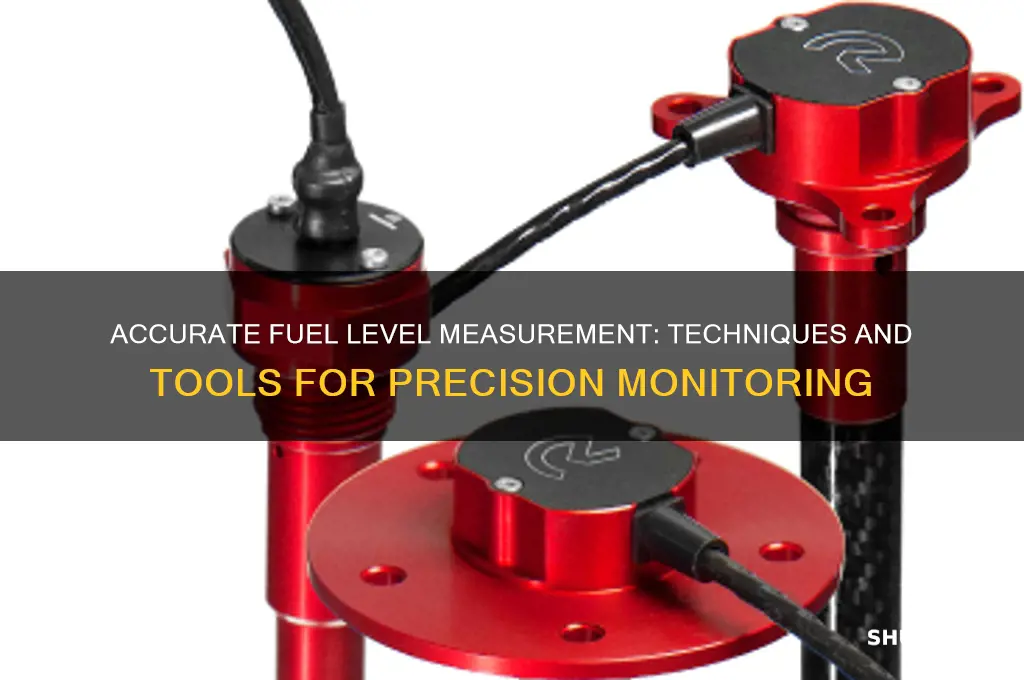

Measuring fuel levels accurately is essential for efficient vehicle management, cost control, and safety. Whether in cars, trucks, aircraft, or industrial equipment, understanding the fuel level ensures timely refueling and prevents unexpected breakdowns. Methods for measuring fuel levels vary, ranging from traditional mechanical gauges and dipsticks to modern electronic sensors and digital displays. Each approach has its advantages and limitations, depending on the application and technology available. This guide explores the various techniques used to measure fuel levels, their principles, and best practices to ensure reliable and precise readings.
Explore related products
What You'll Learn
- Float Gauge Mechanism: Measures fuel level using a floating device connected to a sensor
- Capacitive Fuel Sensors: Detects level changes by measuring electrical capacitance in the fuel tank
- Ultrasonic Level Sensors: Uses sound waves to determine the distance to the fuel surface
- Resistive Fuel Sensors: Measures fuel level via a variable resistor based on float position
- Optical Fuel Sensors: Detects fuel level using light refraction through the fuel medium
Float Gauge Mechanism: Measures fuel level using a floating device connected to a sensor
The float gauge mechanism is a time-tested method for measuring fuel levels, relying on the principle of buoyancy to provide accurate readings. At its core, this system consists of a float—typically made of a material lighter than fuel, such as foam or hollow plastic—attached to a variable resistor or potentiometer via a lever or linkage. As the fuel level rises or falls, the float moves vertically, adjusting the resistance in the sensor. This change in resistance is then translated into a fuel level reading on the vehicle’s gauge. Its simplicity and reliability make it a staple in automotive and industrial fuel tanks, though it’s increasingly being complemented by digital alternatives.
To install or troubleshoot a float gauge mechanism, begin by ensuring the float’s material is compatible with the fuel type (e.g., ethanol-resistant plastics for modern gasoline). The float’s arm should move freely within the tank, so inspect for debris or obstructions that could cause binding. Calibration is critical: adjust the potentiometer’s range to match the tank’s minimum and maximum levels, typically using a multimeter to verify resistance values at both extremes. For example, a 0-90 ohm sensor might read 0 ohms at empty and 90 ohms at full. Regularly check for fuel leaks around the gauge’s entry point, as the seal can degrade over time, leading to inaccurate readings or safety hazards.
One of the float gauge’s strengths lies in its adaptability to various tank shapes and sizes. In irregularly shaped tanks, the float’s design can be customized to follow the fuel surface accurately, though this may require additional guides or rails to prevent tilting. However, this mechanism isn’t without drawbacks. Over time, fuel contamination or temperature fluctuations can cause the float to degrade, leading to drifting readings. Additionally, the mechanical linkage is susceptible to wear, particularly in high-vibration environments like trucks or generators. Periodic inspection and replacement of the float and sensor are essential to maintain accuracy.
When comparing the float gauge to modern ultrasonic or capacitive sensors, its mechanical nature becomes both a strength and a limitation. While it lacks the digital precision of electronic systems, its operation doesn’t rely on power, making it fail-safe in scenarios where electrical systems malfunction. For budget-conscious applications or older vehicles, the float gauge remains a cost-effective solution. However, for those prioritizing longevity and minimal maintenance, upgrading to a digital system might be more practical. Ultimately, the float gauge’s enduring popularity underscores its balance of simplicity, affordability, and functionality in fuel level measurement.
Are Range Rovers Fuel Efficient? Exploring Their MPG and Eco Features
You may want to see also
Explore related products
Capacitive Fuel Sensors: Detects level changes by measuring electrical capacitance in the fuel tank
Capacitive fuel sensors operate on a simple yet ingenious principle: they measure the electrical capacitance between two conductive plates immersed in the fuel tank. As the fuel level changes, the dielectric properties of the tank’s contents alter the capacitance, which the sensor translates into a precise fuel level reading. This method is inherently non-invasive, as the sensor plates are typically integrated into the tank’s interior or mounted externally, eliminating the need for mechanical floats or probes that can wear out over time. For instance, in automotive applications, capacitive sensors are often embedded in the tank’s lining, ensuring durability and accuracy even in harsh environments.
To implement a capacitive fuel sensor, follow these steps: first, install the sensor plates inside the fuel tank, ensuring they are securely positioned and electrically insulated from the tank walls. Next, connect the sensor to a control unit capable of measuring capacitance changes with high precision—typically in the range of picofarads (pF). Calibrate the system by recording capacitance values at known fuel levels (e.g., empty, quarter full, half full, and full). Finally, program the control unit to map these values to a fuel gauge or display. A practical tip: use a reference material with a known dielectric constant during calibration to enhance accuracy, especially if the fuel composition varies.
One of the standout advantages of capacitive fuel sensors is their adaptability to different tank shapes and fuel types. Unlike traditional float-based systems, which require specific tank geometries, capacitive sensors can be customized for irregular or non-standard tank designs. For example, in marine applications, where fuel tanks are often oddly shaped to fit the hull, capacitive sensors provide reliable readings without modification. Additionally, they are compatible with a wide range of fuels, including gasoline, diesel, and even biofuels, making them versatile for diverse industries.
Despite their benefits, capacitive fuel sensors are not without limitations. Their accuracy can be affected by factors such as fuel temperature, which alters the dielectric properties of the liquid. To mitigate this, incorporate a temperature compensation algorithm into the control unit, adjusting readings based on real-time temperature data. Another caution: ensure the sensor plates are made of corrosion-resistant materials, such as stainless steel or coated copper, to prevent degradation in contact with fuel additives or impurities. Regular maintenance, including cleaning the plates and verifying calibration, is essential for long-term reliability.
In conclusion, capacitive fuel sensors offer a modern, reliable solution for fuel level measurement, combining precision, durability, and flexibility. By understanding their operational principles and addressing potential challenges, users can harness their full potential across automotive, marine, and industrial applications. Whether retrofitting an existing system or designing a new one, capacitive sensors stand out as a smart choice for accurate and maintenance-friendly fuel monitoring.
What Does Natural Gas Fuel: Uses, Benefits, and Environmental Impact
You may want to see also
Explore related products
Ultrasonic Level Sensors: Uses sound waves to determine the distance to the fuel surface
Ultrasonic level sensors operate on a simple yet ingenious principle: they emit high-frequency sound waves that travel through the air until they strike the fuel surface, then bounce back to the sensor. By measuring the time it takes for the echo to return, the sensor calculates the distance to the fuel surface, which directly correlates to the fuel level. This non-contact method eliminates the need for intrusive probes, making it ideal for corrosive or volatile environments. For instance, in a diesel storage tank, an ultrasonic sensor mounted atop the tank can provide continuous, accurate readings without risking contamination or wear from direct contact with the fuel.
To implement an ultrasonic level sensor, follow these steps: first, ensure the sensor is securely mounted above the fuel tank, with the transducer facing downward. Next, calibrate the device by inputting the tank’s dimensions and the speed of sound in air (approximately 343 meters per second at 20°C). Most sensors allow for adjustments to account for temperature variations, which can affect sound wave speed. For optimal performance, keep the sensor’s face clean and free of debris, as obstructions can distort readings. Regularly verify accuracy by comparing sensor data to manual dipstick measurements, especially in tanks with irregular shapes or foam buildup.
One of the standout advantages of ultrasonic sensors is their versatility. They can measure fuel levels in tanks of various sizes and shapes, from small generators to large industrial reservoirs. Unlike float-based systems, they are unaffected by changes in fuel density or viscosity, ensuring consistent accuracy. However, they are not without limitations. In tanks with excessive turbulence or vapor, the sound waves may scatter, leading to unreliable readings. Additionally, extreme temperatures or pressures can impact performance, so always check the sensor’s specifications before installation. For example, a sensor rated for -40°C to 80°C is suitable for outdoor fuel storage in most climates.
When selecting an ultrasonic level sensor, consider factors such as range, resolution, and output options. A sensor with a range of 0.5 to 6 meters is sufficient for most fuel tanks, while a resolution of 1 millimeter ensures precise measurements. Output options like 4-20 mA, HART, or Modbus allow seamless integration with monitoring systems. For instance, a sensor with a digital display and remote monitoring capability can alert operators to low fuel levels in real time, preventing unexpected shortages. Pairing the sensor with a data logger or SCADA system enhances its utility, enabling trend analysis and predictive maintenance.
In conclusion, ultrasonic level sensors offer a reliable, non-invasive solution for fuel level measurement, combining accuracy with adaptability. While they require careful installation and occasional calibration, their benefits far outweigh the challenges. Whether for a small business or a large industrial facility, these sensors provide critical data that ensures efficient fuel management and operational continuity. By understanding their capabilities and limitations, users can maximize their investment and maintain a steady flow of fuel for their operations.
Unlocking the Secrets: How to Safely Obtain Rocket Fuel
You may want to see also
Explore related products
Resistive Fuel Sensors: Measures fuel level via a variable resistor based on float position
Resistive fuel sensors operate on a simple yet ingenious principle: as the fuel level changes, a floating arm moves a variable resistor, altering its resistance value. This change in resistance corresponds directly to the fuel level, allowing the sensor to provide an accurate measurement. The core components include a float, a resistive track, and a wiper arm that slides along the track. When the fuel tank is full, the float rises, positioning the wiper at one end of the resistor, which registers maximum resistance. As fuel depletes, the float descends, moving the wiper toward the other end, reducing resistance. This variable resistance is then converted into a fuel level reading by the vehicle’s gauge or monitoring system.
To install a resistive fuel sensor, begin by ensuring the fuel tank is empty or nearly empty to avoid spills. Disconnect the battery to prevent electrical hazards. Locate the existing fuel level sender unit, typically accessed from the top of the tank, and remove it carefully. Install the new resistive sensor, ensuring the float arm is correctly aligned and moves freely. Reconnect the wiring harness, which usually includes a power supply and ground connection, as well as the signal wire that transmits resistance values. Test the sensor by partially filling the tank and verifying the gauge reading matches the actual fuel level. Regularly inspect the sensor for corrosion or damage, especially in older vehicles, as these can affect accuracy.
One of the key advantages of resistive fuel sensors is their reliability and cost-effectiveness. Unlike more complex systems, they have fewer moving parts, reducing the likelihood of mechanical failure. However, they are not without limitations. Over time, the resistive track can wear out or become contaminated, leading to inaccurate readings. Additionally, extreme temperatures can affect the float’s buoyancy or the resistor’s performance. For optimal longevity, avoid exposing the sensor to harsh chemicals or debris by maintaining a clean fuel system. If the gauge begins to fluctuate or show inconsistent readings, inspect the sensor for physical damage or replace it if necessary.
When comparing resistive fuel sensors to other technologies, such as capacitive or ultrasonic sensors, their simplicity stands out. Capacitive sensors measure fuel level by detecting changes in electrical capacitance, while ultrasonic sensors use sound waves to determine distance. While these methods offer higher precision and are less prone to contamination, they are also more expensive and complex to install. Resistive sensors, on the other hand, are widely used in older vehicles and budget models due to their affordability and ease of integration. For DIY enthusiasts, understanding how resistive sensors work can simplify troubleshooting and maintenance, making them a practical choice for fuel level measurement.
In practical applications, resistive fuel sensors are particularly useful in vehicles with standard fuel tanks, where their straightforward design aligns with the system’s requirements. For custom or modified tanks, however, calibration may be necessary to ensure accurate readings. This involves adjusting the sensor’s resistance range to match the tank’s dimensions. Always refer to the manufacturer’s guidelines for specific calibration procedures. By combining their mechanical robustness with electrical precision, resistive fuel sensors remain a trusted solution for measuring fuel levels, offering a balance of performance and affordability that suits a wide range of vehicles.
