Katerina Swanson
A fuel vaporizer is an innovative device designed to enhance combustion efficiency by converting liquid fuel into a vapor state before it enters the engine, resulting in improved fuel economy and reduced emissions. This technology is particularly beneficial for internal combustion engines, as it ensures a more complete and cleaner burn of the fuel-air mixture. Constructing a fuel vaporizer involves understanding the principles of heat transfer, fuel atomization, and vaporization, typically requiring components such as a heat exchanger, fuel delivery system, and control mechanisms. By optimizing the vaporization process, users can achieve better performance and environmental benefits, making it a valuable project for automotive enthusiasts and engineers alike.
| Characteristics | Values |
|---|---|
| Purpose | To vaporize liquid fuel for efficient combustion in engines or heating systems. |
| Materials Needed | Stainless steel or aluminum tubing, heat source (e.g., exhaust manifold, electric coil), fuel pump, pressure regulator, thermostat, insulation, fittings, and connectors. |
| Design Principle | Utilize heat to convert liquid fuel into a gaseous state before combustion. |
| Heat Source | Exhaust manifold (common in DIY designs), electric heating element, or flame. |
| Fuel Compatibility | Works with diesel, gasoline, kerosene, or biofuels (depending on design). |
| Efficiency | Improves fuel efficiency by 10-30% by ensuring complete combustion. |
| Safety Features | Pressure relief valve, temperature sensor, and flame arrestor. |
| Cost | DIY: $50-$200; Commercial Kits: $200-$1000+. |
| Complexity | Moderate to high (requires basic welding, plumbing, and electrical skills). |
| Environmental Impact | Reduces emissions by improving combustion efficiency. |
| Legal Compliance | Must adhere to local regulations for vehicle modifications or fuel systems. |
| Maintenance | Regular cleaning to prevent clogging and inspection of heat exchanger. |
| Applications | Vehicles, generators, furnaces, and industrial heating systems. |
| Popular Designs | "F-1 Vaporizer," "Econobuster," and "DIY Exhaust Manifold Vaporizer." |
| Challenges | Ensuring consistent vaporization temperature and preventing fuel condensation. |
| Lifespan | 5-10 years with proper maintenance. |
| Community Support | Active forums and DIY communities (e.g., YouTube, Instructables). |
Explore related products
What You'll Learn
- Materials Needed: Essential components like heating elements, fuel tank, and vaporization chamber for efficient fuel vaporization
- Design Principles: Optimal airflow, heat distribution, and safety features for effective vaporizer construction
- Assembly Steps: Detailed instructions for connecting parts, ensuring airtight seals, and proper alignment
- Safety Measures: Preventing leaks, overheating, and explosions with insulation and pressure relief systems
- Testing & Optimization: Calibrating temperature, fuel flow, and performance for maximum efficiency and reliability
Materials Needed: Essential components like heating elements, fuel tank, and vaporization chamber for efficient fuel vaporization
The heart of any fuel vaporizer lies in its heating element. This component is responsible for converting electrical energy into heat, which in turn vaporizes the fuel. Common options include ceramic heaters, resistance wire coils, or even Peltier devices, each with its own efficiency and temperature control characteristics. For instance, ceramic heaters offer uniform heat distribution, making them ideal for consistent vaporization, while resistance wires provide rapid heating but require precise control to avoid overheating. Selecting the right heating element depends on the fuel type and desired vaporization rate.
A fuel tank is more than just a container; it’s a critical component that ensures a steady supply of fuel to the vaporization chamber. Materials like stainless steel or high-temperature plastics are preferred for their durability and resistance to corrosion. The tank’s design should include features such as a fuel level sensor and a secure sealing mechanism to prevent leaks. For optimal performance, the tank should be positioned close to the vaporization chamber to minimize fuel line length and reduce the risk of clogs or pressure drops.
The vaporization chamber is where the magic happens—fuel transforms from liquid to vapor. This chamber must be designed to withstand high temperatures and pressures while ensuring efficient heat transfer. Materials like quartz or borosilicate glass are often used for their thermal stability and transparency, allowing for visual monitoring of the vaporization process. The chamber’s size and shape should be tailored to the fuel’s properties and the desired vapor output. For example, a larger chamber may be necessary for fuels with high viscosity to ensure complete vaporization.
Integrating these components requires careful consideration of their interplay. The heating element must be positioned to maximize contact with the vaporization chamber without compromising its structural integrity. Insulation materials, such as ceramic wool or high-temperature silicone, can be used to retain heat and improve efficiency. Additionally, a temperature controller is essential to regulate the heating element and prevent thermal runaway. This setup ensures that the fuel vaporizes at the optimal rate, producing a consistent and efficient output.
Safety is paramount when assembling a fuel vaporizer. All components should comply with relevant standards, and the system should include fail-safes like thermal cutoffs and pressure relief valves. Regular maintenance, such as cleaning the vaporization chamber and inspecting the heating element for wear, will prolong the device’s lifespan. By carefully selecting and integrating these essential components, you can create a fuel vaporizer that is both efficient and reliable, tailored to your specific needs.
Is P-Series Fuel a Sustainable Renewable Energy Alternative?
You may want to see also
Explore related products

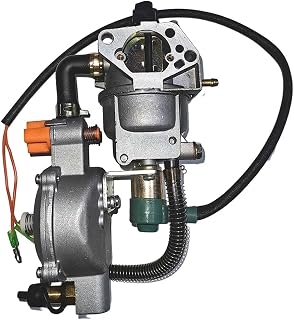

![Streamline N-RK-E-2 [Impco RK-E-2], Model E Repair Kit with Silicone Diaphragm](https://m.media-amazon.com/images/I/81JuACKZQ3L._AC_UL320_.jpg)
Design Principles: Optimal airflow, heat distribution, and safety features for effective vaporizer construction
Effective fuel vaporizer construction hinges on mastering airflow dynamics. Imagine a finely tuned engine: air must flow seamlessly through the vaporizer to ensure complete combustion. This requires a balanced design where intake and exhaust pathways are unobstructed yet controlled. Use smooth, wide-bore tubing to minimize resistance, and incorporate adjustable vents to regulate oxygen levels. For instance, a 12mm diameter inlet paired with a 10mm outlet can optimize flow while maintaining pressure differentials. Avoid sharp angles or narrow passages that create turbulence, as these disrupt the fuel-air mixture and reduce efficiency.
Heat distribution is the silent architect of vaporizer performance. Uniform heating ensures that fuel vaporizes consistently, preventing hotspots that could lead to incomplete combustion or material degradation. Employ materials with high thermal conductivity, such as copper or aluminum, for heat exchangers. Design the heating chamber with a spiral or honeycomb pattern to maximize surface area contact. For example, a 0.5mm thick copper coil wrapped around a ceramic core can disperse heat evenly across the fuel source. Calibrate the heat source to maintain temperatures between 150°C and 250°C, the optimal range for most fuel types, using a PID controller for precision.
Safety features are non-negotiable in vaporizer design. Start with a robust enclosure made of heat-resistant materials like stainless steel or high-temperature plastics to contain potential leaks or flare-ups. Integrate a pressure relief valve set to activate at 2.5 bar, safeguarding against over-pressurization. Add thermal cutoff switches that disengage the heating element at 300°C to prevent overheating. For flammable fuels, incorporate a flame arrestor—a fine mesh screen with pores smaller than 0.5mm—to block flames while allowing vapors to pass. Regularly inspect seals and connections for wear, replacing components with a tolerance of less than 0.1mm to ensure airtight integrity.
Balancing these principles requires iterative testing and refinement. Prototype with modular components to experiment with airflow configurations, heat distribution methods, and safety mechanisms. Use flow meters to measure air velocity, ensuring it remains between 1.5 and 2.5 m/s for optimal mixing. Conduct thermal imaging tests to identify cold or hot spots, adjusting chamber geometry accordingly. Simulate worst-case scenarios, such as fuel leaks or electrical shorts, to validate safety features. Document each iteration, noting performance metrics like vaporization efficiency and response time to failures. This systematic approach transforms theoretical principles into a reliable, high-performance fuel vaporizer.
Understanding Fuel-Based Heaters: Types, Efficiency, and Safety Tips
You may want to see also
Explore related products
Assembly Steps: Detailed instructions for connecting parts, ensuring airtight seals, and proper alignment
Begin by gathering all necessary components: a fuel tank, vaporizer unit, heat source, and connecting hoses. Lay them out systematically to visualize the assembly process. Start by attaching the fuel tank to the vaporizer unit using a high-pressure hose, ensuring the fittings are compatible and securely tightened. Use thread seal tape or pipe dope on threaded connections to guarantee an airtight seal, as even minor leaks can compromise efficiency and safety.
Next, align the heat source with the vaporizer unit, positioning it to ensure even heat distribution. If using a propane torch or electric heating element, secure it with clamps or brackets to maintain stability. Connect the heat source to the vaporizer via a heat-resistant conduit, double-checking that all joints are sealed with high-temperature silicone or gaskets. Misalignment here can lead to hot spots or incomplete vaporization, so precision is critical.
Proceed to integrate the fuel delivery system by attaching the fuel line from the tank to the vaporizer’s inlet port. Use hose clamps to secure the connection and inspect for kinks or obstructions that could restrict flow. Test the system for leaks by pressurizing the tank with air and applying soapy water to joints; bubbles indicate leaks that must be addressed immediately.
Finally, mount the assembled unit on a stable platform, ensuring it’s level to prevent fuel pooling or uneven heating. Double-check all connections and alignments before operation. A well-assembled vaporizer not only improves fuel efficiency but also minimizes risks associated with leaks or malfunctions. Follow these steps meticulously to achieve a reliable, safe, and functional system.
Unveiling the Driving Forces Behind the What Fuels Fashion Report
You may want to see also
Explore related products
Safety Measures: Preventing leaks, overheating, and explosions with insulation and pressure relief systems
Leak prevention begins with material selection and construction integrity. Use stainless steel or brass for fuel lines and connections, avoiding plastics that degrade under heat or chemical exposure. Double-seal all joints with PTFE tape and thread sealant rated for fuel compatibility. Inspect components for cracks or corrosion before assembly, and pressure-test the system to 1.5 times its operating pressure for 30 minutes to identify weak points. Install vibration-damping mounts on moving parts to prevent fatigue fractures, and route lines away from heat sources or sharp edges.
Insulation serves as both thermal barrier and safety blanket. Wrap vaporizer chambers and exhaust lines in ceramic fiber blankets (rated to 1200°C) secured with stainless steel straps. Apply high-temperature silicone adhesive to seal gaps, preventing fuel vapor from contacting hot surfaces. For electrical components, use UL-rated thermal barriers spaced 25mm from wiring to dissipate heat. Insulate fuel tanks with closed-cell foam to maintain stable temperatures, reducing thermal stress on welds and seams.
Pressure relief systems are non-negotiable fail-safes. Install a spring-loaded relief valve calibrated to activate at 110% of maximum operating pressure, venting to a safe, flame-arrested location. Pair this with a burst disc (lower melting point than the valve) as secondary protection. For systems handling gasoline or diesel, use valves with stainless steel internals to resist corrosion from ethanol blends. Test relief mechanisms quarterly with compressed air, replacing any valve that fails to reseal within 5 psi.
Overheating mitigation requires active monitoring and passive design. Incorporate thermocouples at critical points (vaporizer chamber, exhaust manifold) linked to a PID controller that shuts down fuel flow at 200°C. Position heat sinks on high-load components like vaporizer coils, using fins with 2mm spacing for optimal airflow. Paint exterior surfaces with high-emissivity coatings (e.g., matte black ceramic) to radiate heat efficiently. Route cooling air through the system using a 12V blower activated by a 180°C thermal switch.
Explosion prevention demands layered defenses. Install flame arrestors in all vent lines, selecting models with 0.5mm mesh for gasoline or 0.8mm for diesel. Ground all metal components to a common earth point, using 6 AWG copper wire to dissipate static charges. Maintain oxygen levels below 12% in enclosed spaces by purging with nitrogen before operation. Train operators to recognize warning signs (hissing, fuel odor, abnormal temperatures) and establish a 10-meter exclusion zone during startup or shutdown.
Crafting Rocket Fuel: A Step-by-Step Guide to Propulsion Power
You may want to see also
Explore related products
Testing & Optimization: Calibrating temperature, fuel flow, and performance for maximum efficiency and reliability
Temperature control is the linchpin of fuel vaporizer efficiency. Too low, and incomplete vaporization leads to unburned fuel and wasted energy. Too high, and you risk carbon buildup, overheating, or even system damage. Start by establishing a baseline temperature range (typically 150-250°C for gasoline, 100-180°C for diesel) based on your fuel type and vaporizer design. Use a precision thermocouple to monitor temperatures at critical points: inlet, vaporization chamber, and outlet. Log data during operation to identify temperature spikes or drops that correlate with performance anomalies.
Fuel flow rate is the next critical variable. Insufficient flow starves the engine, while excessive flow can overwhelm the vaporization process, leading to liquid fuel reaching the combustion chamber. Begin with a flow rate 20-30% below the engine’s rated consumption to ensure complete vaporization. Gradually increase in 5% increments, measuring engine performance (RPM, torque, emissions) at each step. Use a flow meter with ±1% accuracy for precise adjustments. For small-scale systems (e.g., generators under 10 kW), a flow rate of 0.5-1.5 L/min is common, while larger systems may require 5-10 L/min.
Performance testing requires a systematic approach. Run the vaporizer under varying loads (idle, partial load, full load) and record key metrics: fuel consumption, emissions (CO, HC, NOx), and engine power output. Compare these to baseline data from liquid fuel operation. Look for sweet spots where efficiency peaks—typically, a 10-15% reduction in fuel consumption with comparable power output indicates optimal calibration. For example, a well-tuned diesel vaporizer might achieve 0.25 kg/kWh fuel efficiency at full load, versus 0.30 kg/kWh for liquid fuel injection.
Reliability is as critical as efficiency. Stress-test your vaporizer by running it continuously for 48-72 hours under peak load conditions. Monitor for leaks, pressure drops, or temperature fluctuations. Inspect components (heating elements, valves, seals) for wear or degradation. For long-term reliability, implement fail-safes: thermal cutoffs at 300°C, pressure relief valves at 1.5x operating pressure, and automatic shutdown for low fuel levels. Regularly clean or replace filters to prevent clogging, especially when using low-grade fuels.
Optimization is iterative. After initial calibration, fine-tune settings based on real-world performance data. For instance, if emissions spike during cold starts, preheat the vaporizer to 120°C before ignition. If efficiency drops at high altitudes, adjust the fuel-air mixture ratio (e.g., increase air flow by 10%). Use software tools or microcontrollers to automate adjustments, ensuring the system self-corrects in real time. Remember: the goal is not just peak efficiency but consistent, reliable performance across all operating conditions.
Step-by-Step Guide to Draining Fuel from Your Suzuki SV650
You may want to see also
Frequently asked questions
A fuel vaporizer is a device that converts liquid fuel into a vapor state before it enters the combustion chamber of an engine. It works by heating the fuel to its boiling point, turning it into a gaseous form, which allows for more efficient and complete combustion.
Common materials include a heat-resistant metal tube (e.g., stainless steel), a heat source (e.g., exhaust manifold or electric heater), insulation to retain heat, and fittings to connect the vaporizer to the fuel system and engine.
Building and using a fuel vaporizer involves handling flammable materials and high temperatures, which can be dangerous. It requires proper knowledge, safety precautions, and adherence to local regulations. Consult a professional if unsure.
Yes, a fuel vaporizer can potentially improve fuel efficiency by ensuring more complete combustion of the fuel. However, results vary depending on the design, installation, and compatibility with the engine. Proper tuning is essential for optimal performance.
