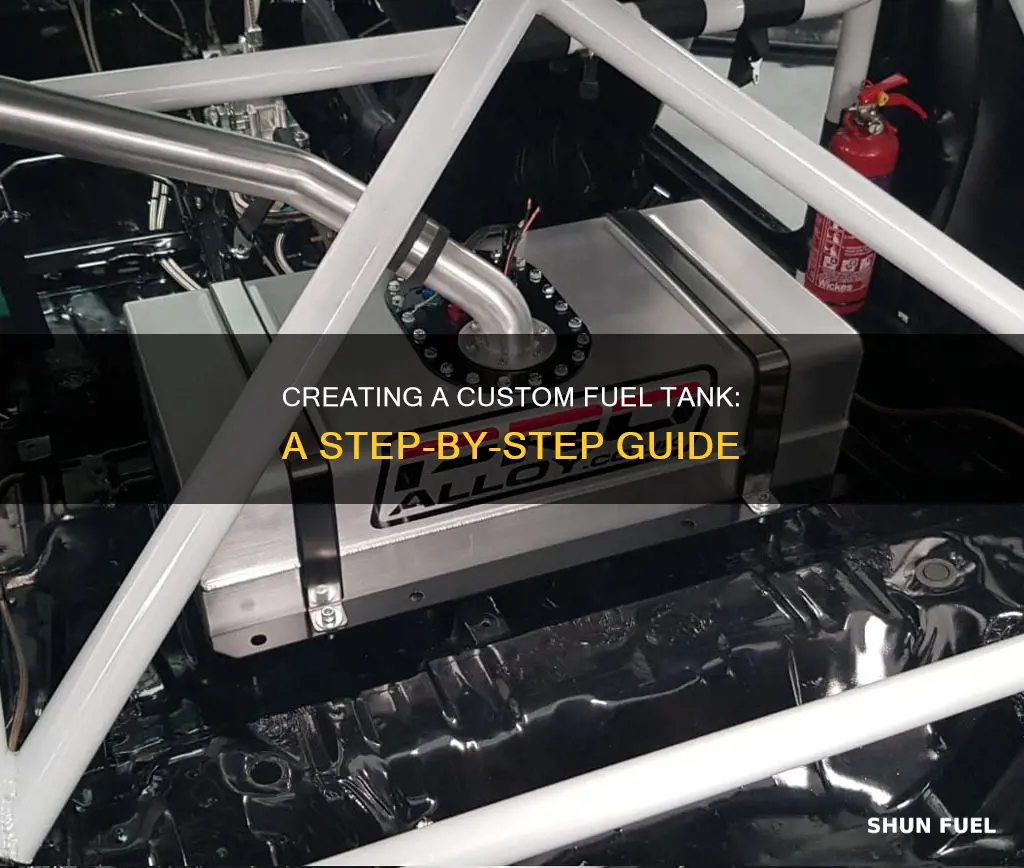

Building a small fuel tank is a complex process that requires careful planning and execution. It involves designing a prototype, selecting the right materials, and constructing the tank with precision. The process begins with measuring the available space and determining the desired shape and dimensions. A prototype is then created, often using cardboard, to ensure a proper fit and identify any potential issues. Once the design is finalized, materials such as aluminum or stainless steel are chosen, considering factors such as weight, ease of formation, and resistance to rust. The construction process involves welding, clamping, and sealing techniques to assemble the tank securely. To prevent tank slosh, which is the movement of fuel during acceleration or cornering, baffles or trap doors may be incorporated. Finally, pressure testing is performed to ensure the tank is leak-proof, using methods such as applying pressure or filling the tank with water to identify any potential leaks.
| Characteristics | Values |
|---|---|
| Materials | Aluminium, Steel |
| Shape | Rectangular, Custom |
| Fuel slosh prevention | Small sections/cells with trap doors or small holes between them, Baffles |
| Welding | Tack welding, TIG welding |
| Sealing | Aircraft sealant, Fuel tank-specific gel/epoxy coating |
| Testing | Pressure testing, Soap and water testing |
| Design | Height, Width, Length, Filler neck, Vent, Roll-over valve, Fuel pick-up, FI pump, Radius measurement of corners |
| Prototype | Cardboard model |
Explore related products
What You'll Learn
Choose the right material
Choosing the right material is crucial when making a small fuel tank. While various materials can be used, such as steel, aluminium, or stainless steel, each has its own advantages and considerations.
Aluminium is a popular choice for fuel tanks due to its lightweight properties, ease of forming, and resistance to rust. Its lightweight nature makes it ideal for vehicles, reducing overall weight and improving fuel efficiency. Additionally, aluminium is relatively easy to work with, allowing for more straightforward forming and shaping during the fabrication process. Another advantage of aluminium is its resistance to rust, which is essential for fuel tanks to prevent corrosion and ensure fuel integrity.
Stainless steel is another option for fuel tank construction, offering durability and corrosion resistance. Stainless steel is known for its strength and ability to withstand harsh conditions, making it suitable for fuel tanks that may be exposed to extreme temperatures or environments.
Steel is also used in fuel tank fabrication, and while it may be more susceptible to corrosion than other materials, proper treatments can be applied to mitigate this issue. One such treatment is a fuel tank-specific gel or epoxy coating, which can be applied to the interior of the steel tank to make it rustproof. This process typically involves etching the steel with an acid component and then coating it with the gel or epoxy.
In addition to the base material, it is important to consider the thickness of the metal used for the fuel tank. Thicker materials may provide greater durability and strength but will also add weight to the vehicle. On the other hand, thinner materials may reduce weight but could sacrifice structural integrity.
When choosing the right material for your small fuel tank, it is essential to consider the specific requirements of your project, including weight constraints, durability needs, and the environmental conditions to which the tank will be exposed. By carefully selecting the material and thickness, you can ensure the fuel tank is safe, functional, and tailored to your unique needs.
Briggs and Stratton Fuel Tank: Venting Solutions
You may want to see also
Explore related products
Design and prototype
The first step in designing a small fuel tank is to measure the space where the tank will go and determine the desired shape and dimensions. Most gas tanks are rectangular, which makes them easier to fabricate and fit into most spaces. Once you have the measurements, you can use the formula H x W x L x .004329 to calculate the tank's fuel capacity.
After finalising your design, create a prototype to ensure that your tank will fit in the intended space and that there are no issues with the design. You can use cardboard to create a model of your fuel tank, including all the actual pieces that you will cut out of the sheet metal. Tape the pieces together and check if it fits in the desired area.
When creating your prototype, consider how you will deal with "tank slosh", which refers to the fuel moving around inside the tank when you go around a corner or accelerate. One way to minimise this is to divide the tank into small sections or cells with trap doors or small holes between them. This keeps the fuel weight in small areas and ensures the fuel pump pickup remains submerged.
Another important consideration is the material you will use for your fuel tank. Aluminium is a popular choice as it is lightweight, easy to form, and will not rust. However, keep in mind that the material will warp and move during the welding process, so it is important to clamp your tank in as many places as possible before you start welding.
Draining the 2003 Saturn Vue Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Tack welding
To begin the tack welding process, it is crucial to clamp the tank firmly in multiple places. This step ensures stability and helps to keep the assembly square during welding. Once the tank is securely clamped, you can start the tack welding. It is advisable to work on different areas of the tank instead of focusing on a single side. Move around the tank, making tack welds at regular intervals. For example, when joining a seam, Don, a skilled craftsman, made tack welds every 1 inch after securing the end caps with initial tack welds.
When tack welding a small fuel tank, it is essential to pay attention to the fit-up of the metal pieces. A tight fit-up, where the edges of the tank line up perfectly, is crucial for a strong weld. This precision ensures that the final welds are of high quality and reduces the chances of leaks. After tack welding, the seam may be refined with a hammer and dolly to perfect the alignment before the final welds.
Additionally, it is worth noting that some sources recommend pressure testing the fuel tank to identify any potential leaks. While filling the tank with water is a common method, it may not detect super small pinholes. A more effective approach is to drill a small hole and apply pressure to the tank, observing for leaks with soap and water placed on the welds. This step is crucial to ensure the safety and integrity of the fuel tank.
Draining Fuel Tanks: Long-Distance Bus Maintenance
You may want to see also
Explore related products
Preventing leaks
Pressure testing is the only way to be sure your small fuel tank is leak-proof. While filling the tank with water is a common method, small pinholes may not leak under these conditions. To overcome this, it is recommended to drill a small hole and apply pressure to the tank. Applying soap and water to the welds will help identify any leaks.
Before finalising the tank, it is crucial to ensure that it is securely mounted and does not rub or come into adverse contact with anything. Additionally, be sure to clamp your tank in multiple places and embrace tack welding to keep things square and prevent movement during the final welding passes. Move around the tank, welding different areas to avoid warping and maintain stability.
To further prevent leaks, you can use a fuel tank-specific gel or epoxy coating to make the tank rust-proof. This process typically involves two steps: etching the interior of the tank with an acid component and then coating it with the gel or epoxy. Rotate the tank to ensure all sides are thoroughly coated, and then let it dry outside for a couple of days.
Another method to prevent leaks is to use aircraft sealant to seal the welds. However, be cautious not to seal any screens that should remain open. Additionally, ensure you do not exceed the recommended pressure to avoid explosions.
Accessing Your Boat's Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Installation
Before installing your small fuel tank, it is important to test it for leaks. While some people fill the tank with water to check for leaks, this method may not identify super small pinholes. A more effective method is to drill a small hole and apply pressure to the tank. Applying soap and water to the welds will help you identify any leaks.
Once you have confirmed that your tank is leak-proof, you can proceed with the installation. First, you need to determine the desired shape and dimensions of the tank and the space where it will be installed. This will help you create a prototype or mock-up to ensure a proper fit. You can use cardboard to create a model of your fuel tank, including all the measurements and actual pieces that you will cut out of the sheet metal.
After confirming the design and fit, you can cut your metal materials according to the pieces in your prototype. Consider the issue of tank slosh, which refers to the fuel moving around inside the tank when you accelerate or turn. You can address this by dividing the tank into small sections or cells with trap doors or small holes, ensuring the fuel pump pickup remains submerged.
Finally, you can assemble and install the fuel tank in your vehicle, ensuring it is securely mounted and does not rub or come into adverse contact with anything. Remember to follow the specific rules and regulations of the relevant organization if you plan to use the vehicle in sanctioned events.
Dropping the Fuel Tank in a 2000 Dakota: Step-by-Step Guide
You may want to see also
Frequently asked questions
Aluminium is a good material to use for a small fuel tank because it is lightweight, easy to form, and will not rust.
Most fuel tanks are rectangular, which makes them easier to fabricate and fit into most spaces.
First, create a prototype out of cardboard to ensure your measurements are correct and the tank fits in the intended space. Then, cut your metal according to the pieces in your prototype. Next, weld the pieces together, clamping the tank in place and using tack welds to keep things square. Finally, test the tank for leaks by drilling a small hole and applying pressure to the tank, using soap and water on the welds to identify any leaks.
Tank slosh refers to the fuel moving around inside the tank when you go around a corner or accelerate. One way to avoid this is to divide your tank into sections or small cells with trap doors or small holes between them. This will also help to keep the fuel pump submerged.
You will need to consider the height, width, and length of the tank, as well as the placement of the filler neck, vent, roll-over valve, fuel pick-up, and fuel pump. You may also want to use a fuel tank-specific gel or epoxy coating to make it rust-proof.
