Designing a fuel system for a drag car is a complex task that requires careful consideration of various components and factors. The fuel system plays a critical role in the performance of the vehicle, and it is essential to ensure that all the components work together seamlessly. The process begins with selecting the right tank or cell, followed by choosing the appropriate pump, filter(s), lines, rails, regulator, and injectors or carburetor. One of the key challenges in designing a fuel system for a drag car is achieving the optimal air-to-fuel ratio, which can impact the vehicle's performance and drivability. Additionally, the choice of fuel, such as gasoline, ethanol, methanol, or nitro, introduces further considerations, as each fuel type has unique properties that affect the engine's performance and cooling capabilities.
Characteristics and their Values for a Fuel System for a Drag Car
| Characteristics | Values |
|---|---|
| Fuel | Methanol, petrol, gasoline, ethanol, nitro, and E85 are some of the fuels used in drag racing. |
| Fuel Mixture | A mixture of methanol and air is favoured for its cooling effect and extra oxygen. |
| Fuel Pump | Kinsler Tough Pumps, MagnaFuel QuickStar 300, and electric EFI fuel pumps are some options. |
| Fuel Pressure | For a 1000 horsepower engine, a reduction of about 20 psi is required before the fuel reaches the carb. |
| Fuel Lines | Earl's Pro-Lite 350 nylon braided hose is lightweight and suitable for harsh conditions. |
| Fuel Filter | A stainless steel mesh filter is recommended for mechanical and electric pumps to protect the pump. |

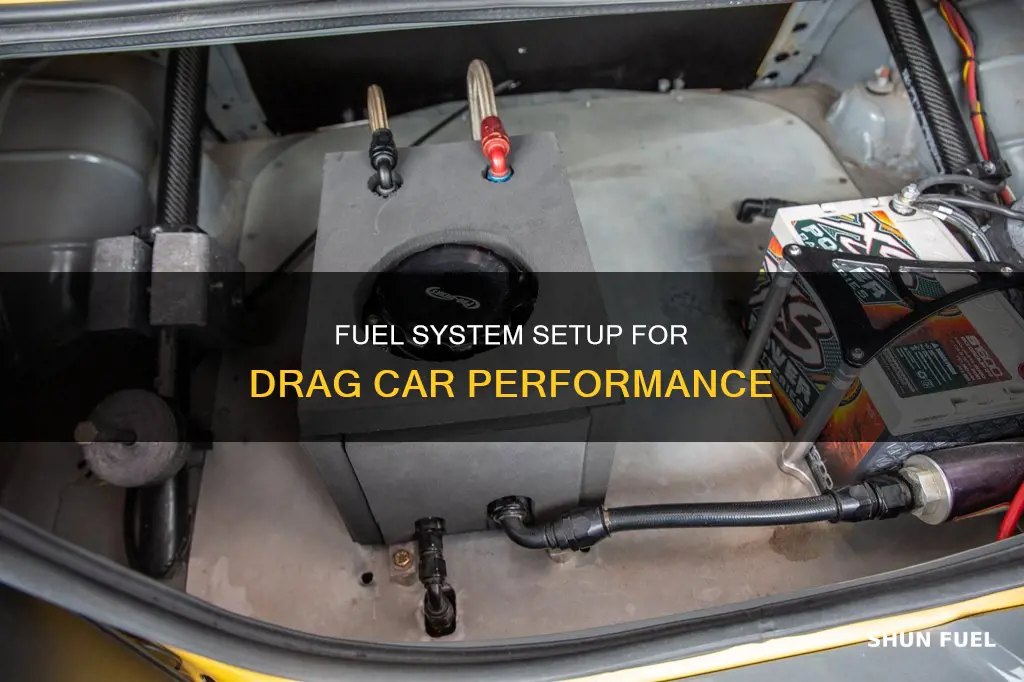

| Fuel Cell | A small 1.5-gallon fuel cell can be mounted in the trunk for easy access and safety. |
| Fuel Injection | Constant flow injection and mechanical fuel injection are used, with precision fittings to tie the system together. |
| Flex-Fuel | Some racers opt for flex-fuel capability, allowing a mixture of gasoline and ethanol in the tank. |
| Air-to-Fuel Ratio | This ratio is critical for tuning and can be calculated using air weight and fuel weight per revolution. |
| Fuel System Design | The system must work on both the track and the street, considering factors like horsepower and fuel type. |
| Fuel Map | It is essential to have a fuel map that can handle various running conditions, from idle to wide-open throttle. |
Explore related products
What You'll Learn
The importance of a reliable fuel pump and pressure regulator
The fuel system is one of the most critical processes in racing, and a reliable fuel pump and pressure regulator are vital components of this system. The fuel pump and pressure regulator work together to ensure the engine receives the right amount of fuel at the right pressure. This is essential for optimal performance, especially in high-performance vehicles such as drag cars.
The fuel pump's primary function is to pump fuel from the tank to the carburetor or fuel injector. There are two main types of fuel pumps: mechanical and electric. Mechanical fuel pumps use the camshaft to move the fuel, while electric fuel pumps use an electric motor to rotate and increase fuel pressure. Electric fuel pumps are designed to flow a constant amount of fuel, regardless of engine rpm or boost pressure. This is an important consideration for drag racing, where engine RPM can be high, but fuel consumption may be minimal.
Reliable fuel pumps, such as the Kinsler Tough Pump, can withstand high pressures and are built to last. They may cost more upfront but can save money in the long run by reducing the need for frequent replacements. It is also important to run a filter on the inlet of every pump to protect it from dirt and debris, which can cause wear and tear on the pump and other system components.
The fuel pressure regulator (FPR) is another critical component, maintaining consistent pressure for the injectors while driving. It controls the pressure of fuel supplied to the fuel injectors by bleeding off a portion of the fuel flow. This ensures the fuel rail has priority in fuel flow and helps maintain a steady fuel supply, even during dramatic changes in fuel demand. A high-flowing FPR is crucial for high-horsepower cars, as it needs to divert excess fuel at the end of a race when engine RPM is high but fuel consumption is low.
When choosing an FPR, it is important to select one that can handle the type of fuel used in the engine. For example, race cars using race fuel or alcohol typically require a higher-end FPR series. Additionally, the location of the FPR can vary depending on the vehicle type and design. In most cases, the FPR is located on top of the engine, where the fuel rail ends, but in vehicles with GDI, it may be in the engine compartment.
Installing an Electric Fuel Pump in a 1985 Club Car DS
You may want to see also
Explore related products
The advantages of methanol as a fuel
When building a fuel system for a drag car, there are many considerations to keep in mind, from the tank or cell to the pump, filter(s), lines, rails, regulator, and injectors or carburetor. One important decision is whether to use an in-tank or external fuel pump. While in-tank fuel pumps are not recommended for drag racing applications due to their tendency to move away in turns, causing the pump to suck air, external pumps offer the advantage of being quickly replaceable.
Now, onto the advantages of methanol as a fuel. Methanol (CH3OH), also known as wood alcohol, is an alternative fuel with several benefits. Firstly, it has lower production costs compared to other alternative fuels, making it a more economical option. Secondly, methanol has improved safety characteristics due to its lower risk of flammability when compared to gasoline. This is an important consideration for racing applications, where fuel safety is critical.
Additionally, methanol has chemical and physical fuel properties similar to ethanol, a more commonly used engine fuel. This means that methanol can be a viable alternative for compatible vehicles, and current research is exploring its potential as a sustainable marine fuel. Methanol can be produced using various feedstocks, with natural gas being the most economical option at present.
Another advantage of methanol is its ability to provide a more efficient air-to-fuel ratio. This is crucial in racing scenarios, where fine-tuning the fuel delivery system for optimal performance across all running conditions is essential. By utilizing methanol, racers can achieve a more efficient and responsive fuel system, contributing to improved performance on the track.
Transitioning from Fossil Fuel Cars to a Greener Future
You may want to see also
Explore related products
The considerations for using ethanol/E85
Ethanol/E85 is an increasingly accepted alternative fuel. It is a blend of 85% ethanol and 15% gasoline. It can be used in factory-built Flex-Fuel Vehicles (FFV) without any issues. However, for late-model cars, significant changes are required to the fuel injectors to use ethanol/E85. Older carbureted cars and performance cars can be adapted to use ethanol/E85 to take advantage of its octane and cooling benefits.
Ethanol/E85 has a lower heat content than gasoline. It produces about 30% less heat for the same volume of fuel, which means you will need to flow 30% more fuel to generate the same power. This will result in burning approximately 30% more fuel compared to gasoline. However, the higher octane rating of ethanol/E85 can provide better engine performance and increased horsepower.
When using ethanol/E85, it is important to use stainless steel filters as paper fuel filters can cause issues. Additionally, ethanol is highly susceptible to pre-ignition, so even a slight hot spot in the combustion chamber can ignite the fuel prematurely. It is crucial to ensure that the fuel system is free from any potential sources of ignition.
Another consideration is the storage and corrosion resistance of ethanol/E85. With proper storage precautions, corrosion and oxidation issues can be avoided. It is recommended to use the fuel regularly and not let it sit in a vented tank for extended periods, as this can lead to phase separation and contribute to corrosion in the system.
Hydrogen Fuel Cell Cars: Which Is the Best?
You may want to see also
Explore related products
The role of fuel filters and why they are necessary
The fuel system in a car is responsible for delivering fuel from the tank to the engine for combustion to generate energy and power the vehicle. The fuel system comprises various components, including the fuel tank, fuel lines, fuel pump, fuel filter, and fuel injectors. The fuel injectors deliver fuel into the engine's combustion chamber, where it mixes with air and is ignited to create combustion.
The fuel filter plays a critical role in this system by ensuring that the engine receives clean fuel, free from impurities and contaminants. The fuel filter screens out foreign particles or liquids such as dirt, debris, rust, sediment, and other contaminants that may be present in the fuel tank. These impurities can enter the fuel tank through various means, such as while refuelling or due to moisture in a steel tank.
If these contaminants are not removed before the fuel reaches the engine, they can cause accelerated wear and even failure of the fuel pump and injectors. The abrasive nature of these particles can damage the high-precision components of the fuel injection systems, leading to unnecessary expenses and reduced engine performance. Therefore, the fuel filter protects the engine from harmful debris and ensures optimal performance and longevity.
It is important to maintain and replace the fuel filter at regular intervals, as recommended by the auto manufacturer. A clogged or dirty fuel filter will restrict fuel flow, resulting in inefficient fuel delivery and poor engine performance. Symptoms of a clogged fuel filter may include rough starts, sluggish acceleration, decreased power, and increased fuel consumption.
Fuel Injection Cleaning: Why Your Car Overheats Afterwards
You may want to see also
Explore related products
The process of tuning the air-to-fuel ratio
Tuning a car's air-to-fuel ratio is a critical aspect of engine maintenance, as it can impact the engine's power, fuel efficiency, and longevity. While modern fuel-injected engines are often tuned automatically by onboard computers, it's still important to understand the basics of air-to-fuel ratio tuning to ensure optimal engine performance and prevent costly repairs. Here's a step-by-step guide to tuning your car's air-to-fuel ratio:
Step 1: Understanding the Basics
Before adjusting the air-to-fuel ratio, it's crucial to understand the concept of "stoichiometry," which is the ideal balance of air and fuel for complete combustion. This balance is typically represented by a ratio of 14.7:1, where 14.7 parts of air combine with one part of fuel. This ratio is crucial for maintaining fuel efficiency and emissions standards. However, it's important to note that this ratio may vary slightly depending on factors such as engine design and fuel type.
Step 2: Diagnosing the Need for Tuning
There are several signs that indicate the need for air-to-fuel ratio tuning. For example, if your car is experiencing detonation, pre-ignition, or gasket failure, it could be due to incorrect air-to-fuel ratios. Additionally, issues such as melted pistons or sudden reliability problems after tuning can also be indicative of improper ratios. Regularly checking your air-to-fuel ratio every six months can help identify potential problems early on.
Step 3: Tools for Tuning
To accurately tune your air-to-fuel ratio, you'll need specialized tools such as an Air/Fuel Ratio (AFR) gauge and a wideband Oxygen (O2) sensor. The O2 sensor is installed in the exhaust pipe and connects to the AFR gauge, allowing you to read the ratio of air to fuel in real time. Modern technology, such as Innovate Motorsports products, provides electronic means to determine the air-to-fuel ratio accurately.
Step 4: Adjusting the Ratio
When adjusting the air-to-fuel ratio, it's important to remember that you can be "too rich" multiple times but only "too lean" once. Therefore, it's generally safer to start with a slightly richer mixture and adjust from there. The ideal ratio will depend on your specific engine and application. For example, when tuning for maximum power, a lower air-to-fuel ratio (such as 11.5-11.8 or 12.6-12.8) is typically used, while for fuel efficiency, a higher ratio (such as 14.7-15.0) is preferred.
Step 5: Seeking Expert Advice
While this guide provides a basic understanding of air-to-fuel ratio tuning, it's important to consult a trusted and reliable tuner or mechanic. They can help you fine-tune your specific engine and ensure that all modifications are safe. Remember, what works for one engine may not be suitable for another, so always seek expert advice when making significant changes to your car's fuel system.
Car AC Fans: Fuel Consumption and Efficiency Explained
You may want to see also
Frequently asked questions
Fueling your engine is one of the most critical processes in racing. The ideal fuel-delivery system should be able to cope with every possible running condition. The goal is to dial in the most efficient air-to-fuel ratio and have the ability to tune for varying conditions. To do this, you need a fuel system that is up to the task.
Designing a system for your vehicle requires careful consideration of the following parts: the tank or cell, pump and filter(s), lines, rails (when applicable), regulator, and injectors or carburetor.
Kinsler Tough Pumps are a popular choice for their ability to withstand high pressure. MagnaFuel is another trusted name in fuel systems, offering high-horsepower pumps and pressure regulators.
Methanol is a favoured fuel type for high-performing motors due to its strong cooling effect on the air coming into the engine. It also carries oxygen, which can boost compression and improve performance. However, it's important to ensure that your system is compatible with methanol as it can affect certain components.
