Noid lights are a handy tool for testing fuel injectors in vehicles. They are used to diagnose problems with fuel-injected vehicles, such as a no-start condition, a misfire, or a bad fuel injector. While they do not confirm whether the fuel injector is malfunctioning, they do indicate whether the fuel injector is receiving power and pulse signals from the fuel injection computer. This simple device involves connecting the light's leads to a specific circuit and observing its behaviour. A flashing light indicates a pulsed signal, while a consistently lit lamp shows continuous voltage. Mechanics often use noid lights to verify injector pulse width and check for proper coil and ignition module performance. They are also useful for testing other components, such as relays and wiring harness plugs. Noid lights can be purchased or rented from auto parts stores, but they can also be easily made at home using LED bulbs, resistors, and diodes.

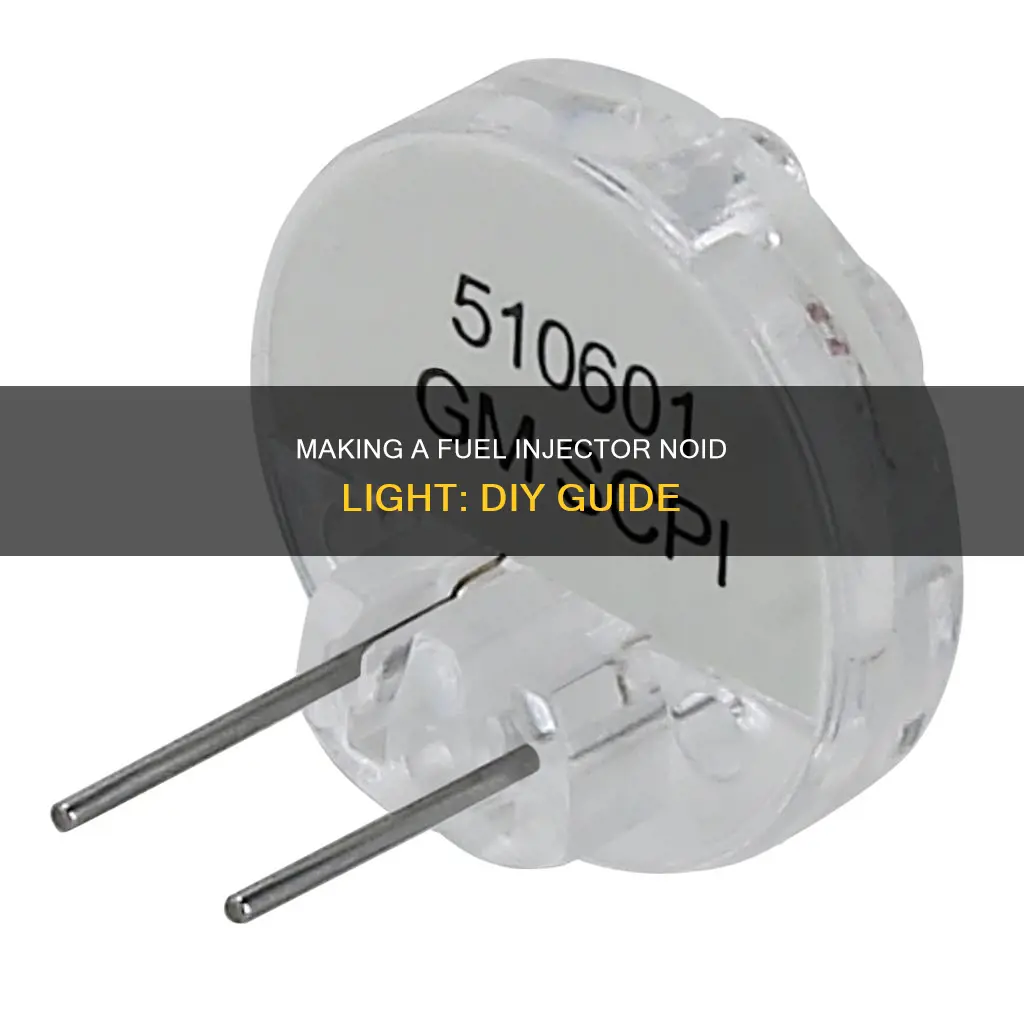

Characteristics and Values of a Fuel Injector Noid Light
| Characteristics | Values |
|---|---|
| Function | To test fuel injectors by checking if the injector is receiving power and pulse signals from the fuel injection computer |
| Operation | Connect the light's leads to a specific circuit and observe its behaviour; a flashing light indicates a pulsed signal, while a consistently lit lamp shows continuous voltage |
| Use | Troubleshooting fuel injection problems, such as a no-start condition, misfiring, or a bad fuel injector |
| Cost | Varies; some users have purchased noid lights for around $18 to $20, while others have made their own using an LED bulb and a resistor |
| Connector Type | Not all cars use identical fuel injector connectors, so a kit with various types of noid lights may be needed to match different connectors |
| Safety | Use a quality noid light and follow manufacturer instructions to prevent damage to the vehicle's electrical system |
Explore related products
What You'll Learn
Using an LED bulb and a resistor
Noid lights are a great way to check if the ECU controls the fuel injectors in your car. They are diagnostic tools used to test the electrical pulse signal sent to a fuel injector from an Electronic Control Module (ECM). Making a noid light involves gathering the necessary materials and following a few simple steps to assemble the device.
Firstly, you will need to gather the necessary materials. These include an LED bulb, a resistor (approximately 220-ohm or 750-ohm), a connector that matches your vehicle’s fuel injector harness, some electrical wire, heat shrink tubing, a soldering iron, and a 9V battery.
Once you have the materials, you can start assembling the noid light. Here are the steps to follow:
- Cut two pieces of electrical wire, each about 6 inches in length.
- Strip the insulation from both ends of the wires, exposing approximately 1/4 inch of bare wire.
- Solder one end of the resistor to the positive lead of the LED bulb.
- Solder the other end of the resistor to one of the stripped wire ends.
- Attach the other stripped wire end to the negative lead of the LED bulb.
- Connect the free ends of the wires to the appropriate terminals within the fuel injector connector, ensuring proper polarity.
- Secure the connections with solder or crimp connectors and insulate them with heat shrink tubing or electrical tape.
Now your homemade noid light is ready for use! To test a fuel injector, simply plug the noid light into the vehicle’s injector harness and observe the LED while the engine is cranked. The LED should flash if the electrical signal from the ECM is functioning correctly.
It is important to note that the resistor is placed in the circuit to limit the current flowing through the LED, preventing it from burning out instantly when charged. Additionally, a light-sensitive resistor can be used, which adjusts the brightness of the LED based on the ambient light level.
Understanding Stunt Fuel Injector Pumps: How Do They Work?
You may want to see also
Explore related products
Soldering wires to a 12-volt lightbulb
Noid lights are used to test fuel injectors in vehicles. They are connected to specific circuits to observe their behaviour. A flashing light indicates a pulsed signal, while a consistently lit lamp indicates a continuous voltage.
To make a noid light, you can solder wires to a 12-volt lightbulb. Here is a step-by-step guide:
Step 1: Prepare the Lightbulb
Start by scraping, filing, or sanding the metal surface of the lightbulb to de-oxidise it. This will ensure a better solder connection.
Step 2: Solder the Wires
Now, it's time to solder the wires to the lightbulb. You will need a soldering iron and solder wire. If you are using a 12V system, the positive wire should be soldered to the centre contact of the bulb, and the negative wire to the outer contact. Be careful not to melt any nearby plastic components.
You can twist the wires together with the appropriate leads and solder them. Alternatively, you can drill a small hole near the edge of the bulb to create a solder lug, then thread the wire through the hole, bend it, and solder it in place.
Step 3: Secure the Wires
To secure the wires, you can tie a knot in the cable inside the strain relief or use a cable tie around the outer insulation. This will prevent the wires from being pulled out and ensure that the joints don't experience significant stress.
Step 4: Clean and Insulate
After soldering, clean any flux residue from the metal parts. Then, reinsert the parts back into the plastic case. To prevent shorts, use heat shrink tubing or electrical tape to insulate the connections.
By following these steps, you can solder wires to a 12-volt lightbulb to create a noid light for testing fuel injectors in your vehicle. Remember to exercise caution when working with electrical components, and ensure proper ventilation during the soldering process.
