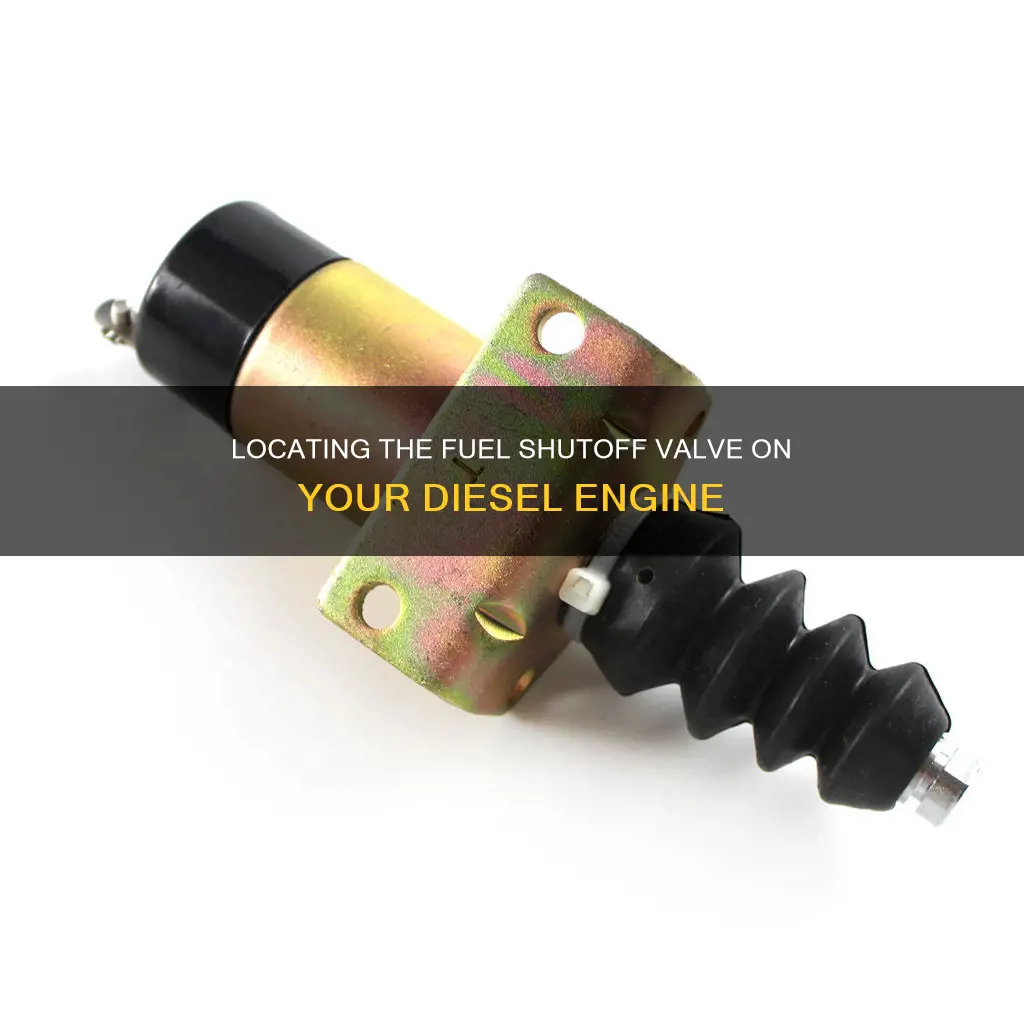

The fuel shutoff solenoid is a critical component in regulating the fuel supply to a diesel engine. A faulty solenoid can cause serious damage, from preventing the engine from starting to causing it to stall or run poorly. To locate the fuel shutoff solenoid, it is important to first identify the engine model and refer to the appropriate manual or technical information. For example, in Cummins B-series engines, the diesel fuel shut-off solenoid valve is typically located on the side or bottom of the fuel pump, while in ISX-series engines, it is mounted on the high-pressure fuel pump. Knowing the proper procedure, including disconnecting the power and fuel supply, can help locate the fuel shut-off solenoid faster.
| Characteristics | Values |
|---|---|
| Function | Regulating the fuel supply to the engine |
| Location | Dependent on the engine model, refer to the owner's manual or manufacturer's information |
| Common Issues | Engine stalling, erratic idling, engine failing to start |
| Repair | May be cleaned or repaired, but often requires replacement with a compatible part |
Explore related products
What You'll Learn
Faulty fuel shutoff solenoids: causes and effects
The fuel shutoff solenoid is a critical component in regulating the fuel supply to a diesel engine. It controls the flow of fuel to start and stop the engine. When it fails, it can lead to several issues, including engine stalling, erratic idling, and even engine failure.
Causes of Faulty Fuel Shutoff Solenoids
One of the main causes of a faulty fuel shutoff solenoid is a loss of electromagnetic force, which can cause the solenoid to return to the "off" position and disrupt the fuel flow to the engine. This can lead to the engine stalling or shutting down unexpectedly. Another cause could be a loose connection or an electrical issue with the solenoid's internal circuitry. If the solenoid is not receiving power, it may be due to faulty wiring or connectors. In some cases, a simple cleaning of the solenoid might solve the issue, especially if dirt or debris is preventing it from functioning correctly. Additionally, if the solenoid becomes damaged or develops a crack, it may cause fuel to leak, creating a fire hazard.
Effects of Faulty Fuel Shutoff Solenoids
The effects of a faulty fuel shutoff solenoid can range from engine performance issues to complete engine failure. One of the most common effects is engine stalling, as the engine may not receive the proper amount of fuel. The engine may also idle erratically, run roughly, or experience uneven acceleration due to an inadequate or inconsistent fuel supply. In some cases, the engine may not start at all, even with adequate fuel and proper ignition. Over time, a faulty fuel shutoff solenoid can also damage other components of the engine, particularly the injectors and fuel system.
Diagnosis and Repair
To diagnose a faulty fuel shutoff solenoid, it is recommended to start by cleaning the fuel filters and ensuring that the oil and fuel tanks are adequately filled. If the issue persists, further inspection or replacement of the solenoid may be necessary. In some cases, bypassing the solenoid by installing a valve on the carburettor fuel inlet line may be an option. However, it is crucial to refer to the engine manual or technical information provided by the manufacturer, as the location and configuration of the solenoid can vary depending on the engine model.
Cleaning Black Sludge from Diesel Fuel: Effective Methods
You may want to see also
Explore related products
How to identify a faulty fuel shutoff solenoid
A faulty fuel shutoff solenoid can cause serious damage to your diesel engine, from preventing it from starting to causing it to stall or run poorly. Identifying a faulty fuel shutoff solenoid early on is critical to prevent costly repairs and engine downtime.
There are several signs that can indicate a faulty fuel shutoff solenoid. One of the most common symptoms is an engine that stalls or is completely impossible to start. This happens when the solenoid fails, causing the engine to not receive the proper amount of fuel. The engine may also run roughly or idle erratically due to inadequate or inconsistent fuel supply reaching the engine. Other signs include abrupt engine shutdowns, tripping switches, and fuel leakage. If the solenoid is unable to operate properly, it can obstruct the gasoline flow, leading to an unexpected shutdown while the vehicle is in motion.
To identify a faulty fuel shutoff solenoid, you can perform a thorough testing procedure. Start by turning off the engine and disconnecting the battery to prevent accidental starting. Check the wiring connections leading to the diesel shut-off solenoid for any loose or damaged wires, frayed insulation, or signs of corrosion. If any issues are found, fix them and then retest the solenoid. After ensuring the connections are secure and clean, you can test the diesel fuel cutoff solenoid using a multimeter.
In some cases, a simple cleaning of the solenoid might solve the issue, especially if dirt or debris is causing the problem. However, if the solenoid is damaged or cracked, it will likely need to be replaced. It is important to use the correct replacement part that matches the manufacturer's specifications for voltage, current, and overall design.
Finding Air Leaks in Marine Diesel Fuel Systems
You may want to see also
Explore related products
$30.99
Repairing or replacing a faulty fuel shutoff solenoid
A faulty fuel shutoff solenoid can cause serious damage to a diesel engine, leading to costly repairs. It is critical to repair or replace the solenoid promptly to restore the engine's performance.
The first step is to identify the signs of a faulty fuel shutoff solenoid. Common symptoms include engine starting issues, stalling, erratic idling, and rough running. These issues arise because the solenoid regulates the fuel flow to the engine, and if it malfunctions, the engine may not receive the proper amount of fuel. Another symptom of a faulty solenoid is fuel leakage, which can create a fire hazard.
Once the issue has been identified, it is important to diagnose the problem thoroughly. Start by checking for electrical issues and inspecting the wiring and connectors. Loose connections or electrical issues with the solenoid's internal circuitry could be the cause of the problem. In some cases, a simple cleaning of the solenoid might solve the issue, especially if dirt or debris is preventing it from functioning correctly.
However, in many cases, the solenoid will need to be replaced. Replacing a faulty fuel shutoff solenoid is generally a straightforward process, but it is important to use the correct replacement part that is compatible with the specific engine model. Refer to the manufacturer's specifications for voltage, current, and overall design to ensure the correct part is used.
If you are not comfortable replacing the solenoid yourself, it is recommended to seek professional help. An experienced technician will be able to quickly identify the issue and ensure that the new solenoid is installed correctly.
Quickly Ungel Diesel Fuel: Easy DIY Methods
You may want to see also
Explore related products
Location of the fuel shutoff solenoid in Cummins engines
The fuel shutoff solenoid is a critical component in the daily operation and maintenance of Cummins engines. Different models may differ in design, and therefore the location of the fuel shutoff solenoid may vary. For example, in the B-series, which is widely used in medium and heavy-duty construction machinery, the diesel fuel shutoff solenoid valve is usually located on the engine's fuel pump. Specifically, it can be found on the side or bottom of the fuel pump.
The ISX-series, which is commonly used in heavy-duty trucks and large construction machinery, has a slightly different location for the fuel shutoff solenoid. In this series, the solenoid is mounted on the high-pressure fuel pump, so you need to pay special attention to finding the location of the diesel solenoid valve. You can check the side or bottom of the high-pressure fuel pump to locate the fuel shutoff solenoid.
The QSK series engines are high-powered and large, commonly used in heavy construction machinery, ships, and generator sets. The design and construction of these engines differ from the previous two series. Fuel shutoff solenoid valves are typically located on the fuel pump or fuel injector in the QSK series. You can check the side, top, or bottom of the fuel pump or look for the solenoid near the fuel injector.
Additionally, some engines may have specific markings or writing near the fuel shutoff solenoid, which can help you locate it faster. When performing maintenance or overhauling, it is important to follow safety procedures and refer to the appropriate engine manual or technical information provided by the manufacturer.
Marine Diesel Fuel Consumption: Calculating Engine Efficiency
You may want to see also
Explore related products
Location of the fuel shutoff switch in cars
The fuel shut-off solenoid is an important component in regulating the fuel supply to a diesel engine. It controls the flow of fuel to start and stop the engine. A faulty fuel shut-off solenoid can cause serious damage to your diesel engine, from preventing it from starting up to causing it to stall or run poorly.
The location of the fuel shut-off solenoid may vary depending on the make and model of the vehicle. For example, in Ford pickups and SUVs, the fuel shut-off switch is typically located behind the right kick panel or on the bulkhead (firewall) in the passenger compartment, rather than under the hood. On passenger cars with these switches, it can usually be found in the trunk, often with a round cutout in the trunk liner for access.
Some Nissans and Toyotas have what Ford calls an "inertia switch," which serves a similar purpose. Additionally, certain models of Cummins engines, such as the B-series and ISX-series, have different locations for the fuel shut-off solenoid. For the B-series, it is usually found on the side or bottom of the fuel pump, while for the ISX-series, it is mounted on the high-pressure fuel pump.
It is important to refer to the appropriate engine manual or technical information provided by the manufacturer when attempting to locate the fuel shut-off solenoid. The process may require disconnecting the power and fuel supply, and it is crucial to follow safety procedures to ensure the engine is in a safe condition.
Finding Diesel: A Guide to Fuel Sources
You may want to see also
Frequently asked questions
A faulty fuel shut-off solenoid can cause a diesel engine to stall or run poorly, and may even prevent it from starting. If you experience these issues, check the solenoid to ensure it is functioning properly.
The location of the fuel shut-off solenoid may vary depending on the model of your diesel engine. For example, in Cummins B-series engines, the solenoid is usually located on the side or bottom of the fuel pump. Refer to your engine manual or manufacturer's technical information to pinpoint the exact location.
A faulty fuel shut-off solenoid can cause serious damage to your diesel engine, so it is important to address the issue promptly. Start by checking for electrical issues and inspecting the wiring and connectors. In some cases, cleaning the solenoid may solve the problem, but often, you will need to replace it with a compatible part that meets the manufacturer's specifications.
