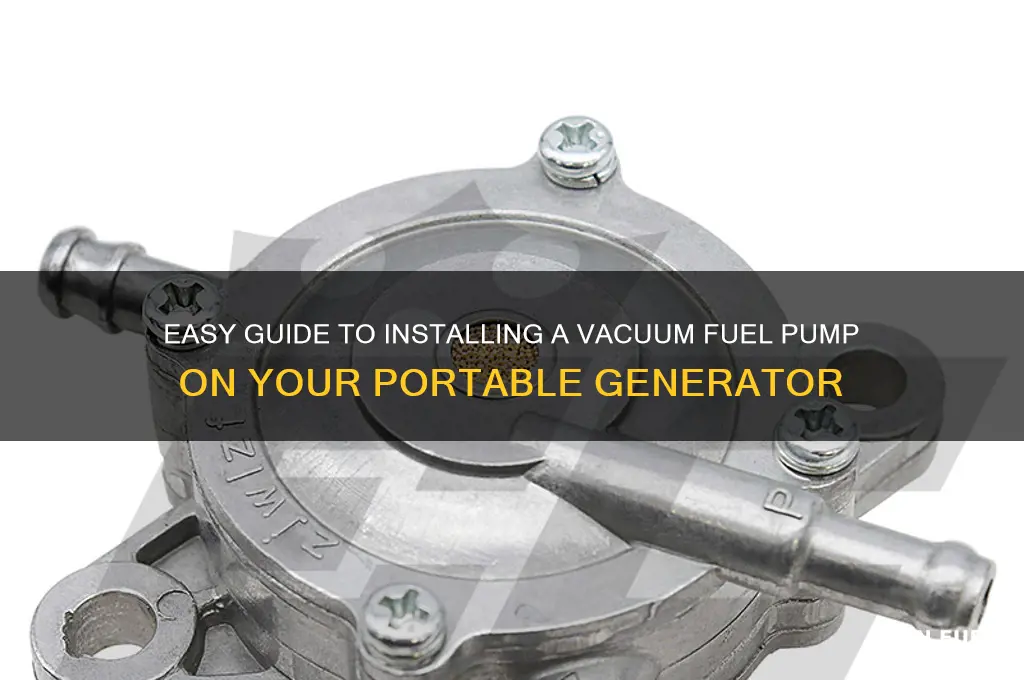

Installing a vacuum fuel pump on a portable generator is a practical upgrade that enhances fuel efficiency and ensures consistent performance, especially in high-altitude or low-pressure environments. This process involves selecting a compatible fuel pump, disconnecting the generator’s power source, and carefully removing the existing fuel lines. The new vacuum pump is then connected to the fuel tank and carburetor, ensuring tight seals to prevent leaks. Proper alignment and secure mounting are critical to avoid vibrations that could damage the pump. Finally, testing the system for proper fuel flow and functionality is essential before regular use. This upgrade not only improves the generator’s reliability but also extends its lifespan by reducing strain on the engine.
| Characteristics | Values |
|---|---|
| Purpose | To install a vacuum fuel pump on a portable generator for improved fuel delivery and engine performance. |
| Tools Required | Wrenches, screwdrivers, pliers, fuel line disconnect tool, safety gloves, safety goggles. |
| Parts Required | Vacuum fuel pump, fuel lines, hose clamps, mounting bracket, screws/bolts, fuel filter (if not included). |
| Steps | 1. Disconnect Power: Ensure the generator is turned off and cooled down. Disconnect the spark plug wire for safety. 2. Locate Fuel System: Identify the existing fuel lines and fuel tank. 3. Mount Pump: Secure the vacuum fuel pump to a suitable location using the mounting bracket and screws/bolts. 4. Connect Fuel Lines: Disconnect the existing fuel line from the carburetor. Connect one end of a new fuel line to the pump's outlet and the other end to the carburetor. Use hose clamps to secure connections. 5. Connect Vacuum Source: Connect a vacuum hose from the pump's inlet to a vacuum port on the engine (often found on the intake manifold). 6. Install Fuel Filter (if applicable): If the pump doesn't have an integrated filter, install a fuel filter inline between the tank and the pump. 7. Secure Connections: Double-check all connections for tightness and leaks. 8. Test Operation: Reconnect the spark plug wire and start the generator. Observe for proper fuel flow and engine performance. |
| Safety Precautions | Work in a well-ventilated area, avoid sparks or open flames near fuel, wear safety gear, and handle fuel with care. |
| Troubleshooting | If the generator doesn't start, check for fuel line leaks, clogged filter, or incorrect pump installation. |
| Maintenance | Regularly inspect fuel lines for cracks or leaks, replace fuel filter as recommended, and keep the pump clean. |
Explore related products
What You'll Learn
Gather tools and materials needed for the installation process
Before embarking on the installation of a vacuum fuel pump on your portable generator, it’s crucial to assemble the right tools and materials to ensure a smooth and efficient process. Start by verifying the compatibility of the fuel pump with your generator model, as this will dictate the specific parts and tools required. A typical installation will necessitate a wrench set, screwdrivers (both flathead and Phillips), pliers, and a socket set. Additionally, you’ll need the vacuum fuel pump itself, fuel line hoses, hose clamps, and possibly a fuel filter if your generator’s setup requires one. Always refer to the manufacturer’s instructions for any model-specific components.
Analyzing the task at hand, the success of the installation hinges on precision and preparedness. For instance, using the wrong size hose clamp can lead to fuel leaks, compromising both performance and safety. Similarly, omitting a fuel filter, if needed, can result in debris clogging the pump, shortening its lifespan. To avoid such pitfalls, create a checklist of all required items before beginning. This not only saves time but also prevents mid-installation interruptions that could leave your generator in a partially disassembled state.
From a practical standpoint, consider the workspace and environmental conditions. Ensure you have a clean, well-lit area to work in, as small components like screws and clamps can easily be misplaced. If working outdoors, check the weather forecast to avoid rain or excessive dust, which could contaminate the fuel system. A tray or container to catch any spilled fuel during the process is also a wise addition to your toolkit. These preparatory steps, though seemingly minor, significantly reduce the risk of errors and accidents.
Comparing this process to other generator maintenance tasks, gathering tools and materials for a vacuum fuel pump installation is more specialized. Unlike routine tasks like oil changes or spark plug replacements, this installation involves working directly with the fuel system, which demands a higher level of caution. For example, while a basic oil change requires only a few tools and supplies, the fuel pump installation may involve cutting and connecting hoses, which requires precision tools like hose cutters and a steady hand. This underscores the importance of not only having the right materials but also understanding their proper use.
In conclusion, the key takeaway is that thorough preparation is the cornerstone of a successful vacuum fuel pump installation. By meticulously gathering all necessary tools and materials, you set the stage for a seamless process that minimizes risks and maximizes efficiency. Whether you’re a seasoned DIY enthusiast or a first-time generator modifier, this step is non-negotiable. It ensures not only the functionality of your generator but also your safety and peace of mind.
Does a Toyota RAV4 Have a Fuel Pump? Explained
You may want to see also
Explore related products
Locate the fuel pump mounting position on the generator
The fuel pump mounting position is a critical detail often overlooked in generator maintenance. It’s not just about finding a spot where the pump fits—it’s about ensuring optimal fuel flow, minimizing vibration, and avoiding interference with other components. Most portable generators have a designated area near the carburetor or fuel tank, marked by pre-drilled holes or a bracket. If your generator lacks these, consult the manual or manufacturer’s diagrams to identify the intended location. Misplacement can lead to inefficient fuel delivery or even damage, so precision here is non-negotiable.
Analyzing the generator’s layout reveals why the mounting position matters. The fuel pump must be close enough to the carburetor to maintain consistent suction but far enough from the engine to avoid heat damage. For example, on a 3500-watt generator, the ideal spot is typically 2–3 inches from the carburetor inlet, secured with stainless steel screws to prevent corrosion. If your generator has a plastic housing, use rubber washers to dampen vibrations and protect the material. Always ensure the pump’s inlet and outlet ports align with the fuel lines to avoid kinks or leaks.
Persuasive as it may sound, improvising the mounting position is a risky move. A poorly placed pump can cause fuel starvation, leading to engine stalls or overheating. Take the case of a Honda EU2200i owner who mounted the pump too close to the exhaust, resulting in melted components within weeks. To avoid such pitfalls, use a template or measure twice before drilling. If your generator has a metal frame, consider applying a thin layer of anti-seize compound to the mounting screws to prevent rust and ensure future removability.
Comparatively, locating the mounting position on a dual-fuel generator requires additional consideration. Since these models often have separate fuel systems, the pump must be positioned to accommodate both gasoline and propane lines without obstruction. For instance, on a Champion 4000-watt dual-fuel generator, the pump is typically mounted on the side panel, away from the propane regulator. This ensures neither fuel system interferes with the other, maintaining efficiency across both modes. Always cross-reference your generator’s dual-fuel specifications to confirm the correct placement.
Descriptively, the mounting process itself is straightforward once the position is identified. Start by cleaning the area with a degreaser to ensure a secure fit. If drilling is required, use a 3/16-inch bit for most pumps and apply threadlocker to the screws for added stability. Secure the pump with a torque wrench set to 10–12 ft-lbs to avoid over-tightening. Finally, reconnect the fuel lines, ensuring clamps are snug but not overtightened. A well-mounted pump should sit flush, with no visible gaps or strain on the lines. Test the setup by priming the pump and listening for smooth operation before full use.
Understanding Manual Fuel Pumps: Mechanics, Functionality, and Operation Explained
You may want to see also
Explore related products
Connect fuel lines securely to the pump and generator
Connecting the fuel lines securely is a critical step in installing a vacuum fuel pump on a portable generator, as it ensures efficient fuel delivery and prevents leaks that could lead to safety hazards or engine damage. Begin by identifying the correct fuel line ports on both the pump and the generator, typically marked with arrows or labels indicating fuel flow direction. Use fuel line tubing compatible with gasoline or diesel, depending on your generator’s fuel type, and ensure the diameter matches the ports to avoid loose connections. Trim the tubing to the appropriate length, allowing enough slack for movement without tension, and insert it firmly into the ports, securing it with clamps designed for fuel lines. Over-tightening can damage the tubing, so apply enough pressure to prevent leaks without compromising the material.
A common mistake is neglecting to check for cracks or wear in the fuel lines before installation. Inspect the tubing for brittleness, especially if it’s been exposed to extreme temperatures or sunlight, as aged lines can fail under pressure. If using barbed fittings, apply a thin layer of silicone-based lubricant to ease insertion and create a tighter seal. For generators with primer bulbs, ensure the fuel line to the bulb is connected correctly to facilitate manual priming. Always route the lines away from hot surfaces like the exhaust or engine block to prevent melting or fuel vaporization, which can disrupt pump performance.
Comparing connection methods, some generators use quick-connect fittings, while others rely on clamps and barbed fittings. Quick-connect systems are user-friendly but require precise alignment to engage properly. Barbed fittings, though more labor-intensive, offer a customizable fit and are often more reliable in high-vibration environments. Regardless of the method, test the connections by pressurizing the system with a fuel pump or primer bulb and checking for leaks with soapy water. Even a small bubble indicates a potential failure point that must be addressed before operation.
Persuasively, investing time in securing fuel lines pays dividends in generator reliability and safety. A loose connection can lead to fuel starvation, causing the engine to stall, or fuel spills, which pose fire risks. Properly clamped lines also reduce air infiltration, ensuring consistent fuel delivery and optimal engine performance. For long-term maintenance, periodically inspect the lines for wear and replace them every 2–3 years, or sooner if exposed to harsh conditions. This proactive approach minimizes downtime and extends the generator’s lifespan, making it a worthwhile step in the installation process.
Fixing a Broken Onan Fuel Pump: Step-by-Step Repair Guide
You may want to see also
Explore related products
Secure the pump with brackets and tighten all fasteners
Securing the vacuum fuel pump with brackets is a critical step in ensuring the longevity and reliability of your portable generator. Improper mounting can lead to vibrations that damage internal components or even cause the pump to detach during operation. Begin by selecting brackets that match the pump’s size and weight specifications—typically made of steel or aluminum for durability. Position the pump near the fuel tank but away from excessive heat sources like the exhaust. Use a level to ensure the pump sits evenly, as misalignment can strain the motor and reduce efficiency. Once aligned, attach the brackets to the generator’s frame using bolts or screws provided in the kit, ensuring they are compatible with the generator’s material to avoid corrosion.
Tightening all fasteners is equally vital, as loose connections can lead to leaks, reduced performance, or complete failure. Start by hand-tightening each bolt to avoid cross-threading, then use a torque wrench to secure them to the manufacturer’s recommended specifications—usually between 10 to 20 Nm for small to medium-sized pumps. Over-tightening can strip threads or warp mounting surfaces, while under-tightening risks vibration-induced loosening. Apply thread-locking fluid to critical fasteners for added security, especially in high-vibration environments. Double-check all connections after the first hour of operation, as initial use may cause settling or shifting.
A comparative analysis reveals that bracket-mounted pumps outperform adhesive or clamp-based installations in terms of stability and ease of maintenance. Brackets allow for quick removal during servicing, whereas adhesives can be permanent and clamps may slip under stress. For example, a study on portable generator efficiency found that bracket-secured pumps maintained consistent fuel pressure over 500 hours of operation, compared to a 15% drop in clamp-mounted setups. This underscores the importance of choosing the right mounting method for your specific generator model and usage conditions.
Practically, consider these tips: If your generator operates in mobile or rugged environments, add vibration-damping pads between the pump and brackets to minimize wear. For generators used in humid or coastal areas, coat fasteners with anti-corrosion spray to prevent rust. Always refer to the pump’s manual for bracket placement diagrams and torque values, as these can vary widely by brand. By securing the pump with brackets and tightening fasteners correctly, you not only safeguard the generator’s performance but also reduce the risk of costly repairs or downtime.
Optimal Fuel Pump Size for Nissan G35 Performance Upgrades
You may want to see also
Explore related products
Test the pump for leaks and proper fuel delivery
Before finalizing the installation of your vacuum fuel pump, a critical step is to ensure it functions flawlessly. This involves a meticulous test for leaks and proper fuel delivery, a process that can make or break your generator's performance.
The Pressure Test: Begin by pressurizing the fuel system. With the pump installed, connect a pressure gauge to the fuel line and pump the handle to build pressure. Aim for a pressure reading that matches your generator's specifications, typically around 3-5 PSI for most portable models. Observe the gauge; any drop in pressure indicates a potential leak.
Identifying Leaks: Leaks can be subtle, so a systematic approach is necessary. Inspect all connections, joints, and seals along the fuel line. Look for wet spots or fuel residue, which are telltale signs of leakage. A common issue is a loose connection, so ensure all fittings are tight. For a more thorough check, use a spray bottle with soapy water; any bubbles forming around connections indicate a leak.
Fuel Delivery Assessment: Proper fuel delivery is paramount for your generator's operation. After confirming no leaks, start the generator and let it run for a few minutes. Check the fuel flow rate; it should be consistent and match the manufacturer's specifications, usually measured in liters or gallons per hour. Inadequate fuel delivery can lead to engine sputtering or failure to start.
Fine-Tuning and Adjustments: If the pump passes the leak test but fuel delivery is subpar, adjustments may be required. Check the pump's diaphragm for damage or wear, as this can affect fuel flow. Ensure the pump's inlet and outlet ports are clear of debris, and verify that the fuel filter is clean. These simple checks can often resolve fuel delivery issues without the need for complex repairs.
This testing phase is crucial, as it ensures your generator will operate reliably when you need it most. By methodically checking for leaks and assessing fuel delivery, you can be confident in your vacuum fuel pump's performance, providing peace of mind during power outages or outdoor adventures. Remember, a well-installed and tested fuel pump is key to a generator's longevity and efficiency.
LS3 PCM and Electric Fuel Pump Activation: How It Works
You may want to see also
Frequently asked questions
You will typically need a wrench or socket set, screwdrivers, pliers, a fuel line disconnect tool, and possibly a clamp or hose cutter for proper installation.
Refer to your generator’s manual for the exact location. Generally, it is installed near the carburetor or fuel tank, where it can easily connect to the fuel lines and vacuum source.
No, you will need to disconnect the fuel lines to properly install the vacuum fuel pump. Use a fuel line disconnect tool to avoid damage and ensure a secure connection.
Start the generator and check for proper fuel flow. Listen for unusual noises and inspect for leaks around the connections. Ensure the generator runs smoothly under load to confirm the pump is functioning correctly.
