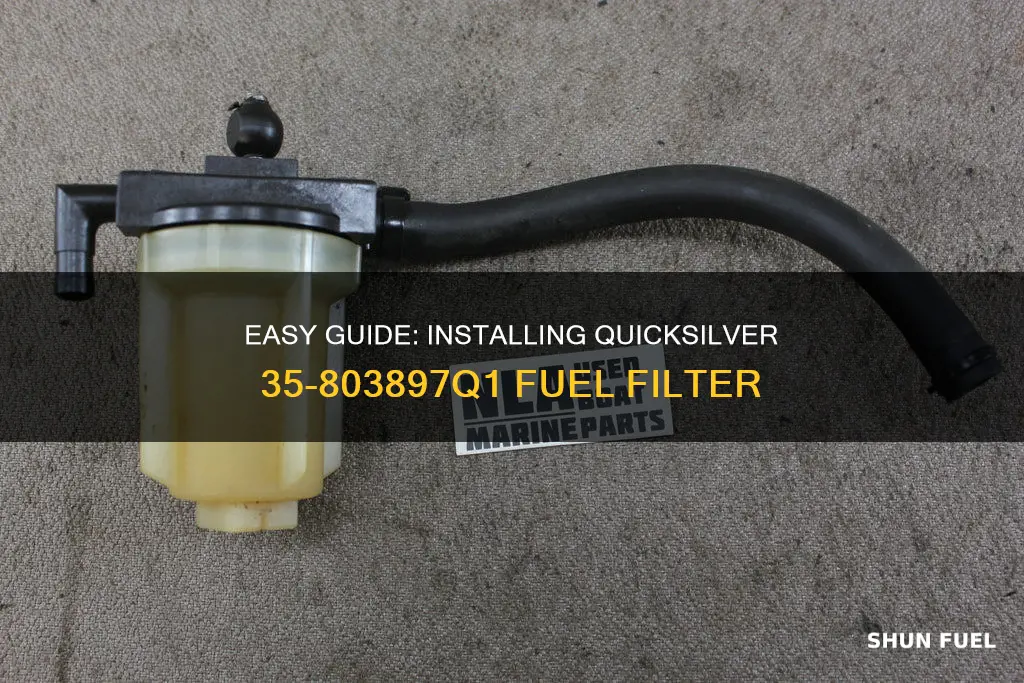

Quicksilver is a leading brand in the marine industry, delivering engine oils, parts, and accessories for over 65 years. The Quicksilver 35-803897Q1 fuel filter is designed to effectively filter out impurities and pollutants, ensuring clean fuel reaches the engine. This enhances engine performance, prevents damage, and prolongs the engine's lifespan. This article will provide a step-by-step guide on how to install the Quicksilver 35-803897Q1 fuel filter, covering everything from choosing the mounting location to connecting the fuel filter sensor harness.
Explore related products
$11.38 $13.77
$36.89 $41.49
What You'll Learn
Choosing the right location for the filter bracket
When choosing the right location for the filter bracket, there are several factors to consider. Firstly, the bracket should be placed along the present route of the fuel line between the fuel tank and the motor. This ensures that the filter can effectively filter the fuel before it reaches the engine. For smaller boats, the bracket may be mounted directly to the transom, while on larger boats, it can be located within the transom compartment or bilge.
It is important to avoid placing the filter in areas where it will be exposed to direct sunlight, immersed in water, or near a battery. These factors can damage the filter or affect its performance. Additionally, make sure you have easy access to the filter for maintenance and leave enough space to install and remove the filter element on the bracket.
Some people prefer to place the final fuel filter as close to the inlet of the fuel rail (or carb) as possible. This ensures that any foreign particles or contaminants picked up from the fuel line itself are captured before entering the engine. This is especially important if your fuel line is made of rubber, as it can break down over time, especially when using ethanol blends.
However, others argue that the location of the post-fuel pump filter is not as critical, and it primarily depends on personal preference. The most important thing is to have a filter installed in your fuel system to protect your engine and ensure its longevity.
Removing Water from Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Installing the fuel line
First, identify a suitable mounting location for the filter bracket. For larger boats, the bracket is typically installed within the transom compartment or bilge, while on smaller boats, it may be mounted directly to the transom. Ensure the location is easily accessible and provides enough space for installing and removing the filter element. The bracket should be level and secured with screws or through-bolts, depending on the mounting surface and material.
Next, place a drain pan under the fuel filter to catch any spilled fuel. This is an important safety precaution. Cut the fuel line between the fuel tank and the engine, aiming for a point centered between the hose fittings. Secure each end of the cut fuel line with a stainless steel hose clamp.
Now, you can proceed to install the fuel lines. Connect the end of the fuel line coming from the fuel tank to the inlet hose fitting on the filter bracket, and secure it with a clamp. Then, attach the end of the fuel line from the engine to the outlet hose fitting, again securing it with a clamp. Ensure that all connections are tight and secure.
Finally, install the fuel filter element onto the bracket, following the manufacturer's instructions. Ensure that the filter is secure and properly seated before starting the engine.
Please note that these instructions provide a general guide, and specific installation steps may vary depending on your boat's unique configuration. Always refer to the Quicksilver 35-803897Q1 fuel filter kit manual or seek advice from a qualified marine technician if you have any questions or concerns during the installation process.
Filtering Vegetable Oil: A Guide to Making Fuel at Home
You may want to see also
Explore related products
Installing the fuel filter element
Next, cut the fuel line between the hose fittings and place a stainless steel hose clamp over each end of the cut fuel line. Install the end of the fuel line coming from the fuel tank onto the inlet hose fitting and the end of the fuel line from the engine onto the outlet hose fitting, then tighten the clamps.
Now, install the fuel filter element onto the bracket. Connect the fuel filter sensor harness to the engine, routing it to the water-separating fuel filter and avoiding any sharp edges. Coil any excess length and secure it with a cable tie.
Finally, connect the water-in-fuel sensor to the fuel filter sensor harness. Before starting the engine, follow the instructions to purge air from the fuel injection system.
Draining Water from Your Bobcat Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Connecting the fuel filter sensor harness
To connect the fuel filter sensor harness, follow these steps:
Firstly, connect the fuel filter sensor harness to the engine. It is important to be mindful of the route taken by the harness. Ensure that it is directed to the water-separating fuel filter, avoiding any sharp edges that could potentially cut, bind, or chafe the harness.
Once the harness is connected and its path is free of obstructions, it is important to manage any excess length. Coil the extra length at the filter end of the harness and secure it neatly with a cable tie.
The next step is to connect the water-in-fuel sensor to the fuel filter sensor harness. Before doing so, refer to the instructions to ensure that the air has been purged from the fuel injection system.
A helpful tip is to apply clean engine oil to the O-ring on the water-in-fuel sensor and to the fuel filter gasket using your fingertip before installation. This will help them seat properly. The water-in-fuel sensor is an important component as it will trigger a warning horn if water is detected in the fuel filter.
Draining Water from Your Mercruiser Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Purging air from the fuel injection system
To purge air from the fuel injection system, you must first prime the system. This involves activating the low-pressure fuel pump to pump fuel through the components of the fuel injection system. This will provide a predetermined pressure in the fuel injection system.
The engine may need to be cranked for an extended period to purge the air from the system. The presence of air in the fuel injection system may cause the engine to not start or start erratically.
A purge control module will generate a purge signal to purge air from the fuel injection system of an engine when the fuel rail pressure signal is less than or equal to a predetermined value. This is based on the initialization signal.
The initialization signal is generated based on a crankshaft speed signal, a fuel rail pressure signal, and at least one of an initial purge value and an assembly-line monitoring value.
For diesel engines, a product like Diesel Purge can be used. This is not a fuel tank additive but must be run directly through the injection pump and fuel injectors. It can be hooked up to a bottle that can "cycle" the fuel directly into the diesel engine.
Effective Cleaning of Ceramic Fuel Filters
You may want to see also
Frequently asked questions
This fuel filter kit is used to effectively filter out impurities and pollutants from the fuel, ensuring clean fuel reaches the engine.
It is compatible with MerCruiser Sterndrive 4 and 6 cylinder 2.5, 3.0, 3.7, and 4.3-liter inboard engines.
The kit includes 1 fuel filter, 1 gasket, 1 pressure spring, and 2 O-gaskets.
Choose a location along the present route of the fuel line between the fuel tank and the motor. Ensure it is not exposed to direct sunlight, immersed in water, or near a battery.
Install the fuel line from the fuel tank onto the inlet hose fitting and the fuel line from the engine onto the outlet hose fitting. Tighten the clamps.
