Installing a fuel tank lock ring can be a challenging task, as evident by the numerous online forum discussions on the topic. The process can vary depending on the make and model of the vehicle, with some lock rings fitting tighter than others. In some cases, individuals have reported success by using tools such as a large flathead screwdriver and a hammer, carefully applying force in the right direction to get the lock ring into place. Others have opted for a lock ring tool kit, which can be useful but may not always match up with the ring perfectly. When installing a fuel tank lock ring, it is important to ensure that the fuel pump is correctly indexed into the fuel tank opening, with the notch and tab aligned, and the outer lip oriented in the lowest position.
Explore related products
What You'll Learn

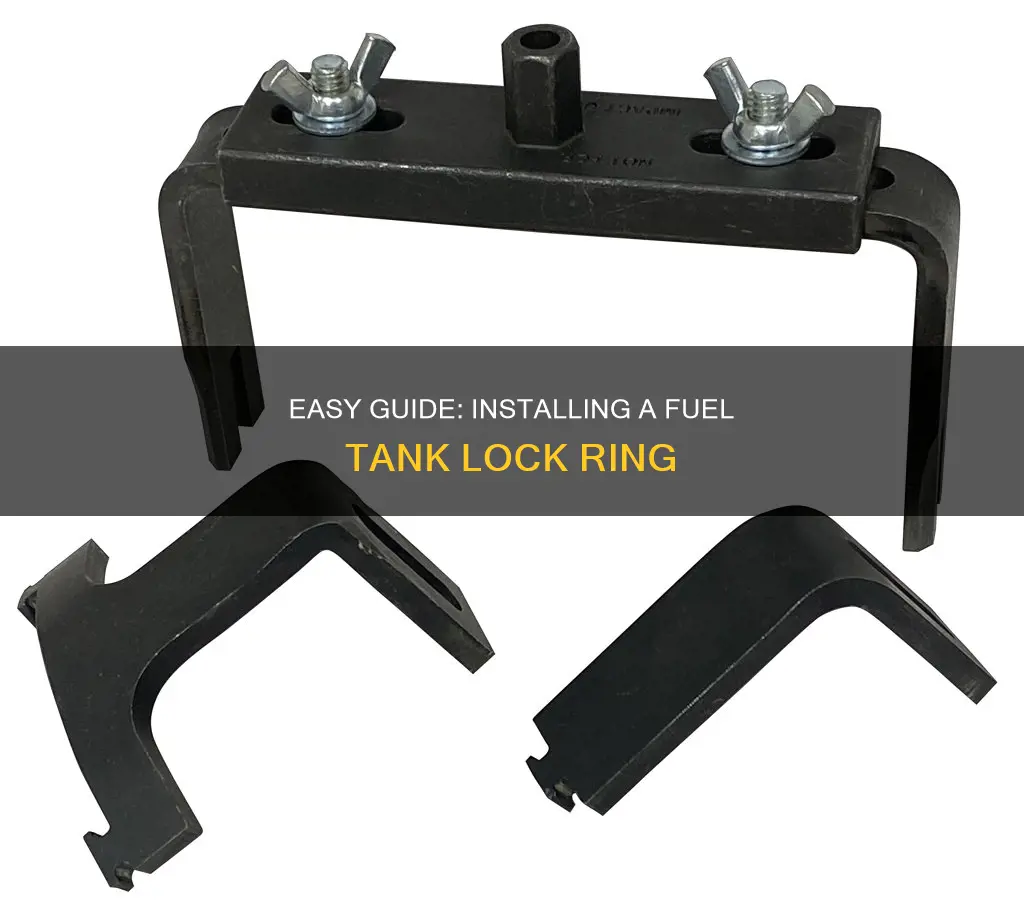

Using a lock ring tool kit
First, ensure that the new fuel hat is seated correctly and flush against the tank. Any obstructions preventing the hat from seating properly on the tank must be removed.
Next, grease both sides of the lock ring, especially where the lock tabs are located. This will help the ring slide into place more smoothly.
Then, place the lock ring tool on the fuel tank, ensuring that it is fitted correctly and securely. You may need to adjust the arms of the tool to align with the tabs on the lock ring.
Using a ratchet or breaker bar attached to the lock ring tool, turn the tool until the lock ring is in the correct position. The amount of force required should be similar to tightening a lug nut.
Finally, check that the lock ring is secure and correctly installed.
It is important to note that different vehicles may have specific requirements or variations in the installation process, so it is always recommended to refer to the manufacturer's instructions or seek advice from a qualified mechanic.
Draining Generac OneWash: Step-by-Step Fuel Tank Guide
You may want to see also
Explore related products
Applying grease to the lock ring
When applying grease to the lock ring, it is important to use the right type of grease and to apply it evenly and thoroughly. This will help create a tight seal and prevent leaks.
Firstly, ensure you have the correct type of grease. Some mechanics recommend using white grease, while others suggest silicone grease or lube. These lubricants will help the lock ring slide into place and prevent it from seizing.
Before applying the grease, clean the lock ring and the surrounding area. Use a clean cloth or brush to remove any dirt, debris, or old grease. This will ensure that the new grease can adhere properly and will help create a smooth surface for the lock ring to sit on.
Now, apply the grease liberally to the lock ring. Use your fingers or a small brush to coat all surfaces of the ring, paying extra attention to the threads. The grease will act as a lubricant, allowing the ring to turn smoothly and preventing it from seizing.
In addition to greasing the lock ring, you may also apply grease to the gasket. This will help the gasket seat properly and create a tight seal, reducing the risk of leaks. Again, use a clean brush or cloth to apply the grease evenly to the gasket surface.
Finally, once the lock ring and gasket are in place, you can use a brass scraper or similar tool to remove any excess grease. This will ensure that the area is clean and that there is no risk of grease leaking onto other components.
Draining a Truck Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Using a screwdriver and hammer
To begin the installation, ensure the fuel pump is correctly indexed into the fuel tank opening. The notch and tab should align, and the hose connections should point toward the front of the tank. It is also important to temporarily bend aside the white locking latch that keeps the ring from rotating. This will help with the installation process.
When using the screwdriver and hammer method, it is recommended to apply downward pressure while hammering. This can help to get the ring started and ensure it is seated properly. It may be necessary to use some grease on both sides of the lock ring, especially where the lock tabs are located, to aid in the installation process.
It is important to note that some people have expressed concern about causing sparks when using a screwdriver and hammer. To mitigate this risk, it is suggested to use duct tape on the tip of the screwdriver for spark prevention. Additionally, some people have recommended using a non-ferrous metal hammer, such as brass or copper, to reduce the chances of creating sparks.
While the screwdriver and hammer method can be effective, it may require multiple attempts and significant force to install the fuel tank lock ring properly. It is essential to exercise caution and patience during the installation process to avoid damage or injury.
Fueling an Army Tank: The Ultimate Guide
You may want to see also
Explore related products
Ensuring the gasket is correctly seated
First, inspect the gasket for any signs of damage or warping. A warped gasket may not seat properly and could cause leaks. If the gasket appears uneven or crooked, it needs to be adjusted or replaced.
Next, ensure the fuel pump is correctly indexed into the fuel tank opening. The fuel pump should fit snugly and securely inside the fuel module, with the notch and tab properly aligned. Refer to the vehicle's manual or a repair guide for specific instructions on the correct orientation of the fuel pump and gasket.
When placing the gasket, use even pressure around the lock ring. You can achieve this by employing two channel lock pliers on opposing sides of the ring, carefully squeezing between the hooks on the outer ring and the tank. This technique helps distribute pressure evenly and reduces the risk of damaging the gasket.
If you encounter difficulty seating the gasket, consider applying a light lubricant to the top of the pump where the lock ring sits. This can help ease the installation process and ensure a proper seal. However, be cautious not to over-tighten or force the gasket, as it may lead to damage or warping.
In some cases, you may need to apply downward pressure while installing the lock ring. This can be done with a hammer or a mallet, but use caution to avoid applying excessive force. Alternatively, a large flathead screwdriver and a hammer can be used to gently tap the lock ring into place, ensuring the raised sections of the ring align with their grooves.
By following these steps and paying close attention to the gasket's positioning and pressure application, you can ensure the gasket is correctly seated when installing a fuel tank lock ring. Remember to work carefully and refer to vehicle-specific instructions whenever possible.
Draining Inboard Boat Fuel Tanks: Step-by-Step Guide
You may want to see also
Explore related products
Using channel lock pliers
When using channel lock pliers, it is important to put pressure on opposing sides of the lock ring to equalize the effort required to install it. If you are working with another person, both of you can use channel lock pliers simultaneously to tighten the ring and compress the gasket. If you are working alone, you will need to move the pliers from hook to hook to maintain even pressure.
One technique for placing the pliers is to carefully squeeze between a hook on the outer ring and the hooks that stick up from the tank. You can refer to the second picture in the Chevy Tahoe Forum thread for a visual representation of this technique.
Designing a Superbike Fuel Tank: The Ultimate Guide
You may want to see also
Frequently asked questions
To install a fuel tank lock ring, you can use a lock ring tool kit, which includes a special brass drift pin. If you don't have access to a tool kit, you can use a big, flat-blade screwdriver and a mallet. Place the screwdriver against one of the notches in the lock ring slots and tap with the mallet in the direction needed to lock.
If your fuel tank lock ring is not fitting, it may be because it is not seated correctly in the gas tank. Check that the gasket is not crooked and that the lock ring is the right way up. If the lock ring is too high up, something may not be together straight, so check that the pump fits inside the fuel module and the module fits inside the tank correctly.
It can take a lot of force to install a fuel tank lock ring, but if you feel like you are going to break something, then something is wrong. You can lightly lubricate the top of the pump where the lock ring sits to help with installation.
