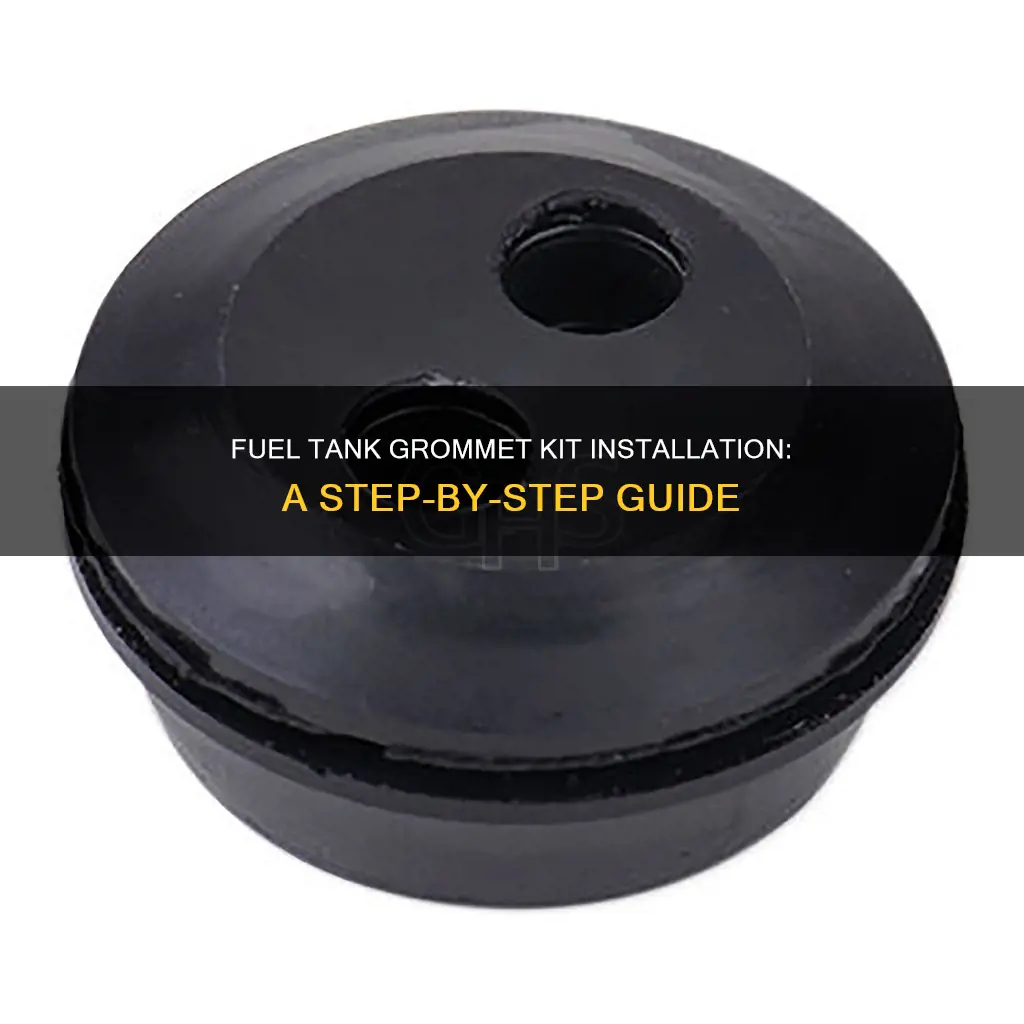

The fuel line grommet is an essential component that creates a seal between the fuel lines and the fuel tank. Over time, the rubber grommet can deteriorate and crack, leading to fuel leaks from the top of the tank. Replacing the fuel tank grommet is a straightforward process and can be done by following a few simple steps. This introduction will provide an overview of the process, including tips and tricks for a successful installation. We will also discuss common challenges faced during the installation process and recommend tools and techniques to overcome them. By the end of this guide, you should feel confident in your ability to install a fuel tank grommet kit and ensure a secure seal for your vehicle's fuel system.
Explore related products
What You'll Learn
Removing the old fuel tank grommet
Firstly, drain any excess fuel from the tank before beginning the removal process. This is a crucial safety step to avoid any fuel spillage or leakage.
Next, remove the air cleaner assembly by loosening the thumb screw, taking off the air cleaner lid, and then removing the air filter. You will then need to unscrew and remove the fuel cap from the fuel tank.
To access the fuel line, you can make your own fuel line retriever by curving the end of a sturdy wire into a hook shape. Insert this wire hook into the fuel tank to retrieve the fuel line containing the fuel filter.
Now, focus on the grommet itself. Using a screwdriver, carefully pry the grommet out of the fuel tank. Be gentle and patient during this step to avoid damaging the surrounding components.
In some cases, you may need to cut the bushing around the right-angle fitting. Use a razor knife and cut as close to the tank as possible without damaging the fitting. Then, pull the fitting out of the tank. You may need to use a dull-edged tool to help with the removal process.
Removing Water from Fuel Tank: Quick and Easy Guide
You may want to see also
Explore related products
Preparing the new fuel tank grommet
First, ensure you have the correct replacement grommet for your specific vehicle or equipment model. Fuel tank grommets come in various sizes and designs, so it is important to verify compatibility before proceeding. Check your owner's manual or consult a mechanic or dealer if you are unsure.
Next, clean the area around the fuel tank opening and the new grommet itself. Use a suitable solvent or cleaner to remove any dirt, grease, or residue. This step is important to ensure that no contaminants get into the fuel system and cause issues down the line.
Now, you need to lubricate the new grommet to make it easier to install and create a better seal. You can use a variety of lubricants for this purpose, such as 2-cycle engine oil, Vaseline, alcohol, or even dish soap. Lightly coat the edge and surface of the grommet, being careful not to use too much lubricant, as it may drip into the fuel tank.
Some mechanics recommend using a screwdriver or a dull-edged tool to help with the insertion of the grommet. This can provide more control and leverage during the installation process. Work the grommet into the fuel tank opening, ensuring it sits flat against the surface. You may need to gently tap it into place with a soft-faced mallet or a similar tool.
Finally, before securing the grommet in place, check that it is correctly seated and aligned. The grommet should be flush with the fuel tank and not twisted or deformed in any way. This is important to ensure a proper seal and prevent leaks. Once you are satisfied with the positioning, you can proceed to the next step of reassembling the fuel lines and completing the installation.
A Guide to Installing Your Boat's Fuel Tank
You may want to see also
Explore related products
Lubricating the new fuel tank grommet
There are several lubricants that can be used on a fuel tank grommet. Some people recommend using grease, such as electrical grease or dielectric grease, which is known to work well with silicone and rubber. Others have used more common household products like Vaseline, which is also safe for use with rubber in a gasoline environment.
When lubricating the grommet, it is important to ensure that it is applied evenly across the surface. One technique is to insert one side of the grommet first and then work your way around the perimeter, pushing the grommet through the hole. A dull-edged tool can also help with the insertion process.
It is worth noting that some people have tried using a heat gun to expand the rubber grommet, but this is generally not recommended as it can make the insertion more difficult. Additionally, while lubricants like grease and Vaseline are effective, glues should be avoided as they can cause leaks.
Draining a 1977 Chevy Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Inserting the new fuel tank grommet
Inserting a new fuel tank grommet can be a frustrating process, but it is important to take your time and not rush. Firstly, it is recommended to lightly coat the edge of the new grommet with a lubricant such as 2-cycle engine oil, alcohol, or Vaseline. This will make the insertion process easier and help prevent tearing. You can also try inserting one side first and working around the perimeter as you push on the grommet. Some people also suggest using a dull-edged tool to help with insertion.
Once the grommet is in place, you can insert the barbed coupling. It is important to ensure that the coupling is lubricated as well. One way to do this is by smearing a very light coat of dishwashing soap on the barbed fitting. You can then feed any excess line into the fuel tank.
If you are having trouble inserting the grommet, it may be because the old fitting has already dimpled around the tank, making it difficult to get the new grommet in. In this case, it may be helpful to try a new fitting, as they are easier to work with than old ones.
Additionally, make sure that the grommet fits as flat as possible to the surface of the fuel tank before you insert the final fitting through it. This will help ensure a proper seal.
Draining the RX8 Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Reassembling the fuel tank
Firstly, you need to insert the grommet into the fuel tank. This can be done by pushing the grommet in from one side and working around the perimeter, ensuring it fits as flat as possible to the surface of the tank. You can also use a dull-edged tool to help with insertion.
The next step is to insert the barbed coupling. This is the 90-degree fitting that connects the fuel line to the grommet. It is important to ensure that the coupling is lubricated to ease the installation process. You can use a light coat of dishwashing soap, brake fluid, or grease, but be cautious as grease might gunk up the carburettor.
Once the coupling is in place, you can begin to reinstall the fuel lines. Cut any remaining fuel lines to match the tapered ends of the existing lines, and lightly coat the ends with 2-cycle engine oil.
Finally, insert the return fuel line into the grommet, feeding any excess line back into the fuel tank. Reinstall the fuel cap, and the reassembly process is complete.
Draining a Motorcycle Fuel Tank: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The process of installing a fuel tank grommet kit will vary depending on the model of your vehicle. However, here are some general steps and tips to help you with the installation process:
- Remove the air cleaner assembly, air cleaner lid, and air filter.
- Drain any excess fuel from the tank.
- Unscrew and remove the fuel cap.
- Use a screwdriver to carefully pry the old grommet out of the fuel tank.
- Lightly coat the edge of the new grommet with 2-cycle engine oil or other lubricants like Vaseline, alcohol, or grease to make it easier to install.
- Insert the new grommet into the fuel tank. You can use a screwdriver to press and seat it into the ridge on the fuel tank.
- Reinstall the fuel lines. Cut similar angles on the ends of the fuel lines using wire cutters or scissors.
- Lightly coat the ends of the fuel lines with engine oil.
- Insert the fuel vent line or return fuel line into the grommet and feed any excess line into the fuel tank.
- Reinstall the fuel cap.
You will need a screwdriver, wire cutters or scissors, and a sturdy wire to create a hook for retrieving the fuel line.
You can use 2-cycle engine oil, Vaseline, alcohol, grease, dishwashing soap, brake fluid, or dielectric grease.
The fuel line grommet creates a seal between the fuel lines and the fuel tank. It is made of rubber and will eventually deteriorate and crack, leading to fuel leaks.
It can be challenging to install a fuel tank grommet, especially if it is an old, used grommet. The grommet may deform or crack, making it difficult to insert into the tank. Using lubrication can help ease the installation process.
