Ameer Randolph

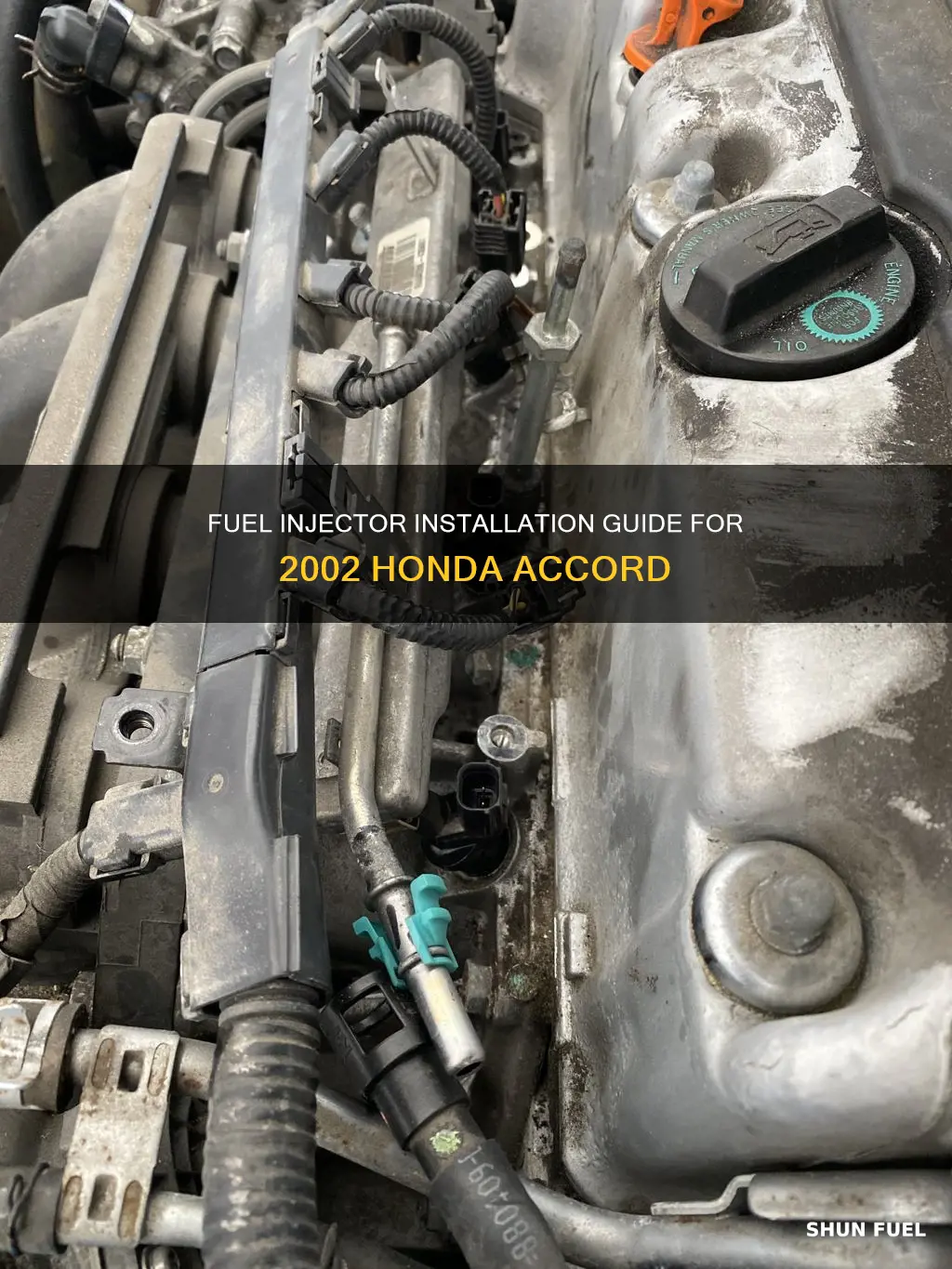

Installing a fuel injector on a 2002 Honda Accord is a complex process that requires careful consideration and a basic set of tools. Fuel injectors regulate the amount of pressurized fuel used for each engine cycle, and when they fail or clog, engine power is reduced, and misfires occur. Before beginning the installation, it is crucial to relieve the fuel pressure at the rails to avoid fuel spray. This can be done by locating and removing the fuse or relay for the fuel pump and attempting to start the car. Once the fuel pressure is relieved, the fuel line and vacuum hoses attached to the fuel rail can be removed, followed by the fuel injector electrical connectors and the bolts holding the fuel injector wires. It is important to note that this process requires handling fuel, so proper precautions against fire must be taken, and it may be advisable to seek professional assistance.
| Characteristics | Values |
|---|---|
| Year | 2002 |
| Make | Honda |
| Model | Accord |
| Engine | 3.0L V6 |
| Fuel Injector Brands | Carquest Premium, Carquest, FELPRO, Beck/Arnley, Victor Reinz, IXGKHC |
| Fuel Injector Price Range | $1.24 to $334.02 |
| Installation Tools | Pliers, screwdrivers, vice grips, socket set, ratchet wrench, jack stands, shop rags, nitrile gloves, quick-connect tools |
| Installation Steps | 1. Relieve fuel pressure; 2. Remove fuel line and vacuum hoses; 3. Remove fuel injector electrical connectors; 4. Remove bolts holding fuel injector wires; 5. Remove nuts holding fuel rail; 6. Install new fuel injector; 7. Put components back together |
Explore related products
What You'll Learn
Relieve the fuel pressure at the rails
To relieve the fuel pressure at the rails of your 2002 Honda Accord, you can follow these steps:
Firstly, identify the location of the fuel pressure regulator. In 1999 models, it was on the rail, but in 2000 models, it may be in a separate box by the firewall. It should be near the throttle body. Once you have located it, place a shop towel underneath it.
Next, disconnect the vacuum hose and the fuel return hose. Loosen the locking nut and then remove the fuel pressure regulator. You can now relieve the fuel pressure.
If you are unable to locate the fuel pressure regulator, there may be a purge valve on the injector rail. If not, you can slowly loosen one of the injectors until the pressure bleeds off the system. Remember to replace the o-rings carefully afterward so as not to damage them.
Another method is to use a fuel pressure gauge. First, remove the 12mm sealing nut from the fuel rail. Then, attach the fuel pressure adapter nut (12mm) and the special tool. Start the engine and measure the fuel pressure. If the engine does not start, turn the ignition switch on, wait for two seconds, turn it off, and then turn it back on again before reading the fuel pressure.
Fuel Injector Testing: Can AutoZone Help?
You may want to see also
Explore related products
Remove the fuel line and vacuum hoses
Before removing the fuel line and vacuum hoses, it is important to relieve the fuel pressure at the rails. If you skip this step, you will have fuel everywhere. To relieve the fuel pressure, first, locate and remove the fuse or relay for your car's fuel pump. Then try starting the car. If it won't start or shuts off after a few seconds, you've successfully depressurized the fuel lines.
Now, disconnect the battery by removing the negative battery cable. Next, lift the vehicle using a jack and secure it with jack stands. Locate the existing fuel lines and fuel line connectors. Use the appropriate wrench or fuel line disconnect tool to loosen the fittings. Place a bucket or drain pan under the fuel line and disconnect the fittings.
Remove any clamps or brackets securing the fuel lines. You will also need to remove the fuel injector electrical connectors. There should be a little snap holder on each one. Just lift them out of the way with a flat-head screwdriver and they should come right out.
Finally, remove the bolts holding the fuel injector wires to the fuel rail. Once you have removed the fuel line and vacuum hoses, you can change the injectors and put everything back together.
Cleaning Bosch CIS Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Disconnect the fuel injector electrical connectors
Disconnecting the fuel injector electrical connectors is a crucial step in installing a fuel injector on a 2002 Honda Accord. Here is a detailed guide on how to do this:
Firstly, relieve the fuel pressure at the rails. This is important because the fuel is pressurized and will spray out if you do not depressurize the hoses. To do this, locate and remove the fuse or relay for the car's fuel pump. Then, attempt to start the car; if it doesn't start or shuts off, you've successfully depressurized the fuel lines. Disconnect the negative battery cable.
Next, locate the fuel injector electrical connectors. There should be a small snap holder on each one. Using a flat-head screwdriver, carefully lift them out of the way, and they should come right out. Be gentle, as you don't want to damage the connectors or the surrounding components.
After disconnecting the electrical connectors, you will need to remove the bolts holding the fuel injector wires to the fuel rail. Again, be cautious and take your time to avoid any damage to the wires or the fuel rail.
Once the bolts are removed, you can proceed to remove the fuel rail itself by unscrewing the nuts holding it to the intake manifold. With the fuel rail removed, you will have access to the fuel injectors and can proceed with the installation of the new ones. Remember to refer to a qualified mechanic or a detailed guide for the complete installation process, as it can be a complex procedure.
Delphi Fuel Injectors: Are They Worth the Hype?
You may want to see also
Explore related products
Remove bolts holding the fuel injector wires
Before beginning any work on your Honda Accord, it is important to disconnect the battery and take proper precautions against fire. Fuel injector replacement is not a DIY job and should be left to a professional.
To remove the bolts holding the fuel injector wires to the fuel rail, you will need to relieve the fuel pressure. This is important because the fuel is pressurized and will spray everywhere if you do not depressurize the hoses.
First, locate and remove the fuse or relay for your car's fuel pump. Then, try starting the car. If it won't start or shuts off after a few seconds, you've successfully depressurized the fuel lines.
Now, disconnect the battery by removing the negative battery cable. Lift the vehicle using a jack and secure it with jack stands. Locate the existing fuel lines and fuel line connectors. Use the appropriate wrench or fuel line disconnect tool to loosen the fittings. Place a bucket or drain pan under the fuel line and disconnect the fittings.
At this point, you can remove the bolts holding the fuel injector wires to the fuel rail. You will also need to remove the bolts holding the fuel rail to the intake manifold.
It is important to note that removing the fuel injectors requires disturbing original seals. It is recommended to replace these seals with new ones from the same company that manufactured your injectors. This ensures that you have seals made to be used with those specific injectors.
How Fuel Injectors and Distributors Work Together
You may want to see also
Explore related products
Disconnect the battery
Disconnecting the battery is a crucial step in performing maintenance or repairs on your car, and it's important to do it safely. Here's a detailed guide on how to disconnect the battery of your 2002 Honda Accord:
Locate the Battery:
First, you need to find the battery in your car's engine bay. The battery of your Honda Accord is typically located on the right side of the engine bay, near the front of the car. It is usually held in place by a clamp and a plastic cover.
Gather the Right Tools:
You will need a 10 mm or adjustable wrench to loosen the battery cable nut. Make sure you have the right size wrench to avoid damaging the nut or cable.
Disconnect the Negative Cable:
Once you've located the battery, identify the negative cable. It will be clearly marked with a "-" sign. Using the wrench, loosen the nut that secures the negative cable to the battery terminal. Turn the wrench in a counter-clockwise direction (lefty-loosey) to loosen it. Do not loosen the positive cable (+) first, as this can be dangerous.
Remove the Cable:
After loosening the nut, carefully pull the negative cable off the battery terminal. Ensure that the cable doesn't touch any metal parts of the car, as this could cause a short circuit.
Isolate the Battery:
Now that the negative cable is disconnected, you can isolate the battery by covering the terminal with a piece of electrical tape or a terminal cover. This will prevent accidental contact or arcing while you work.
Remember, disconnecting the battery will reset the Engine Control Unit (ECU), and you may need to "re-teach" some of the computerized engine controls. Additionally, you may need to reset your radio presets and input the radio code after reconnecting the battery. Always exercise caution when working with car batteries, and if you're unsure, consult a qualified mechanic.
Removing Fuel Injectors from a Subaru FA20 Engine
You may want to see also
Frequently asked questions
Installing a fuel injector in your 2002 Honda Accord is not a DIY job and should be left to a professional. However, if you have the tools and know-how, you can save hundreds of dollars by doing it yourself. First, relieve the fuel pressure at the rails or you will have fuel everywhere. Then, remove the fuel line and vacuum hoses attached to the fuel rail. Remove the bolts holding the fuel injector wires to the fuel rail, and then remove the nuts holding the fuel rail to the intake manifold. You can then change the injectors and put everything back together.
You will need a basic set of tools, including pliers, screwdrivers, vice grips, a socket set, a ratchet wrench, jack stands, shop rags, and nitrile gloves. You may also want to consider an inexpensive set of quick-connect tools to remove the fuel lines.
You can buy fuel injectors for your 2002 Honda Accord from Amazon, Advance Auto Parts, or Honda directly.
