Installing a flex fuel system in your vehicle allows it to run on a blend of gasoline and ethanol, typically E85, which can improve performance and reduce emissions. The process involves several key steps, including assessing your vehicle’s compatibility, gathering the necessary components such as a flex fuel sensor, reprogramming the engine control unit (ECU), and ensuring proper installation of the fuel lines and sensors. It’s crucial to follow manufacturer guidelines or consult a professional to avoid damage and ensure optimal functionality. Additionally, understanding local regulations and fuel availability is essential for a successful and efficient flex fuel conversion.
| Characteristics | Values |
|---|---|
| Compatibility | Ensure vehicle is flex-fuel ready (check owner’s manual or VIN code). |
| Kit Components | Flex fuel sensor, wiring harness, ethanol content gauge (optional). |
| Tools Required | Basic hand tools, multimeter, soldering kit (if needed). |
| Installation Time | 2-4 hours (varies by vehicle model and expertise). |
| Cost | $200-$500 (kit cost; professional installation extra). |
| Fuel Tank Requirements | Must be compatible with ethanol blends (check material). |
| ECU Programming | Required for non-flex fuel vehicles to recognize ethanol blends. |
| Legal Compliance | Check local regulations for flex fuel conversions. |
| Performance Impact | Potential increase in horsepower with ethanol blends. |
| Maintenance | Regular sensor calibration and fuel system checks. |
| Safety Precautions | Work in well-ventilated area; disconnect battery before installation. |
| Warranty Impact | May void manufacturer’s warranty; check before proceeding. |
| Fuel Efficiency | Ethanol blends may reduce mileage compared to gasoline. |
| Environmental Impact | Reduced greenhouse gas emissions with ethanol use. |
| Professional Installation | Recommended for non-flex fuel vehicles or complex systems. |
| Post-Installation Testing | Test sensor accuracy and gauge functionality after installation. |
Explore related products
$11.89 $12.99
What You'll Learn
- Gather Tools & Parts: Collect flex fuel sensor, wiring harness, ethanol content gauge, and installation instructions
- Locate Fuel Line: Identify the fuel line connection point near the engine bay
- Install Sensor: Mount the flex fuel sensor securely on the fuel line
- Connect Wiring: Attach the wiring harness to the sensor and vehicle’s ECU
- Test System: Verify functionality with a diagnostic tool and ethanol content gauge
Gather Tools & Parts: Collect flex fuel sensor, wiring harness, ethanol content gauge, and installation instructions
Before diving into the installation of a flex fuel system, it's crucial to gather all necessary tools and parts to ensure a seamless process. The flex fuel sensor, wiring harness, ethanol content gauge, and installation instructions are the backbone of this upgrade. Each component plays a specific role in enabling your vehicle to run efficiently on a blend of gasoline and ethanol. Missing even one item can lead to incomplete functionality or potential damage to your engine.
Analyzing the components, the flex fuel sensor is the most critical part, as it measures the ethanol content in the fuel and sends this data to the engine control unit (ECU). Without it, the ECU cannot adjust the fuel injection and ignition timing properly. The wiring harness acts as the nervous system, connecting the sensor and gauge to the vehicle’s electrical system. An ethanol content gauge, while optional, provides real-time feedback to the driver, ensuring you’re aware of the fuel blend being used. Lastly, the installation instructions are your roadmap, preventing costly mistakes and ensuring compatibility with your vehicle’s make and model.
From a practical standpoint, sourcing these parts requires attention to detail. Ensure the flex fuel sensor is compatible with your vehicle’s fuel system and meets OEM standards. The wiring harness should match your car’s electrical configuration to avoid short circuits or malfunctions. When selecting an ethanol content gauge, consider its mounting location and readability. For instance, gauges with LED displays are easier to read in varying lighting conditions. Always verify the authenticity of parts, especially if purchasing online, to avoid counterfeit products that could compromise performance.
A comparative approach highlights the importance of quality over cost. While cheaper alternatives may seem appealing, they often lack durability or precision. For example, a high-quality flex fuel sensor can accurately measure ethanol content within a range of 0% to 85%, whereas a low-quality sensor may drift over time, leading to inefficient combustion. Similarly, a well-designed wiring harness includes protective coatings to resist heat and corrosion, ensuring longevity. Investing in reputable brands or OEM parts can save you from future headaches and additional expenses.
In conclusion, gathering the right tools and parts is the foundation of a successful flex fuel installation. By prioritizing compatibility, quality, and authenticity, you set the stage for a system that enhances your vehicle’s performance and efficiency. Treat this step as an investment in your vehicle’s future, ensuring it runs smoothly on any ethanol-gasoline blend. With everything in place, you’re ready to proceed to the next phase of installation with confidence.
Dates as Running Fuel: Natural Energy Boost or Myth?
You may want to see also
Explore related products
Locate Fuel Line: Identify the fuel line connection point near the engine bay
The fuel line connection point is your gateway to flex fuel compatibility, a critical juncture where gasoline meets ethanol-blended fuel. This seemingly mundane junction holds the key to unlocking your engine's potential for alternative fuel sources. Locating it accurately is the first step in a successful flex fuel installation, ensuring a seamless integration of the new system.
A Visual Inspection: Begin your quest by popping the hood and familiarizing yourself with the engine bay's layout. The fuel line, typically a metal or reinforced rubber tube, transports fuel from the tank to the engine. Follow its path from the firewall, where it enters the engine compartment, towards the fuel rail or injectors. The connection point you seek is often a quick-disconnect fitting or a threaded coupling, designed for secure attachment and easy maintenance.
Vehicle-Specific Variations: It's essential to note that the exact location of this connection point varies across vehicle makes and models. For instance, in some vehicles, the fuel line may run along the driver's side, while in others, it might be positioned closer to the center or passenger side. Consulting your vehicle's service manual or online forums dedicated to your car's model can provide valuable insights and visuals to pinpoint this connection swiftly.
Practical Tips for Identification: When locating the fuel line, consider the following: First, ensure the vehicle is on a level surface and the engine is cool to avoid any hazards. Use a flashlight to illuminate hard-to-see areas, and if necessary, gently clean the surrounding components to improve visibility. For vehicles with complex engine layouts, tracing the fuel line from the tank towards the engine can be a more effective strategy. Once identified, mark the connection point with a removable tag or tape to avoid confusion during the installation process.
Caution and Preparation: Before proceeding with any disconnections, relieve the fuel system pressure to prevent fuel spray or potential hazards. This step is crucial for safety and is typically achieved by locating the Schrader valve on the fuel rail and pressing the pin to release pressure. Always have a fire extinguisher nearby when working on fuel systems, and ensure proper ventilation in your workspace. With the connection point identified and safety measures in place, you're now ready to proceed with the next steps of your flex fuel installation.
Honeywell T9 Dual Fuel: Exploring Compatibility and Efficiency for Homes
You may want to see also
Explore related products

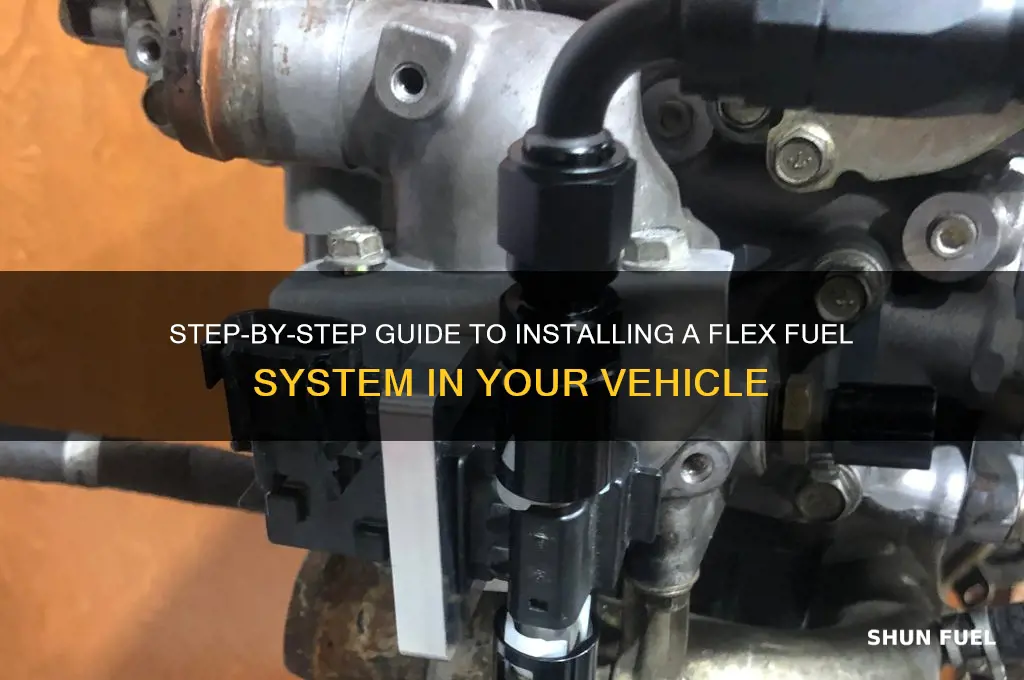

Install Sensor: Mount the flex fuel sensor securely on the fuel line
Mounting the flex fuel sensor securely on the fuel line is a critical step in ensuring accurate ethanol content readings and overall system reliability. The sensor’s position directly affects its ability to measure fuel composition, so precision is key. Begin by identifying the ideal location on the fuel line, typically post-fuel filter to ensure the sensor reads clean fuel. Use a wrench or pliers to remove the existing fuel line segment, taking care not to damage the lines or create debris. Clean the area thoroughly to prevent contamination, as even small particles can interfere with sensor function.
Once the location is prepped, install the flex fuel sensor using the provided fittings or adapters. Ensure the sensor is oriented correctly, following the manufacturer’s guidelines for alignment. Tighten the fittings securely but avoid over-torquing, as excessive force can crack the sensor or damage the fuel line. A torque wrench set to the recommended specifications (often 15-20 ft-lbs) is ideal for this step. Double-check all connections for leaks by applying a soapy water solution and looking for bubbles under pressure.
Comparing this step to other sensor installations, the flex fuel sensor requires unique consideration due to its exposure to ethanol, which can degrade certain materials over time. Unlike standard fuel pressure sensors, flex fuel sensors often feature ethanol-resistant components like stainless steel or PTFE coatings. This makes them more durable but also emphasizes the importance of proper installation to avoid premature failure. For instance, using Teflon tape on threaded connections can prevent leaks without compromising the sensor’s integrity.
A practical tip for DIY installers is to test the sensor’s functionality before fully reassembling the fuel system. Connect the sensor to the tuning device or gauge and verify it reads the correct fuel percentage. If the sensor fails to initialize or provides erratic readings, recheck the installation for loose connections or incorrect orientation. This preemptive step saves time and ensures the system operates flawlessly once fully assembled. Properly mounted, the flex fuel sensor becomes the backbone of your ethanol-compatible setup, enabling precise tuning and optimal performance.
Understanding Your Car's Fuel Indicator: How It Works and Why It Matters
You may want to see also
Explore related products
Connect Wiring: Attach the wiring harness to the sensor and vehicle’s ECU
Connecting the wiring harness to the flex fuel sensor and the vehicle's ECU is a critical step in ensuring your flex fuel system functions seamlessly. Begin by locating the sensor’s wiring harness, typically a multi-pin connector designed to interface with both the sensor and the ECU. Ensure the vehicle is turned off and the ignition is disengaged to prevent electrical mishaps. Carefully align the harness with the sensor’s port, applying gentle pressure until you hear a click, confirming a secure connection. Double-check the fit to avoid loose connections that could lead to erratic readings or system failures.
Next, route the wiring harness to the ECU, taking care to avoid areas prone to heat, moisture, or moving parts. Use zip ties or adhesive clips to secure the wires along the vehicle’s existing wiring paths, maintaining a tidy and professional installation. When reaching the ECU, identify the correct port for the flex fuel sensor input—this may require consulting the vehicle’s manual or the flex fuel kit’s instructions. Incorrectly connecting to the wrong port can damage the ECU or render the sensor inoperative.
Once connected, perform a continuity test using a multimeter to verify the wiring harness is intact and properly linked. This step is often overlooked but is essential for diagnosing potential issues before they escalate. If the multimeter shows no continuity or irregular readings, recheck the connections and inspect the harness for damage or loose wires. A faulty harness can lead to inaccurate ethanol content readings, affecting engine performance and fuel efficiency.
Finally, secure any excess wiring to prevent interference with other components. Consider wrapping the harness in heat-resistant sleeving if it passes near exhaust components or other high-temperature areas. After completing the wiring, start the vehicle and monitor the flex fuel system’s performance using a diagnostic tool or dashboard display. If the system fails to initialize or shows inconsistent readings, revisit the wiring connections and ensure all steps were followed precisely. Proper wiring installation is the backbone of a reliable flex fuel system, ensuring accurate ethanol detection and optimal engine operation.
Understanding the Cost of Airplane Fuel: A Comprehensive Breakdown
You may want to see also
Explore related products
$89.23 $96.99
Test System: Verify functionality with a diagnostic tool and ethanol content gauge
After installing a flex fuel system, verifying its functionality is crucial to ensure accurate ethanol content detection and optimal engine performance. This process involves using a diagnostic tool and an ethanol content gauge to confirm that the system is operating as intended. The diagnostic tool, often a handheld scanner or software interface, communicates with the vehicle’s ECU to read sensor data and error codes, while the ethanol content gauge provides a real-time measurement of the fuel mixture. Together, these tools offer a comprehensive assessment of the flex fuel system’s reliability.
To begin testing, connect the diagnostic tool to the vehicle’s OBD-II port, typically located under the dashboard. Access the flex fuel sensor data stream to monitor the ethanol percentage reported by the system. Compare this reading with the actual ethanol content of the fuel, which can be determined using a portable ethanol content gauge. For example, if the gauge indicates 85% ethanol (E85) in the tank, the diagnostic tool should display a corresponding value within a 2–3% margin of error. Discrepancies may signal sensor calibration issues or wiring faults, requiring further investigation.
A practical tip is to test the system with varying ethanol blends, such as E10, E30, and E85, to ensure consistent accuracy across the spectrum. Start with a full tank of each blend and drive the vehicle for at least 10–15 minutes to allow the system to stabilize. Record the diagnostic tool readings at different RPMs and load conditions to identify potential inconsistencies. For instance, a sudden drop in reported ethanol content during acceleration could indicate a sensor malfunction under high-demand scenarios.
Caution should be exercised when interpreting results, as environmental factors like temperature and fuel quality can influence readings. For example, cold temperatures may cause slight delays in sensor response, while low-quality fuel could skew ethanol content measurements. Always cross-reference diagnostic tool data with the ethanol content gauge to isolate system-specific issues. If discrepancies persist, consult the flex fuel kit’s manual for calibration procedures or seek professional assistance.
In conclusion, testing a flex fuel system with a diagnostic tool and ethanol content gauge is a systematic process that ensures both accuracy and reliability. By methodically evaluating sensor data across different conditions and fuel blends, you can identify and address potential issues before they impact performance. This proactive approach not only safeguards your investment but also maximizes the benefits of running a flex fuel vehicle, such as improved efficiency and reduced emissions.
Methane's Origins: Exploring the Diverse Sources of This Powerful Fuel
You may want to see also
Frequently asked questions
A flex fuel vehicle (FFV) is designed to run on a blend of gasoline and ethanol, typically up to E85 (85% ethanol). To check compatibility, refer to your vehicle’s owner’s manual or look for a flex fuel badge on the car. If your vehicle isn’t factory-equipped for flex fuel, consult a professional to assess if it can be retrofitted.
A flex fuel installation typically requires a flex fuel sensor, a compatible ECU tuner or programmer, ethanol content gauge (optional), and wiring harnesses. Some kits also include fuel injectors or a fuel pump upgrade to handle higher ethanol blends. Always use a kit designed for your specific vehicle make and model.
While some car enthusiasts may install a flex fuel kit themselves, it’s recommended to hire a professional, especially if you’re unfamiliar with vehicle electronics and fuel systems. Proper installation ensures safety, performance, and compliance with emissions regulations. Professional installation also often includes tuning the ECU for optimal performance on ethanol blends.
