Sylvie Willis

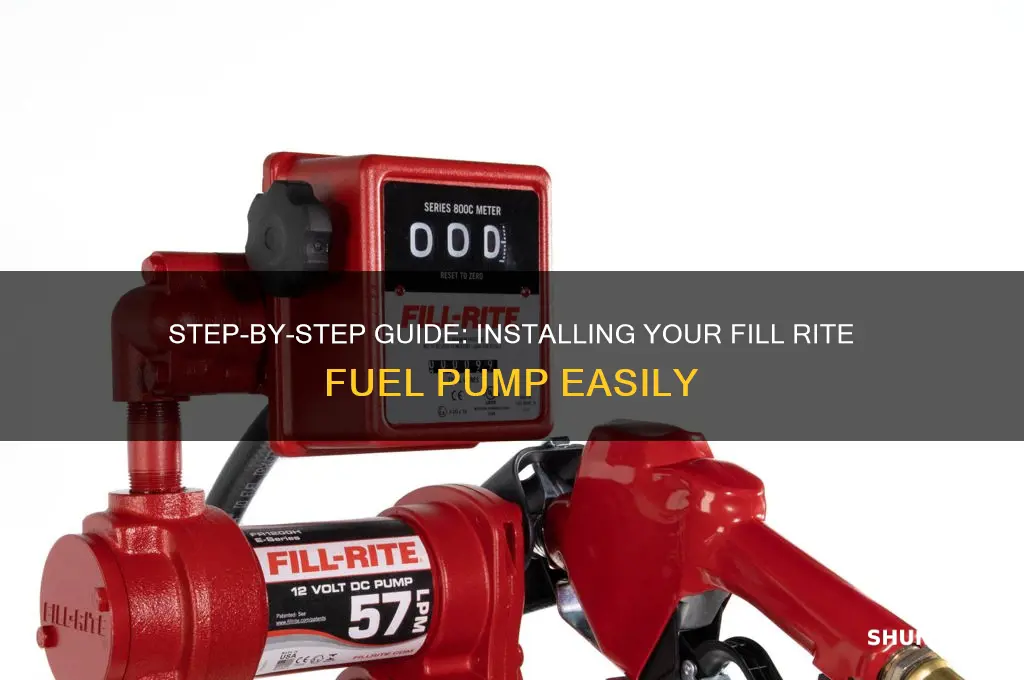

Installing a Fill Rite fuel pump is a straightforward process that requires careful preparation and attention to detail. Begin by gathering all necessary tools and materials, including the pump, hoses, fittings, and electrical connections. Ensure the installation area is clean, dry, and well-ventilated to prevent contamination and ensure safety. Follow the manufacturer’s instructions to mount the pump securely, typically on a flat, stable surface. Connect the inlet and outlet hoses, ensuring all fittings are tight and leak-free. Wire the pump to a power source, using proper grounding and following electrical safety guidelines. Test the system for leaks and proper operation before putting it into regular use. Always adhere to local codes and regulations for fuel handling and storage.
| Characteristics | Values |
|---|---|
| Pump Model Compatibility | Fill Rite offers various models (e.g., FR1210, FR700, FR450). Ensure compatibility with your fuel type (gasoline, diesel) and flow rate requirements. |
| Power Source | Typically 115V AC or 12V DC. Verify power source availability at installation site. |
| Mounting Location | Choose a stable, level surface near the fuel storage tank, protected from weather and potential hazards. |
| Safety Precautions | Wear appropriate PPE (gloves, safety glasses). Ensure area is well-ventilated and free from ignition sources. |
| Tools Required | Wrenches, screwdrivers, pipe wrench, Teflon tape, thread sealant, wire strippers, electrical connectors. |
| Installation Steps | 1. Prepare mounting location and gather tools. 2. Mount pump securely. 3. Connect inlet and outlet hoses with proper fittings and seals. 4. Connect power supply according to pump specifications. 5. Ground the pump properly. 6. Test for leaks and proper operation. |
| Maintenance | Regularly inspect hoses, fittings, and electrical connections. Clean strainers and filters as recommended by Fill Rite. |
| Troubleshooting | Refer to Fill Rite manual for specific troubleshooting steps based on symptoms (e.g., no flow, leaks, unusual noises). |
| Warranty | Fill Rite pumps typically come with a limited warranty. Register your pump and retain proof of purchase. |
| Resources | Fill Rite website, user manual, technical support hotline. |
Explore related products
What You'll Learn
- Gather Tools & Materials: Ensure you have wrenches, screwdrivers, Teflon tape, and safety gear ready
- Prepare the Installation Site: Choose a stable, level surface near the fuel storage tank
- Connect Power Supply: Wire the pump to a compatible power source following electrical safety guidelines
- Attach Fuel Lines: Securely connect inlet/outlet hoses to the pump and tank
- Test & Calibrate: Run the pump, check for leaks, and calibrate the meter for accuracy
Gather Tools & Materials: Ensure you have wrenches, screwdrivers, Teflon tape, and safety gear ready
Before diving into the installation of a Fill Rite fuel pump, it's crucial to assemble the right tools and materials. This preparatory step is often overlooked but can significantly impact the efficiency and safety of the process. A well-prepared toolkit not only ensures a smoother installation but also minimizes the risk of errors or accidents. The essential items include wrenches, screwdrivers, Teflon tape, and safety gear, each serving a specific purpose in the installation process.
From an analytical perspective, the selection of tools is not arbitrary. Wrenches, for instance, are indispensable for tightening and loosening fittings, ensuring a secure connection that prevents leaks. Screwdrivers, on the other hand, are necessary for accessing and securing various components of the fuel pump. Teflon tape plays a critical role in sealing threaded connections, providing an extra layer of protection against fuel leaks. Safety gear, including gloves and goggles, safeguards against potential hazards such as fuel spills or debris. Together, these tools form the foundation of a successful installation.
Instructively, the process begins with organizing your workspace. Lay out all tools and materials within easy reach to avoid interruptions. Start by selecting the appropriate size wrenches for the fittings on your fuel pump. For screwdrivers, ensure you have both flathead and Phillips types to accommodate different screw types. When applying Teflon tape, wrap it clockwise around the male threads in a thin, even layer—typically 2-3 wraps are sufficient. This ensures a tight seal without over-tightening, which can damage the threads. Safety gear should be worn from the outset, with gloves providing grip and protection and goggles shielding your eyes from any splashes or debris.
Comparatively, while some may attempt to install a fuel pump with minimal tools, this approach often leads to complications. For example, using improper tools can result in stripped threads or inadequate seals, both of which can cause leaks. In contrast, a well-equipped installer can address challenges efficiently, such as using a wrench with the correct jaw size to avoid slipping or employing Teflon tape to ensure leak-free connections. The investment in proper tools and materials not only enhances the quality of the installation but also contributes to the longevity and reliability of the fuel pump system.
Descriptively, imagine the scenario: you’re standing in front of your fuel tank, pump in hand, ready to begin. The wrenches gleam under the workshop light, their jaws poised to grip fittings with precision. The screwdrivers lie nearby, their tips ready to turn screws with ease. A roll of Teflon tape sits within arm’s reach, its white surface promising a secure seal. Your safety gear, donned meticulously, provides a sense of confidence as you embark on the task. This visual preparedness transforms a potentially daunting task into a manageable, even satisfying, endeavor.
In conclusion, gathering the right tools and materials is a cornerstone of installing a Fill Rite fuel pump. It’s a step that blends practicality with foresight, ensuring that every component is handled correctly and every connection is secure. By prioritizing this preparatory phase, you set the stage for a successful installation, one that operates efficiently and safely for years to come.
Troubleshooting Tips: Starting Your Truck with a Failing Fuel Pump
You may want to see also
Explore related products
Prepare the Installation Site: Choose a stable, level surface near the fuel storage tank
A stable, level surface is the foundation of a successful Fill Rite fuel pump installation. Uneven ground can lead to pump misalignment, fuel leaks, and premature wear on internal components. Imagine a wobbly table – it’s unstable, prone to tipping, and unreliable. The same principle applies to your fuel pump.
A concrete pad, compacted gravel, or a reinforced steel platform are ideal choices. Avoid soft soil, grassy areas, or surfaces prone to settling.
Location Matters: Proximity to the fuel storage tank is key. Minimize the distance between the pump and tank to reduce friction loss in the fuel line, ensuring optimal flow and pump efficiency. Aim for a distance no greater than 25 feet, ideally less if possible. This not only improves performance but also simplifies installation and reduces the risk of leaks.
Consider the surrounding environment. Choose a location sheltered from extreme weather conditions like strong winds or direct sunlight, which can affect pump performance and fuel quality.
Leveling for Accuracy: Precision is crucial. Use a spirit level to ensure the surface is perfectly level in all directions. Even a slight tilt can lead to inaccurate fuel measurements and potential safety hazards. If the natural ground isn't level, create a level platform using shims or by excavating and compacting the soil.
Stability for Longevity: A stable base prevents vibrations that can damage the pump's internal components over time. Secure the pump firmly to the surface using appropriate mounting hardware. Follow the manufacturer's instructions for recommended bolt sizes and torque specifications.
Fuel Pump Count: 2004 F250's Pump Configuration Explained
You may want to see also
Explore related products
Connect Power Supply: Wire the pump to a compatible power source following electrical safety guidelines
Connecting the power supply to your Fill Rite fuel pump is a critical step that demands precision and adherence to safety standards. Begin by identifying the pump’s power requirements, typically 110V or 220V, as specified in the user manual. Ensure your power source matches these specifications to avoid damage or malfunction. Use a voltage tester to confirm the outlet’s compatibility before proceeding. This initial check is non-negotiable, as mismatched voltage can void warranties and pose serious risks.
Next, prepare the wiring by stripping the ends of the power cable to expose approximately ½ inch of copper. Connect the wires to the pump’s terminal block, following the color-coded scheme: black for live (hot), white for neutral, and green or bare copper for ground. Tighten the terminal screws securely but avoid over-tightening, which can strip the threads or damage the connections. If your pump includes a junction box, route the wires through it, ensuring no exposed conductors are left unprotected. Proper grounding is essential to prevent electrical hazards, so verify the ground connection is intact and secure.
Electrical safety guidelines must be strictly observed throughout this process. Wear insulated gloves and ensure the power source is de-energized before making any connections. Use wire connectors rated for the amperage of your pump, typically 15–20 amps for standard models. Inspect the wiring for frays, cracks, or signs of wear, replacing any compromised components immediately. If you’re unsure about any step, consult a licensed electrician to ensure compliance with local codes and regulations.
A practical tip for long-term reliability is to install a dedicated circuit for the fuel pump, minimizing the risk of overloading shared circuits. Label the circuit breaker clearly to avoid accidental disconnection during maintenance. Additionally, consider installing a ground fault circuit interrupter (GFCI) to provide an extra layer of protection against electrical faults. Once wired, perform a continuity test to confirm all connections are secure and functional before restoring power. This meticulous approach ensures your Fill Rite pump operates safely and efficiently, safeguarding both equipment and personnel.
Fuel Pump Amp Draw: Understanding 7-10 PSI Pump Power Consumption
You may want to see also
Explore related products
Attach Fuel Lines: Securely connect inlet/outlet hoses to the pump and tank
Connecting the fuel lines is a critical step in installing a Fill Rite fuel pump, as it ensures the system operates efficiently and safely. Begin by identifying the inlet and outlet ports on the pump, typically marked for clarity. The inlet hose should be connected to the pump’s inlet port and the fuel tank’s outlet, while the outlet hose connects the pump’s outlet port to the dispensing nozzle or secondary tank. Use hose clamps to secure each connection tightly, ensuring no leaks occur under pressure. Proper alignment and tightening are essential to prevent fuel spills, which can pose environmental and safety hazards.
Consider the material of the hoses when attaching them. Fill Rite pumps often require hoses made of compatible materials like nitrile or PVC to withstand fuel exposure. Inspect hoses for cracks, brittleness, or wear before installation, replacing them if necessary. For added security, apply thread sealant or Teflon tape to the threaded connections, but avoid over-tightening, as this can damage the fittings. Always follow the manufacturer’s torque specifications for clamps and fittings to maintain integrity without compromising the components.
A practical tip is to test the connections before fully securing them. With the pump off, temporarily attach the hoses and check for proper alignment and fit. Once confirmed, tighten the clamps and fittings systematically, starting from the pump and working outward to the tank. This methodical approach ensures even pressure distribution and reduces the risk of misalignment. After installation, perform a pressure test by running the pump briefly and inspecting for leaks at all connection points.
Comparing this step to other installation phases highlights its importance. While mounting the pump or wiring the motor are foundational, the fuel lines are the lifelines of the system. A single loose connection can render the entire setup inoperable or dangerous. Unlike electrical components, which may fail visibly, fuel line issues can be subtle, making meticulous attention during installation paramount. Treat this step as the linchpin of the process, where precision and care directly correlate to long-term reliability.
In conclusion, attaching the fuel lines demands a blend of technical precision and practical vigilance. By focusing on compatibility, secure fastening, and systematic testing, you ensure the Fill Rite pump functions optimally while minimizing risks. This step is not just about connecting hoses—it’s about safeguarding the system’s efficiency, safety, and longevity. Approach it with the same rigor as any critical mechanical assembly, and the payoff will be a seamless, leak-free fuel transfer system.
Bypassing Fuel Pump Relay in a 2002 Subaru Impreza: A Guide
You may want to see also
Explore related products
Test & Calibrate: Run the pump, check for leaks, and calibrate the meter for accuracy
Once the Fill-Rite fuel pump is installed, the critical phase of testing and calibration begins. Start by running the pump to ensure it operates smoothly. Listen for unusual noises and observe the flow rate to confirm it aligns with the pump’s specifications. A typical Fill-Rite pump should deliver fuel at a rate of 10 to 20 gallons per minute, depending on the model. If the flow is inconsistent or sluggish, check for clogs in the suction line or filter. This initial run serves as a diagnostic step, revealing potential issues before they escalate.
Next, inspect the system for leaks, a common but preventable issue in fuel pump installations. Focus on connections, hoses, and fittings, as these are frequent leak points. Use a soapy water solution to detect leaks; bubbles will form where fuel escapes. Even minor leaks can lead to significant fuel loss or safety hazards, so address them immediately. Tighten loose fittings or replace damaged components as needed. For example, a leaking O-ring can often be resolved by replacing it with a new one, ensuring a secure seal.
Calibration is the final and most precise step in ensuring the pump’s accuracy. Fill-Rite pumps come with a meter that measures fuel dispensed, but factory settings may require adjustment for your specific application. To calibrate, dispense a known volume of fuel (e.g., 5 gallons) into a calibrated container and compare it to the meter reading. Adjust the calibration screw on the meter until the displayed value matches the actual volume dispensed. This process ensures you’re not over or under-dispensing fuel, which is crucial for inventory management and cost control.
A practical tip for calibration is to perform it at different flow rates to ensure accuracy across the pump’s operating range. For instance, calibrate at both low and high flow settings to account for variations. Additionally, repeat the calibration process periodically, as meters can drift over time due to wear or environmental factors. By combining thorough testing, leak detection, and precise calibration, you’ll maximize the efficiency and reliability of your Fill-Rite fuel pump installation.
Fixing Burnt Fuel Pump Relay Terminals in 1996 Vehicles: A Guide
You may want to see also
Frequently asked questions
You will typically need a wrench or socket set, Teflon tape or pipe sealant, a funnel, and safety equipment like gloves and safety glasses.
Ensure the pump is mounted securely, then connect the inlet and outlet hoses to the tank and dispensing nozzle, using appropriate fittings and sealing with Teflon tape or pipe sealant to prevent leaks.
Most Fill Rite fuel pumps are designed for DIY installation, but if you’re unsure about electrical or plumbing connections, it’s best to consult a professional to ensure safety and proper setup.
