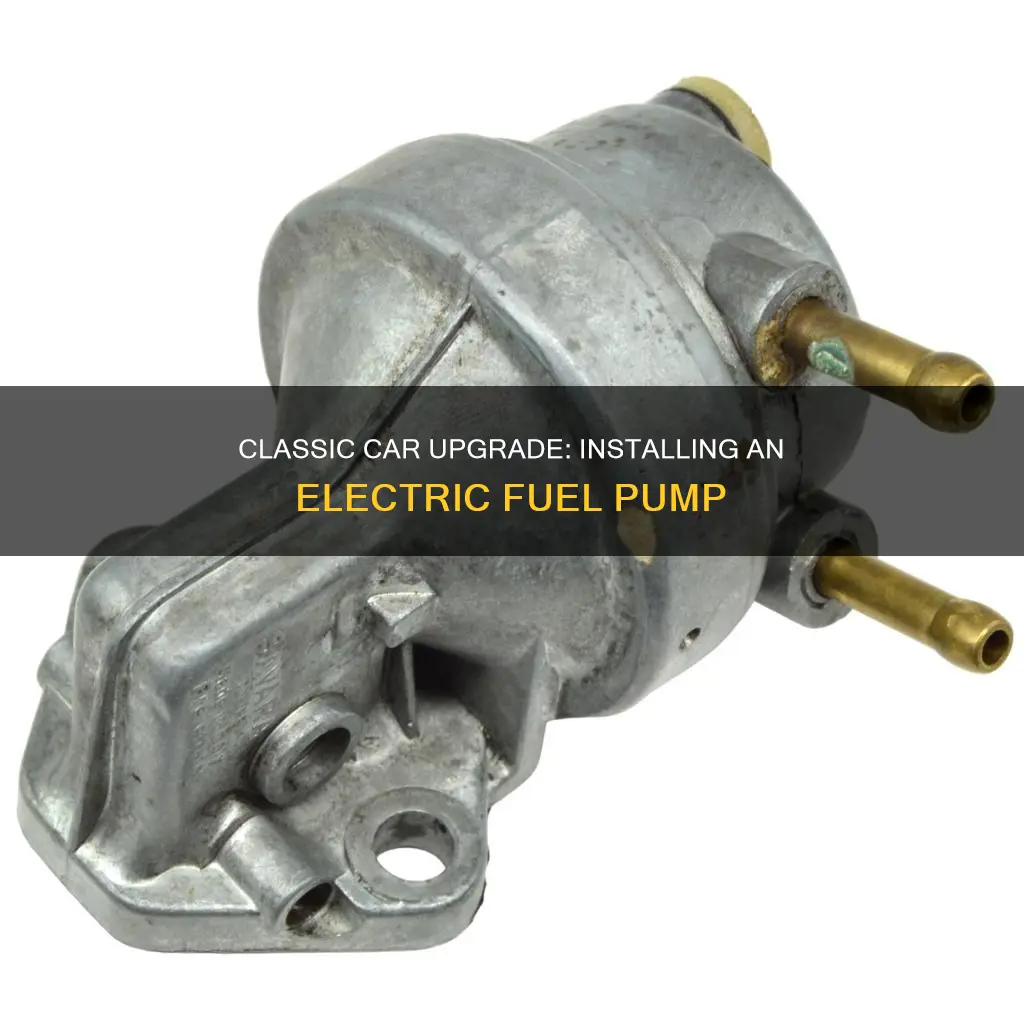

Retro Revival: Electric Fuel Pump Installation Guide For Classic Cars

Installing an electric fuel pump in a classic car can be a rewarding project for any enthusiast looking to enhance performance and reliability. This guide will walk you through the process of retrofitting an electric pump, ensuring your classic car runs smoothly and efficiently. By replacing the traditional mechanical pump with an electric one, you can improve fuel delivery, increase power, and extend the life of your engine. The installation process involves careful planning, sourcing the right components, and following a step-by-step approach to ensure a successful and safe upgrade.

Preparation: Gather tools, prepare engine bay, and disconnect fuel lines

Before you begin the installation process, it's crucial to gather the necessary tools and prepare your classic car's engine bay. This initial preparation will ensure a smooth and efficient installation. Start by collecting all the tools you'll need, such as wrenches, screwdrivers, and possibly a fuel line cutter or crimper, depending on the specific tools required for your car model. Having these tools ready will save time and prevent unnecessary delays during the installation.

Next, you'll want to give your engine bay a thorough cleaning. Remove any dirt, dust, or debris that might have accumulated over time. Pay close attention to the areas where the fuel pump will be installed, ensuring they are free from any obstructions. A clean and organized engine bay will make the installation process safer and more accessible. Consider using a shop vacuum or a high-pressure water spray to remove any stubborn dirt or grime.

Once your engine bay is pristine, it's time to disconnect the fuel lines. Locate the fuel lines that supply fuel to the engine and carefully detach them from the existing fuel pump or carburetor. Take note of the positions of these lines, as you'll need to reconnect them later. It's essential to handle the fuel lines with care to avoid any damage, especially since they may still contain residual fuel. Consider using a funnel to catch any spilled fuel and ensure a clean workspace.

When disconnecting the fuel lines, you might also need to remove any related components, such as the fuel filter or the fuel bowl, to gain better access to the fuel lines. This step may vary depending on your car's make and model, so consult your vehicle's manual or online resources for specific instructions. Take your time and be methodical in your approach to ensure you don't accidentally damage other engine components.

With the fuel lines disconnected and the engine bay prepared, you're now ready for the next phase of the installation process. Ensure that all tools and components are within reach to maintain a steady workflow. Proper preparation at this stage will contribute to a more efficient and successful installation of the electric fuel pump.

Pump Selection: Choose a compatible pump, considering flow rate and size

When it comes to installing an electric fuel pump in a classic car, one of the most critical aspects is selecting the right pump for your vehicle. The pump must be compatible with your car's fuel system and capable of delivering the required flow rate to ensure optimal performance. Here's a detailed guide on how to choose the appropriate pump:

Flow Rate Considerations: The flow rate of a fuel pump is measured in gallons per minute (GPM) or liters per minute (LPM). It indicates the volume of fuel the pump can deliver in a minute. For classic cars, it's essential to match the pump's flow rate to the engine's requirements. Modern engines often demand higher flow rates compared to their classic counterparts. As a general rule, aim for a pump that provides at least 20% more flow rate than the engine's needs. For instance, if your engine requires 5 gallons per minute, opt for a pump that delivers 6 gallons per minute or more. This ensures that the pump can handle the fuel demand and maintain a steady supply during acceleration and high-load conditions.

Size and Compatibility: Pump size is another crucial factor. Electric fuel pumps come in various sizes, and it's imperative to choose one that fits your car's fuel tank and lines. Measure the existing pump's dimensions (if any) or the available space in the fuel tank to determine the suitable pump size. Additionally, consider the type of fuel your car uses. Different fuels may require specific pump materials to prevent contamination. For instance, some classic cars might use ethanol-free gasoline, while others may have fuel lines made of specific materials to accommodate different fuel types. Ensure the pump is compatible with the fuel type and the overall fuel system design.

Pump Types: There are two primary types of electric fuel pumps: in-tank and in-line. In-tank pumps are installed inside the fuel tank, while in-line pumps are mounted along the fuel line, typically between the tank and the engine. In-tank pumps are more common in classic cars due to their compact design and ease of installation. However, in-line pumps offer better protection against fuel contamination and can be more reliable in certain applications. Choose the type that best suits your car's design and your personal preferences.

Consultation and Research: If you're unsure about the specific pump requirements for your classic car, consult the vehicle's service manual or seek advice from experienced classic car enthusiasts or mechanics. They can provide valuable insights into the recommended pump size and type for your make and model. Additionally, online forums and communities dedicated to classic car restoration can be excellent resources for finding compatible pump options.

Remember, selecting the right electric fuel pump is crucial for a successful installation, ensuring your classic car runs smoothly and efficiently.

Mounting: Secure the pump with brackets, ensuring proper alignment and clearance

When installing an electric fuel pump in your classic car, proper mounting is crucial for optimal performance and longevity. Here's a step-by-step guide to securing the pump with brackets and ensuring everything is aligned correctly:

• Prepare the Mounting Brackets: Before you begin, ensure you have the appropriate brackets for your specific fuel pump and car model. These brackets are designed to provide a secure and stable mounting point. Typically, they will have pre-drilled holes that match the pump's mounting locations. Inspect the brackets for any damage or wear, and replace them if necessary.
• Locate the Ideal Mounting Position: The fuel pump should be positioned close to the fuel tank but at a lower height to ensure gravity-fed fuel flow. Carefully plan the placement, considering factors like clearance from the tank, engine components, and any potential interference. Mark the desired mounting points on the car's body or firewall using a pencil or marker.
• Attach Brackets to the Car: Using the marked positions, secure the brackets to the car's body or firewall. Typically, this involves drilling pilot holes and then inserting screws or bolts through the bracket holes and into the car's structure. Ensure the brackets are tightly fastened to provide a solid foundation for the pump.
• Position and Secure the Pump: Now, carefully lift the fuel pump into place, aligning it with the brackets. Ensure the pump is level and securely attached to the brackets. Use the appropriate screws or bolts to fasten the pump, making sure it is tight and won't come loose during operation. Double-check the alignment to ensure the pump is straight and won't rub against any components.
• Final Adjustments: With the pump mounted, make any necessary adjustments to ensure smooth operation. This may include tightening or loosening the mounting screws slightly to find the optimal position that minimizes vibration and noise. Also, check for any clearance issues between the pump and surrounding components, making adjustments as needed.

Remember, proper mounting is essential to prevent issues like fuel leaks, excessive noise, and premature pump failure. Take your time with this step, ensuring every bracket and screw is correctly positioned for a reliable and long-lasting installation.

Wiring: Connect electrical wires, following a diagram for correct polarity

When installing an electric fuel pump in your classic car, proper wiring is crucial to ensure the system functions reliably and safely. Here's a step-by-step guide to help you with the wiring process:

• Gather the Necessary Tools and Materials: Before you begin, make sure you have all the required components, including the electric fuel pump, wiring harnesses, fuses, and a wiring diagram specific to your car model. Having everything ready will make the installation smoother.
• Locate the Fuel Pump Mounting Position: Identify the best location for the electric fuel pump, typically near the fuel tank. Ensure it is easily accessible for maintenance and has sufficient clearance. Mount the pump securely, following the manufacturer's instructions.
• Wire Connections: Start by connecting the positive terminal of the fuel pump to the appropriate power source, usually the battery. Use a suitable gauge wire to handle the current draw of the pump. Then, connect the negative terminal to the engine's ground point. Refer to the wiring diagram provided with the pump to ensure correct polarity.
• Fuel Pump Relay (Optional): If your classic car doesn't have a built-in fuel pump relay, you might need to install one. This relay controls the power to the fuel pump and protects the electrical system. Connect the relay's input terminals to the power source and the output terminals to the fuel pump. Securely mount the relay and test it to ensure it activates the pump when required.
• Testing and Safety Checks: After wiring the fuel pump, double-check all connections to ensure they are secure and free from corrosion. Test the pump's functionality by starting the engine and observing if the pump activates and delivers fuel as expected. It's essential to perform these checks to identify any potential issues before relying on the system.

Remember, wiring can be complex, especially in classic cars with unique electrical systems. Always refer to the provided diagrams and seek professional advice if needed to ensure a successful and safe installation.

Testing: Start engine, check for fuel flow, and troubleshoot any issues

Once the electric fuel pump is installed in your classic car, it's crucial to test its functionality to ensure it's working correctly. Here's a step-by-step guide on how to test and troubleshoot the fuel flow:

Starting the Engine: Begin by starting the engine. This initial step is essential as it will help you understand the pump's behavior under load. Turn the ignition key to the 'on' position, ensuring the engine doesn't start immediately. This is to allow the fuel system to prime and prepare for the upcoming test. Once the engine is running, you should hear the electric fuel pump's characteristic whirring sound, indicating it's active and drawing fuel from the tank.

Checking Fuel Flow: With the engine running, it's time to check the fuel flow. Locate the fuel pressure gauge, which is typically connected to the fuel rail or the pump itself. This gauge will provide real-time feedback on the pump's performance. If the gauge shows a steady and adequate pressure, it's a good sign that the pump is functioning correctly. However, if the pressure is low or inconsistent, it may indicate a problem with the pump or the fuel system's ability to regulate pressure.

Troubleshooting Common Issues: If you encounter any issues during this testing phase, here are some troubleshooting tips:

• No Sound from the Pump: If you don't hear the pump's whirring sound, it could be due to a faulty pump or a disconnected power supply. Check the wiring and ensure the pump is receiving power.
• Low Fuel Pressure: Low pressure might be caused by a clogged fuel filter, a faulty pump, or an issue with the fuel pump relay. Check and replace the filter if necessary, and inspect the pump for any signs of damage.
• Engine Stalling: Engine stalling could be a result of insufficient fuel supply. Check for any blockages in the fuel lines and ensure the pump is delivering fuel to the engine effectively.

Remember, when troubleshooting, it's essential to be methodical and check each component systematically. This testing process will help you identify any potential issues with the electric fuel pump installation and ensure your classic car's fuel system is functioning optimally.
