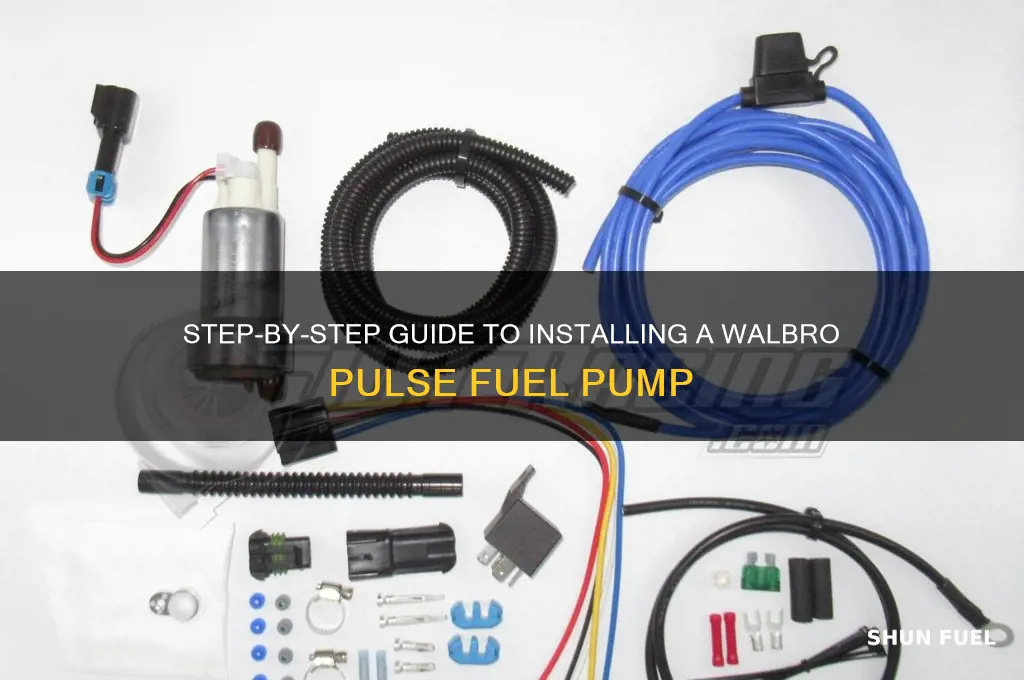

Installing a Walbro pulse fuel pump is a straightforward process that can significantly enhance your vehicle's fuel delivery system, ensuring optimal performance and reliability. This upgrade is particularly beneficial for high-performance or modified engines that demand a consistent and efficient fuel supply. The installation typically involves removing the old fuel pump, preparing the new Walbro unit by ensuring compatibility and proper wiring, and then securely mounting it in the fuel tank. It’s crucial to follow the manufacturer’s instructions carefully, including priming the pump and testing for leaks, to guarantee safe and effective operation. With the right tools and attention to detail, this DIY project can be completed in a few hours, providing a noticeable improvement in your vehicle’s fuel system.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Walbro Pulse (e.g., GSL392, GSL393, or similar models) |
| Tools Required | Wrenches, screwdrivers, pliers, hose clamps, safety gloves, safety goggles |
| Pre-Installation Steps | Disconnect battery, relieve fuel system pressure, drain fuel if necessary |
| Mounting Location | Typically in the fuel tank or external mounting (vehicle-specific) |
| Electrical Connections | Connect to the vehicle's fuel pump wiring harness or relay |
| Fuel Line Compatibility | Ensure fuel lines are compatible with pump inlet/outlet sizes |
| Grounding | Securely ground the pump to the vehicle chassis |
| Testing Procedure | Test pump operation before final installation (check for leaks/function) |
| Safety Precautions | Work in a well-ventilated area, avoid sparks near fuel |
| Post-Installation Steps | Reconnect battery, check for leaks, and test vehicle operation |
| Compatibility Check | Verify pump model is compatible with vehicle make/model/year |
| Warranty Considerations | Ensure installation follows manufacturer guidelines to maintain warranty |
| Technical Support | Refer to Walbro's official installation manual or contact support |
| Estimated Installation Time | 1-3 hours (varies by vehicle and experience) |
| Common Issues | Improper grounding, fuel line leaks, incorrect wiring connections |
