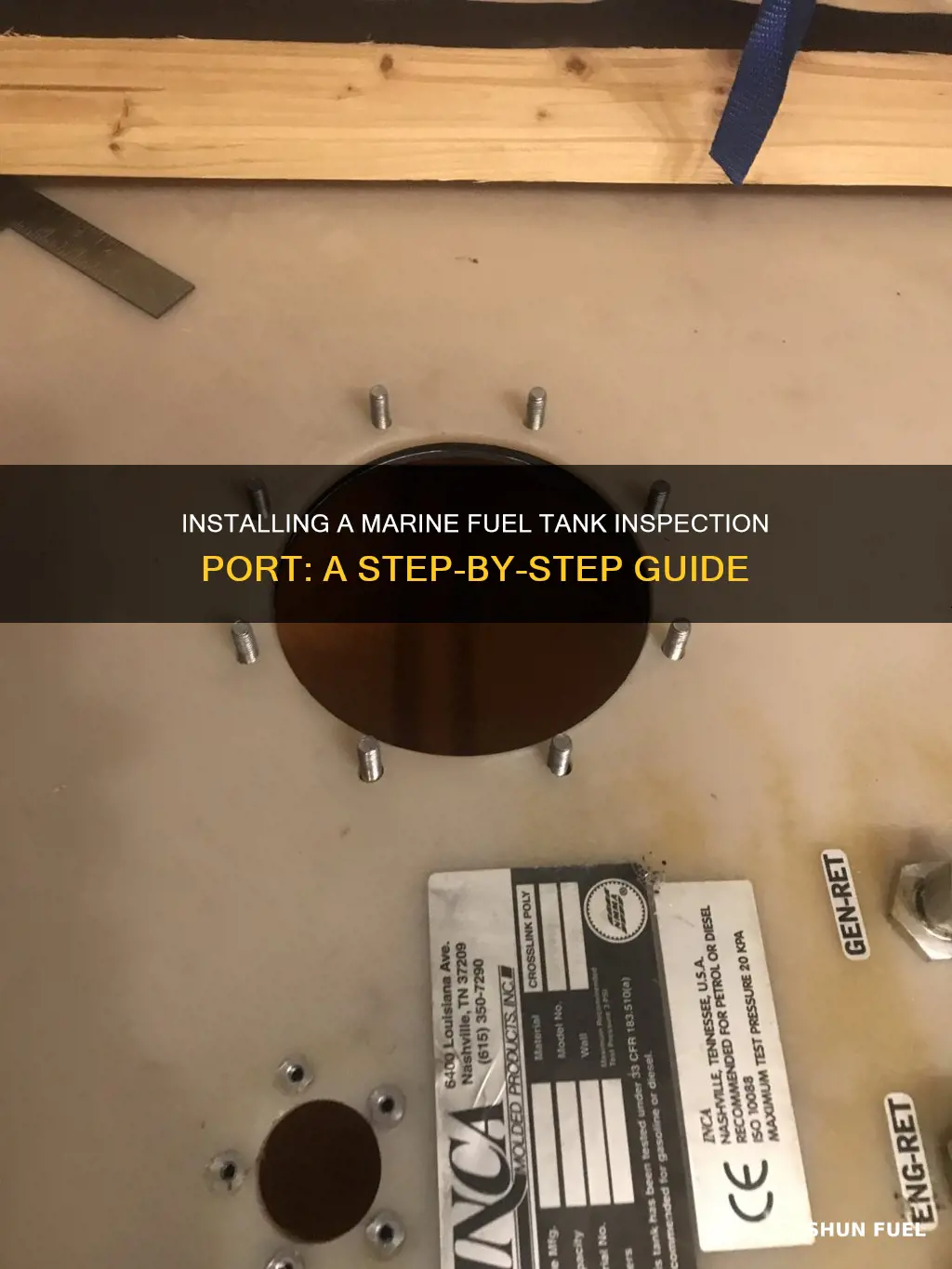

Installing an inspection port in a marine fuel tank is a relatively easy project. It is recommended to use a bolt-on gasketed plate, rather than a plastic screw-in port, as the gasket must be fuelproof. Before beginning, ensure the tank is empty and that you have used the majority of the fuel. A fuel transfer pump can be used to remove the remaining diesel, and the interior of the tank should be wiped down with paper towels or fuel-absorbent pads. Once the tank is empty, identify the location of the baffles by carefully tapping along the tank wall, and mark the spot where you will drill. Drilling midway between the baffles will help to ensure that the tank can be thoroughly cleaned. It is important to note that drilling into a gasoline tank is forbidden, and this process should only be done on diesel fuel tanks.
Explore related products
What You'll Learn
Empty the tank
Emptying the tank is a crucial step in the process of installing a marine fuel tank inspection port. Here are some detailed instructions to guide you through the process:
Firstly, it is important to ensure that the tank is as empty as possible before beginning any work. Use the marina's fuel polishing pump to draw out the fuel, and follow up with a hand transfer pump to remove any remaining diesel. This step is essential for safety reasons and to facilitate a cleaner work environment.
Next, address any remaining fuel or residue inside the tank. Use fuel-absorbent pads to soak up any remaining diesel, collecting it in a safe and appropriate manner. This step will involve crouching next to the tank in the engine room, so be prepared for a cramped workspace.
After removing the bulk of the fuel, focus on cleaning the interior of the tank. Use paper towels or similar products to wipe down the tank's interior surfaces, removing any accumulated crud or debris. Be sure to wear appropriate protective gear, including gloves and eye protection, during this process.
The next step is to address the baffles inside the tank. These are structures that divide the tank into sections to prevent the fuel from sloshing around. Identify their locations by carefully tapping along the tank wall. Mark the locations with a felt pen to ensure you don't accidentally drill into them during the installation process.
Finally, with the tank now empty and prepared, you can proceed to the next steps of the installation process, which typically involve drilling holes for the inspection port and mounting bolts. Remember to refer to the instructions provided by the manufacturer of your chosen inspection port for specific installation guidelines.
Draining a Zafira Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Mark and drill holes
Marking and drilling holes is a crucial step in installing a marine fuel tank inspection port. Here is a detailed guide on how to approach this task:
Before you begin drilling, it is essential to ensure that the tank is empty and free of any debris. This step is crucial for two reasons: firstly, to prevent any fuel leakage during the drilling process, and secondly, to create a safe working environment as drilling into a fuel-filled tank can be hazardous.
Once the tank is empty, the next step is to identify the location of the baffles, which are internal dividing walls within the tank. Carefully tap along the tank wall to locate the baffles. Mark the midpoint between the baffles, as this is where the access holes will be drilled. It is important to avoid drilling into the baffles themselves.
Now, hold an access port cover against the tank wall at the desired height, typically midway between the baffles. Use a felt pen to mark the centre point of the access port cover. This mark will be your drilling reference point. Centre-punch this mark to create a small indentation that will guide your drill bit and prevent it from wandering.
The next step is to drill a pilot hole. Using a 3/16-inch drill bit, drill a small hole at the centre-punched mark. This pilot hole will serve as a guide for the larger access hole you will drill later. Place fuel-absorbent pads beneath the drilling area to catch any fuel residue or aluminium chips that may result from the drilling process.
Finally, you can drill the full-size access hole. Using the appropriate size drill bit, carefully drill the hole according to the dimensions of your inspection port. For example, if you are using a six-inch outside diameter inspection port, you may need a five-inch diameter bolt circle and a four-inch access hole. Always refer to the manufacturer's instructions for the exact dimensions required for your specific inspection port.
Remember to take your time during the drilling process, and ensure that you are comfortable and confident with each step before proceeding.
Draining the Fuel Tank of a Classic 1986 Honda Sabre
You may want to see also
Explore related products
Clean the tank
To clean the tank, it is recommended that you start with clean fuel and keep it clean. Before leaving the dock for the first time, have your fuel tanks cleaned and polished to avoid engine failure due to clogged fuel filters.
To clean the tank, first empty it as much as possible. Use the marina's fuel polishing pump to pump out as much fuel as possible, followed by a hand transfer pump to remove the remaining diesel. If you have a poly tank, there will be no baffles, but if your tank has baffles, you will need to drill access holes midway between them. Mark the spot with a felt pen, then center-punch a mark at that point and drill a pilot hole. Place fuel-absorbent pads underneath to catch any fuel or aluminium chips that might fall into the bilge. Once you have accessed the inside of the tank, use paper towels to wipe down as much of the interior as you can reach.
If there is a large amount of debris or gunk in the tank, you may need to spray diesel fuel through the openings in the baffles to dislodge and flush out the gunk. You can also use a portable fuel filter to clean the tank. After cleaning, dump the fuel back into the tank, flip on the pump, and start flushing. You may need to repeat this process several times to remove all the crud from the tank.
It is important to note that drilling into a tank containing diesel fuel can be uncomfortable, but it poses no risk of fire or explosion. However, drilling into a gasoline tank is absolutely forbidden. Always use the appropriate tools and take the necessary precautions when working with fuel tanks.
Draining the 2005 Subaru Legacy Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
$68.39 $71.99
Install the inspection port
To install an inspection port, you will first need to ensure that the tank is empty. This can be done by pumping out the fuel and using a fuel filter to remove any remaining fuel. Once the tank is empty, you can begin the process of installing the inspection port.
The first step is to locate the baffles in the tank. This can be done by carefully tapping along the tank wall to identify their location. The access holes will need to be drilled midway between the baffles. Mark the spot with a felt pen and then use a centre punch to make a mark at that point.
Drill a pilot hole into the tank—this should be around 3/16-inch. Place fuel-absorbent pads underneath the drilling area to catch any fuel or debris that may fall. The size of the access hole will depend on the size of the inspection port being installed. The standard size is a four-inch access hole, but larger ports can be used if needed.
The port covers are typically held in place by mounting bolts. To accurately locate the bolt holes, an aluminium template can be used. This template should have a hole in the centre and evenly spaced bolt holes around it. Hold the template in place and use a transfer punch to mark the bolt holes.
Finally, seal the rim and screws of the inspection port. For this, you can use a product like 3M 4000. Before sealing, it is important to rough up the rim of the hole with 200 grit and clean it with lacquer thinners. This will ensure that the inspection port is securely installed and won't leak.
Unlocking the Fuel Tank in Forsaken: A Guide
You may want to see also
Explore related products
$142.99
Seal and secure the port
Sealing and securing the port is a crucial step in the installation process. Here are the detailed steps to ensure a secure and leak-proof installation:
Firstly, it is important to select the appropriate materials for the port cover and gaskets. For diesel fuel tanks, the preferred material is aluminium, such as the machined T5051 aluminium access ports mentioned by Hungate. BUNA-N gaskets, also known by the trade name Viton, are recommended for their compatibility with diesel fuel. It is important to note that no sealant should be applied to the aluminium parts or gaskets.
Next, prepare the surface of the rim and ensure it is clean and roughened. Use 200-grit sandpaper to roughen the rim of the hole, creating a textured surface for better adhesion. Clean the rim with lacquer thinners to remove any residue or contaminants. This step is crucial to ensure a strong and secure seal.
After preparing the surface, it is time to apply the sealant. Seal the rim and screws with a suitable sealant, such as 3M 4000, to create a tight seal and prevent leaks. This step should be done carefully and methodically to ensure complete coverage.
For added security, coat the bolt threads with a specialised product like Highside Chemicals Leak-Lock. This will prevent diesel fuel from weeping along the bolt threads and ensure that the port is securely fastened.
Finally, inspect your work thoroughly. Check for any signs of uneven sealant application, gaps, or potential leak points. Ensure that the port cover is securely fastened and that all bolts are tightened correctly.
By following these steps and paying close attention to detail, you can effectively seal and secure the marine fuel tank inspection port, ensuring a safe and reliable installation.
El Camino Fuel Tank Removal: Step-by-Step Guide
You may want to see also
Frequently asked questions
To install a marine fuel tank inspection port, you must first ensure the tank is empty and clean. Then, identify the location of the baffles by carefully tapping along the tank wall. Next, mark the spot where you want to drill the hole, and use a centre punch to create a pilot hole. Drill the hole, and use fuel-absorbent pads to catch any fuel or debris that falls. Finally, secure the port with mounting bolts.
You will need a drill, a centre punch, mounting bolts, and fuel-absorbent pads.
First, ensure the tank is empty. Then, use a fuel polishing pump to remove any remaining fuel. Next, wipe down the interior of the tank with paper towels. Finally, flush the tank with diesel fuel to remove any remaining debris.
It is important to note that drilling into a gasoline tank is forbidden. You should also avoid using a plastic screw-in port, as the o-ring seal may not stand up to long-term exposure to diesel. Instead, use a bolt-on gasketed plate. Additionally, ensure that the inspection port is large enough for you to access the tank interior comfortably.
