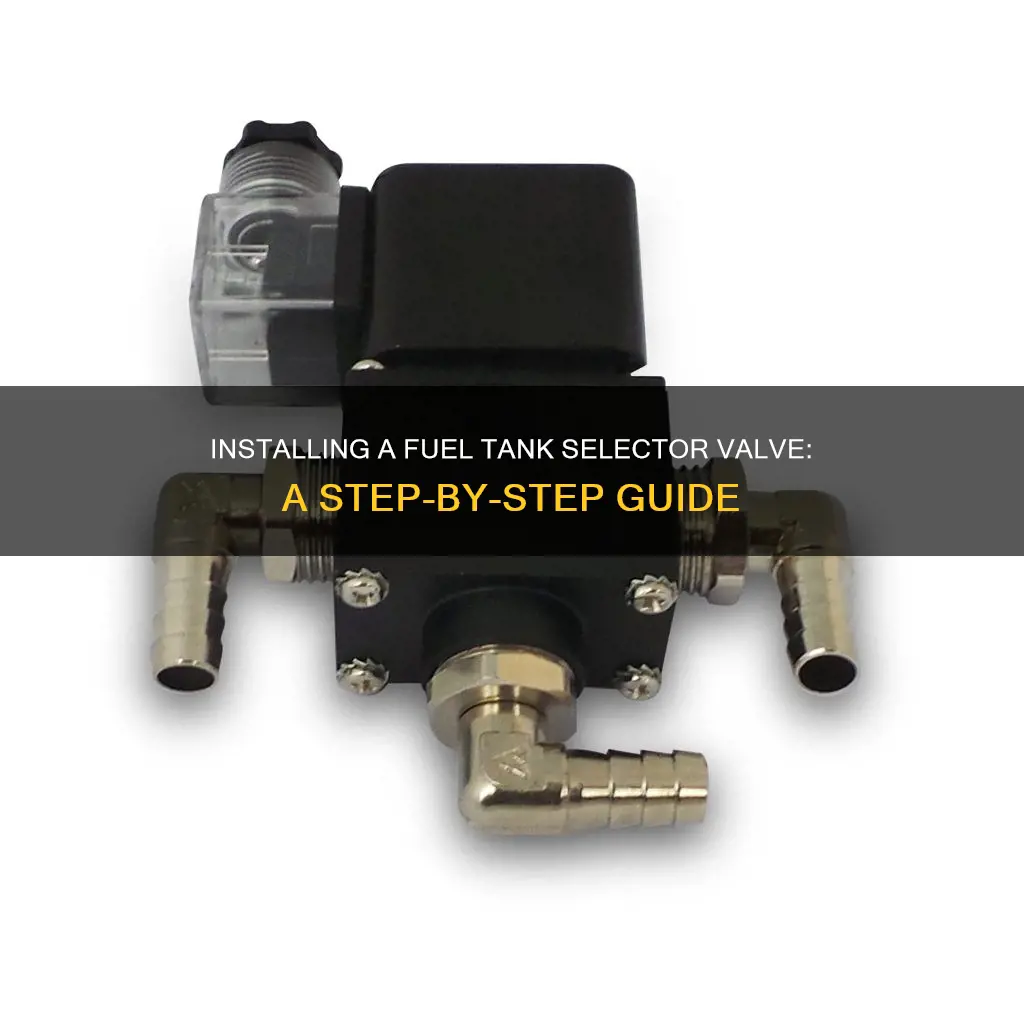

Fuel tank selector valves are used in vehicles with multiple fuel tanks to allow the user to select which tank to draw fuel from. They are commonly found in older semi-trucks, boats, and some Ford F150, F250, and F350 models from the 1980s and 1990s. Installing or replacing a fuel tank selector valve can be a complex task, and the process may vary depending on the vehicle's specific design and fuel system configuration. In this guide, we will cover the basics of fuel tank selector valves, including their function, common issues, and the steps involved in installing or replacing one. We will also explore options for upgrading or redesigning the fuel system for improved performance and reliability.
| Characteristics | Values |
|---|---|
| Installation | Installation may require adapting a system from a donor truck, which involves buying the right length of fuel lines. |
| Compatibility | Compatibility may depend on the make and model of the vehicle, with some selector valves being compatible with Ford F150, F250, and F350 models from the 1980s and 1990s. |
| Cost | The cost of a fuel tank selector valve can vary, with some options costing around $140, while others can be more expensive, such as a $200 option for a Motorcraft valve. |
| Types | There are electronic versions of fuel tank selector valves, such as the Wells FSV2K and the Standard Motor Products FV5K. There are also manual ball valves, which may be cheaper. |
| Issues | Issues with fuel tank selector valves may include sticking or leaking, which can cause problems with fuel pressure and the vehicle's ability to start. |
| Solutions | Solutions to issues with fuel tank selector valves may include replacing the valve, replacing the fuel pump, or adapting a different system. |
Explore related products
What You'll Learn
Splicing electrical connectors
Understanding the Setup: Fuel tank selector valves typically involve multiple electrical connections. For example, the Wells FSV2 valve has six electrical connections in the plug port. Understanding the specific connector configuration for your vehicle is essential.
Selecting the Right Connector: Ensure that you have the correct connector for your fuel tank selector valve. In some cases, the original connector may not match the replacement valve. You may need to purchase a compatible connector or pigtail separately. For instance, when using the Wells FSV2 valve, the proper connector/pigtail with a part number of 213 is recommended.
Splicing the Wires: Before splicing the wires, it is important to have a clear understanding of the wiring diagram for your vehicle. Identify the wires that need to be spliced and their correct orientation. Take note of the wire colors and their corresponding letters on the connector. For example, in some Ford vehicles, the yellow/light blue wire is the rear tank sender wire (C on the connector), while the dark blue/yellow wire is the front tank sender wire (A on the connector).
Soldering and Insulating: It is recommended to solder all electrical connections to ensure secure and durable joints. After soldering, insulate the connections with shrink wrap or similar materials to prevent corrosion and short circuits. This step is crucial for the long-term reliability of the fuel tank selector valve.
Testing and Verification: Once the electrical connections are spliced and secured, it's important to test the new switch to ensure it's working correctly. Operate the switch to hear and feel the motor moving the valves inside. Verify that the fuel is being drawn from the correct tank as indicated by the switch. If not, you may need to reverse the wires connected to the tank sender wires.
Draining Fuel Tank of John Deere 855 Tractor: Step-by-Step Guide
You may want to see also
Explore related products
Using a manual ball valve
Installing a manual ball valve as a fuel tank selector valve is a cheap and effective solution. The Parker marine valve is no longer in production, but there are other options available, such as the valves found on Amazon.
The manual ball valve can be mounted in various locations, such as next to the seat or on the trans tunnel. This flexibility in mounting location allows for convenient access and ease of use.
To install a manual ball valve as a fuel tank selector valve, follow these steps:
- Purchase a suitable manual ball valve, ensuring it is compatible with your fuel system.
- Identify the fuel lines that need to be connected to the valve. These lines will carry fuel from the tanks to the engine.
- Cut into the fuel lines and insert the valve at the desired location. Ensure that you have adequate sealing and use appropriate fittings to prevent leaks.
- Secure the valve in place, following the manufacturer's instructions for tightening torque and using any recommended thread sealants.
- Connect the fuel lines to the valve, ensuring a secure and leak-proof connection.
- Test the system for leaks and ensure that the valve operates smoothly and effectively.
By following these steps, you can successfully install a manual ball valve as a fuel tank selector valve, allowing you to select between different fuel tanks as needed.
Finding Fuel Tank Size for Your F150 Truck
You may want to see also
Explore related products
Using a fuel pump for each tank
If you are installing a fuel tank selector valve, one option is to use a fuel pump for each tank. This can be achieved by using the current selector valve for tank level indication and fuel return, along with a fuel pump for each tank. This setup also requires a check valve to prevent backflowing through the other pump into the opposite tank.
This option can be useful if you are looking to keep both tanks functioning as they should. It can be a more expensive solution, as you will need to purchase additional fuel pumps and check valves. However, it provides a way to work around the limitations of a small selector valve and ensure proper fuel flow between the tanks.
When using a fuel pump for each tank, it is important to consider the size and capacity of the pumps. For example, in one case, a user with 250/200 injectors had to use a 1/2 feed to a fuelab pump and then 3/8 to the motor. It is also essential to ensure that the pumps are properly wired and connected to the selector valve to control their operation.
Additionally, when using multiple fuel pumps, it is crucial to consider the fuel lines and their sizes. In some cases, such as with older semis, the fuel lines may be sumped together, drawing fuel from one tank and returning it to the other. Ensuring that the fuel lines are correctly configured and sized is essential for the proper functioning of the fuel system.
Overall, using a fuel pump for each tank in a fuel tank selector valve system can be a viable option, but it requires careful consideration of the pumps, valves, and fuel lines to ensure a proper setup that meets the specific requirements of your vehicle or application.
Fuel Tank Size for 2004 Dakota SLT 4x4: How to Determine?
You may want to see also
Explore related products
Using a separate switching system
The FV1/FV1T Fuel Selector Valve Kit is a good option for vehicles with one main and one auxiliary fuel tank. This kit includes a 3-port valve with two inlets and one outlet, along with the necessary clamps, wire, connectors, and a fuse. It is important to note that this system is not suitable for vehicles with fuel return lines or marine use.
Another option is to use a manual ball valve system. This is a cost-effective solution, although it may require some creativity in terms of mounting the valves, such as next to the seat or on the trans tunnel.
Additionally, you can consider using the current selector valve for tank level indication and fuel return, while incorporating a fuel pump for each tank with a check valve to prevent backflow. This setup ensures that fuel only flows in the intended direction.
When installing a separate switching system, it is important to ensure compatibility with your vehicle's fuel system. Some systems may have specific requirements or limitations, such as the presence of fuel return lines or in-tank fuel pumps. It is also essential to follow safety precautions and refer to reliable sources or experts for guidance if needed.
Installing a Boat Fuel Tank Sending Unit: A Step-by-Step Guide
You may want to see also
Explore related products
Using fuel injection-rated fuel line
If you're installing a fuel tank selector valve, it's likely that you're upgrading your fuel system. This may be because your old fuel system is suffering from sediment, rust, and other issues. You'll need a new high-pressure fuel pump for your electronic fuel injection (EFI) application.
When it comes to fuel lines, you'll want to use fuel injection-rated fuel lines. This is especially important if you're upgrading to an EFI system. Aged rubber fuel lines should be replaced to prevent any issues down the road. It's also important to route the fuel lines away from sharp edges and heat sources.
You can use Earl's Vapor Guard fuel hose, which will make your vehicle more dependable. Earl's fittings can be used to connect each hose, allowing for ease of maintenance and adding to the build's aesthetics. Additionally, using Earl's flame guard insulator sleeves will protect the hose in areas of high heat.
If you're installing an in-tank fuel pump, you may need an adapter, such as the one made by ICT Billet, to provide enough space for the installation. For high-horsepower or turbocharged setups, you'll need a higher-flow in-tank retrofit fuel pump, an external billet fuel pressure regulator, and a return line.
Accessing the Fuel Tank in Aluminum Boats
