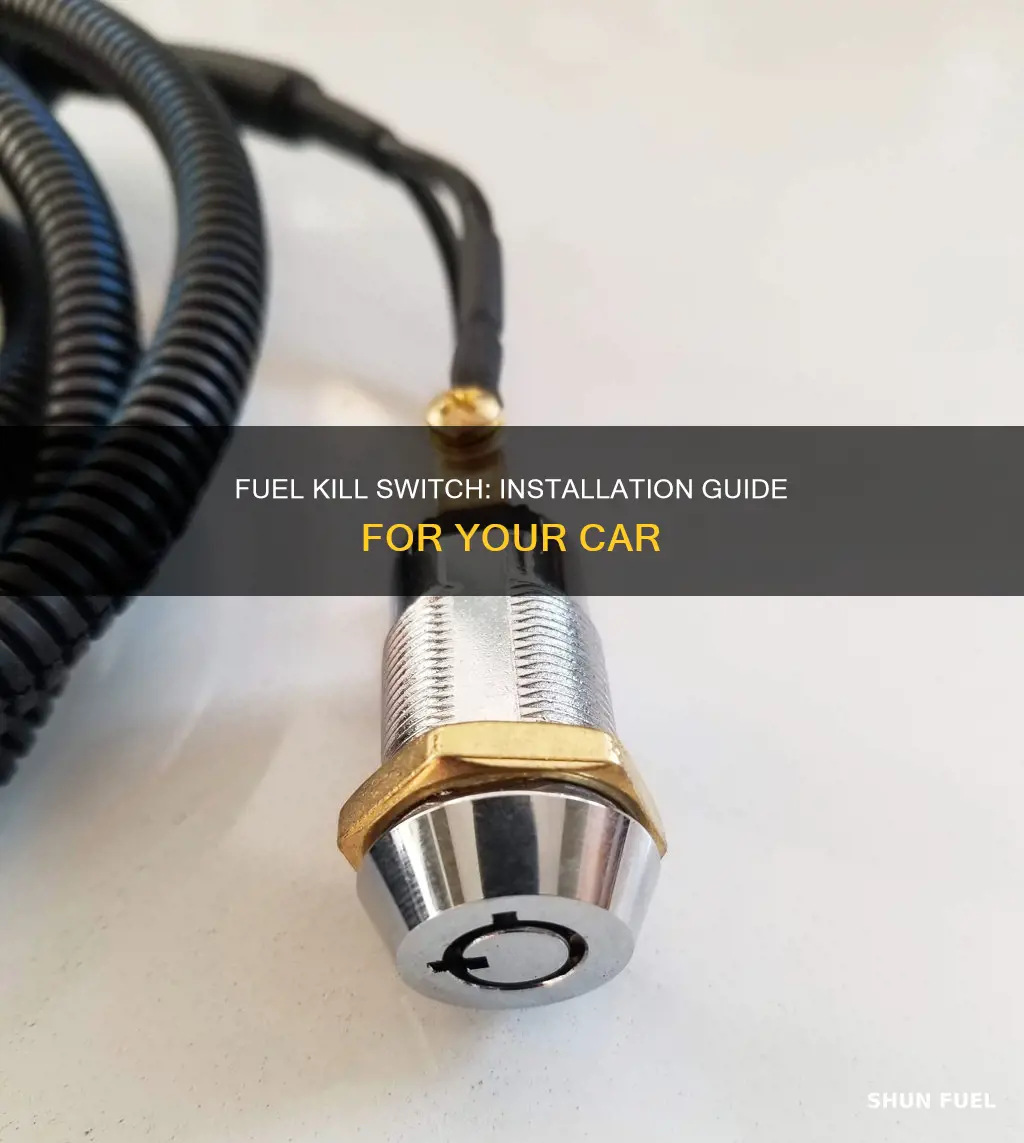

Installing a fuel kill switch is a great way to protect your car from theft. A kill switch works by disrupting the flow of electricity at the battery or ignition switch, or by disabling the fuel pump. This prevents the car from starting, even if a thief has your keys, breaks the ignition barrel, or hotwires the car. The easiest method is to connect a simple on/off toggle to the positive circuit of the fuel pump, which can be hidden under the seat, in the trunk, under the dashboard, or in the glovebox. This article will provide a step-by-step guide on how to install a fuel kill switch in your car, making it a valuable and secure asset.
How to install a fuel kill switch on a car
| Characteristics | Values |
|---|---|
| Difficulty | Straightforward, simple DIY project that can be done by someone with virtually no mechanical experience. |
| Cost | Extremely inexpensive. A 25-amp switch is available for less than $10, and some basic crimp-on wiring terminals are needed. |
| Tools | A multimeter, a relay, a switch, heat shrink tubing or electrical tape, a soldering iron, and basic crimp-on wiring terminals. |
| Process | Disconnect the battery, locate the fuel pump relay, cut the wire, and wire the switch inline with the cut wire. |
| Location | The kill switch can be placed anywhere in the car, such as under the seat, in the trunk, under the dashboard, or in the glovebox. |
| Effectiveness | A fuel kill switch is an effective way to prevent car theft, as it disrupts the flow of electricity at the battery or ignition switch, or disables the fuel pump. |
| Disadvantages | Disconnecting the battery will reset the radio settings, and there is a risk of electrical problems or fire if the installation is not done properly. |
Explore related products
What You'll Learn
Locating the fuel pump relay
Firstly, jack up your vehicle and secure it on stands placed under firm support locations, such as the rear axle or front strut supports. Ensure the vehicle is elevated enough for you to safely crawl underneath. The next step is to locate the electric fuel pump, which is typically inside the fuel tank. To confirm its location, remove the gas tank filler cap and listen closely to the spout as you turn the ignition key from the off to the run position. The fuel pump will activate for a few seconds, emitting a clicking or buzzing sound.
If you cannot locate the pump inside the tank, an alternative method is to follow the fuel line from the tank towards the engine until you find it. Once you've identified the fuel pump's location, refer to the service manual for your car's make, model, and year of manufacture. Locate the wiring diagram and identify the colour of the hot wire leading from the fuel pump relay to the fuel pump. This information will be crucial for the next steps in installing your fuel kill switch.
In some cases, the fuel pump relay may be located in the fuse box under the hood, as mentioned in your query. If you encounter this scenario, the challenge lies in identifying the correct cable or fuse among many. In such cases, consulting a technician or seeking model-specific advice from online forums or communities becomes even more valuable.
Remember, safety should always be a priority when working on your vehicle. Ensure you have the necessary knowledge and skills before attempting any electrical or mechanical work on your car.
Using 101 Octane Fuel in Regular Cars: Is it Possible?
You may want to see also
Explore related products
Cutting the fuel line
Installing a fuel kill switch by cutting the fuel line is a straightforward process. First, locate the fuel line by going underneath the car. You will need to cut the fuel line in half at the desired location. There will be some fuel leakage, so it is important to work quickly. Once the fuel line is cut, slide the shut-off valve onto both ends, along with small hose clamps, to tighten the fuel line hose to the valve.
This method of installing a kill switch is not recommended for daily use, as you will need to crawl under your car each time you want to start or stop it. It is more suitable for a car that will be in storage or sitting for an extended period.
Before cutting any wires, ensure you disconnect your car's battery to eliminate the risk of electric shock or blowing fuses. You can then cut the wire, leaving enough room to strip, crimp, or solder it.
The fuel pump cut kill switch is a straightforward installation, as it only requires modifying one wire. The parts needed for this installation are affordable and easily accessible at most auto parts or DIY supply stores.
Why Won't My Car Start? Low Fuel Issues Explained
You may want to see also
Explore related products
Soldering the connections
- Prepare the Work Area: Before beginning, ensure you have a clean and well-ventilated work area. Gather all the necessary tools and materials, including a soldering iron, solder, wire strippers, and safety gear such as gloves and eye protection.
- Locate the Fuel Pump Relay: Start by locating the fuel pump relay, which is usually found under the steering wheel column or under the hood. Refer to your vehicle's owner's manual or an online guide specific to your car model for precise locations and instructions.
- Disconnect the Battery: Before proceeding, it is crucial to disconnect the car battery to eliminate any risk of electrical shock or short circuits. This step ensures a safe working environment when dealing with electrical components.
- Identify the Correct Wire: Using a wiring diagram or a multimeter, identify the wire responsible for activating the starter solenoid or the fuel pump relay. This wire will be interrupted to install the kill switch.
- Strip and Tin the Wires: Once you have identified the correct wire, carefully strip a small section of insulation from the end of the wire, exposing the conductive portion. Apply a small amount of solder to the exposed wire, a process known as "tinning." This step improves the flow of solder during the connection process.
- Heat the Soldering Iron: Plug in and turn on your soldering iron, allowing it to heat up to the appropriate temperature. Refer to the manufacturer's instructions for the recommended settings and safety precautions.
- Solder the Connections: Hold the soldering iron to the exposed wire and apply a small amount of solder to the joint. Ensure that the solder melts and flows evenly around the wire and the tip of the iron. Allow the connection to cool briefly before moving on.
- Connect the Kill Switch: Following the instructions provided with your kill switch, connect the two terminals of the switch to the corresponding wires. Ensure that the orientation of the wires matches the diagram or instructions provided.
- Secure the Connections: Use heat shrink tubing or electrical tape to insulate and secure the soldered connections. This step helps prevent short circuits and ensures that the connections remain intact.
- Reassemble and Test: After soldering and connecting the kill switch, carefully reassemble any components that were disassembled during the process. Before considering the installation complete, test the kill switch by placing it in the "ON" and "OFF" positions to ensure it functions as expected.
Remember, soldering requires practice and precision. If you are unfamiliar with the process, consider seeking guidance from an experienced individual or a professional. Additionally, always prioritize safety when working with electrical systems and flammable substances.
Fuel Pump Failure: Why Your Car Stalls Unexpectedly
You may want to see also
Explore related products
Identifying the switched 12-volt power
To identify the switched 12-volt power in a car, you will need a multimeter or a similar test unit, such as a test light. A multimeter is a more reliable tool for this task as it can tell you the exact voltage, whereas a test light only indicates the presence of voltage.
First, ensure that the ignition switch is in the "off" position and ground the multimeter to a vehicle ground point (metal). Then, turn the key to the accessory position. If you have selected the proper source, you will read a positive voltage source (around 12v). If you do not read approximately 12v, this indicates that you have selected either the ignition or the cranking source. To find the accessory source, try a different probe position and repeat the process.
Next, turn the key to the ignition (on) position. If you have selected the proper source, you will read a positive voltage source of approximately 12v. If you do not, this indicates that you have selected the cranking source. To find the ignition source, repeat the process with a different probe position.
Finally, we will find the cranking source, which is a switched source that provides 12v only when the engine starter is being engaged. To find this source, start by ensuring that the ignition switch is in the "off" position.
Aging Cars: Fuel Efficiency Decline Over Time
You may want to see also
Explore related products
Using a kit or relay
To begin, locate your car's fuel pump relay. This may be located under the steering wheel column or under the hood, so it is best to refer to your owner's manual. Once you have located the fuel pump relay, you will need to identify the pin that receives the signal when the key is turned to the "ON" position. You can do this using a multimeter by grounding the negative end to a piece of metal and the positive end to the pins.
The next step is to cut the fuel pump power wire and splice the fuel pump assembly. You will need to extend the wires to the desired location of your kill switch, which can be placed almost anywhere in the car, such as under the seat, in the trunk, under the dashboard, or in the glovebox. Remember to use heat shrink tubing or electrical tape to secure your connections and prevent electrical shorts.
Finally, test your kill switch before reassembling your vehicle. Place the switch in the “ON” position to ensure the vehicle starts normally, and then place it in the “OFF” position to confirm that the car will not start.
Fuel Injector Cleaner: Oil Burn Solution or Myth?
You may want to see also
Frequently asked questions
A fuel kill switch is a device that prevents a car from starting by disrupting the flow of electricity at the battery or ignition switch, or by disabling the fuel pump.
The installation process for a fuel kill switch will differ for each car manufacturer. First, locate your relays, specifically your fuel pump relay. Some disassembly will be required to access your relays. Once you've located the fuel pump relay, pull the relay and determine which pin of the harness receives the signal when the key is turned to the "ON" position using your multimeter. Then, ground the negative end of the multimeter to a piece of metal and the positive end to the pins from where you removed the fuel relay. Finally, cut the wire with enough room to strip it and crimp or solder it, and wire the switch inline with the cut wire.
A fuel kill switch can prevent your vehicle from being stolen even if the thieves have your key, break the ignition barrel, or even hotwire the car. It is also a simple and relatively cheap alternative to high-priced car alarm systems.
Always use a relay when installing a fuel kill switch. Many three-prong rocker switches do not have the proper amp rating, which can cause electrical problems such as melting or even catching on fire. Additionally, be sure to have a complete wiring diagram in hand before making any modifications to your car's electrical system.
