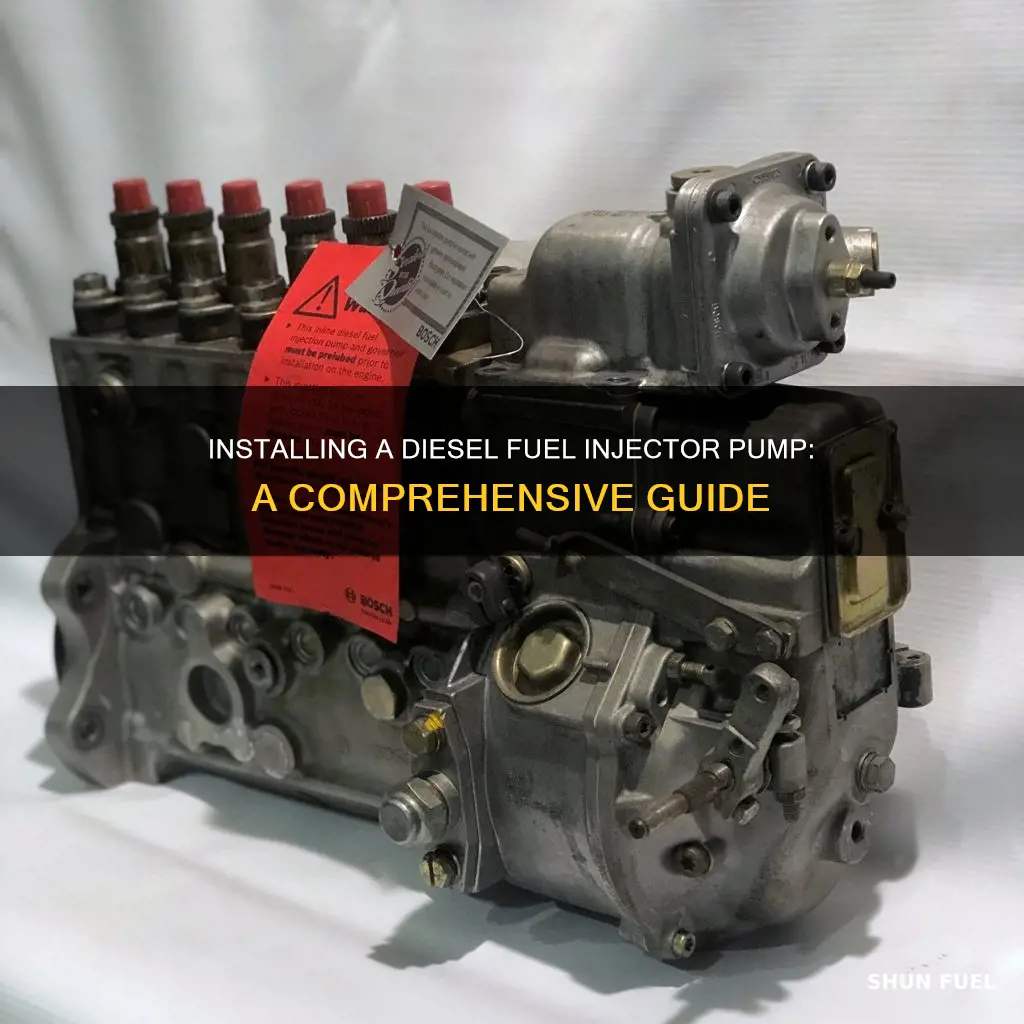

The fuel injector pump is an essential component of a diesel engine, responsible for injecting fuel into the intake manifold to enable power generation. Its failure can lead to engine malfunction, and in some cases, the engine may not start at all. While rebuilding a diesel injector pump is a complex task, requiring caution and mechanical expertise, installing a new injector pump is a more manageable process. This article will provide a step-by-step guide on how to install a diesel fuel injector pump, covering the tools and precautions necessary for a successful installation.
Explore related products
What You'll Learn
Disconnect the negative battery cable, intake manifold, and fuel injection lines
Disconnecting the negative battery cable, intake manifold, and fuel injection lines is the first step in installing a diesel fuel injector pump. This is a crucial step as it ensures your safety and the integrity of the engine.
Start by locating the negative battery cable, which is usually black or marked with a "-" symbol. Disconnect this cable from the battery terminal by loosening the nut or clamp that secures it. This will disconnect the power supply to the vehicle, ensuring that no electrical current is flowing during the installation process.
Next, move on to the intake manifold. The intake manifold is responsible for directing the air-fuel mixture into the engine's cylinders. It is typically located on the top of the engine, near the fuel injectors. To remove it, first, disconnect any hoses or connectors attached to it. Then, using the appropriate tools, loosen and remove the bolts or clamps that secure the manifold in place. Place the manifold aside in a safe location, as you will need to reinstall it later.
Finally, disconnect the fuel injection lines. These lines carry the fuel from the injector pump to the fuel injectors. To disconnect them, first, relieve the fuel system pressure and then carefully detach the lines from the fuel injectors and the injector pump. It is important to note that some vehicles may have multiple fuel injection lines, so ensure you disconnect all of them. Mark each line with tape and a marker to indicate its original position, making it easier to reinstall them later.
By following these steps, you will have successfully disconnected the negative battery cable, intake manifold, and fuel injection lines, setting the foundation for the rest of the diesel fuel injector pump installation process.
Fuel Injector Malfunction: Sticking Open and Its Consequences
You may want to see also
Explore related products
Remove the three nuts holding the IP
Removing the three nuts that hold the IP can be a bit of a challenge, but with some patience and careful attention, it can be done. First, disconnect the injector lines at each individual injector, leaving them attached to the IP. This will give you more room to work with and make it easier to access the nuts.
Now, you will need to locate the three nuts that secure the IP to the timing cover. They may be a bit tricky to reach, so you may need to use a socket wrench or a ratchet with an extension to loosen them. Be sure to hold the IP steady with one hand while turning the wrench or ratchet with the other, to prevent any unnecessary strain on the IP itself. Place a container underneath to catch any fuel that may leak out once the nuts are removed.
Once the nuts are removed, set them aside in a safe place, as you will need them again when reinstalling the new IP. With the nuts removed, the IP should now be free to be carefully lifted out. Take care not to damage any surrounding components or injure yourself on any sharp edges. Place the IP gently on a clean surface, taking care not to lose any small parts, such as washers or bolts.
At this point, it is important to inspect the IP and its mounting surface for any signs of damage, wear, or corrosion. This includes checking the gasket between the IP and the engine, which may need to be replaced if it shows any signs of deterioration. It is also a good idea to clean the mounting surface and ensure it is free of any debris or residue before installing the new IP.
Cleaning Fuel Injectors on a Suzuki Hayabusa: Step-by-Step Guide
You may want to see also
Explore related products
$24.99
Disconnect electrical connections and remove heat shields
Disconnecting the electrical connections and removing the heat shields are crucial steps when installing a diesel fuel injector pump. This process requires careful attention to detail and a methodical approach to ensure a successful outcome. Here is a comprehensive guide to help you navigate these steps effectively:
Before you begin, it is essential to have a basic understanding of the components involved. The electrical connections in a diesel fuel injector pump are the wires and cables that transmit power and signals to the pump, allowing it to function properly. The heat shields, on the other hand, are protective barriers designed to shield the pump and its surrounding components from excessive heat generated by the engine.
Now, let's delve into the step-by-step process:
- Disconnecting Electrical Connections: Start by identifying all the electrical connections associated with the diesel fuel injector pump. This includes wires and cables that are plugged into the pump or its surrounding components. Label each connection to ensure proper reconnection during reassembly. You can use tape and a marker to indicate which wire goes where, making it easier to reconnect them correctly later on. Carefully disconnect each electrical connection, one at a time, to avoid any confusion. Ensure you set aside or store these wires safely to prevent damage or tangling.
- Removing Heat Shields: The next step is to remove the heat shields that protect the injector pump and its components from engine heat. These heat shields are typically secured by 7mm screws. Using the appropriate tool, carefully unscrew and remove the screws holding the heat shields in place. Once the screws are removed, gently lift and set aside the heat shields, taking care not to misplace them. It is important to handle the heat shields with caution as they may have sharp edges or be hot from engine operation.
By following these steps, you will have successfully disconnected the electrical connections and removed the heat shields associated with the diesel fuel injector pump. Remember to stay organized and methodical throughout the process, as it will make reassembling the components much easier and help ensure the proper functioning of your diesel engine.
It is worth noting that working on diesel systems can be hazardous due to the high pressure involved. Therefore, it is always recommended to exercise extreme caution and refer to professional guidance or resources when undertaking such tasks.
Fuel Injector Sizing: Understanding Your Car's Needs
You may want to see also
Explore related products
Remove the oil filler tube and grommet
To remove the oil filler tube and grommet, you will need to carefully follow these steps:
First, locate the oil filler tube and grommet on your diesel engine. The oil filler tube is typically found near the top of the engine, and it is the tube through which oil is added to the engine. The grommet is a small, flexible ring that fits around the oil filler tube, providing a seal to prevent oil leaks.
Once you have located the oil filler tube and grommet, you will need to remove any clamps or fasteners that hold the tube in place. These clamps can usually be loosened with a screwdriver or a wrench. Be sure to have a container ready to catch any oil that may spill when you remove the tube.
After removing the clamps, carefully pull the oil filler tube out of the engine. You may need to twist or wiggle the tube gently to loosen it from the grommet. Be cautious not to spill oil onto any engine components. Once the tube is removed, you can also take out the grommet, which should come out easily.
Finally, clean the area around the oil filler tube opening. Use a cloth or paper towel to wipe away any residual oil, ensuring the area is free of debris. This step is important to prepare for the next phase of the installation process, which may involve adding new components or making alignments.
Cleaning Diesel Fuel Injectors in Your Mercedes: Step-by-Step Guide
You may want to see also
Explore related products
Reinstall the new injection pump gasket
Firstly, it is important to understand the function of a diesel fuel injector pump. It is a crucial component of a diesel engine, injecting fuel into the intake manifold so the engine can generate power. The pump also controls the amount of fuel needed to gain the desired power. The fuel is kept under high pressure, usually around 40,000 PSI, and it is injected into the combustion chamber using a spray action.
Now, to reinstall the new injection pump gasket, you will need to reverse the removal procedure. Firstly, align the locating pin on the injection pump hub with the slot in the injection pump-driven gear. Ensure that the injection pump timing marks are aligned and that No.1 is set at TDC. This is crucial for the smooth operation of the diesel engine.
Next, attach the injection pump to the front cover, ensuring that the alignment marks made during the removal are still aligned. This will ensure that the pump is correctly positioned and secured. Once the pump is attached, tighten the nuts to secure it in place.
Finally, attach the pump to the drive gear and tighten the bolts. This will complete the installation of the new injection pump gasket. It is important to follow the steps in the correct order and ensure that all connections are secure to avoid any leaks or damage to the engine.
