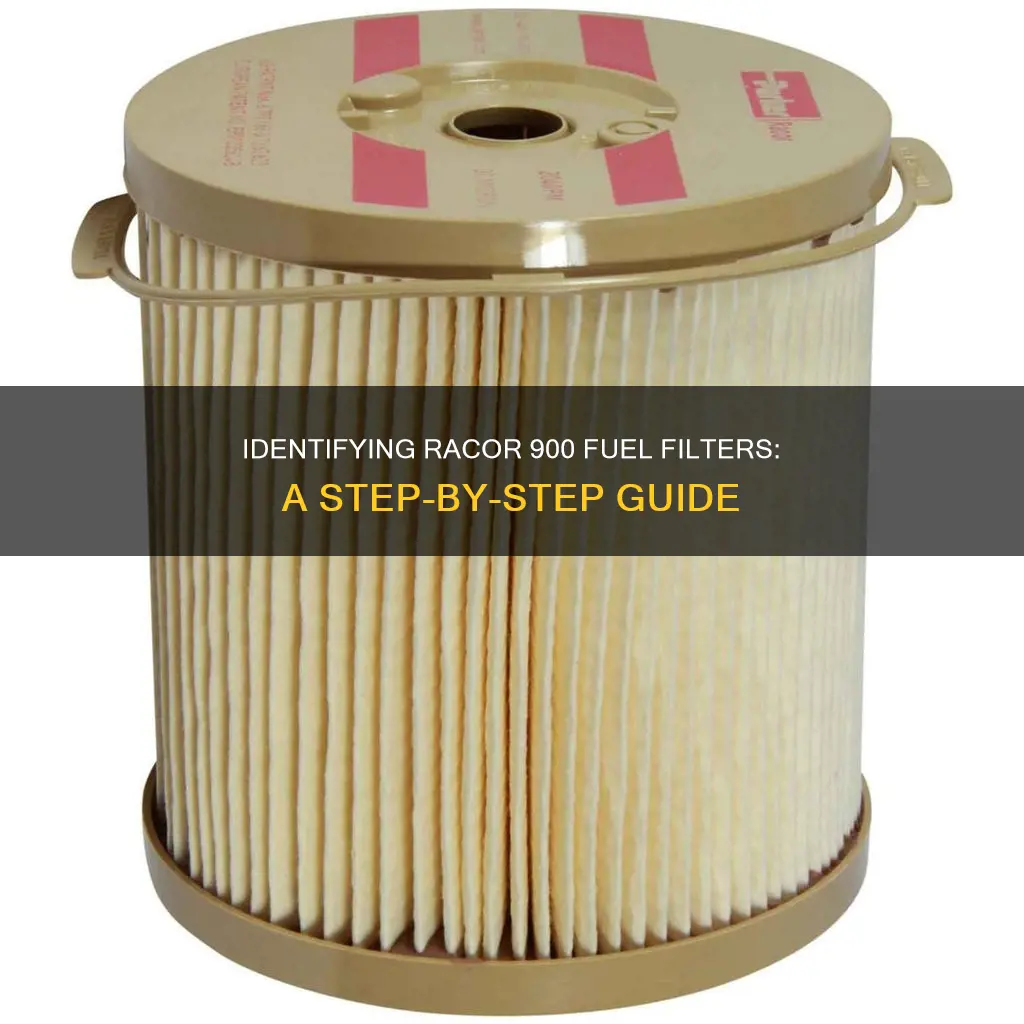

The Racor 900 series of fuel filters are used in marine applications. They are fuel/water separators, with specific models including the 900FH, 75900FHX, 900MA, 900MAM, 903MA, 75900MAX, 75900MAXM, and 900MA10. The primary filter in the fuel path catches the majority of debris, while the secondary filters on the engine do the fine filtration. The Racor priming pump is used to refill the filter.
Explore related products
What You'll Learn
The Racor 900FH diesel fuel filter
The 900FH filter protects engines through a three-stage process: separation, coalescing, and filtration. During the separation stage, the turbine centrifuge uses centrifugal action to separate solids and free water from the fuel. This stage alone removes over 30% of contaminants. In the coalescing stage, smaller water droplets and solids combine on the conical baffle and fall into the collection bowl. Finally, in the filtration stage, the proprietary Aquabloc water-repelling media removes nearly 100% of water and other contaminants from the fuel. The Aquabloc media is specially treated to separate water from fuel, causing it to collect into large droplets that are extracted through the bottom of the bowl. The Aquabloc elements come in three different lengths for various flow rates and are colour-coded to indicate their micron rating. The lower the micron rating, the finer the filtration.
Changing the Racor 900FH fuel filter is a simple process. First, shut off the fuel supply to the Racor. You may need to drain some fuel from the filter to prevent spills when opening the lid. Next, unscrew the 'T' handle by hand and remove the old filter element. Then, insert the new filter element and secure the 'T' handle. Finally, reopen the fuel supply valve and top up the fuel in the Racor. It is recommended to replace the O-rings for the gauge stem and filter top, lubricating them with fuel.
