Katerina Swanson

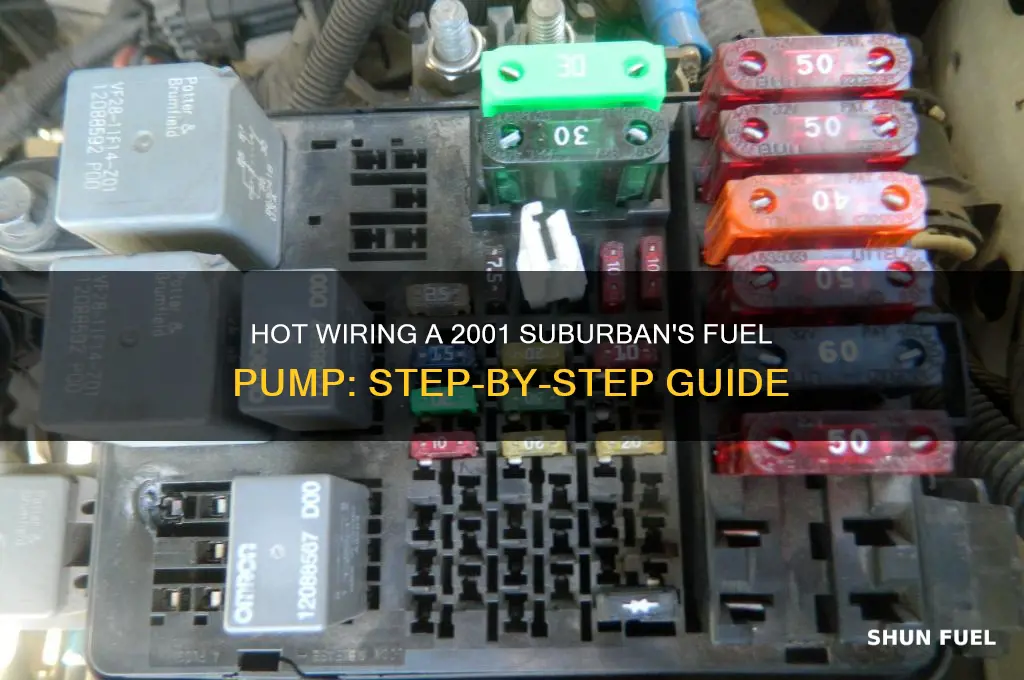

Hot wiring a fuel pump on a 2001 Suburban is a task that requires careful attention to safety and technical detail, as it involves bypassing the vehicle’s electrical system to directly power the fuel pump. This procedure is often considered in emergency situations, such as when the fuel pump relay or wiring harness fails, preventing the engine from starting. To hot wire the fuel pump, you’ll need basic tools like a multimeter, wire strippers, and electrical tape, along with a clear understanding of the Suburban’s fuel system layout. It’s crucial to disconnect the battery before starting to avoid electrical hazards, and always work in a well-ventilated area to minimize the risk of fuel fumes. While this method can temporarily restore fuel delivery, it’s not a long-term solution and should be followed by proper repairs to ensure the vehicle’s safety and reliability.
Explore related products
What You'll Learn
- Locate Fuel Pump Relay: Identify the relay panel and specific fuel pump relay in your 2001 Suburban
- Access Fuel Pump Wiring: Remove necessary panels to access the fuel pump wiring harness
- Identify Correct Wires: Determine the power and ground wires for the fuel pump connection
- Connect Power Source: Use a jumper wire to connect the power source directly to the fuel pump
- Test Fuel Pump Operation: Start the vehicle to verify the fuel pump is functioning correctly
Locate Fuel Pump Relay: Identify the relay panel and specific fuel pump relay in your 2001 Suburban
The fuel pump relay in a 2001 Suburban is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Before attempting to hot wire the fuel pump, you must first locate this relay. Start by identifying the relay panel, typically found under the hood near the driver’s side fender or inside the cabin, often beneath the dashboard. The 2001 Suburban’s relay panel is usually labeled, making it easier to pinpoint the exact location. Once you’ve located the panel, consult your vehicle’s manual or a reliable online diagram to identify the specific fuel pump relay. It’s often marked as “FUEL PUMP” or “FP” and is housed in a rectangular slot among other relays.
Analyzing the relay panel layout is crucial for accuracy. Relays are designed to manage high-current loads, and the fuel pump relay specifically controls power to the fuel pump. In the 2001 Suburban, this relay is typically a four-pin or five-pin design, depending on the model. Understanding its pin configuration—such as which pins control the coil and which handle the power supply—is essential for safely hot wiring the system. Misidentifying the relay or its pins can lead to electrical damage or failure to activate the fuel pump.
To locate the fuel pump relay efficiently, follow these steps: First, ensure the vehicle is turned off and the ignition key is removed to prevent accidental activation. Open the hood and locate the fuse/relay box, which is often a black rectangular unit with a removable lid. Remove the lid to expose the relays and fuses. If the panel is inside the cabin, it may require removing a lower dashboard panel or accessing a side compartment. Once exposed, cross-reference the relay positions with your vehicle’s manual or an online resource to confirm the fuel pump relay’s location. Pro tip: Some relays are interchangeable in appearance, so verify by checking for the “FUEL PUMP” label or using a multimeter to test for continuity.
A comparative approach highlights the importance of precision in this step. Unlike newer vehicles with integrated fuse boxes, the 2001 Suburban’s relay panel is modular, allowing for easier access but requiring careful identification. For instance, the fuel pump relay may be adjacent to the starter relay, which serves a different function. Mistaking one for the other could result in incorrect wiring or damage to the starter system. Always double-check the relay’s position and markings to avoid such errors.
In conclusion, locating the fuel pump relay in a 2001 Suburban is a foundational step in hot wiring the fuel pump. By identifying the relay panel, understanding its layout, and following a systematic approach, you can ensure accuracy and safety. This process not only prepares you for hot wiring but also enhances your overall understanding of your vehicle’s electrical system. Always prioritize caution and verification to avoid costly mistakes.
Fuel Pump Lifespan: How Long Does It Typically Last?
You may want to see also
Explore related products
Access Fuel Pump Wiring: Remove necessary panels to access the fuel pump wiring harness
To access the fuel pump wiring harness on a 2001 Suburban, you’ll first need to locate the fuel pump module, which is typically situated atop the fuel tank. This requires removing interior panels to reach the wiring harness without dropping the tank, a task that balances efficiency with safety. Start by disconnecting the negative battery terminal to prevent accidental electrical shorts, a critical step often overlooked in DIY repairs.
The process begins with removing the rear seats or cargo area panels, depending on your Suburban’s configuration. For most models, this involves unsnapping plastic retainers or unscrewing bolts using a Phillips or Torx driver. Work methodically, as forcing panels can damage clips or trim. Once exposed, you’ll find the fuel pump access panel, usually marked by a round or rectangular cover. This panel shields the wiring harness and fuel pump assembly, providing a direct route to the electrical connections.
Removing the access panel typically requires a socket wrench or appropriate tool to loosen the retaining bolts. Be cautious not to strip the threads, as this complicates reassembly. With the panel removed, you’ll see the wiring harness connector, often secured with a locking tab. Depress the tab and pull the connector apart to expose the wires. This step is straightforward but demands precision to avoid damaging the connector, which could lead to costly repairs.
Before proceeding to hot-wire the fuel pump, inspect the wiring harness for signs of wear, corrosion, or damage. If the wires appear frayed or the connector is compromised, consider replacing the harness to ensure reliability. This intermediate check can save time and prevent further issues down the line. With the wiring harness accessible, you’re now positioned to safely test or bypass the fuel pump circuit, ensuring your Suburban’s fuel system operates as intended.
Electric Wires in Fuel Pumps: Fact or Fiction Explained
You may want to see also
Explore related products
Identify Correct Wires: Determine the power and ground wires for the fuel pump connection
The 2001 Suburban's fuel pump relies on a precise electrical connection, and identifying the correct wires is crucial for a successful hot-wire. The fuel pump connector typically houses multiple wires, each serving a specific function. Among these, the power wire delivers the necessary voltage to activate the pump, while the ground wire completes the circuit, allowing current to flow. Misidentifying these wires can lead to electrical malfunctions or even damage to the vehicle's components.
To pinpoint the power wire, consult the vehicle's wiring diagram or repair manual. In most cases, the power wire is a thick, insulated wire, often colored red or orange, and is connected to the fuel pump's positive terminal. This wire receives power directly from the battery or the vehicle's main fuse box. The ground wire, on the other hand, is usually black or brown and is connected to the fuel pump's negative terminal, providing a return path for the electrical current.
A practical approach to verifying wire identities involves using a multimeter, a versatile tool for measuring voltage, current, and resistance. Set the multimeter to the voltage setting and connect its probes to the suspected power and ground wires. With the ignition turned on, the power wire should display a voltage reading close to the vehicle's battery voltage (typically around 12-14 volts). The ground wire, when tested for continuity with the vehicle's chassis, should show a direct connection, indicating a solid ground.
It's essential to exercise caution during this process, as working with electrical systems carries inherent risks. Ensure the vehicle is turned off and the battery is disconnected before handling any wires. Additionally, be mindful of the fuel pump's location, often situated near the fuel tank, which may require working in tight spaces. By accurately identifying the power and ground wires, you'll be well-prepared to proceed with the hot-wiring process, ensuring a safe and effective connection to the 2001 Suburban's fuel pump.
In the context of hot-wiring a fuel pump, understanding the wire color codes and their functions is vital. While color standards may vary across manufacturers, familiarity with common conventions can expedite the identification process. For instance, in many GM vehicles, including the 2001 Suburban, the power wire is often pink or light green, while the ground wire is black or dark green. However, relying solely on color codes can be misleading, emphasizing the importance of cross-referencing with wiring diagrams or repair manuals. By combining visual inspection with diagnostic tools like the multimeter, you can confidently determine the correct wires, setting the stage for a successful hot-wire connection.
Step-by-Step Guide to Removing Fuel Pump in 89 Dodge
You may want to see also
Explore related products
Connect Power Source: Use a jumper wire to connect the power source directly to the fuel pump
Connecting the power source directly to the fuel pump using a jumper wire is a critical step in hot-wiring a 2001 Suburban’s fuel pump. This method bypasses the vehicle’s standard ignition system, delivering immediate power to the pump to test functionality or diagnose issues. Begin by locating the fuel pump connector, typically found beneath the rear seat or in the cargo area, depending on the model. Ensure the vehicle is off and the battery is disconnected to prevent electrical hazards. Strip the ends of a 12-gauge jumper wire and attach one end to the positive terminal of the battery or a known 12-volt power source. Connect the other end to the fuel pump’s power wire, usually identified by its color (often red or orange). This direct connection forces the pump to activate, allowing you to verify if it’s operational or if the issue lies elsewhere in the fuel system.
While this technique is straightforward, it requires precision and caution. Incorrect wiring can damage the pump or create a short circuit. Always double-check the polarity before making the connection. If the pump fails to engage, test the ground wire by connecting it directly to the vehicle’s chassis to ensure a solid return path. This step isolates whether the problem is power delivery or grounding. For safety, wear insulated gloves and avoid touching both wire ends simultaneously to prevent shocks.
Comparatively, this method is more direct than troubleshooting through the vehicle’s relay or fuse box, which involves additional steps and components. By bypassing these intermediaries, you gain clarity on the pump’s condition. However, it’s a temporary diagnostic tool, not a permanent fix. Prolonged use of a jumper wire can overheat the pump or drain the battery. If the pump functions correctly, the issue likely lies in the relay, wiring harness, or ignition system, requiring further investigation.
In practice, this technique is invaluable for diagnosing fuel delivery problems, especially in older vehicles like the 2001 Suburban, where relays and wiring may degrade over time. It’s a hands-on approach that empowers DIY mechanics to pinpoint issues without specialized tools. However, always treat hot-wiring as a last resort after ruling out simpler causes, such as a blown fuse or faulty relay. Once the pump is confirmed operational, reconnect the system properly to avoid long-term damage. This method bridges the gap between guesswork and certainty, making it a staple in automotive troubleshooting.
DIY Guide: Replacing the Fuel Pump in Your Jeep YJ
You may want to see also
Explore related products
Test Fuel Pump Operation: Start the vehicle to verify the fuel pump is functioning correctly
Starting the vehicle is the ultimate test to confirm your hot-wired fuel pump is operational. This step bridges the gap between theoretical troubleshooting and real-world functionality. Before turning the key, ensure all connections are secure and the fuel pump wiring is properly grounded to avoid shorts or damage. Once the engine starts, listen for the characteristic hum of the fuel pump, which should be audible for a few seconds as it pressurizes the fuel system.
Analyzing the vehicle’s response during startup provides critical insights. If the engine cranks but doesn’t start, the issue may lie elsewhere, such as a clogged fuel filter or faulty injectors. However, if the engine starts and runs smoothly, the fuel pump is likely functioning correctly. Pay attention to any unusual noises or vibrations, as these could indicate a failing pump or improper installation.
A practical tip for this stage is to monitor the fuel pressure gauge, if available, to ensure it reaches the manufacturer’s specified range (typically 55–60 PSI for a 2001 Suburban). If the gauge reads low, the pump may be weak or the system may have a leak. In the absence of a gauge, observe the engine’s performance under load—acceleration, idling, and response to throttle input—to gauge fuel delivery adequacy.
Comparatively, testing the fuel pump operation by starting the vehicle is more reliable than bench testing or using a multimeter, as it simulates real driving conditions. It also allows you to assess the pump’s performance in conjunction with other engine systems, providing a holistic diagnostic perspective. However, always exercise caution: if the vehicle hasn’t run in a while, check for fuel leaks before starting, and ensure proper ventilation to avoid fumes or fire hazards.
In conclusion, starting the vehicle is the definitive test for a hot-wired fuel pump. It combines auditory, visual, and performance-based diagnostics to confirm functionality. By carefully observing the engine’s behavior and addressing any anomalies, you can ensure the fuel pump is ready for safe and reliable operation. Always prioritize safety and double-check connections before proceeding.
Restoring Your Fuel Pump: A Step-by-Step Guide to Proper Rest and Maintenance
You may want to see also
Frequently asked questions
No, you will need basic tools like a screwdriver, wire strippers, and pliers to safely hot wire the fuel pump.
The fuel pump is located inside the fuel tank, which is accessible from underneath the vehicle.
You’ll need to connect the positive wire from the fuel pump to a 12V power source (like the battery) and the negative wire to a good ground.
Hot wiring should only be done as a temporary fix and with caution, as it can pose a fire risk if not done correctly. Always consult a professional if unsure.
Turn the ignition to the "ON" position and listen for the fuel pump to prime (a brief humming sound). If it doesn’t activate, check your connections or test the pump directly.
