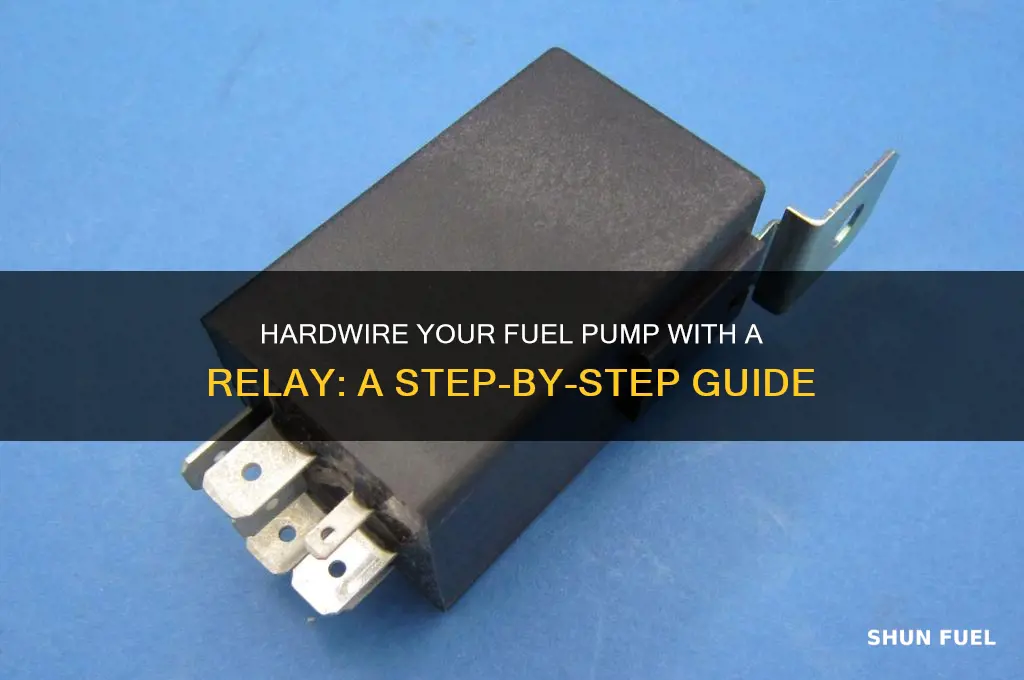

Hardwiring a fuel pump with a relay is a crucial modification for enhancing the reliability and performance of a vehicle's fuel system, particularly in high-performance or custom applications. By using a relay, the fuel pump is powered directly from the battery, reducing the load on the factory wiring and ensuring a consistent power supply. This setup also allows for better control over when the pump operates, often tied to the ignition system for safety and efficiency. Proper installation involves selecting the correct relay and wiring components, ensuring secure connections, and adhering to safety standards to prevent electrical issues or fuel system failures. Whether upgrading an existing system or installing a new fuel pump, understanding the process of hardwiring with a relay is essential for achieving optimal functionality and longevity.
| Characteristics | Values |
|---|---|
| Purpose | To directly power a fuel pump using a relay, bypassing the factory wiring for increased reliability and performance. |
| Tools Required | Wire strippers, crimping tool, soldering iron (optional), multimeter, heat shrink tubing, electrical tape, relay (30/40 amp), fuse holder, appropriate gauge wire (typically 10-14 AWG), connectors. |
| Safety Precautions | Disconnect battery before starting, work in a well-ventilated area, avoid sparks near fuel lines, use proper fuse ratings. |
| Relay Pinout | 85 - Coil Ground, 86 - Coil Power (switched), 30 - Battery Power, 87 - Output to Fuel Pump. |
| Wiring Connections | 1. Connect 30 to battery positive with inline fuse. 2. Connect 87 to fuel pump positive. 3. Connect 85 to ground. 4. Connect 86 to switched power source (e.g., ignition switch or ECU). |
| Grounding | Ensure both relay and fuel pump have secure ground connections to chassis or engine block. |
| Fuse Rating | Use a fuse rated slightly higher than the fuel pump's current draw (e.g., 20 amp fuse for a 15 amp pump). |
| Wire Gauge | Use appropriate gauge wire based on current draw and length (shorter runs allow for thinner wire). |
| Testing | Use a multimeter to verify continuity and proper voltage at each connection before reattaching the battery. |
| Common Mistakes | Incorrect relay pin connections, inadequate grounding, using improper fuse ratings, insufficient wire gauge. |
| Benefits | Improved fuel pump performance, reduced voltage drop, increased reliability, and better control over fuel delivery. |
Explore related products
What You'll Learn
- Gather Tools and Materials: Wire, relay, fuse, connectors, multimeter, wire strippers, crimping tool, electrical tape
- Locate Power Source: Identify 12V constant and switched power sources in the vehicle’s fuse box
- Connect Relay to Battery: Attach relay’s power terminal to battery positive with inline fuse
- Wire Fuel Pump to Relay: Connect pump’s positive lead to relay’s switched terminal, ground pump to chassis
- Test and Secure Wiring: Verify connections with multimeter, secure wires with zip ties, and test pump operation
Gather Tools and Materials: Wire, relay, fuse, connectors, multimeter, wire strippers, crimping tool, electrical tape
Before you begin hardwiring a fuel pump with a relay, it’s critical to assemble the right tools and materials. This isn’t just about having everything on hand—it’s about ensuring safety, efficiency, and reliability. Start with the essentials: wire (12-14 gauge for most applications), a relay (rated for your fuel pump’s amperage), and a fuse (matched to the pump’s current draw, typically 15-20 amps). These form the backbone of your circuit, so don’t skimp on quality. For example, using a relay with insufficient amperage can lead to overheating and failure, while a mismatched fuse may not protect the system adequately.
Next, focus on connectors and electrical tape. Waterproof connectors are non-negotiable for fuel pump installations, as they prevent moisture intrusion that could corrode connections or cause shorts. Electrical tape serves as a secondary barrier, wrapping exposed wires and joints to insulate them further. A common mistake is relying solely on tape—always use it in conjunction with proper connectors, not as a substitute.
Your toolkit should also include a multimeter, wire strippers, and a crimping tool. The multimeter is your diagnostic lifeline, allowing you to test voltage, continuity, and resistance before and after installation. Wire strippers ensure clean, precise cuts without damaging the conductor, while a crimping tool creates secure, professional connections. Pro tip: practice crimping on scrap wire first to avoid weak joints that could fail under load.
Finally, consider the workflow. Lay out all materials in a logical order before starting—wire first, then connectors, followed by tools. This minimizes interruptions and reduces the risk of errors. For instance, stripping wires before crimping connectors streamlines the process and prevents accidental damage to freshly crimped ends. By treating this step as a checklist, you’ll transform a potentially chaotic task into a systematic, error-free procedure.
