Regan Brown

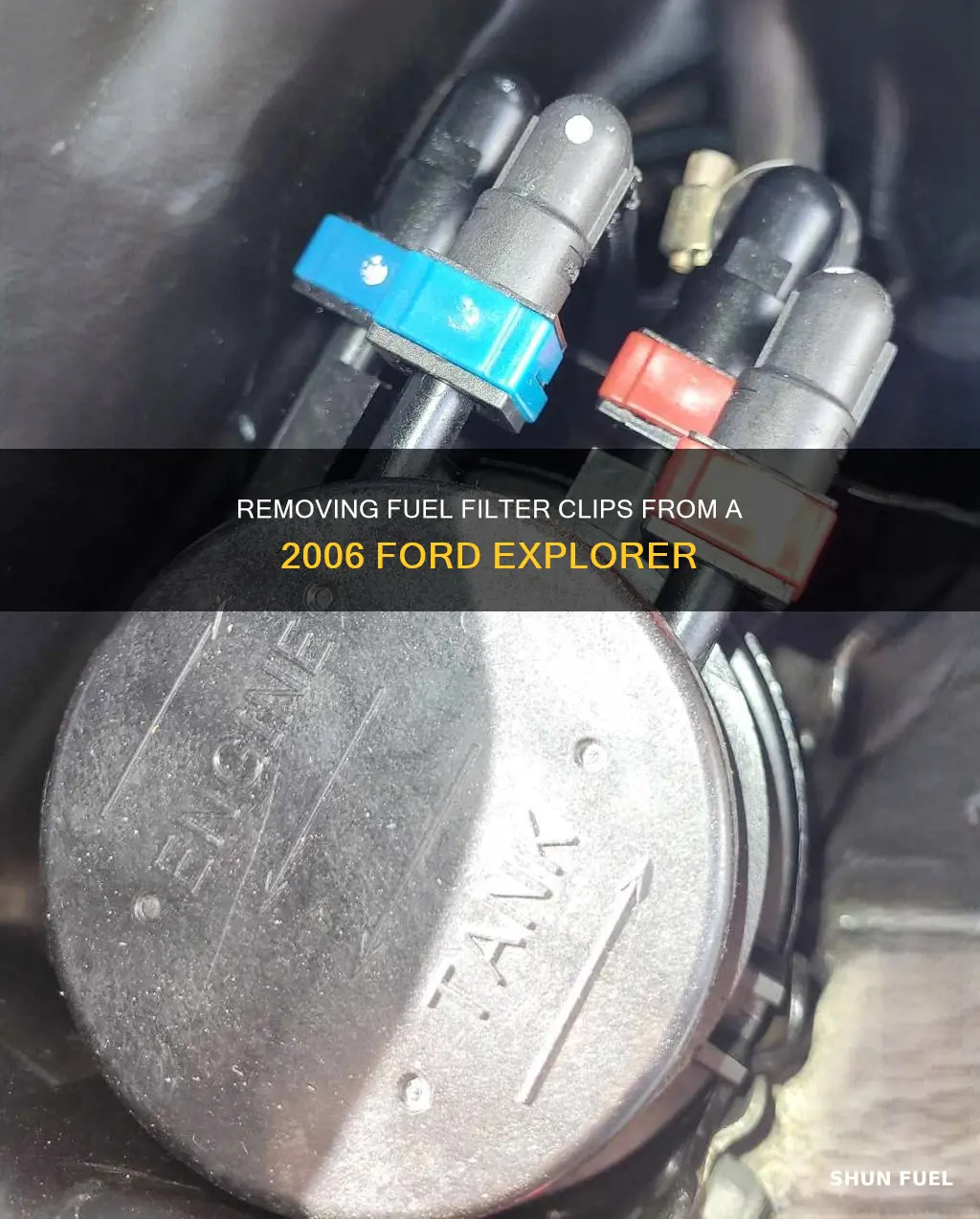

The fuel filter in a 2006 Ford Explorer is positioned in the line leading from the gas tank to the engine. It prevents contaminants from entering the engine, which could cause a loss in performance and potential damage to the cylinder lining. There are two types of clips on each end of the fuel filter: one on the fuel tank side and the other on the engine side. The gas tank side clip has tabs that can be pinched and slid off, while the engine side clip has a unique spring design that requires a tool to be clasped and pushed into the space between the filter end and the line fitting. The cost of changing a vehicle's fuel filter ranges from $90 to $207 on average, but it is possible to do it yourself.
| Characteristics | Values |
|---|---|
| Average cost to change a vehicle's fuel filter | $90 to $207 |
| Symptoms of a fuel filter that needs changing | Problems with starting, stalling, excessive vibration while driving, rough slow-speed cruising |
| Fuel filter location | Passenger side in front of the gas tank |
| Fuel filter clips | Two types: one on the fuel tank side, one on the engine side |
| Fuel filter clip mechanism | Tabs that pinch the end like fingers in the shape of a U |
| Fuel filter clip removal | Shimmy each side up until they've popped up and the whole clip can be slid off |
| Fuel line clip replacement | Available at most auto parts stores |
Explore related products
What You'll Learn
The fuel filter is located in front of the gas tank on the passenger side
The fuel filter on a 2006 Ford Explorer is located in front of the gas tank on the passenger side. To access it, follow the passenger-side exhaust to the frame rail that crosses the car. In the corner on the passenger side, you will find a plastic cover labelled "Fuel Filter". This cover is secured by two 10mm nuts. After removing the plastic cover, you will see a metal cover behind it, which you should also remove to access the fuel filter. Depending on the year model, you may need a fuel line tool to remove the filter.
Now, onto the clips. There are two types of clips on each end of the fuel filter. One type is on the fuel tank side, and the other is on the engine side. The fuel tank side clip is the easier one to deal with. It has tabs that pinch the end like fingers in the shape of a U. To remove these clips, identify them, and then shimmy each side up until they pop up. At this point, you can slide the clip off.
The engine side clips are more challenging due to their design. These clips have a weird type of spring inside the fitting ends that closes in on the filter end. To remove them, you will need a tool that can be clasped around the filter end and then pushed into the space between the filter end and the line fitting.
It is important to note that some people have reported difficulties in understanding how the clips work, even with prior experience working on vehicles. Additionally, be cautious when dealing with the plastic clips, as mangling them could affect the entire fuel line.
Changing Fuel Filters: Freightliner Cascadia Guide
You may want to see also
Explore related products
The gas tank side clip has tabs that pinch the end like fingers
The fuel filter on a 2006 Ford Explorer has two types of clips on each end. One type is on the fuel tank side, and the other is on the engine side. The gas tank side clip, also known as the outlet side, has tabs that pinch the end like fingers in a U-shape. To remove this clip, you need to identify the tabs and shimmy each side up until they pop up. Once both sides are popped up, you can slide the clip off. This type of clip is considered easier to remove compared to the engine side clips.
The U-shaped clips on the gas tank side can be removed by squeezing and pushing them up. However, it can be challenging to explain the process without visual aid, as some forum users have experienced. Taking a picture or video of the fuel filter and clips before attempting any repairs can be helpful for reference during the removal process.
It is important to note that these clips are essential for holding the fuel line in place. If a clip breaks or goes missing, it may be necessary to purchase a new fuel line, as clips for certain year models may no longer be available from dealers. Replacement clips were previously available at most auto parts stores, but availability may vary depending on the specific model and year of the Ford Explorer.
When working on the fuel filter, it is recommended to have a set of tools and safety equipment, including a 10mm socket, a 13mm socket, towels to catch any runoff and provide a clean surface to lay the filter on, and safety goggles to protect your eyes.
Cleaning Water from Your Skid Steer Fuel Filter
You may want to see also
Explore related products
Engine side clips are harder to remove due to their design
The fuel filter in a 2006 Ford Explorer is positioned in the line leading from the gas tank to the engine. There are two types of clips on each end of the fuel filter. One type is on the fuel tank side, and the other is on the engine side. The gas tank side clips are easier to remove as they have tabs that pinch the end like fingers in the shape of a U. These can be identified and shimmed up until they pop up, and then the entire clip can be slid off.
The engine side clips are harder to remove due to their design. They have a unique spring inside the fitting ends that closes in on the filter end, similar to how your index finger and thumb would squeeze around a pipe in a circle. A tool must be clasped around the filter end and then pushed into the space between the filter end and the line fitting. This action separates the spring and releases the pressure. It may take some force to remove the clip, so you may need to fight with it, bang it around, and rotate it back and forth.
It is important to note that some sources advise against using tools when removing the clips as it may cause a deformity in the clip components, leading to fuel leaks. Instead, it is recommended to relieve the fuel pressure before attempting to remove the clips.
Additionally, the plastic clips can be tricky to work with as any mangling can result in the entire fuel line being compromised.
Cleaning a 20 HP Mercury Outboard: Fuel Filter Guide
You may want to see also
Explore related products
Use a wire to retrieve lost clips
If you have lost a clip from your fuel filter, you can try using a wire to retrieve it. This method is particularly useful if the clip has fallen on top of the gas tank.
First, identify the type of clip that has fallen off. Fuel filters usually have two types of clips on each end. One type is on the fuel tank side, and the other is on the engine side. The gas tank side clip has tabs that pinch the end like fingers in the shape of a U.
Once you have identified the type of clip, you can try to retrieve it with a wire. Take a wire and run it over the gas tank. Try to hook or catch the clip with the wire and carefully pull it out.
If you are unable to retrieve the clip with a wire, you may need to purchase a new clip. You can try checking your local auto parts store or dealer for a replacement. It is recommended to have a professional mechanic take a look, as they will have better problem-solving skills and can provide guidance on retrieving the clip or obtaining a replacement.
Draining the LB7 Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Replacement clips are available at most auto parts stores
If you need to replace the clips on your 2006 Ford Explorer fuel filter, you may be able to find them at your local auto parts store. Some people have reported buying these clips at AutoZone, in the aisle where they sell door handles, clips, orings, bolts, and other small parts. You can buy a box of 4-5 clips.
If you are unsure about which clips you need, it may be best to consult your owner's manual or a mechanic. The fuel filter is an important part of your car's engine, and it is positioned in the line leading from the gas tank to the engine. It prevents contaminants from getting inside the engine, which could lead to a loss in performance and potential damage to the cylinder lining.
The fuel filter on a 2006 Ford Explorer should be replaced every 5 years or 50,000 miles, but older cars may need their filters replaced more frequently (every 2 years or 30,000 miles). You may need to replace your fuel filter if you are experiencing problems with starting your car, stalling, excessive vibration while driving, or rough slow-speed cruising.
The average cost to change a vehicle's fuel filter is between $90 and $207, including parts and labor. However, the cost may vary depending on your specific car and location, so it is best to consult a local service center for a more accurate estimate.
Changing Fuel Filter: 2005 Chevy Colorado Guide
You may want to see also
Frequently asked questions
The 2006 Ford Explorer fuel filter has two types of clips on each end. One type is on the fuel tank side, and the other is on the engine side. The fuel tank side clip has tabs that can be pinched and slid off. The engine side clips are harder to remove due to their design.
The clips hold the fuel line in place.
Replacement clips can be purchased at most auto parts stores.
