Rajan Wilcox

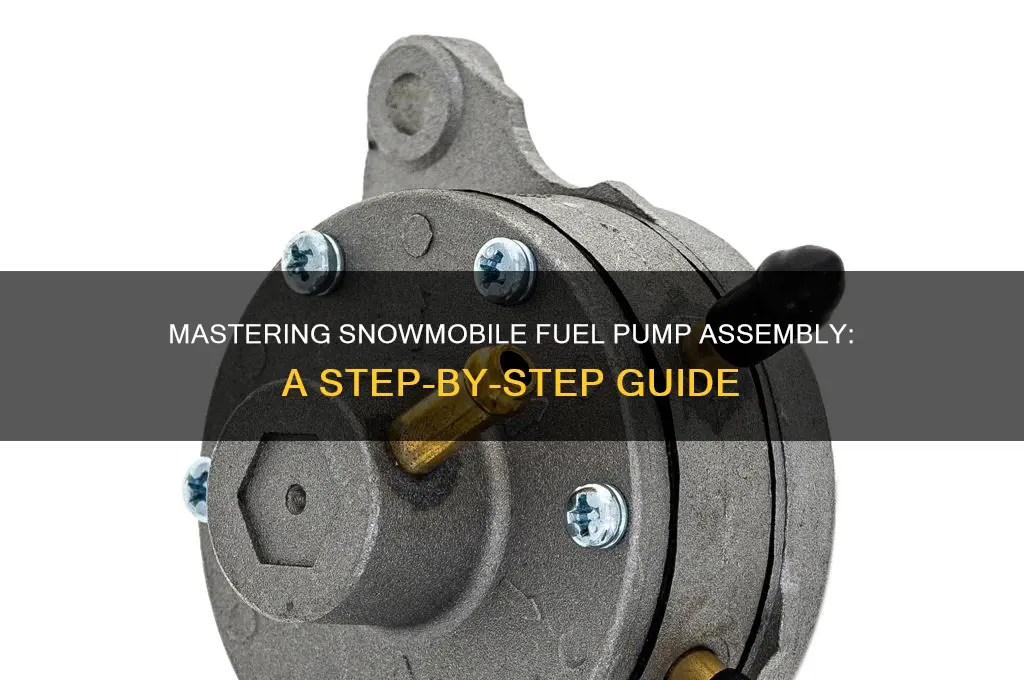

Assembling a snowmobile fuel pump is a critical task that ensures your vehicle operates efficiently, especially in harsh winter conditions. Proper assembly involves understanding the components, such as the pump body, diaphragm, and inlet/outlet ports, and following a precise step-by-step process. Begin by cleaning all parts to prevent contamination, then carefully align and secure the diaphragm and gaskets to avoid leaks. Ensure all connections are tight and properly sealed to maintain fuel flow and pressure. Referencing the manufacturer’s manual is essential for model-specific instructions, as designs can vary. Correct assembly not only enhances performance but also extends the lifespan of your snowmobile’s fuel system, ensuring reliable operation during snowy adventures.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Typically, snowmobiles use in-tank electric fuel pumps. |
| Tools Required | Screwdrivers (various sizes), wrenches, pliers, fuel line disconnect tools, safety goggles, gloves, new fuel pump (if replacing), fuel filter (if applicable), fuel hose clamps, gasket sealant (if needed). |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel system pressure, avoid sparks or open flames, wear safety goggles and gloves. |
| Steps | 1. Locate the Fuel Pump: Consult your snowmobile's manual to find the fuel pump location (usually inside the fuel tank). 2. Drain Fuel: Safely drain the fuel tank to prevent spills. 3. Access the Pump: Remove the fuel tank or access panel to reach the pump. 4. Disconnect Components: Disconnect fuel lines, electrical connectors, and mounting bolts. 5. Remove Old Pump (if replacing): Carefully remove the old pump, noting its orientation and any gaskets. 6. Install New Pump (if applicable): Install the new pump, ensuring proper alignment and sealing with gaskets. 7. Reconnect Components: Reconnect fuel lines, electrical connectors, and secure with bolts. 8. Reinstall Fuel Tank/Panel: Securely reinstall the fuel tank or access panel. 9. Refill Fuel: Refill the fuel tank and check for leaks. 10. Test Operation: Start the snowmobile and check for proper fuel pump operation. |
| Common Issues | Clogged fuel filter, faulty electrical connections, worn pump impeller, fuel line leaks. |
| Maintenance Tips | Regularly inspect fuel lines for cracks or leaks, replace fuel filter as recommended, keep fuel tank clean and free of debris. |
| Professional Assistance | If unsure or encountering complex issues, consult a qualified snowmobile mechanic. |
Explore related products
What You'll Learn
- Gather Tools and Parts: Collect necessary tools, replacement parts, and safety gear before starting the assembly process
- Disassemble Old Pump: Carefully remove the old fuel pump, noting connections and components for reassembly
- Clean and Inspect: Clean all parts thoroughly and inspect for damage or wear before proceeding
- Install New Components: Assemble the new fuel pump, ensuring all parts are securely connected and aligned
- Test and Adjust: Reinstall the pump, test for leaks, and adjust fuel flow as needed for optimal performance
Gather Tools and Parts: Collect necessary tools, replacement parts, and safety gear before starting the assembly process
Before diving into the assembly of a snowmobile fuel pump, it's crucial to gather all the necessary tools, replacement parts, and safety gear. This preparatory step not only streamlines the process but also minimizes the risk of errors or accidents. Start by consulting the snowmobile’s service manual or manufacturer’s guidelines to identify the specific tools and parts required for your model. Common tools include wrenches, screwdrivers, pliers, and a torque wrench, while essential parts may consist of a new fuel pump, gaskets, seals, and fuel lines. Safety gear, such as nitrile gloves, safety goggles, and a fire extinguisher, is equally important to protect against fuel spills or other hazards.
Analyzing the task at hand, the organization of your workspace is just as vital as the tools themselves. Lay out all items in a logical order, grouping tools with their corresponding parts for easy access. For instance, place the fuel pump alongside the gaskets and seals, and keep the torque wrench near any bolts that require precise tightening. This systematic approach not only saves time but also reduces the likelihood of misplacing components during assembly. Additionally, ensure your workspace is well-ventilated and free from open flames or sparks, as fuel vapors can be highly flammable.
From a practical standpoint, consider the quality and compatibility of the replacement parts. Opt for OEM (Original Equipment Manufacturer) parts or high-quality aftermarket alternatives to ensure durability and performance. Inspect all components for defects before installation, as a faulty part can compromise the entire fuel system. For example, a cracked fuel line or a malfunctioning pump diaphragm can lead to leaks or inadequate fuel delivery. If you’re unsure about a part’s compatibility, cross-reference it with the snowmobile’s VIN (Vehicle Identification Number) or consult a professional mechanic.
A persuasive argument for thorough preparation is the long-term reliability of your snowmobile. Skipping this step may save time initially but can result in costly repairs or downtime later. For instance, using the wrong tools or omitting safety gear increases the risk of damage to the fuel pump or personal injury. Similarly, neglecting to replace worn gaskets or seals can lead to fuel leaks, which not only waste fuel but also pose environmental and safety risks. Investing time in gathering the right tools and parts upfront ensures a smoother assembly process and extends the lifespan of your snowmobile’s fuel system.
In conclusion, the "Gather Tools and Parts" phase is a cornerstone of successful snowmobile fuel pump assembly. By meticulously collecting the necessary tools, replacement parts, and safety gear, you set the stage for a seamless and safe installation. This step not only enhances efficiency but also safeguards against potential hazards, ensuring your snowmobile operates reliably in the harsh winter conditions it’s designed to tackle. Treat this preparation as an investment in both your machine’s performance and your own peace of mind.
Understanding the Functionality of a Jeep Fuel Pump: A Comprehensive Guide
You may want to see also
Explore related products
Disassemble Old Pump: Carefully remove the old fuel pump, noting connections and components for reassembly
Before tackling the assembly of a new snowmobile fuel pump, a critical precursor is the meticulous disassembly of the old one. This process demands precision and attention to detail, as it lays the groundwork for a successful reassembly. Begin by disconnecting the fuel lines, ensuring you relieve any residual pressure in the system to avoid spills or accidents. Use a wrench or pliers to loosen the fittings, but be cautious not to overtighten or damage the threads. Label each line with its corresponding location—for instance, "inlet" or "outlet"—to streamline reassembly and prevent errors.
Next, focus on the electrical connections. Most snowmobile fuel pumps have a wiring harness plugged into the pump’s motor. Gently disconnect this harness, noting its orientation and any locking mechanisms. Some pumps may have additional sensors or ground wires; document their positions with photographs or sketches. This step is crucial, as incorrect reconnection can lead to electrical malfunctions or pump failure. Treat these components with care, as they are often delicate and prone to damage if mishandled.
With the external connections addressed, proceed to remove the pump itself. Depending on your snowmobile model, the pump may be secured with bolts, clamps, or brackets. Use the appropriate tools to loosen these fasteners, keeping track of their sizes and locations. For example, a 10mm socket wrench is commonly required for bolt removal. As you lift the pump out, inspect its mounting surface for signs of wear or debris, as these could affect the new pump’s performance. Clean the area thoroughly with a lint-free cloth and carburetor cleaner to ensure a pristine installation surface.
Finally, disassemble the old pump’s internal components if necessary for diagnostic purposes. This step is optional but can provide valuable insights into the cause of failure. Carefully separate the housing, noting the order and orientation of gaskets, seals, and internal parts. For instance, the impeller or diaphragm may reveal signs of wear or damage. Document these findings, as they can guide future maintenance or part replacements. By methodically disassembling the old pump and documenting each step, you not only ensure a smooth reassembly process but also gain a deeper understanding of your snowmobile’s fuel system.
Mastering Fuel Regulation on Your Holley Single Pumper Carburetor
You may want to see also
Explore related products
Clean and Inspect: Clean all parts thoroughly and inspect for damage or wear before proceeding
Before reassembling a snowmobile fuel pump, meticulous cleaning and inspection of all components is critical. Residual dirt, debris, or old fuel can compromise performance, while unnoticed damage or wear can lead to premature failure. This step, though often overlooked, is the foundation of a reliable repair.
Cleanliness is paramount. Disassemble the fuel pump completely, separating components like the housing, diaphragm, valves, and gaskets. Use a carburetor cleaner or a dedicated fuel system cleaner to dissolve varnish, gum, and contaminants. For stubborn deposits, a soft-bristled brush or dental pick can be used, but avoid abrasive materials that could scratch surfaces. Rinse thoroughly with clean solvent and allow parts to air dry completely before inspection.
Inspection requires a keen eye and a methodical approach. Examine the diaphragm for cracks, tears, or thinning, as these can lead to fuel leaks or inadequate pressure. Check valves for warping, pitting, or debris buildup, ensuring they seat properly. Inspect gaskets and O-rings for brittleness, cracking, or deformation, replacing them if necessary. Look for signs of corrosion on metal parts, particularly around electrical connections, and address any issues with a wire brush or corrosion inhibitor.
The consequences of skipping this step can be severe. Contaminants left in the system can clog fuel lines or damage internal components, leading to poor engine performance or stalling. Undetected wear, such as a weakened diaphragm, can result in fuel pressure drops, causing hard starting or rough idling. By investing time in thorough cleaning and inspection, you not only ensure the longevity of the fuel pump but also contribute to the overall reliability and safety of your snowmobile.
Practical tips can streamline this process. Organize parts as you disassemble, using a clean work surface or a parts tray to keep track of components. Take photos during disassembly to aid in reassembly. If unsure about the condition of a part, consult the manufacturer's specifications or seek advice from a qualified mechanic. Remember, a clean and thoroughly inspected fuel pump is the cornerstone of a successful reassembly, ensuring your snowmobile runs smoothly in the harshest winter conditions.
Fuel Pump Necessity for 4HP Outboard Motors: What You Need to Know
You may want to see also
Explore related products
Install New Components: Assemble the new fuel pump, ensuring all parts are securely connected and aligned
Assembling a new fuel pump for your snowmobile requires precision and attention to detail. Begin by laying out all components on a clean, flat surface, ensuring no debris can contaminate the parts. Refer to the manufacturer’s diagram to identify each piece, including the pump body, inlet and outlet ports, gaskets, and mounting hardware. Proper alignment is critical; misaligned parts can lead to leaks or mechanical failure. Start by attaching the gaskets to the pump body, ensuring they sit flush and cover all sealing surfaces. Use a torque wrench to secure bolts to the manufacturer’s specifications, typically ranging from 8 to 12 foot-pounds, depending on the model.
Once the pump body is assembled, focus on connecting the fuel lines. Ensure the inlet and outlet ports align with the snowmobile’s fuel system. Use hose clamps to secure the lines, tightening them just enough to prevent slippage without crushing the hoses. Inspect all connections for gaps or misalignment, as even a small crack can lead to fuel leaks. If your snowmobile uses a fuel filter, attach it inline according to the manufacturer’s instructions, ensuring the flow direction matches the arrow on the filter housing.
A common mistake during assembly is over-tightening components, which can warp gaskets or damage threads. To avoid this, tighten bolts in a crisscross pattern, gradually increasing torque in stages. Test the assembly by priming the pump with fuel before installation. This step verifies that the pump operates smoothly and that all seals are intact. If you notice resistance or unusual noises, disassemble the unit and recheck alignment.
Finally, integrate the assembled fuel pump into your snowmobile’s fuel system. Secure the pump to the mounting bracket using the provided hardware, ensuring it’s firmly in place but not overtightened. Double-check all connections for leaks by running the engine briefly and inspecting for fuel drips. Proper assembly not only ensures reliable performance but also extends the life of your snowmobile’s fuel system. Treat this process as a meticulous task, as shortcuts can lead to costly repairs or safety hazards.
Toyota Camry Fuel Pump Testing: Step-by-Step Guide for DIY Mechanics
You may want to see also
Explore related products
Test and Adjust: Reinstall the pump, test for leaks, and adjust fuel flow as needed for optimal performance
Reinstalling the fuel pump after assembly is a critical step, but it’s only the beginning. The true test of your work lies in ensuring the system functions flawlessly under real-world conditions. Start by securely mounting the pump in its designated location, double-checking that all connections are tight and aligned. Use a torque wrench to tighten bolts to the manufacturer’s specifications—overtightening can warp components, while undertightening risks leaks. Once installed, reconnect the fuel lines, ensuring clamps are snug but not crushing the hoses. A common mistake is neglecting to check the orientation of the pump; verify it’s positioned correctly to avoid reverse flow or inefficient operation.
Testing for leaks is non-negotiable. With the snowmobile on a level surface, prime the fuel system by turning the ignition on for a few seconds without starting the engine. Inspect all connections, joints, and the pump body for signs of fuel seepage. Even a small leak can escalate into a safety hazard or performance issue. If a leak is detected, shut off the fuel supply immediately, disassemble the relevant area, and reapply thread sealant or replace damaged components. For stubborn leaks, consider using a fuel-resistant dye or UV leak detection kit to pinpoint the source under blacklight.
Adjusting fuel flow is where precision meets performance. Begin by starting the engine and letting it idle for 2–3 minutes to stabilize. Use a fuel pressure gauge to measure the output against the manufacturer’s recommended PSI (typically 30–60 PSI for snowmobile applications). If pressure is low, check for clogs in the filter or lines; if high, inspect the regulator or pump settings. Fine-tune the flow by adjusting the pump’s calibration screw or regulator, making incremental changes of ¼ turn at a time. Over-adjusting can lead to flooding or lean conditions, so monitor the engine’s response after each tweak.
Optimal performance isn’t just about pressure—it’s about consistency. Run the snowmobile through its RPM range, noting any hesitation, surging, or backfiring. These symptoms often indicate an imbalance in fuel delivery. For carbureted models, synchronize the carburetor with the adjusted fuel flow; for EFI systems, use a diagnostic tool to ensure the pump’s output aligns with sensor data. Pro tip: Log performance metrics before and after adjustments to track improvements objectively.
Finally, treat this phase as an iterative process. Environmental factors like temperature and altitude can affect fuel behavior, so retest and readjust as needed. For example, colder climates may require slightly higher flow rates to compensate for fuel viscosity. Keep a maintenance log detailing adjustments, leak tests, and performance observations—this data becomes invaluable for troubleshooting future issues. By combining meticulous testing with thoughtful adjustments, you ensure the fuel pump assembly not only works but excels in the demanding conditions snowmobiles face.
Rebuilding a Hooley Blue Fuel Pump: Step-by-Step Guide for DIY Enthusiasts
You may want to see also
Frequently asked questions
You will typically need a socket set, wrenches, pliers, a screwdriver, and possibly a torque wrench for precise tightening. Always refer to the manufacturer’s instructions for specific tools.
Yes, work in a well-ventilated area, avoid open flames or sparks, and ensure the snowmobile is turned off and cooled down. Wear safety goggles and gloves to protect against fuel spills or debris.
It’s generally recommended to use new components, especially seals, gaskets, and filters, to ensure proper functionality and prevent leaks. Reusing old parts may compromise performance.
Check for proper alignment, secure connections, and no visible leaks. Test the fuel pump by turning on the snowmobile and listening for the pump’s operation. Refer to the manual for specific troubleshooting steps.
