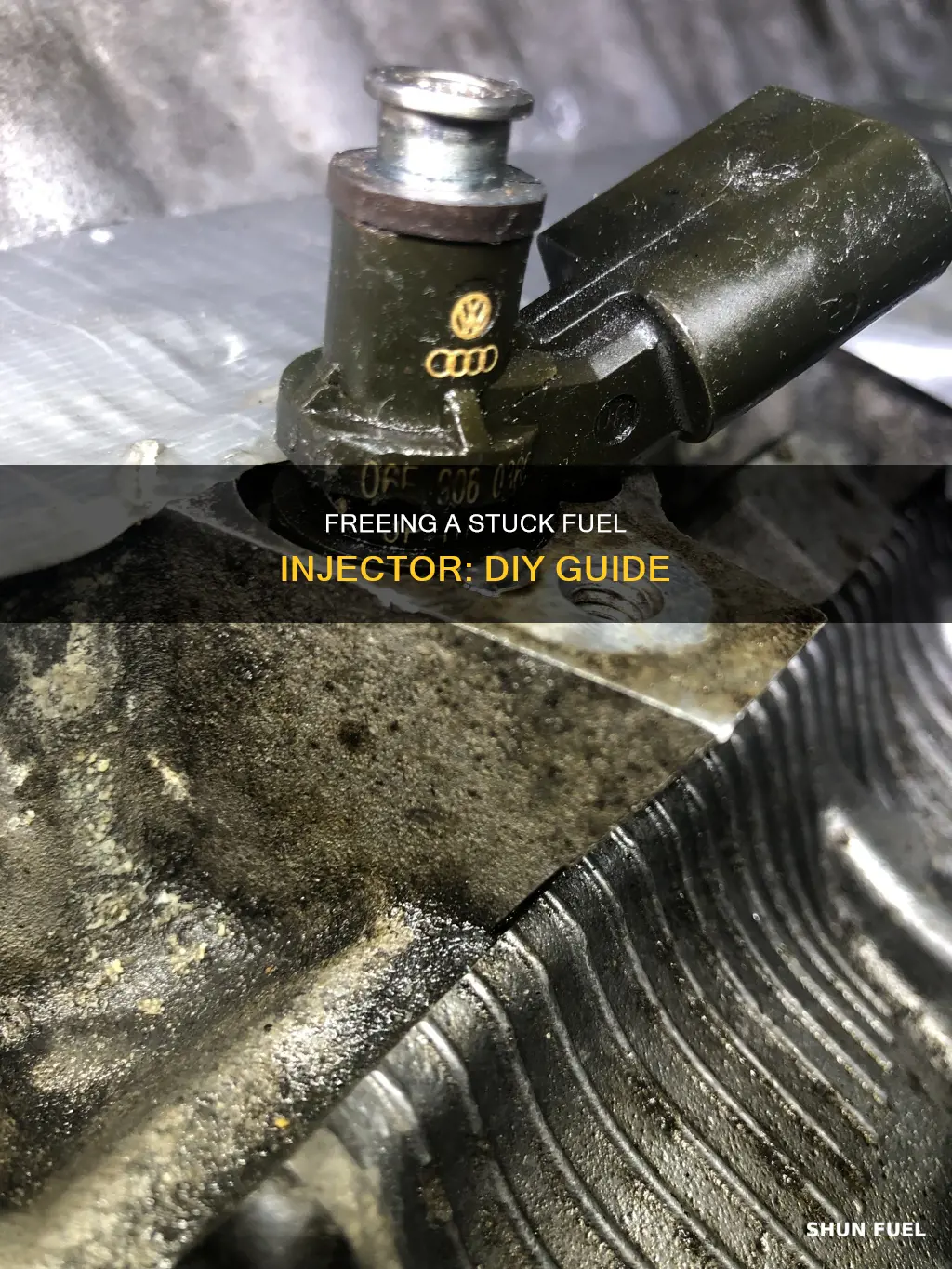

Getting a fuel injector unstuck can be a frustrating process. There are a few methods you can try, such as using penetrating oil or a lubricant, or even a professional injector cleaning service. If you're attempting to do this yourself, you'll need to check for metal clips or screw-on retainers that might be holding the injector in place and remove them carefully. You can then try to twist the injector by hand, or use a screwdriver to gently lever it up and out. If you're unsure, it's best to seek professional help to avoid causing further damage.
Characteristics and Values
| Characteristics | Values |
|---|---|
| Check for metal clips or screw-on retainers | Use needle-nose locking pliers to pull the clips loose |
| Use an impact screwdriver | Set it to the lowest setting to avoid stripping the screw head |
| Use a large flat-head screwdriver | Slide it between the fuel rail and injector plug, then twist and lift the injector |
| Use a lubricant | Spray the area and lift the injector to distribute the lubricant and break any vacuum |
| Use channel-lock pliers | Carefully remove the injector without squeezing or snapping it |
| Twist the injector by hand | Turn it freely in its mounting hole |
| Use penetrating oil | Spray the area around the fuel injector mating area and allow it to sit for ten minutes |
| Use a fuel system cleaner | Chevron Techron or AC Delco "X66P" to clean the injectors |
| Use a pressurized fuel injector tester/cleaner | Refer to YouTube videos for instructions on how to construct one |
| Use an ultrasonic cleaner | An ultrasonic bath can help get the injectors flowing like new |
Explore related products
What You'll Learn
Check for metal clips or screw-on retainers
When dealing with stuck fuel injectors, it is important to check for metal clips or screw-on retainers that might be holding the injector in place. Most fuel injectors use some form of securing mechanism to attach to the rail, and these metal clips can often be well-camouflaged on the underside of the rail.
To address this, carefully pull the metal clips loose with a set of needle-nose locking pliers. If you are dealing with a sticking retaining screw, use an impact screwdriver to break it loose. It is recommended to set the screwdriver to its lowest setting to avoid stripping the screw head.
Once you have freed any retainers, the fuel injector should turn freely in its mounting hole. If it turns, even slightly, it will eventually come out with some careful manoeuvring. If the injector is not turning, you may need to use a chemical penetrant to help loosen it. Spray the area around the fuel injector mating surface with a liberal amount of penetrating oil and let it sit for about ten minutes.
If your injectors plug into the top of the rail and pass through, be sure to spray the bottom of the injector as well. Injectors typically stick due to the rubber sealing ring drying out and adhering to the rail and injector. A lubricant can be used in these cases to help break the vacuum between the injector and the fuel rail.
Combustion Chamber vs Fuel Injector: What's the Difference?
You may want to see also
Explore related products
Use a screwdriver to create a gap, then spray lubricant
To get started, you'll need to locate the fuel injector and check for any metal clips or screw-on retainers that might be holding it in place. Fuel injectors usually use something to secure the injector to the rail, and these metal clips can often be well-camouflaged on the underside of the rail. Once you've found them, carefully pull the clips loose with a pair of needle-nose locking pliers. If there are any stubborn retaining screws, use an impact screwdriver set to its lowest setting to break them loose without stripping the screw head.
Now that the injector is free of any obvious constraints, it's time to use a screwdriver to create a gap and spray lubricant. For this step, you'll need a large flat-head screwdriver. Slide the screwdriver between the fuel rail and the injector plug. Push in and twist the screwdriver to create a slight gap. It's important to note that you probably won't have enough clearance to properly lever the injector up at this point.
As you're twisting the screwdriver and creating that gap, spray the area generously with a penetrating oil lubricant. This will help loosen any dried-out rubber sealing rings that may be causing the injector to stick. Allow the lubricant to sit for about ten minutes. If your injectors plug into the top of the rail and pass through, be sure to spray lubricant around the bottom of the injector as well.
After applying the lubricant, slowly lift the injector and set it back down. This action will help distribute the lubricant and break any vacuum that may have formed between the injector and the fuel rail. Think of the injector like a cork in a wine bottle—it might put up a bit of a fight! Take your time and keep twisting the injector; as long as it turns, it will eventually come loose. You can also use channel-lock pliers to get a better grip and help work the injector out, but be extremely careful not to squeeze too hard or snap the top of the injector off.
Fuel Injector Cleaner: Does it Work?
You may want to see also
Explore related products
Use penetrating oil to loosen the injector
To get a fuel injector unstuck, you can use penetrating oil to loosen the injector. Penetrating oil is a petroleum-based oil with an extremely fine viscosity, allowing it to be sprayed as a mist and find the smallest openings between metal parts. True penetrating oils are sold under brand names such as WD-40, PB Blaster, Liquid Wrench, and AiroKroil.
When using penetrating oil, it is important to give it enough time to seep into the crevices of the fused parts. After spraying a generous amount onto the injector, let it sit for several hours or even overnight. Then, try using wrenches to loosen the parts. If they are still stuck, apply another coat of penetrating oil, wait, and try again.
For particularly stubborn injectors, applying heat can help. For example, using a heat gun on a stuck nut will cause it to expand slightly, making it easier to turn with a wrench. However, it is important to note that direct flames should not be applied to parts that are still wet with oil, as penetrating oils are petroleum-based and could ignite.
While penetrating oil can be effective, it may not be the best solution for every situation. Additionally, it is important to differentiate between true penetrating oils and other spray lubrication products, as they serve different purposes. For instance, while WD-40 is a true penetrating oil, it also offers spray lithium or silicone lubricants that are not intended for loosening stuck parts.
There are also alternative products to consider, such as Sea Foam Deep Creep, which is a cleaner, rust penetrant, and lubricant all in one. Corrosion-X is another option that is commonly used in the aviation and marine industries to loosen, lubricate, and protect various components.
Cleaning Spider Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Test and clean the injectors
To test and clean your fuel injectors, you will need to begin by checking the resistance. You can borrow a Fluke multimeter to do this, as cheaper alternatives may give inaccurate results. You can also test them with an injector tester/cleaner, either purchased or made at home. There are several designs for this available on YouTube.
Once you have tested the injectors, you can begin the cleaning process. One method is to use an ultrasonic cleaner, which will clean the injectors and test their flow. You can also use a fuel system cleaner, such as Chevron Techron (a less expensive option) or AC Delco "X66P" (a more expensive but good option). These should be run in high concentrations with just a few gallons of gas in the tank to speed up the cleaning process.
If your injectors are stuck, you will need to free them before you can test and clean them. To do this, check around the injector for any metal clips or screw-on retainers that might be holding it in place. Carefully pull the clips loose with a set of needle-nose locking pliers. Use an impact screwdriver to break a sticking retaining screw, if needed. Set the driver on its lowest setting to avoid stripping the screw head.
If your injector turns freely, then it will come out. If not, you may need some chemical assistance. Spray the area around the fuel injector mating area—where it connects to the rail or manifold—with penetrating oil and allow it to sit for ten minutes. Injectors generally stick because the rubber sealing ring dries out and sticks to the rail and injector.
Fuel Injectors: 2007 Kia Optima's Engine Secrets
You may want to see also
Explore related products
Use a professional injector cleaning service
If you're unsure about attempting to fix a stuck fuel injector yourself, you can always enlist the help of a professional injector cleaning service. These services are cost-effective and can save you money in the long run by restoring your current injectors to like-new condition.
Injector Rx is one such service that offers comprehensive fuel injector cleaning and flow testing. They service fuel injectors for the automotive, motorcycle, and marine industries, among others. Their process includes Ohm testing to determine resistance capacity, external cleaning, and inspection for visible external damage. Injectors that pass the testing process are then lubricated and packaged for return shipment, along with a detailed flow-testing report for the owner. The standard turnaround time is 3-4 business days, but they also offer an expedited 1-business-day option. Prices start at $22.00 per manifold injector or $30.00 per direct injector.
Another option is Marren Injection Cleaning, which one user reported as costing $115 to clean four injectors and ship them back. This service reportedly resulted in a significant improvement in the vehicle's performance, with a gain of 99.8hp on a dyno.
When choosing a professional injector cleaning service, it is important to consider the quality of the work and the materials used. For example, one user reported an issue with an inexpensive injector cleaning service that used cheap replacement rubber seals that deteriorated quickly, leading to vacuum leaks. Therefore, it may be worth investing in a more reputable service to ensure quality and longevity.
Fuel Injector Cleaner: Spark Plug Cleaning Solution?
You may want to see also
Frequently asked questions
First, check around the injector for any metal clips or screw-on retainers that might be holding it in place. Use a set of needle-nose locking pliers to carefully pull the clips loose. If there is a sticking retaining screw, use an impact screwdriver to break it. Then, slide a large flat-head screwdriver between the fuel rail and the injector plug. Push in and twist the screwdriver to create a slight gap, and spray the area with lubricant. Finally, slowly lift the injector, twist it, and set it back down.
You will need a set of needle-nose locking pliers, an impact screwdriver, a large flat-head screwdriver, and some lubricant.
If the injector turns at all, it will come out if you work at it correctly. If not, you may need to use a chemical penetrant to loosen it. Spray the area around the fuel injector mating area with a liberal amount of penetrating oil and allow it to sit for ten minutes.
If your injectors are stuck, your car may have trouble starting and may only be able to start with starting fluid. You may also find that the injectors are getting power on one side but are not spraying fuel.
You can either manually clean your fuel injectors or send them to a professional injector cleaning service. To manually clean them, you can use a fuel system cleaner such as Chevron Techron (less expensive) or AC Delco "X66P" (more expensive). You can also refer to YouTube videos on how to construct a pressurized fuel injector tester/cleaner device.
