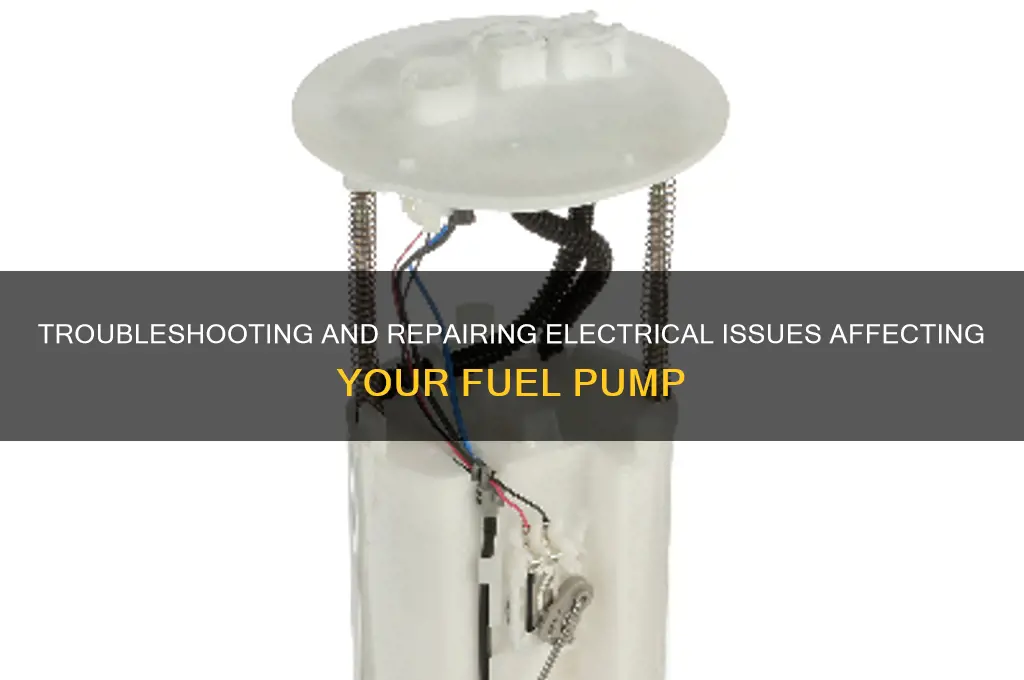

Fixing an electrical problem related to a fuel pump requires a systematic approach to diagnose and resolve the issue. Start by checking the fuel pump fuse and relay, as a blown fuse or faulty relay is a common culprit. If these components are intact, verify the fuel pump’s power and ground connections using a multimeter to ensure proper voltage is reaching the pump. If the electrical supply is confirmed, test the fuel pump’s operation by listening for the characteristic humming sound when the ignition is turned on. If the pump is not activating, inspect the fuel pump wiring harness for damage or corrosion. In some cases, the issue may stem from a faulty fuel pump switch, ECM (Engine Control Module), or a malfunctioning fuel pump itself, requiring further testing or replacement. Always consult the vehicle’s service manual for specific procedures and safety precautions.
| Characteristics | Values |
|---|---|
| Common Symptoms | No start, engine sputtering, loss of power, fuel pump not priming |
| Diagnostic Tools | Multimeter, test light, fuel pressure gauge, wiring diagram |
| Possible Causes | Blown fuse, faulty relay, damaged wiring, bad ground connection, defective fuel pump |
| Steps to Diagnose | 1. Check fuse and relay, 2. Test for power at fuel pump connector, 3. Verify ground connection, 4. Test fuel pump resistance |
| Repair Solutions | Replace fuse/relay, repair/replace damaged wiring, clean/repair ground, replace fuel pump |
| Safety Precautions | Disconnect battery, work in well-ventilated area, avoid sparks near fuel system |
| Difficulty Level | Intermediate to advanced (depending on issue) |
| Tools Required | Multimeter, wire strippers, crimping tool, screwdriver, pliers |
| Estimated Time | 1-4 hours (varies based on problem complexity) |
| Cost of Repairs | $20-$500 (depending on parts and labor) |
| Preventive Measures | Regularly inspect wiring, check fuses/relays, maintain proper grounding |
Explore related products
What You'll Learn
- Check Fuses and Relays: Inspect fuel pump fuse and relay for damage or blown components
- Test Power Supply: Verify voltage at the fuel pump connector using a multimeter
- Inspect Wiring Harness: Look for damaged, corroded, or loose wires leading to the pump
- Ground Connection Check: Ensure the fuel pump’s ground wire is clean and securely connected
- Fuel Pump Resistance: Measure fuel pump resistance to confirm it’s within manufacturer specifications
Check Fuses and Relays: Inspect fuel pump fuse and relay for damage or blown components
Electrical issues with a fuel pump often stem from faulty fuses or relays, which act as gatekeepers for the electrical current. These components are designed to protect the circuit by interrupting excessive current flow, but they can degrade over time due to heat, corrosion, or manufacturing defects. When a fuse blows or a relay fails, the fuel pump loses power, leading to engine performance issues or a complete stall. Identifying and addressing these problems early can prevent costly repairs and ensure your vehicle runs smoothly.
To inspect the fuel pump fuse, locate the fuse box, typically found under the dashboard or in the engine compartment. Consult your vehicle’s manual to identify the specific fuse associated with the fuel pump. Visually examine the fuse for signs of damage, such as a broken filament or discoloration. A blown fuse is often easy to spot, but subtle cracks or burns may require closer inspection. If the fuse appears intact, use a multimeter to test for continuity. A lack of continuity indicates a blown fuse that needs replacement. Always replace fuses with the correct amperage rating to avoid further electrical issues.
Relays, on the other hand, are more complex and require a different approach. The fuel pump relay switches the high current needed to operate the pump, and its failure can mimic a blown fuse. Start by locating the relay, often found in the under-hood fuse box or relay panel. Swap the fuel pump relay with a similar one in the same panel (e.g., the horn relay) to test functionality. If the fuel pump engages after the swap, the original relay is faulty and should be replaced. Relays can also be tested with a multimeter by checking for voltage at the input and output pins, but this method requires familiarity with relay pin configurations.
While inspecting fuses and relays, consider environmental factors that may contribute to their failure. Moisture, dirt, and corrosion can accelerate wear, particularly in older vehicles. Clean the fuse box and relay contacts with electrical cleaner and a soft brush to ensure proper conductivity. Additionally, inspect the wiring harness for frayed or damaged wires, as these can cause intermittent issues that mimic fuse or relay failure. Regular maintenance of these components can extend their lifespan and reduce the likelihood of unexpected breakdowns.
In conclusion, checking the fuel pump fuse and relay is a straightforward yet critical step in diagnosing electrical issues. By combining visual inspection, multimeter testing, and component swapping, you can quickly identify and resolve problems. Remember to use the correct replacement parts and address underlying issues like corrosion to prevent recurrence. This proactive approach not only saves time and money but also ensures your vehicle’s fuel system operates reliably.
