Sylvie Willis

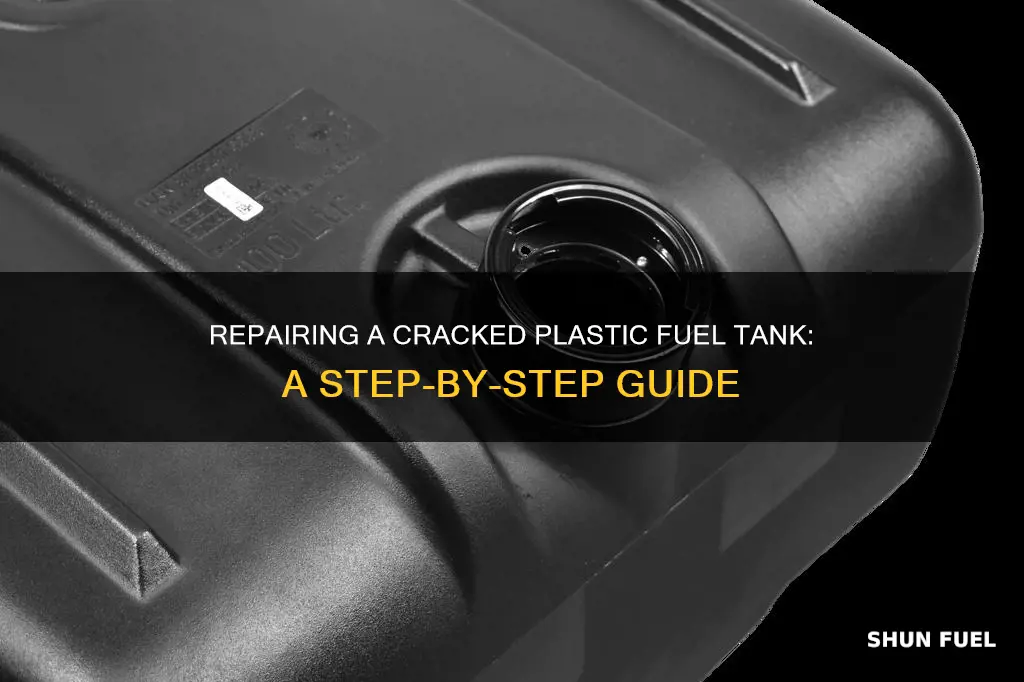

A cracked plastic fuel tank can be a challenging issue to resolve, and the best approach may depend on the specific circumstances and the type of plastic involved. While some sources advocate for welding the crack, using a soldering iron or gun, others suggest that gluing the crack shut with an adhesive or epoxy may be more effective. Some people have had success with JB Weld, a fuel-proof automotive-grade plastic weld glue, or G-Flex, which is quite strong. However, others have found that glues and epoxies fail over time, especially with the flexibility and vibration of the tank, and recommend welding instead. The location of the crack is also important to consider, as some methods may not work on bottom cracks or cracks between the threads of the tank neck. In some cases, it may be best to simply replace the tank, especially if the crack is severe or if there are safety concerns.
Characteristics and Values Table for Fixing a Crack in a Plastic Fuel Tank
| Characteristics | Values |
|---|---|
| Cause of Crack | Hanging the gas pump gun while filling, resulting in the weight of the gun/hose causing a crack |
| Repair Methods | Plastic welding, soldering, epoxy/glue, hot glue gun, UV resin, flex seal tape, mechanical patch |
| Tools/Materials | Soldering iron, solder gun, HDPE welding rod, plastic weld glue, JB Weld, sandpaper, plastic stick, flame treatment, fabric patch, sealants |
| Preparation | Drilling holes at both ends of the crack to prevent it from growing, cleaning and drying the tank, preheating, sanding the surface |
| Challenges | Risk of contamination, difficulty bonding with PE, gasoline corrosion, temporary fixes, safety concerns |
| Alternatives | Replacing the tank, using a salvage yard or scrapper for used parts, adapting or building a different gas tank |
Explore related products
What You'll Learn
Drilling the crack to stop it from growing
Drilling the crack is a method to stop it from growing and expanding. This method is also known as plastic welding, which involves melting the plastic around the crack and mixing the semi-molten sides together to form a single piece. This technique requires a soldering iron or a plastic welding tool.
Firstly, it is important to ensure the tank is empty and clean. The crack should be sanded gently to help the repair material adhere better. Then, using a solder iron or a soldering gun, apply heat to the tank, focusing on the area around the crack. It is recommended to set the temperature between 250-300 Celsius for effective melting of the plastic.
Once the plastic is sufficiently heated, use a plastic welding tool or a soldering iron to melt the edges of the crack together. This process involves blending the semi-molten plastic on both sides of the crack, creating a seamless joint. It is crucial to gradually increase the heat to avoid scorching the plastic, which can compromise the weld.
For added strength, a filler rod can be used to reinforce the welded area. The plastic welding rod should be melted and applied to the crack, filling any gaps and creating a strong bond. This process may need to be repeated to ensure a thorough repair.
Finally, allow the plastic to cool gradually at room temperature. It is important to be cautious when working with fuel tanks to avoid inhaling harmful fumes and to prevent fuel contamination. Additionally, fuel vapors are highly flammable, so open flames should be avoided.
Jaguar's Dual Tank: Easy Fueling Guide
You may want to see also
Explore related products
Using a soldering iron to melt the crack back together
To fix a crack in a plastic fuel tank using a soldering iron, you will first need to empty the tank of any fuel and leave it open to prevent pressure from building up inside. Next, use medium-rough sandpaper to sand the area around the crack. Sanding will clean the area and allow the plastic stick to bond better with the tank. It will also help fill the crack.
Set your soldering iron to a temperature between 250-300 degrees Celsius, and use a wider solder tip, around 1cm wide, to help dissipate the heat evenly around the crack. Take a plastic stick in one hand and the soldering iron in the other. Apply heat to the tank, then remove the soldering iron, place the plastic stick on the tank, and reapply heat. You should feel the plastic melt and bond to the tank. Move the soldering iron along the crack in this manner until the plastic stick has been melted along the entire length of the crack.
Once the plastic has cooled and hardened, use sandpaper to sand the repaired area again. If any part of the plastic stick has not properly bonded to the tank, it will fall off, indicating which areas need to be repaired. Finally, fill the tank with fuel and check for any leaks.
It is important to note that this method may not work for all plastic fuel tanks, and it is crucial to take appropriate safety precautions when working with fuel and soldering irons.
Cleaning a Motorcycle Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Applying a fuel-proof automotive-grade plastic weld glue
Fixing a crack in a plastic fuel tank can be challenging, but it's possible to repair it using a fuel-proof automotive-grade plastic weld glue. Here is a step-by-step guide on applying this glue to fix your fuel tank:
Prepare the Fuel Tank
Before you begin, ensure the fuel tank is completely empty and free of any fuel residue. Clean the area around the crack thoroughly. Use a degreaser or a suitable solvent to remove any oil, grease, or dirt. This step is crucial as it ensures a strong bond between the glue and the plastic surface.
Identify the Plastic Type
Different types of plastics require specific types of glue. Most fuel tanks are made from High-Density Polyethylene (HDPE) plastic, which has excellent chemical resistance. However, it's important to identify the type of plastic your fuel tank is made of. Look for symbols or abbreviations on the tank that indicate the plastic type. Knowing the plastic type will help you choose the right glue for a durable repair.
Choose the Right Glue
Select a fuel-proof automotive-grade plastic weld glue suitable for the identified plastic type. JB Weld is a popular brand that offers a range of products, including those specifically designed for plastic repairs. Their PlasticBonder, for example, sets in 15 minutes and cures in 30 minutes. Always read the product instructions and choose a glue with the appropriate set and cure times for your repair.
Apply the Glue
Follow the manufacturer's instructions for the chosen glue. Typically, you'll apply the glue directly to the crack, ensuring it penetrates the crack thoroughly. Use a glue applicator or a small tool, like a wooden stick, to spread the glue evenly along the crack. Make sure to wear protective gloves during this process to avoid any skin contact with the glue.
Allow for Cure Time
Once the glue is applied, give it enough time to cure. Cure times can vary depending on the product, environmental conditions, and temperature. For example, the JB Weld Original sets in 4-6 hours and cures in 16-24 hours. Refer to the product instructions to determine the required cure time for your chosen glue.
Sand and Finish
After the glue has cured, use sandpaper to smooth out the repaired area. Sanding will help create a seamless finish and ensure the repaired area blends with the rest of the fuel tank. Once you're satisfied with the smoothness, you can fill the tank with fuel, and your repaired fuel tank will be ready to use.
Remember, while this repair method can be effective, it is essential to prioritize safety. Always work in a well-ventilated area when dealing with fuel and glue fumes. If the damage is extensive or you're unsure about the repair process, consider seeking professional assistance or replacing the fuel tank altogether.
Oil Tankers: Self-Sustaining Fuel Journey Limits
You may want to see also
Explore related products
Using a hot glue gun to seal the crack
To fix a crack in a plastic fuel tank using a hot glue gun, you will need to follow a few important steps. Firstly, it is crucial to drain the gasoline from the tank and allow it to dry completely. This is an essential safety precaution as you will be working with heat and glue. Once the tank is empty and dry, you can begin the repair process.
The next step is to identify the type of plastic your fuel tank is made of. Look for symbols or abbreviations on the tank that indicate the type of plastic. This information will be useful when choosing the right glue for the repair. Different plastics have varying melting points and properties, so using the correct glue is essential for a safe and effective repair.
With the tank emptied and the plastic type identified, you can now prepare the crack for sealing. Use coarse grit sandpaper to sand the area around the crack, creating a smooth and clean surface. This step helps ensure that the glue will adhere properly to the plastic. After sanding, use a cloth soaked in rubbing alcohol to clean the area thoroughly, removing any dust or debris.
Now, it's time to get your hot glue gun ready. Choose a glue that is specifically designed for the type of plastic you identified earlier. There are glues available that are solvent-resistant or gas-resistant, which are ideal for this application. Make sure the glue is compatible with the plastic, as some plastics may react poorly to heat and glue.
With the glue selected, carefully apply it along the length of the crack, ensuring that you fill any gaps or crevices. The hot glue will melt slightly into the existing plastic, creating a strong bond. Apply a generous amount of glue to ensure that the crack is completely sealed. Use a putty epoxy if you can't use a hot glue gun.
Finally, allow the glue to dry and cure completely. This may take several hours or even days, depending on the type of glue used. Do not refill the tank or use the vehicle until the glue has fully cured. Once cured, your plastic fuel tank should be sealed and ready for use.
Fabricating a Motorcycle Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Welding the tank
To weld the tank, you can use a soldering iron or a plastic welder. If using a soldering iron, set the temperature between 250-300 Celsius. It is recommended to use a wider solder tip, around 1 cm wide, to help dissipate the heat evenly around the crack. Take a plastic stick in one hand and the soldering iron in the other. Apply heat to the tank, then remove the soldering iron, place the stick on the tank, and apply heat to the stick. You will feel the plastic melt and bond to the tank. Move along the crack in small increments, repeating this process until the crack is sealed. Once the plastic has cooled, you can sand the repaired area for a smoother finish.
If you have access to a plastic welder, you can use a nylon or PE filler rod to fill in the crack. This method will require melting the plastic around the crack and mixing the semi-molten sides together to create a strong bond.
It is important to note that welding the tank may not always be a viable option, depending on the location of the crack. If the crack is in a tight or inaccessible area, it may be difficult to reach with the welding equipment. In such cases, alternative repair methods, such as using adhesives or patches, may be considered.
Additionally, it is crucial to take necessary safety precautions when working with plastic fuel tanks. Ensure that the tank is properly cleaned and dried before beginning any repair work. Always work in a well-ventilated area to avoid inhaling toxic fumes, and be cautious when using heat or flames near the tank to prevent any potential fire hazards.
Fuel Tanker Trailers: Massive Capacity, Safe Hauling
You may want to see also
Frequently asked questions
Fixing a crack in a plastic fuel tank can be done in several ways, but the effectiveness of the repair depends on the location of the crack and the type of plastic used. Some common methods include:
- Plastic welding using a soldering iron or gun
- Gluing with a fuel-proof automotive-grade plastic weld glue
- Epoxy repair using a product like JB Weld
- Using a hot glue gun
The best method for repairing a crack in a plastic fuel tank is plastic welding. This method ensures a strong and lasting repair by melting the crack and mixing the semi-molten sides together to become one again.
Most plastic fuel tanks are made from HDPE (High-Density Polyethylene) plastic. This type of plastic has excellent chemical resistance and is not attacked by strong acids or bases.
While epoxy can be used as a temporary fix, it is not a perfect seal and may not last long-term. It is important to properly prepare the surface and use an epoxy that is specifically designed for plastic and fuel tanks.
